MKN Induction Cooking Table 1223103 – 4 Zone, CounterSL
CounterSL induction cooking table 1223103, 800 x 700 x 270 mm with 14 kW at 400 V and a 700 x 540 mm glass-ceramic work surface.
Brand
MKN Maschinenfabrik Kurt Neubauer GmbH & Co. KG — German manufacturer of thermal professional cooking technology, supplying marine and aviation galleys for over 75 years.
Every unit is quoted to the vessel: supply voltage, frequency and installation arrangement are specified at order.
CounterSL induction cooking table 1223103, 800 x 700 x 270 mm with 14 kW at 400 V and a 700 x 540 mm glass-ceramic work surface.
60-litre round electric boiling kettle with VAPRO steam generator, 16 kW at 400 V in an 800 x 700 mm Optima 700 body. Article 2122802C.

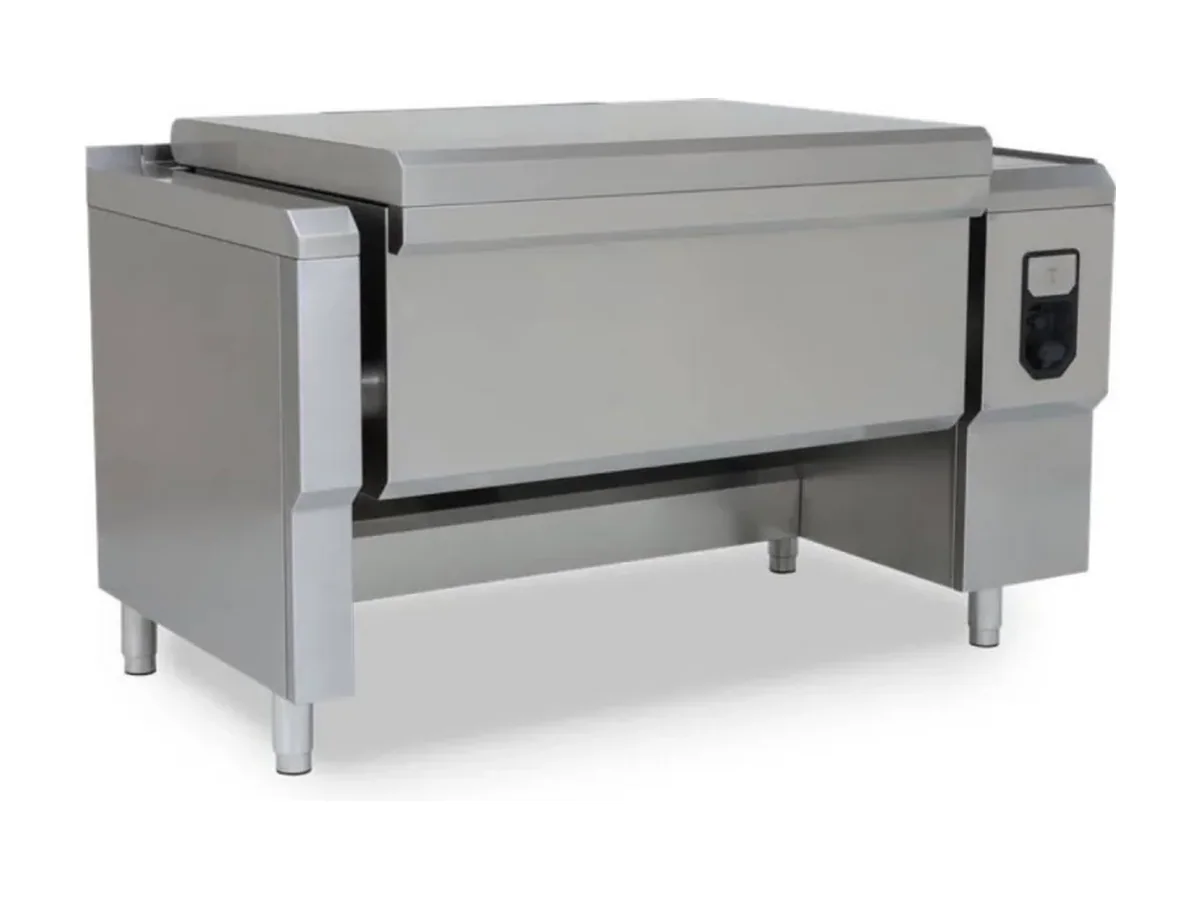

50-litre FlexiChef multifunctional pan, 523 x 543 x 225 mm work surface, 14.7 kW at 400 V in an 1100 x 850 mm footprint.
400 x 700 mm CounterSL induction cooking table 1223101, 7 kW at 400 V with 305 x 540 mm glass-ceramic work surface.
Single-zone 5 kW induction wok module, 350 x 350 mm surface in a 500 x 700 x 270 mm CounterSL body. Article 1223106.
Single-zone 10 kW CounterSL induction cooking table, 400 x 400 mm work surface in 500 x 700 x 270 mm body. Article 1223111.
400 x 700 mm MKN HotLine induction cooking table 1323101 with 7 kW load on a 305 x 540 mm glass-ceramic working surface, 400 V supply.
800 x 700 mm HotLine induction cooking table 1323103, 14 kW at 400 V with 700 x 540 mm glass-ceramic work surface in 1.4301 stainless steel.
MKN is a family-owned German manufacturer based in Wolfenbüttel, Lower Saxony, producing thermal cooking equipment for professional kitchens on land and at sea. The company manufactures on an 80,000 m² site and is certified to ISO 9001 and ISO 14001.
MKN supplies electric appliances in two marine grades. Marine basic adds a special voltage, a stable flanged foot that makes the appliance slip- and tilt-resistant, insert racks that secure trays and GN containers in a seaway, and a door that stays in position in rough weather. Marine plus adds the hygiene standard required under the Vessel Sanitation Program — seals, drain filter and drip tray — with a welded housing and a one-piece seamless worktop.
Equipment supplied to marine galleys must satisfy VSP hygiene rules and SOLAS safety regulations. MKN addresses both with flanged feet, door stops, secured pull-out rails and cooker guards. IPX6 protection against powerful water jets is not range-wide: 63 of the 511 MKN units we list state it, and they are the boiling kettles and griddle plates rather than the OPTIMA cooking blocks. The rating is worth confirming per unit before a wash-down regime goes into the cleaning schedule.
FlexiChef is the multifunctional appliance: boiling, braising, shallow frying, deep frying and pressure cooking in one pan, with the SpaceClean automatic cleaning system. FlexiCombi and SpaceCombi are the combi steamers, the latter built for restricted galley footprints. OPTIMA is the modular line, available in 700 mm and 850 mm depths, from which complete cooking suites are built. CounterSL covers countertop units, HotLine the free-standing range. MarineMeister is MKN’s purpose-built marine cooking suite, handcrafted with a one-piece seamless worktop, welded functional appliances and an individual yacht design.
MKN deep fat fryers can be specified with Fry Safe, a safety package developed for the risk that hot oil presents in a moving galley: an electronic safety temperature limiter, self-monitoring fail-safe system, minimum oil level monitoring and TÜV-certified protection.
MKN equipment is in service with Disney Cruise Line, AIDA, Carnival, Celebrity Cruises, Holland America Line, Hurtigruten, MSC, NCL, Oceania Cruises, Silversea, Seabourn, Star Clippers and The Ritz-Carlton Yacht Collection, among others.
