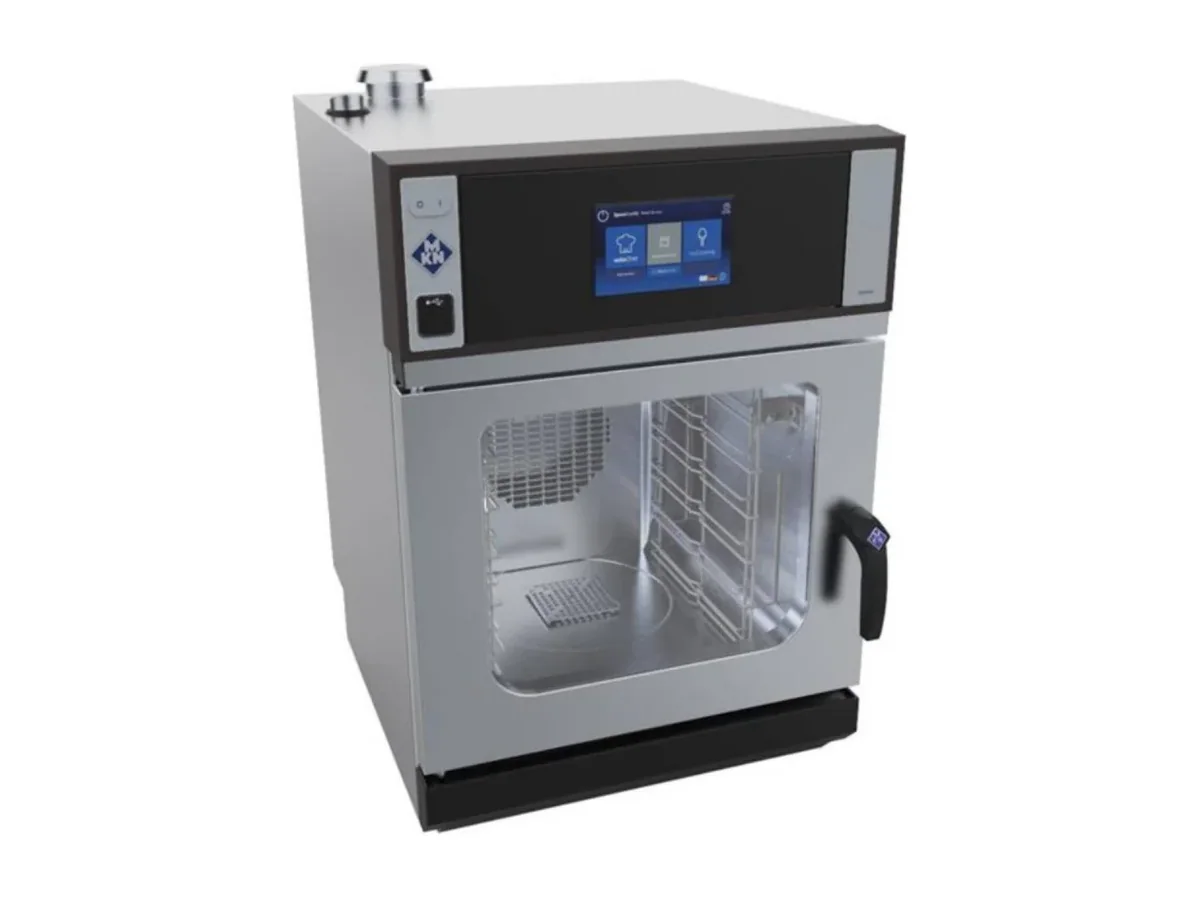

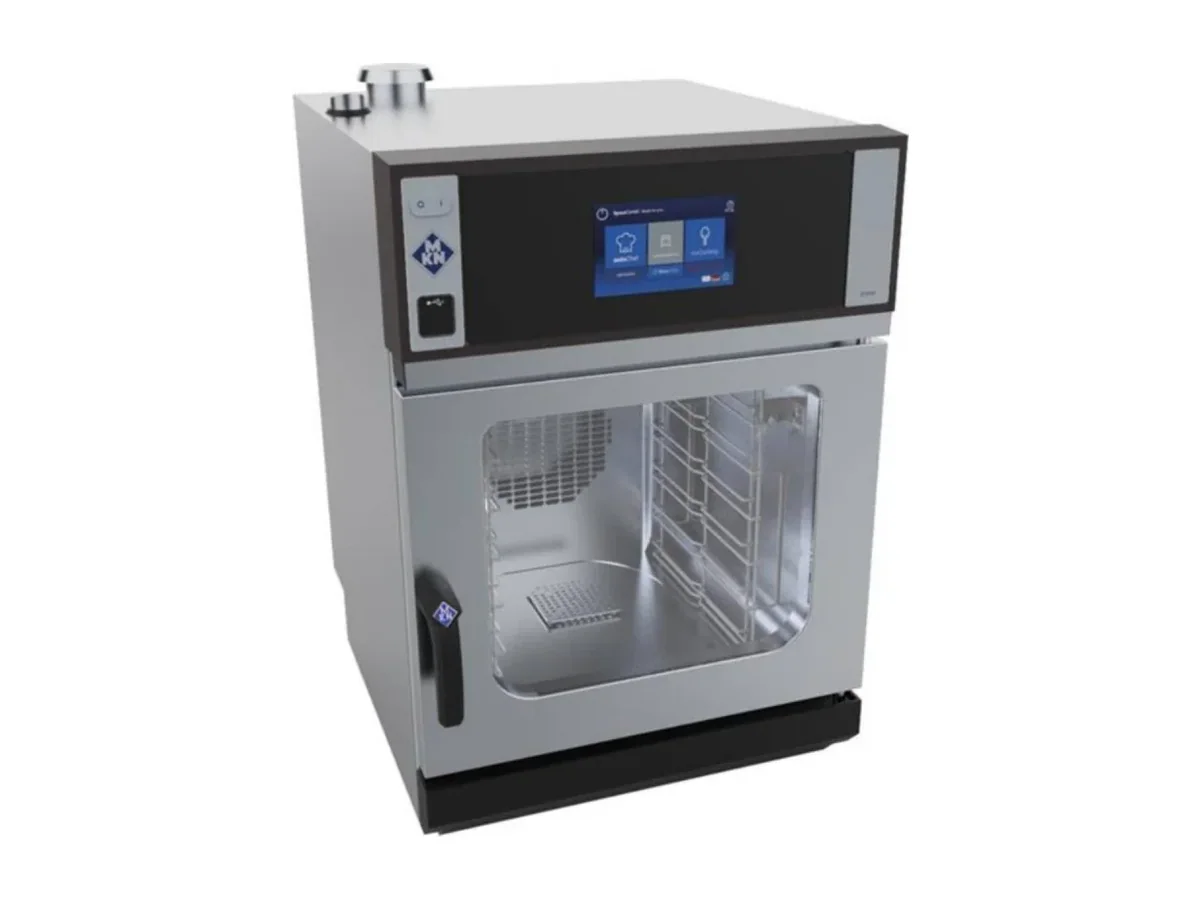

MKN Combi Steamer SKECOD623TG2 – Oven, Electric, Junior

5.2 kW at 400 V in a cabinet only 550 x 611 mm on plan defines the MKN Junior SKECOD623TG2. It is sized for 20–50 meals per day, so it sits between a snack appliance and a full production combi, covering a small ship’s main galley or a larger vessel’s satellite pantry.

On board, that combination of output and footprint matters more than in a shore kitchen. At 550 x 611 x 784 mm and 68 kg net weight, the unit can be positioned where a standard-width combi would block access routes or encroach on scupper lines, and can be handled through narrow doors and companionways during installation or replacement. Electrical load at 5.2 kW on a 400 V supply is light enough to sit on a modest galley sub-distribution board without a redesign of the ship’s switchboard, yet it still covers the stated 20–50 meals per day, which is the scale of a crew mess on a coastal vessel or an officers’ galley on a larger ship.

The technical balance on the SKECOD623TG2 is clear: enough chamber volume and power density to turn over 20–50 portions without extended waiting times, in an envelope that galleys can often find above undercounter refrigeration or beside a small preparation block. The 784 mm height keeps the loading plane workable when the oven is set on a low plinth or refrigerated base, keeping trays within easy reach rather than above shoulder height. At 68 kg, a pair of installers can manoeuvre it without heavy lifting gear, reducing time in a dry dock or refit window.

A 400 V electrical connection simplifies specification where the vessel already runs other galley equipment on the same distribution. The 5.2 kW rating needs to be accounted for in the HVAC calculation as sensible and latent heat but sits well below the draw of larger combis, which can help keep the air-conditioning and extraction plant within existing margins on a retrofit.

Build and control

• Compact Junior-series external dimensions of 550 x 611 x 784 mm
• Net weight 68 kg for easier handling aboard
• Electric connection at 400 V to align with common galley supplies
• 5.2 kW electrical power rating
• Capacity banded for 20–50 meals per day

This Junior combi steamer is the right choice where the galley needs combi functionality for 20–50 covers and deck area is tightly constrained, such as crew galleys, officer dining rooms or speciality counters. It is the wrong choice as the sole production oven in a main galley serving significantly more than 50 meals per service, where a larger body and higher electrical rating are necessary to avoid bottlenecks.

Ordered under MKN product number SKECOD623TG2.
