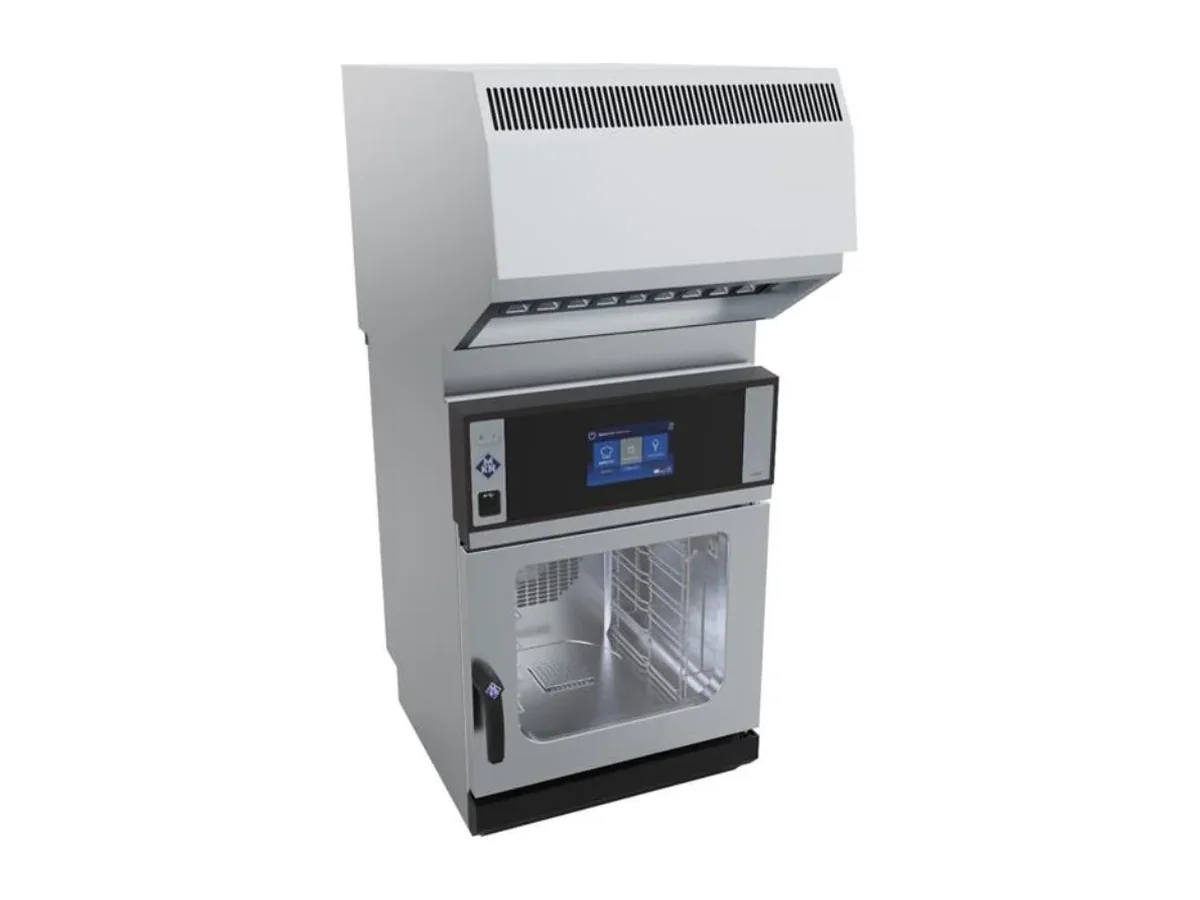

MKN Combi Steamer SKECOD623TG2-SK_MAGICHOOD – Oven, Electric, Junior

Twenty to fifty meals per day and 5.2 kW connected load put the SKECOD623TG2-SK_MAGICHOOD firmly in the small-ship and satellite-galley bracket. At 550 x 854 x 1261 mm it delivers full combi functionality in a footprint that fits where a standard-width combi will not.

On board, that scale matters because galley real estate is constrained and electrical capacity is allocated across all hotel loads. A 5.2 kW oven is easier to place on a 400 V galley distribution board than a larger combi, and the narrower 550 mm body opens up options for mounting in snack points, crew serveries or speciality corners where only a short section of bulkhead is available. The stated 20–50 meals per day gives a realistic planning figure for menu design and service throughput.

The Junior-series chassis carries a width of 854 mm overall, including door and handle, matched to a height of 1261 mm. That height leaves clear space to the deckhead in most refit situations while still allowing ergonomic loading without steps. At a net weight of 98 kg this oven is light enough for installation on existing foundations or consoles designed for compact cooking blocks, but still needs a properly designed stainless plinth or flanged-foot arrangement to meet marine stability and hygiene expectations. The 400 V supply aligns with common shipboard three-phase systems, so the unit can be ordered to match the vessel’s electrical standard rather than adapted later with transformers.

Because the daily volume is specified at 20–50 meals, this combi suits galleys where the oven is one of several cooking appliances sharing production. On a vessel running multiple sittings or where the combi is the primary hot production tool for more than that meal count, the cycle time and loading pattern need to be examined carefully; in those cases, a larger chamber from the same manufacturer is usually the better fit. Here the strength is controlled portion output in a small space rather than peak banquet production.

Build and control

• Junior-series compact combi format
• Integrated MagicHood version
• Electric heating, 5.2 kW connected load
• 400 V supply for shipboard distribution systems
• Net weight 98 kg for installation on marine plinths or consoles

This unit is the right choice where a compact, electric combi is needed for up to 50 meals per day and both deck area and power allocation are tight. It is not the right choice where a main galley line has to cover several hundred meals per service; in that case, larger-body combis with higher connected loads should be specified. Ordered under MKN article number SKECOD623TG2-SK_MAGICHOOD.
