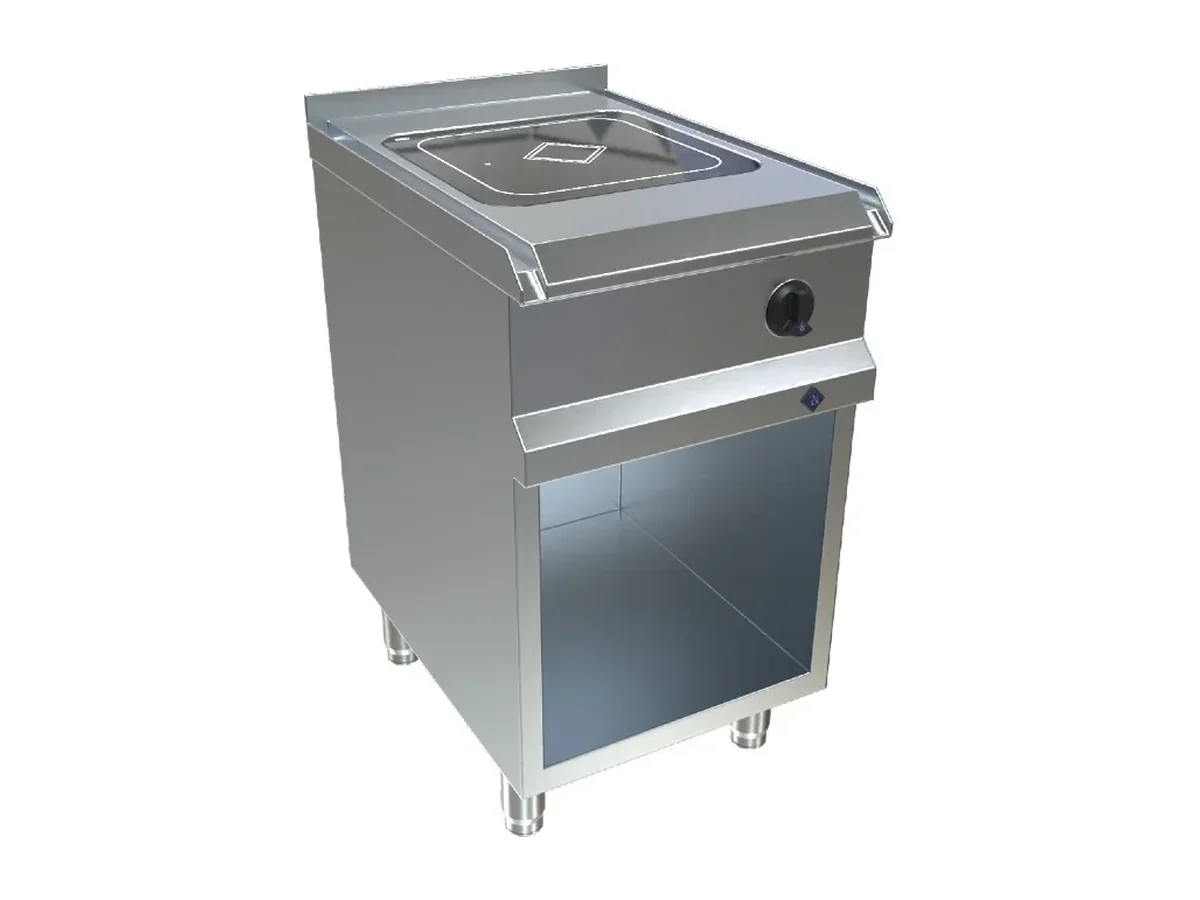

MKN Cooking Module 7EHEI051XQF8 – Electric, Induction

8 kW at 380–415 V is the defining data point for the MKN 7EHEI051XQF8 induction cooking module. That rating places it firmly in the production category for a lined-up galley block rather than as a light-duty counter-top unit.

On a vessel, the declared 380–415 V electrical supply allows the electrical engineer to allocate this module cleanly on the three-phase distribution without having to adapt shore-oriented voltages. The 8 kW load can be planned directly into the main switchboard and sub-distribution, which simplifies cable sizing, breaker selection and diversity calculations. In a confined galley, the fact that this power is delivered through an electric induction system rather than exposed elements means the heat stays largely in the pan, and the hinged lid helps contain steam and splashes so the HVAC system does not have to deal with unnecessary moisture and radiant gain from an open vessel.

Compliance with DIN 18851 matters when the cooking line has to integrate with fabrication and furniture already specified to commercial kitchen standards. It signals that the 7EHEI051XQF8 has been designed for that environment instead of being adapted from a domestic pattern. For a shipyard or refit team, this reduces the risk of geometry clashes and awkward hygiene details at joints between the module and adjacent stainless steel work. Fully welded seams support this by presenting a closed surface with no open gaps for food soil, salt or cleaning water to collect, which is particularly important where galleys are washed down frequently with water rather than being cleaned only by hand.

From a technical planning perspective, the 8 kW electrical power rating is the number that defines the module’s performance envelope and its impact on the ship’s power balance. An induction appliance at this level gives the chef access to high heat input for searing and fast boiling, while still allowing precise low-power control when required. At the same time, the clear specification of 380–415 V as the electrical supply avoids uncertainty over step-up or step-down transformers at the point of use and lets the yard design around a known three-phase interface.

IP-rated water protection, together with the fully welded seams, is what allows the superintendent to specify wet cleaning of the unit without having to protect vulnerable joints and penetrations. In practice this translates into less time spent working around panel gaps and more time actually cleaning surfaces, which supports hygiene inspections where construction and cleanability are examined closely. The hinged lid plays a role here too, containing boil-overs and splashes within the cooking area so that fewer adjacent surfaces are exposed to soil.

Build and control

• Complies with DIN 18851 for commercial kitchens
• Hinged lid
• Fully welded seams
• IP-rated water protection

This module is well suited to a main galley or production area where the electrical infrastructure is already designed around 380–415 V supplies and where an 8 kW induction appliance can be allocated its full load. It is the wrong choice for a pantry, servery or small mess where only very limited electrical capacity is available and where a lower-powered appliance would avoid uprating local circuits or distribution boards. Ordered under MKN article number 7EHEI051XQF8.
