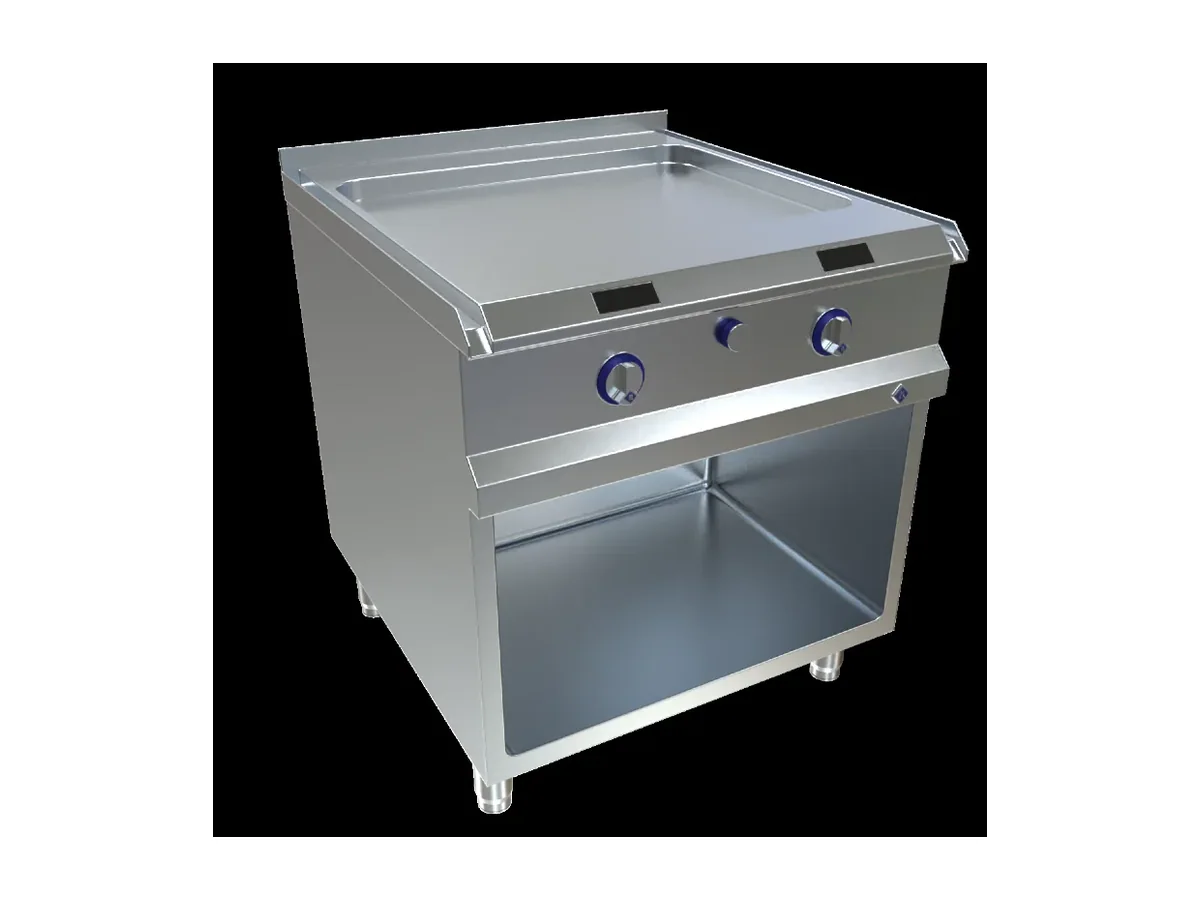

MKN Electric Griddle Plate 8EGRP080DFGS

Two heating zones and a 10 kW FlexPower rating define the 8EGRP080DFGS as a workhorse griddle for a main cooking line. With the load split across 2 zones, the plate can be run with separate temperature regimes instead of tying the whole surface to one setting.

The electrical supply is specified as 380–415 V, 3 N-PE AC/50 Hz, with fuse protection at 3×20 A. Those three values matter to the ship’s electrical designer: cable sizing, breaker selection and panel grouping all start from the declared 10 kW input and the stated fusing. A griddle at this load level will usually share a distribution panel with other cooking equipment, so having the supply window clearly defined reduces redesign work late in the project.

On board, any 10 kW cooking appliance is both a production asset and a heat source that the ventilation and HVAC systems must handle. Locating this unit under an extraction canopy and tying its 10 kW FlexPower figure into the heat-load calculation helps avoid overloading a small galley’s air-conditioning capacity. The 380–415 V three-phase supply also means it belongs in a space where three-phase power is already planned, not on a light-duty service pantry circuit.

The “2 heating zones” description is a practical planning tool as much as a label. Independent zones make it possible to dedicate one half of the plate to high-temperature searing and the other to lower-temperature holding or finishing, so a single footprint covers more of the menu. That reduces the need for separate, single-purpose appliances and helps when the cooking line has to be condensed into a short run of equipment.

For the engineering team, the combination of a 10 kW FlexPower rating and 3×20 A fuse protection gives a bounded load profile they can trust. It is clear what the maximum draw will be, how it will be distributed across the three phases, and what protection has to be mirrored in the shipboard switchgear.

Build and control

• IPX6 IP-rated water protection

The IPX6 protection rating aligns the 8EGRP080DFGS with shipboard cleaning practices that rely on spray cleaning rather than hand wiping. A griddle with this rating can be specified into a wet-cleaned galley without asking the crew to change how they wash down equipment, as the enclosure is designed to withstand heavy water exposure during routine cleaning.

This model is a strong candidate where the galley requires a two-zone plate on a 380–415 V, 3 N-PE AC/50 Hz supply, with a defined 10 kW load and IPX6 protection for intensive washdown. It is the wrong choice for very small galleys or pantries that only have single-phase power available, or where the menu does not justify two independently controlled heating zones and a griddle in this power class. In those situations a simpler, lower-load plate or a different cooking method will usually integrate more easily into the electrical and ventilation design.

Ordered under MKN product number 8EGRP080DFGS.
