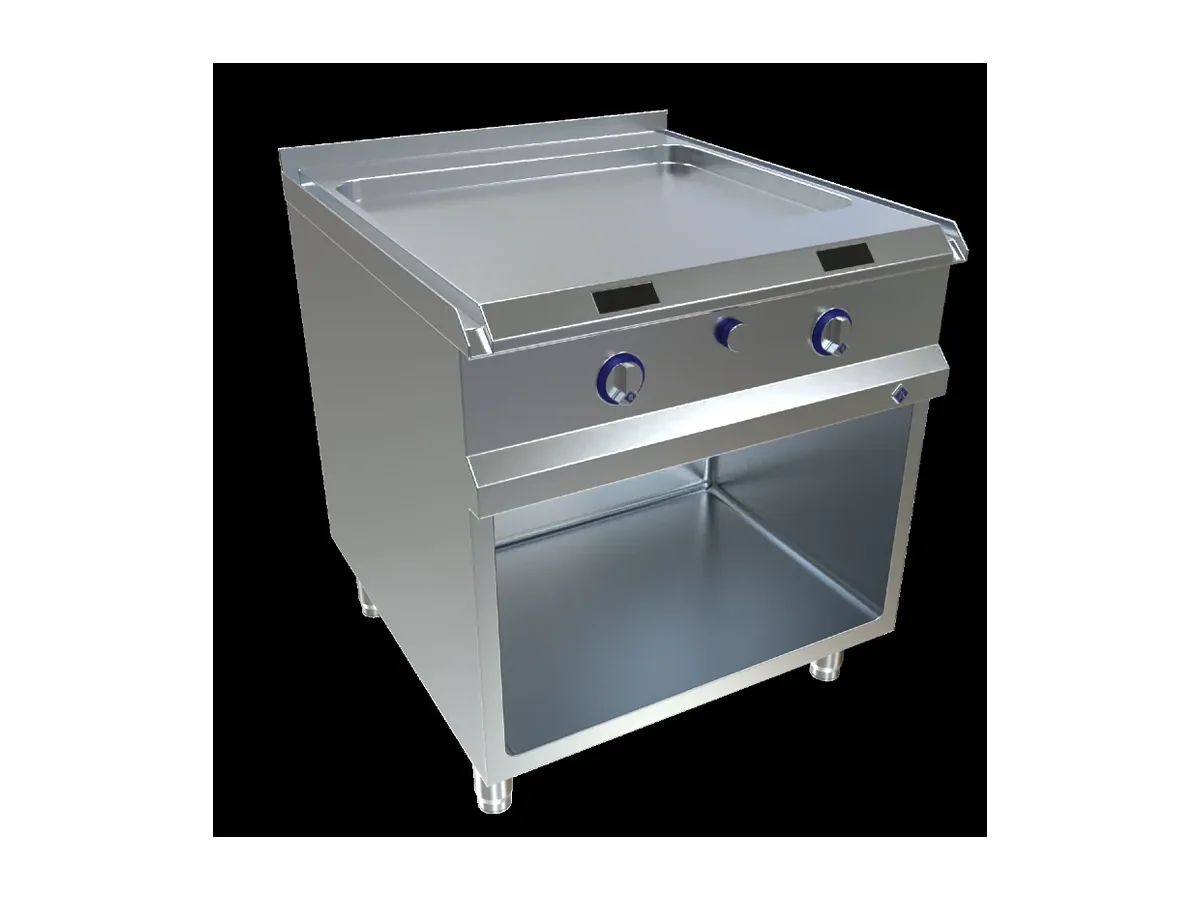

MKN Electric Griddle Plate 8EGRP080DMGS

13,3 kW of connected MaxPower across two heating zones defines how the MKN 8EGRP080DMGS works on the line. That level of load positions it as a main griddle surface that can carry a core part of service, not a side appliance.

The electrical specification is 380-415 V, 3 N-PE AC/50 Hz. That sits in the standard three-phase band many commercial and marine galleys are wired around, so the unit can be planned directly onto an existing distribution where that voltage and frequency are already defined. With 13,3 kW at stake, confirming that the board, breakers and cable sizing are matched to this supply at design stage avoids having to revisit the layout once the rest of the galley loads are committed.

Two heating zones on a single plate allow one area to be driven harder while the other is held at a lower setting, or both to be run together when peak demand hits. From an engineering point of view, that flexibility is achieved on one 380-415 V, 3 N-PE AC/50 Hz feed and one piece of connected equipment, rather than distributing similar power across multiple smaller griddles with separate hook-ups. The quoted MaxPower figure is also the number that needs to be taken into the HVAC calculation, because input at that scale ends up as heat that extraction and cooling plant must remove from the galley envelope.

The IPX6 protection rating is central to how the 8EGRP080DMGS is cleaned and specified aboard. IPX6 is a declared level of resistance against water jets, which matches the practice of washing down galley equipment with spray guns rather than relying entirely on manual wiping. Cleaning regimes on ships often involve frequent, intensive wash-downs around and over the cooking line; an IP-rated water protection feature on the specification sheet shows that this has been considered in the design of the housing and penetrations.

Build and control

• IPX6 water protection rating
• IP-rated water protection feature
• Two heating zones with 13,3 kW MaxPower
• Electrical supply 380-415 V, 3 N-PE AC/50 Hz

This model is a good fit where the galley can allocate a 13,3 kW load and needs a griddle that will be in regular, heavy use, with cleaning by hose or spray as part of the daily routine. It is the wrong choice where only a much smaller electrical capacity is available, where the supply does not match 380-415 V, 3 N-PE AC/50 Hz, or where griddling is occasional and a simpler, lower-powered surface would free up power and panel space for other appliances. Ordered under MKN article number 8EGRP080DMGS.
