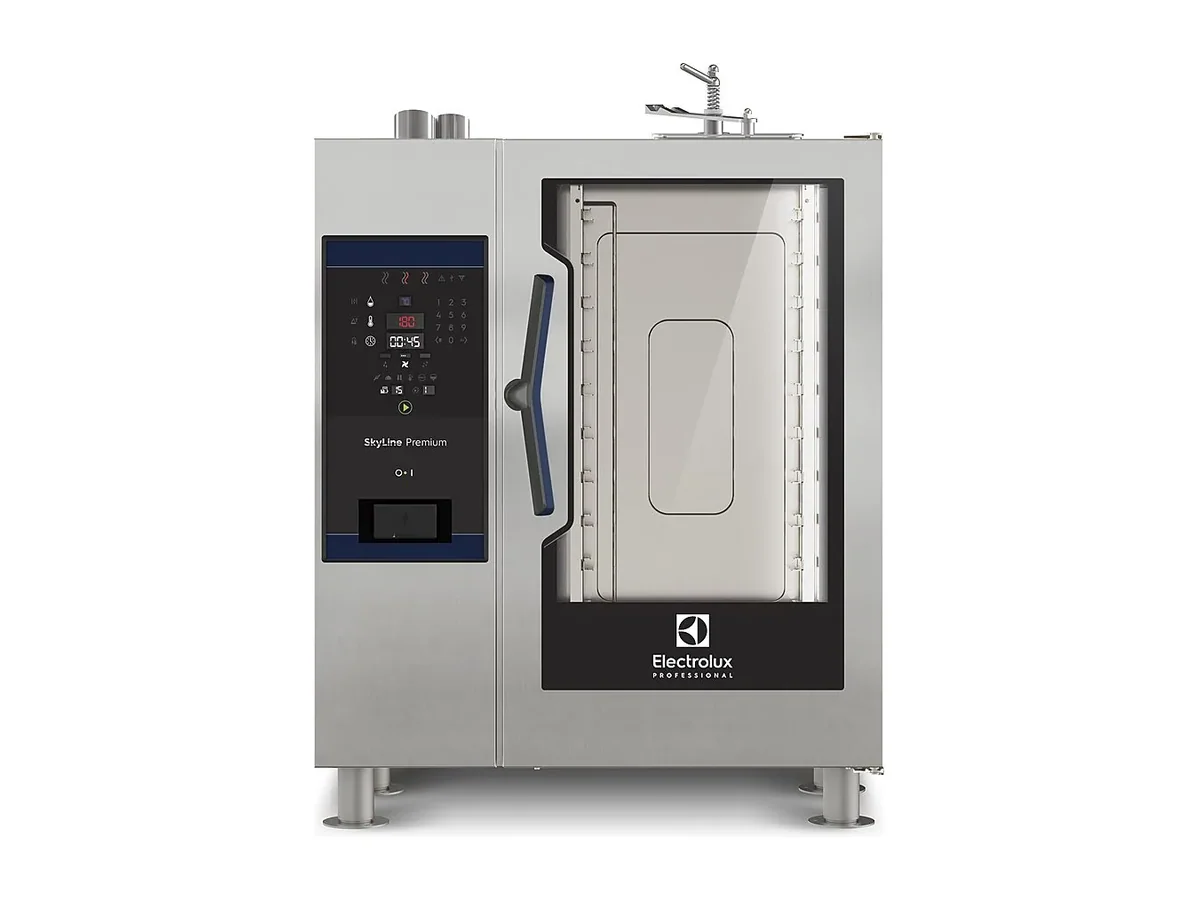

Electrolux Professional Combi Oven 227834 – SkyLine Premium, Electric Combi Oven 10GN1/1

Ten GN 1/1 levels and a 50 kg maximum load put the 227834 in the working core of a ship’s hot galley, not at the edge of it. At 19.8 kW maximum electrical power on a 440 V/3 ph/50–60 Hz supply, it is sized for a marine switchboard rather than a shore kitchen line.

This SkyLine Premium combi oven is wired directly to the vessel’s 440 V, three‑phase, 50–60 Hz system, so it fits the electrical standard used across most newbuilds and refits. Default electrical power is 19 kW, which needs to be accounted for in the galley load calculation alongside ventilation and warewashing. With external dimensions of 867 x 775 x 1058 mm and a shipping volume of 1.11 m³, it occupies a defined block of bulkhead space and delivery route; the 138 kg net weight and 156 kg shipping weight matter when specifying foundations, flanged feet or plinths.

On the cooking side, the 227834 couples a built‑in steam generator with Lambda‑sensor humidity control. That combination lets the dry convection, combined convection and steam, and low‑temperature steam cycles be driven by measured cavity conditions rather than a time‑only profile. The low‑temperature steam cycle is the mode that supports sous‑vide and delicate cooking; on a vessel this is often used for central production of high‑value items that must arrive on the pass in tight temperature bands. With 10 GN 1/1 trays and a 50 kg rating, the load can be structured as batch cooking for crew, passengers or officers without over‑stressing the cavity or the rack system.

Water quality is constrained by the unit’s own limits: chlorides must stay below 85 ppm and conductivity above 50 µS/cm. That has to be checked against the ship’s potable water production and treatment regime, because feed water outside those bands shortens boiler and steam circuit life. The cold water inlet takes 3/4" connections on CWI1 and CWI2, with inlet pressure between 1 and 6 bar; the drain connection is 50 mm. Those figures set the requirements for the local manifolds, pressure reducers if needed, and the gravity or pumped route to the galley waste line.

Build and control

• IPX5 rated against water ingress
• Rounded internal corners for cleaning
• HACCP data logging
• Digital control display
• USB port for HACCP data, programmes and software updates
• Network connectivity for remote monitoring
• Programmable recipe memory
• Core temperature probe
• Lambda sensor humidity control
• Self-diagnostic back-up mode
• Built-in steam generator
• Dry convection cycle
• Combined convection and steam cycle
• Low-temperature steam cycle for sous-vide and delicate cooking

IPX5 protection allows the exterior to be washed down with spray, aligning with shipboard cleaning practice, while rounded internal corners reduce soil retention in the cavity. HACCP data logging with USB and network connectivity means cooking temperatures and core probe readings can be documented for inspection without a manual chart. The programmable recipe memory is particularly relevant for fleets standardising menus across several vessels; once a cycle is validated on one 227834, it can be copied to sister ships via the USB port.

This model is a good fit where the galley needs a single 10 GN 1/1 combi tied into a 440 V/3 ph/50–60 Hz system, with documented HACCP performance and boiler‑based steam for precise humidity control. It is the wrong choice where only a small snack or pantry oven is needed, or where the electrical infrastructure cannot support up to 19.8 kW on one frame. Ordered under Electrolux Professional product number 227834.
