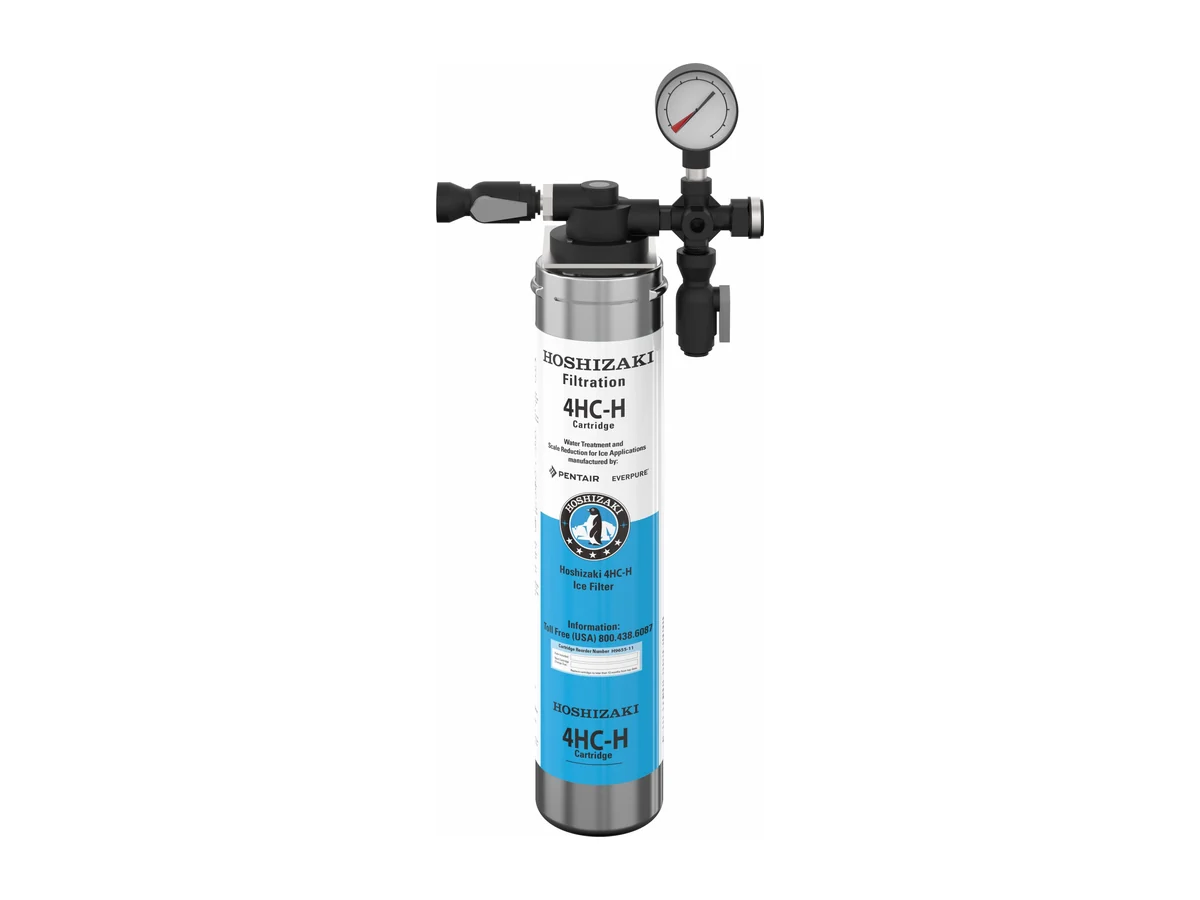

Hoshizaki Water Filter System 9320-51 – 4HC Single, 7.6 l/min

The Hoshizaki 4HC Single Filter water filter system (H9320-51, item 9320-51) is a single-cartridge system with manifold and 4HC-H cartridge for ice machines. It passes up to 7.6 l/min (2 gpm) and treats about 79,485 litres (21,000 US gal) before the cartridges are changed, which Hoshizaki puts at every 6 to 12 months depending on use and water.

Filtration

The 4HC-H cartridge is rated to NSF/ANSI Standard 42, Class 1, for bacteriostatic effects, particulates, taste, odour and chlorine; Hoshizaki states it reduces up to 97.3 % of disinfectant chlorine and filters out dirt and rust that cloud ice, while cutting scale build-up in the machine. Replacement cartridges are H9655-11 (single) and H9655-06 (six-pack). Hoshizaki does not recommend it for use with flakers, nor where the water is microbiologically unsafe without disinfection.

Sizing

Hoshizaki America matches this system to self-contained ice makers and all models producing less than about 408 kg (900 lb) a day. It measures 15.2 × 25.4 × 53.3 cm (W × D × H), works between 0.7 and 8.6 bar (10 to 125 psi) and 2 to 38 °C (35 to 100 °F), and ships at about 1.8 kg.

On board

On a vessel the ice maker is fed from the ship's potable water system, and a filter keeps chlorine taste out of the ice and scale out of the evaporator. Installation kit FKITB is listed for this system. Vista Marine supplies the 4HC Single system for ships, yachts and offshore units. The data on this page is what Hoshizaki publishes for the standard item, and we check the fit with the equipment it serves and the route on board before we quote.
