Miele Dishwasher PFD 104 SCVi XXL [MAR] – 3N AC 400V 50HZ, Without front

Fourteen place settings per cycle and a shortest programme of 36 minutes set the working rhythm of the PFD 104 SCVi XXL [MAR]. With a service life rated at 12,500 wash cycles, it is dimensioned for daily use in a ship’s pantry or small galley rather than occasional hospitality duty.

Externally the unit stands 845 mm high, 598 mm wide and 550 mm deep, fitting into a 600 mm niche with an in-feed height of 210 mm above the floor. That footprint allows it to sit under a standard counter run, which matters on vessels where every millimetre of servery frontage is planned. Net weight is 48 kg and the quoted maximum floor load is 1000 N/m², so naval architects can check deck loading against the surrounding joinery rather than guess.

Electrically this ProfiLine model is specified at AC 230V 50HZ, with a total connected load of 2.1 kW and a heater rating of 1.9 kW. Fuse rating is given as 10–16 A, and the mains connection cable is 1.7 m long, which usually reaches the adjacent technical space without modification. One water connection (cold or hot) is required, with a flow pressure between 1 and 10 bar. The maximum permissible water hardness is 6.5 mmol/l, so onboard water treatment has to be set accordingly if the vessel is running hard potable water.

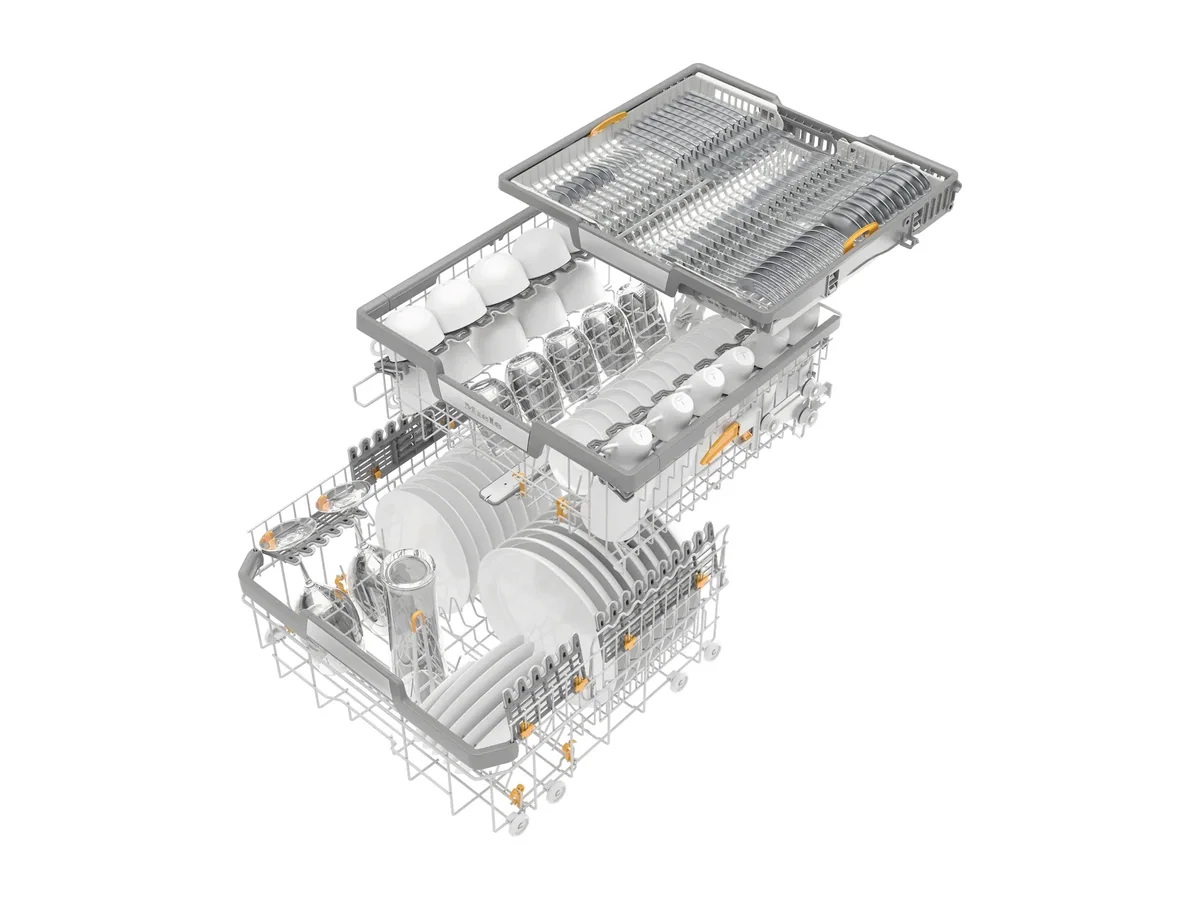

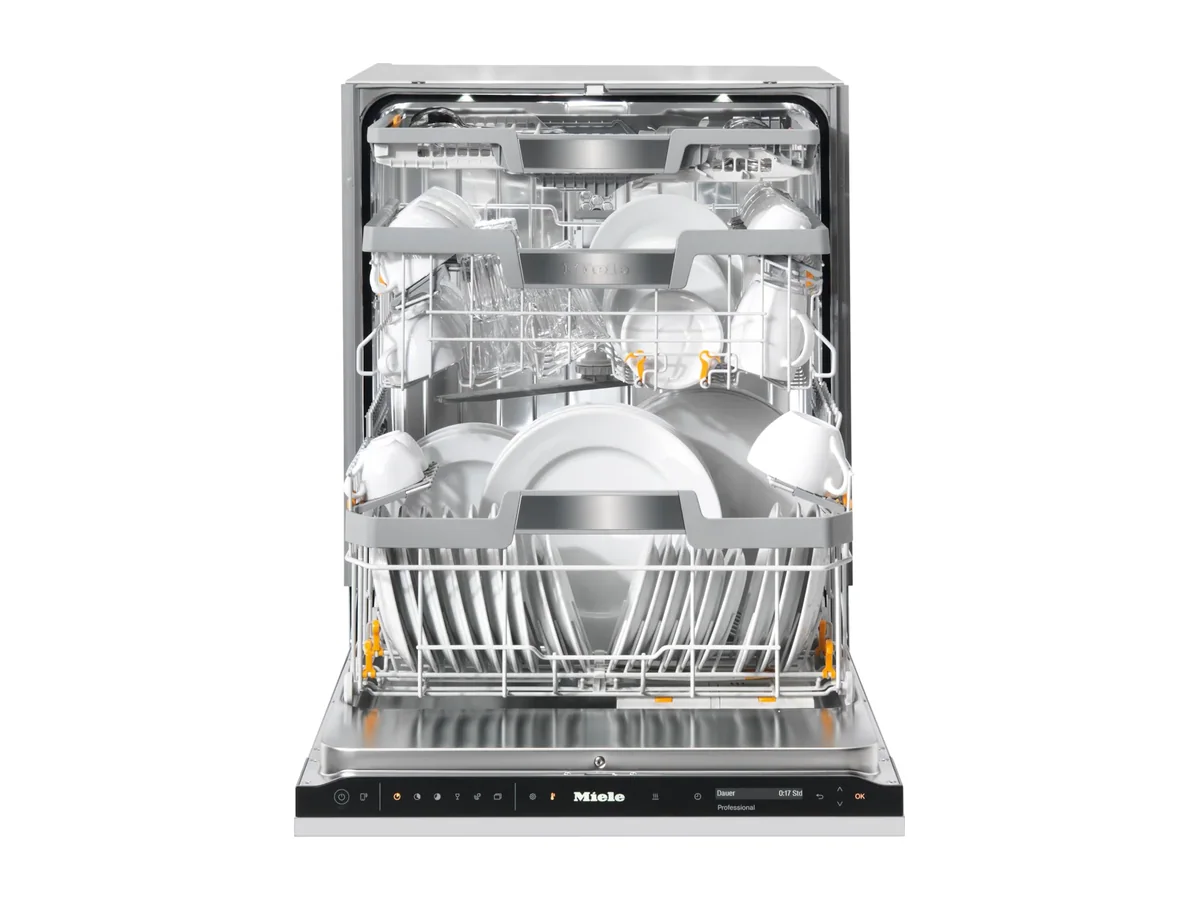

Internally, usable wash cabinet space is 580 mm high, 510 mm wide and 450 mm deep in both upper and lower baskets. Two loading levels are available, supported by four FlexCare glass holders and two FlexCare cup racks to stabilise delicate items at sea. Cleaning performance is stated as 14 place settings per cycle, which guides how many covers a small mess or officers’ galley can turn per wash run. The Universal programme is described as the standard choice for normally soiled load items, and the machine carries eight dishwashing programmes in total.

The drain pump is sized at DN 22 with a maximum head height of 100 cm from floor level, and the drain hose is 150 cm long. Those two numbers define how the unit ties into the scupper or grey-water manifold behind the counter. Sound pressure at the workplace is quoted as 33 dB(A) re 20 µPa, with a sound power level of 45 dB(A) re 1 pW; that low acoustic footprint is relevant when the machine runs in a pantry adjacent to cabins.

Build and control

• Electronic controls with programme selector buttons
• Eight dishwashing programmes, including a Universal standard programme for normally soiled loads
• Independently tested virucidal efficacy
• Verified hygiene performance
• WiFi connectivity (availability of digital products may vary by region)
• Side panels in galvanised material with Obsidian black fascia
• Supplied without front for integration into furniture design
• Approved by Lloyd's Register

This undercounter ProfiLine unit suits small galleys, pantries or officer areas needing 14 place settings per cycle on a 36-minute minimum programme and operating on AC 230V 50HZ with modest connected load. It is not the right choice where large messes require continuous high-throughput rack handling; those spaces call for dedicated commercial pass-through or conveyor warewashing. Ordered under Miele article number 61010405MAR and material number 11750880.
