Miele Dishwasher PFD 401 U [WB Marine] – 3N AC 400V 50HZ, Stainless steel

Eight minutes for the shortest programme and a stated 285 plates per hour set the working profile of the PFD 401 U [WB Marine]. At 15 baskets per hour and 17.5 litres of water per wash cycle, the unit gives hard numbers for both throughput and fresh-water demand.

For a shipboard pantry or wardroom, those figures translate directly into plant and layout decisions. Cleaning performance at 285 plates per hour with two loading levels means this machine suits small to medium messes where service peaks are contained, rather than a main galley running at continuous high volume. Water consumption of 17.5 litres per cycle and a required flow pressure between 0.4 and 10 bar define the load on the potable-water and grey-water systems, instead of leaving the naval architect to estimate.

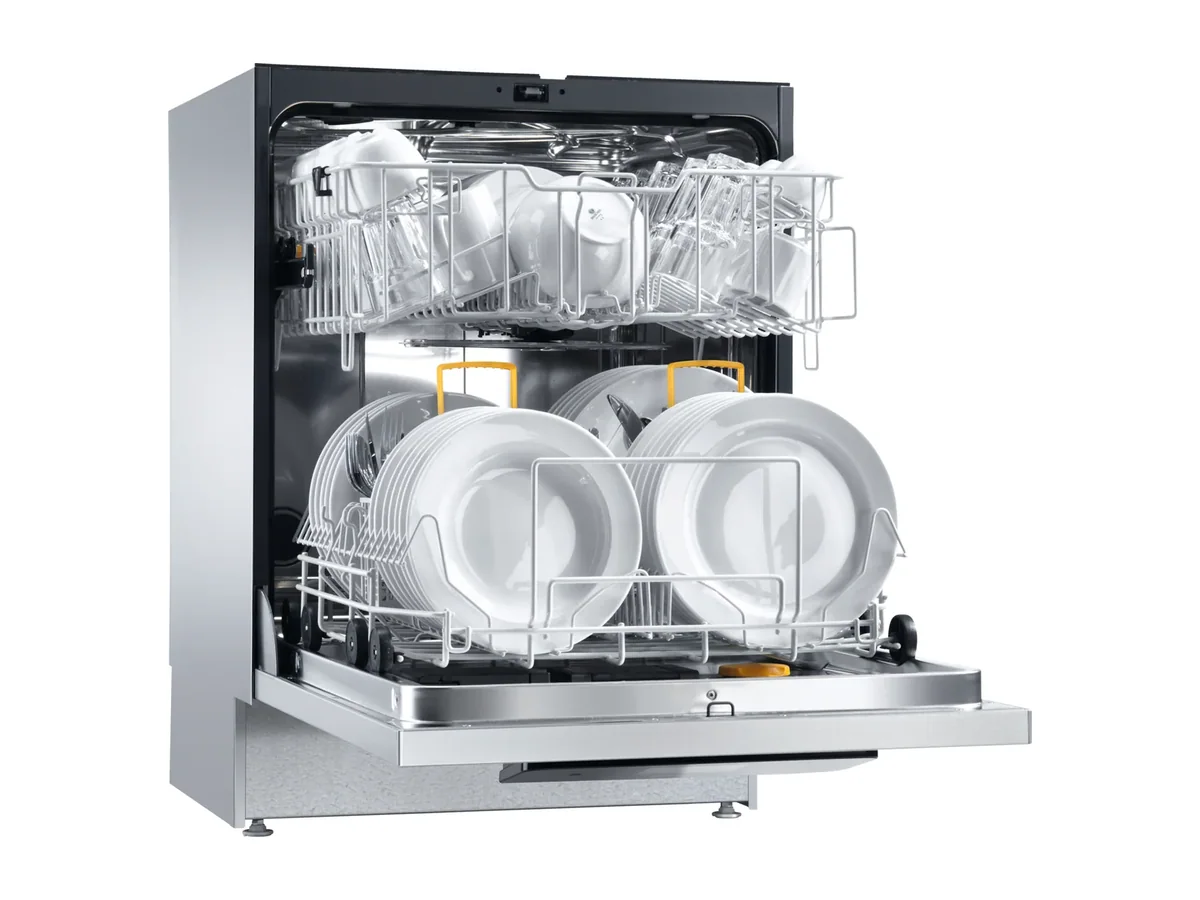

The machine stands 820 mm high with a net width of 598 mm and net depth of 580 mm, intended for a 600 mm niche. An in-feed height of 216 mm above the floor keeps loading workable where the counter height is fixed. Inside the wash cabinet there are two levels, with 530 mm usable height and 536 mm width; usable depth is 474 mm in the upper basket and 516 mm in the lower basket. Those dimensions dictate which combination of plates, trays and glassware can be racked together on each level.

Net weight is 65 kg with a stated maximum floor load of 1200 N/m², figures that can be checked against the deck scantlings. Gross shipping weight is 75 kg, and the gross dimensions of 920 × 670 × 740 mm are the ones that have to pass through doors or hatches from quay to final position. Heat dissipation into the room is quoted as 1.08 MJ/h. Sound pressure at the workplace is 47 dB(A) re 20 µPa, with a sound power level of 59 dB(A) re 1 pW; in a small pantry this defines the background noise around the serving counter.

On the electrical side, the PFD 401 U [WB Marine] is specified for an AC 230V 50HZ connection. Heater rating is 3 kW with a total connected load of 3.4 kW on a 16 A fuse. The mains connection cable is 1.9 m long, so the isolator and junction box have to be positioned within that reach. The single cold-water connection uses a 170 cm inlet hose, and the DN 22 drain pump discharges through a 150 cm hose with a maximum pump head of 100 cm above floor level; anything higher would call for a different drain arrangement.

Control is via the M Touch Basic system with 10 dishwashing programmes. A Universal programme is provided as the standard cycle for normally soiled items. Maximum final rinse temperature is 70 °C. The unit is delivered without a lid, with a stainless steel front and galvanised side panels, on the assumption that it will be built into a continuous counter run. Drying is specified as without an active stage, so basket emptying and air-drying have to be planned into the workflow.

Build and control

• Stainless steel front with galvanised side panels
• Two loading levels in the wash cabinet
• M Touch Basic control system with 10 dishwashing programmes
• Universal programme for normally soiled items
• Shortest programme duration 8 minutes
• Maximum final rinse temperature 70 °C
• Operation without active drying stage
• WiFi connectivity (availability may vary by region)
• Independently tested virucidal efficacy
• Verified hygiene performance
• Lloyd's Register approval

This configuration is appropriate where a 600 mm under-counter niche is available, the warewashing load fits around 15 baskets per hour, and 17.5 litres per cycle aligns with the vessel’s water-making and waste capacity. It is the wrong choice where an active drying stage is mandatory by procedure, or where the electrical system cannot provide an AC 230V 50HZ, 16 A circuit at 3.4 kW connected load. Ordered under Miele article number 61040130MAR with material number 12143270.
