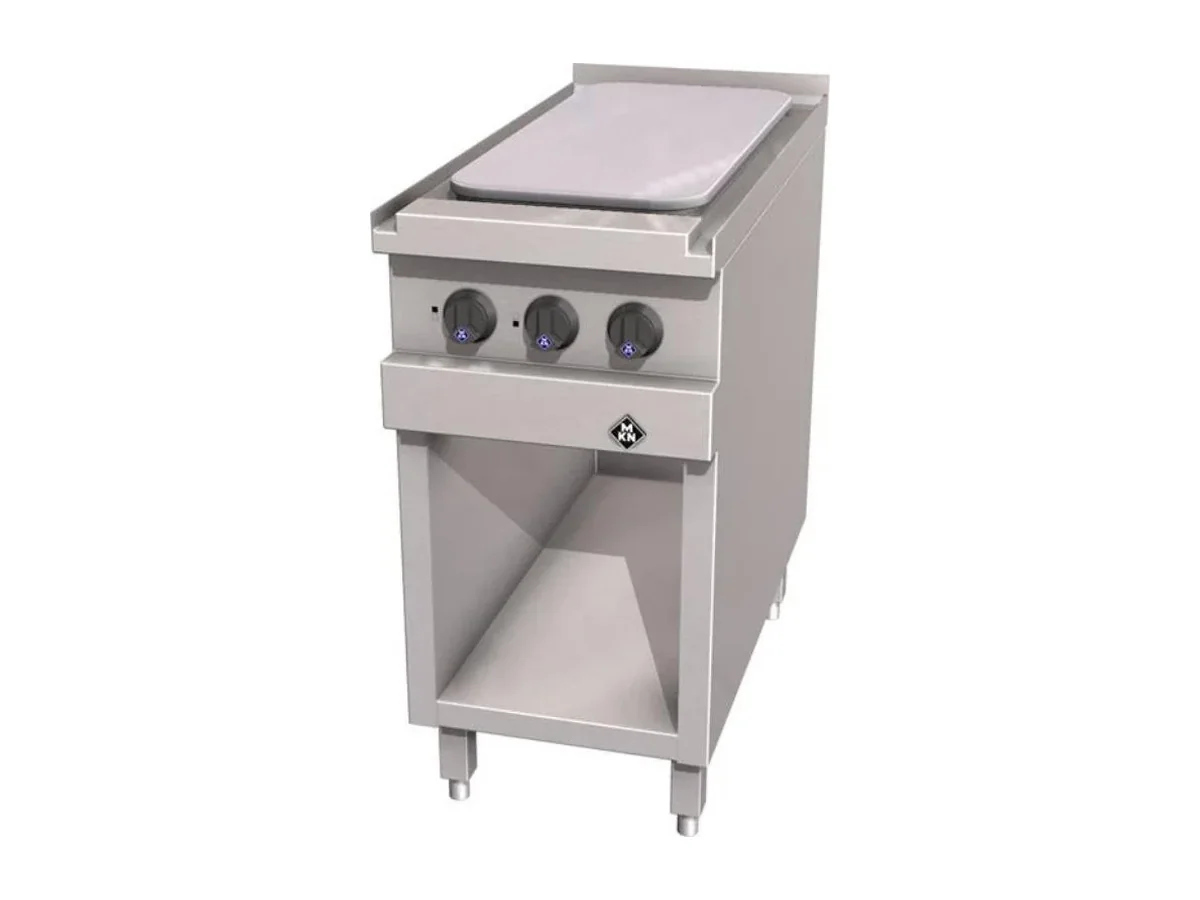

MKN Cast Iron Cooking Table 2023501 – 2 Zone, Optima 850

Seven point two kilowatts of connected load on a 400 x 850 x 700 mm body gives the 2023501 a clear role in an Optima 850 line: a compact cast iron top that still carries full-duty pots. The 320 x 705 mm working surface sits within that footprint, so almost the entire depth is usable cooking area rather than frame.

On board, that concentration of power into a small plan area matters where the galley is already framed around Optima 850 modules and there is limited deck length left for additional cooking points. The 400 mm width allows this table to slot into narrow runs or end a battery without reshuffling larger ranges, and the 400 V supply aligns with typical marine switchboard practice so the unit can be fed from the existing galley distribution. At 67 kg net weight and 73 kg gross, handling and anchoring are still straightforward for a single module during installation.

The table sits in the Optima 850 series, so the 850 mm depth ties it in mechanically and visually with the rest of the line. With one work zone rated at 3.6 kW, the two heating zones together deliver the stated 7.2 kW electrical power, giving enough headroom for boiling and searing work without oversizing the connected load. The 320 x 705 mm cooking surface is specified against that power, so the energy is focused where the pan base actually sits rather than spread over unused plate.

The published dimensions also feed straight into layout and HVAC calculations. A 400 x 850 mm footprint leaves more surrounding space for service runs and cleaning access than wider bodies in the same depth class, and the 700 mm height keeps the top at a conventional working level relative to surrounding counters and appliances. Where the galley designer is trying to retain a continuous work surface, that alignment helps avoid steps and lips that trap soil.

Build and control

• Complies with DIN 18851 for commercial kitchens
• Stainless steel 1.4301 (AISI 304) throughout
• Self-supporting closed construction
• Ergonomic knob control

This model is well suited where a vessel needs an additional cast iron hob surface within an established Optima 850 cookline and where the available electrical allowance is compatible with a 7.2 kW appliance at 400 V. It is the wrong choice if the requirement is for multiple independently controlled work zones in the same width, as the specification lists only one work zone with 3.6 kW per heating zone. Ordered under MKN article number 2023501.
