MKN Cast Iron Cooking Table 7EHEG084XHVEB – Oven, Electric
Electric cast iron cooking table with oven, 16.55 kW at 380–415 V, 150 kg net weight, DIN 18851 compliant.
16.55 kW
Marine equipment type
Marine Cast Iron Hotplate Tables
17 marine cast iron hotplate tables from MKN, with published technical data and supply voltages for shipboard installation.
17 marine cast iron hotplate tables
MKN Cast Iron Cooking Table 7EHEG084XSTEB – Oven, Electric
Electric cast iron cooking table with 16.55 kW load and hinged lid, built to DIN 18851. MKN 7EHEG084XSTEB for marine galley hot tops.
16.55 kW
MKN Cast Iron Cooking Table 7EHEG084XHV – Chrome-plated, Electric
Electric cast iron cooking table 7EHEG084XHV, 12 kW with hinged lid and IP-rated water protection, built to DIN 18851 for commercial kitchens.
12 kW
MKN Cast Iron Cooking Table 7EHEG084XST – Electric
Electric cast iron cooking table, 12 kW at 380–415 V with fully welded seams, DIN 18851 compliant. MKN 7EHEG084XST.
12 kW
MKN Cast Iron Cooking Table 7EHEG042XHV – Chrome-plated, Electric
Electric cast iron cooking table, 6 kW at 380–415 V with chrome-plated surface, DIN 18851 compliant. MKN 7EHEG042XHV.
6 kW

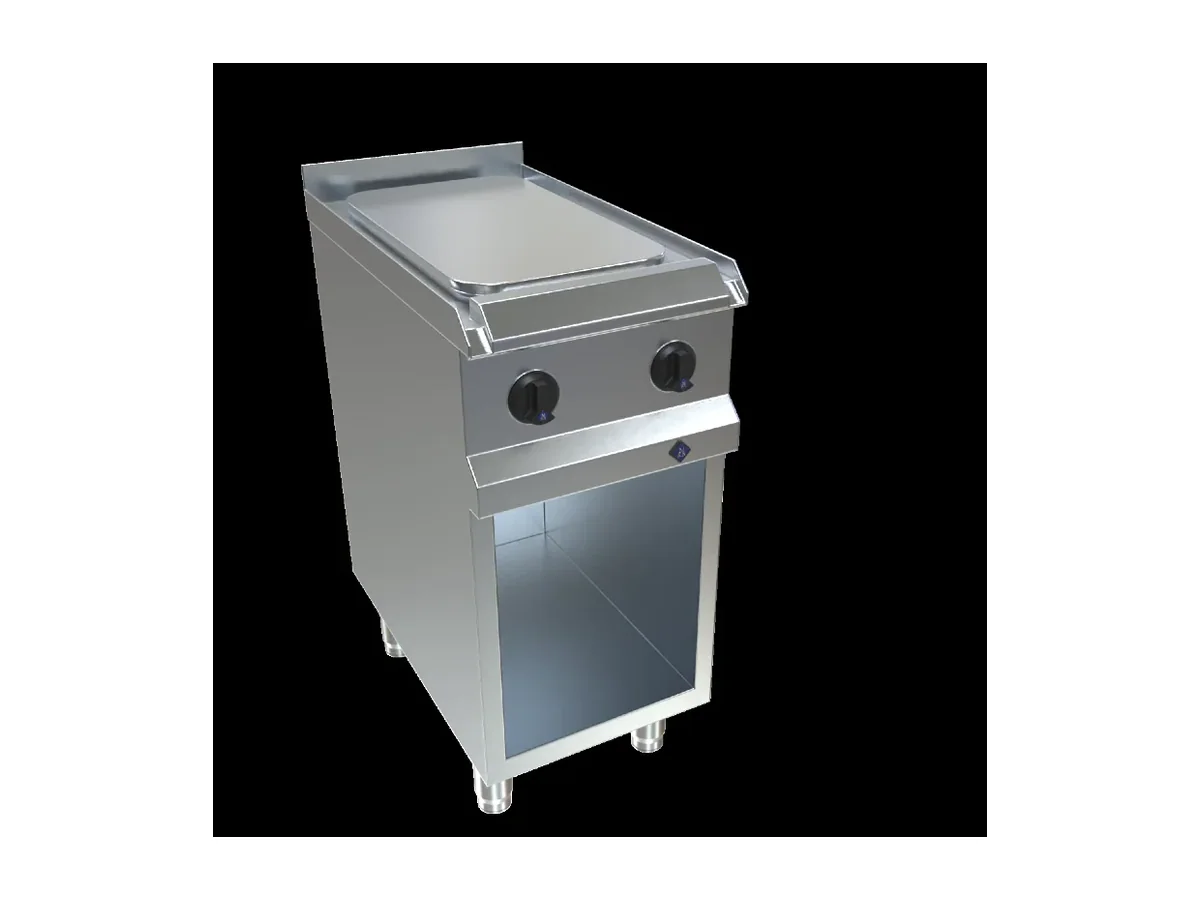

MKN Cast Iron Cooking Table 7EHEG042XST – Electric
Electric cast iron cooking table 6 kW at 380–415 V, 56 kg net weight with fully welded seams to DIN 18851. MKN 7EHEG042XST.
6 kW
MKN Cast Iron Cooking Table 2023503A – 4 Zone, Electric, Optima 850
Cast iron cooking table, 800 x 850 mm body with 715 x 705 mm surface, 21.4 kW electric, stainless 1.4301, Optima 850.
21.4 kW
MKN Cast Iron Cooking Table 2023503 – 4 Zone, Electric, Optima 850
Optima 850 cast iron cooking table 2023503 with 21.4 kW electric load on an 800 x 850 mm body and a 715 x 705 mm working surface.
21.4 kW
MKN Cast Iron Cooking Table 2023502 – 4 Zone, Optima 850
Optima 850 cast iron cooking table, 800 x 850 mm body, 16 kW at 400 V with 4 x 4 kW heating zones. Article 2023502.
16 kW
MKN Cast Iron Cooking Table 2023501A – 2 Zone, Optima 850
Cast iron cooking table, 400 x 850 mm body with 320 x 705 mm surface, 7.2 kW total, Optima 850. Article 2023501A.
7.2 kW
MKN Cast Iron Cooking Table 2023501 – 2 Zone, Optima 850
Cast iron cooking table 400 x 850 mm, 7.2 kW at 400 V with 320 x 705 mm surface. MKN Optima 850, article 2023501.
7.2 kW
MKN Cast Iron Cooking Table 2123506A – 4 Zone, Electric, Optima 700
4-zone 16.55 kW electric cast iron cooking table, 800 x 700 mm Optima 700 module with 715 x 555 mm working surface. Article 2123506A.
16.55 kW
MKN Cast Iron Cooking Table 2123506 – 4 Zone, Electric, Optima 700
4-zone cast iron cooking table, 16.55 kW at 400 V with 715 x 555 mm surface in the MKN Optima 700 line. Article 2123506.
16.55 kW
MKN Cast Iron Cooking Table 2123505A – 4 Zone, Optima 700
Optima 700 cast iron cooking table with 4 zones at 3 kW each, 800 x 700 mm body in 1.4301 stainless steel.
12 kW
MKN Cast Iron Cooking Table 2123505 – 4 Zone, Optima 700
Four-zone cast iron cooking table, 12 kW at 400 V in an 800 x 700 x 700 mm Optima 700 body, stainless 1.4301. Article 2123505.
12 kW

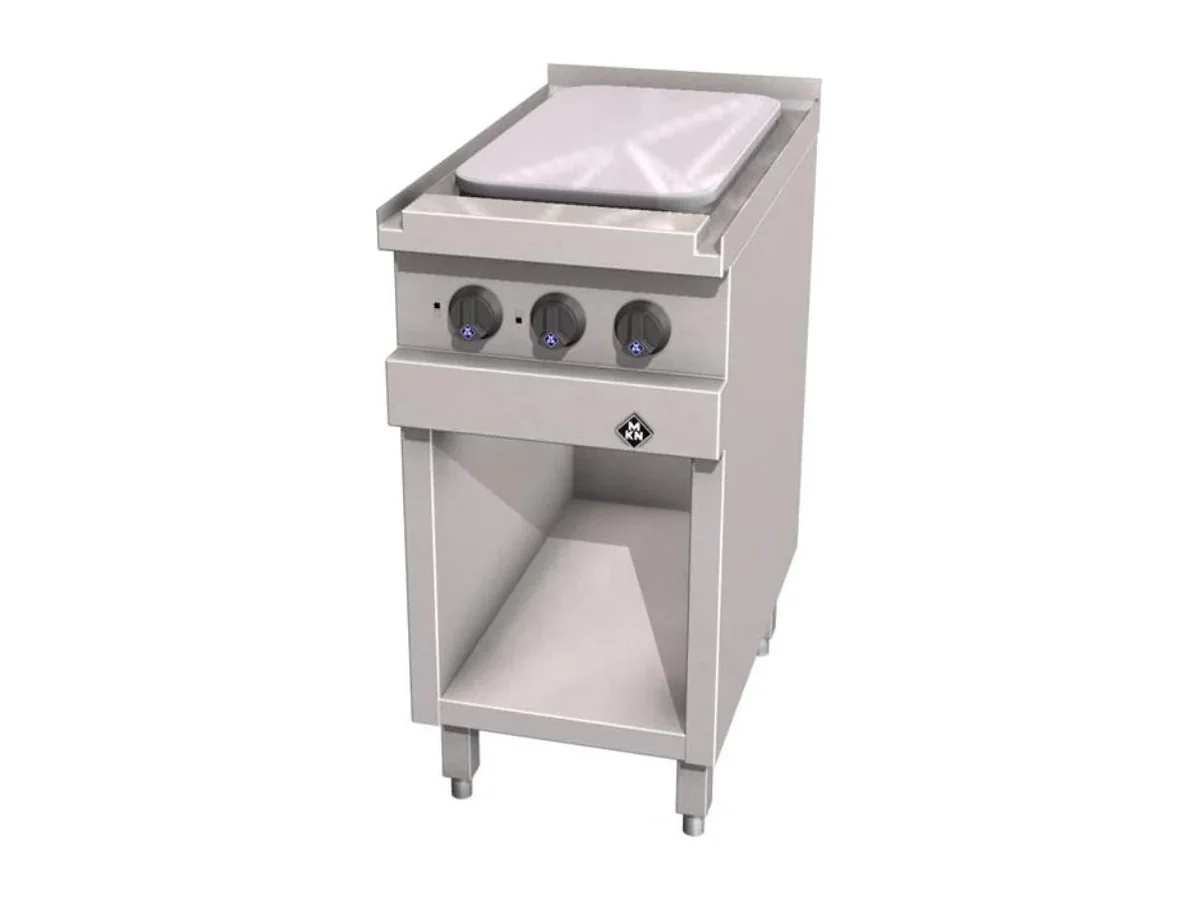

MKN Cast Iron Cooking Table 2123504A – 2 Zone, Optima 700
Two-zone 6 kW cast iron cooking table, 400 x 700 mm body with 320 x 555 mm surface in the MKN Optima 700 line.
6 kW

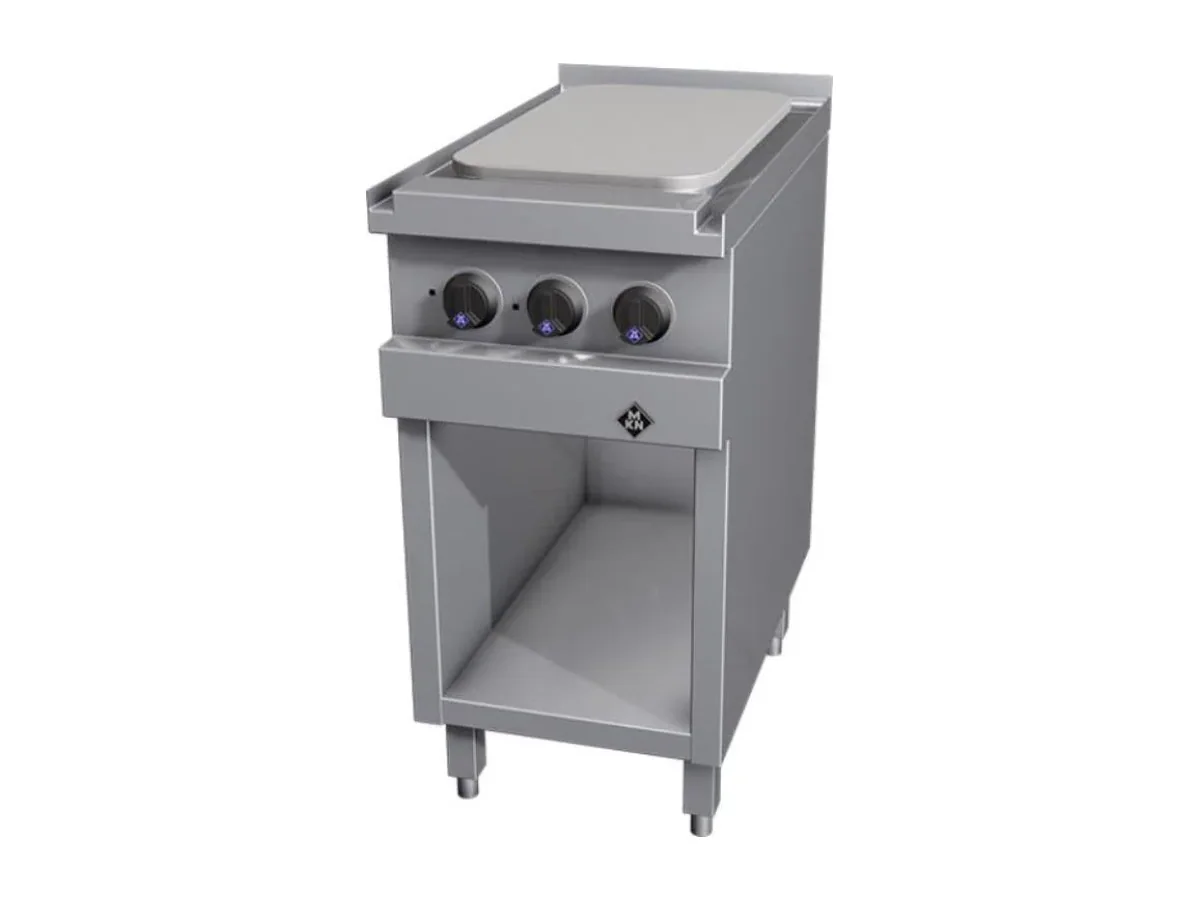

MKN Cast Iron Cooking Table 2123504 – 2 Zone, Optima 700
400 x 700 mm Optima 700 cast iron cooking table with 2 x 3 kW zones and 320 x 555 mm surface, stainless steel 1.4301.
6 kW
About marine cast iron hotplate tables
Cast iron hotplate tables cook on individual cast iron plates, the conventional alternative to induction and ceramic tops. MKN quotes about 58 % efficiency for electric hot plates against about 90 % for induction, which is worth weighing where generator capacity is limited.
What this selection includes
This page lists 17 products from MKN (17). By series: Optima 700 (6) and Optima 850 (5). Across the list you will find rated power from 6 kW to 21.4 kW.
By connected load, 5 to 10 kw (6), 10 to 20 kw (9) and 20 to 40 kw (2).
Counted by vessel type: 17 for ships, 12 for yachts and 5 for offshore units.
Models on this page include MKN Cast Iron Cooking Table 2023503 (21.4 kW), MKN Cast Iron Cooking Table 2023503A (21.4 kW), MKN Cast Iron Cooking Table 7EHEG042XST (6 kW) and MKN Cast Iron Cooking Table 7EHEG042XHV (6 kW).
Specifying marine cast iron hotplate tables
- Supply: builds are listed at 400 V, and the order follows the vessel's own supply rather than the catalogue default.
- Power: rated from 6 kW to 21.4 kW across this list, to be added to the rest of the galley load.
- Fixing against motion: flanged feet bolted or welded to the deck, door stops and secured rails, and a water protection rating that matches how the galley is cleaned.
See the marine cooking equipment category for the wider range and the guide to choosing galley equipment.
Questions about marine cast iron hotplate tables
What are marine cast iron hotplate tables used for?
Cast iron hotplate tables cook on individual cast iron plates, the conventional alternative to induction and ceramic tops.
Which supply voltages are available?
Across this selection the listed voltages are 400 V. Each unit is ordered in the vessel's own supply voltage and frequency.
How do I get a quotation?
Add the products to your quote list or send the vessel type, supply voltage and frequency and the quantities through the quote form. Prices are quoted to the vessel, not listed online.
Request a quotation for marine cast iron hotplate tables
Send the vessel type, supply voltage and frequency and the quantities, and our team will come back with a specification and quotation.
