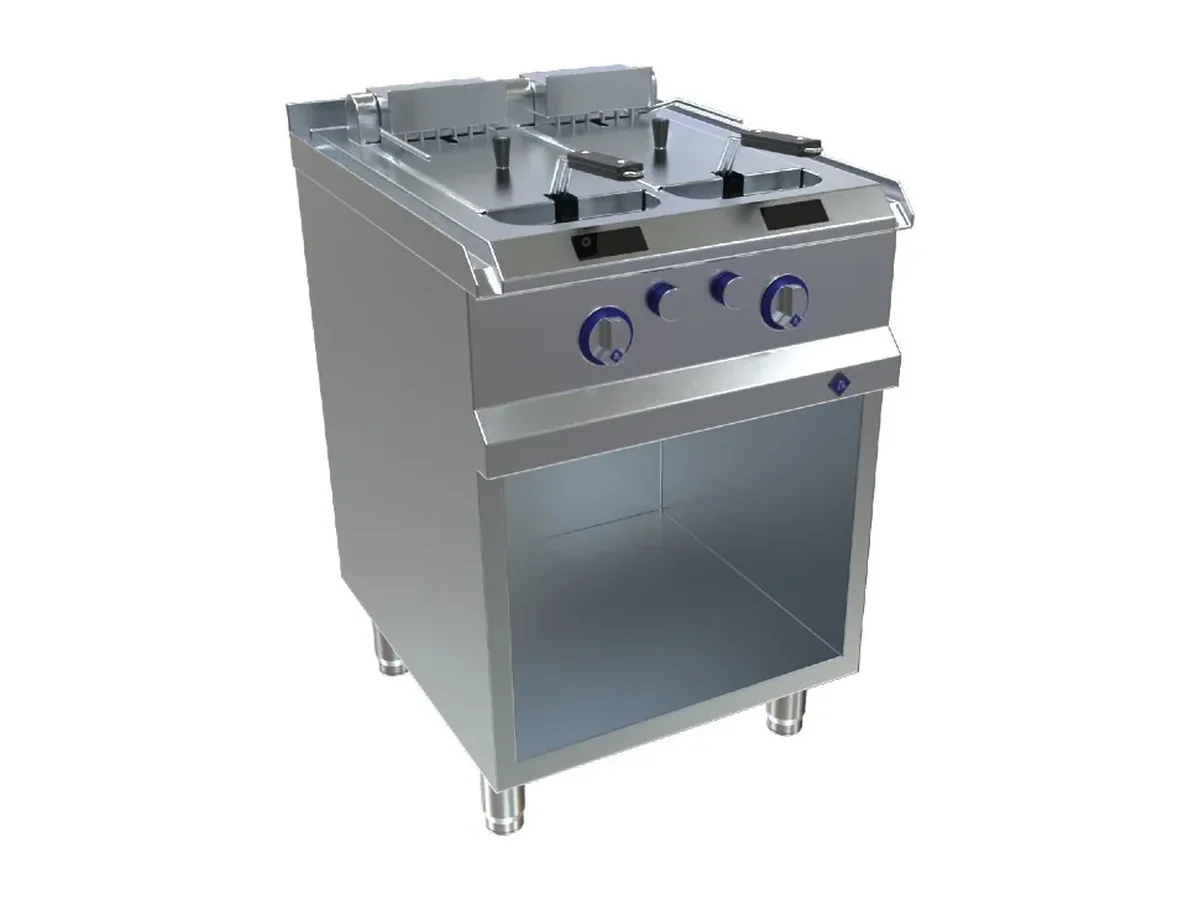

MKN Deep Fat Fryer 7EFRI025DMFS – Electric

Two work zones and 2 x 12.5 litres of oil capacity set the 7EFRI025DMFS up as a production fryer rather than a snack module. With 20 kW of electrical power available, it is sized for continuous deep‑frying duty on a main galley line.

On a vessel, that power and volume combination has to be matched to the electrical and HVAC design. The fryer is specified for a 380–415 V MaxPower electrical supply and protected on a 3×32 A fuse, so the load can be placed accurately into a 50/60 Hz marine switchboard calculation. Net weight is 70 kg, rising to 77 kg gross for transport, which is relevant where deck loading and handling routes are constrained by stair towers, lifts or narrow service corridors.

Each of the two work zones carries a 12.5 litre tank. That gives the galley the option of running different products or staggered batches without cross‑contamination in a shared bath, while still keeping the overall footprint to a single body. The 20 kW installed electrical power is concentrated into those two wells, so heat‑up and recovery times will be short enough to cope with service peaks rather than only steady flow. For a ship’s complement with fixed mealtimes, that distinction between batch and flow performance matters more than it does ashore.

The unit’s IPX6 protection rating means the housing and controls are engineered against high‑pressure water jets. In a marine galley that is cleaned down with spray lances rather than mops and buckets, this protects both uptime and the electrical connections over the life of the ship. Fully welded seams and a hinged lid support the same cleaning regime, reducing soil traps and keeping hot oil covered when the fryer is not in use.

Build and control

• Hinged lid
• Fully welded seams
• IPX6 IP protection rating
• 2 work zones
• 2 x 12.5 litre oil capacity
• Electrical supply 380–415 V MaxPower
• Electrical power 20 kW
• Fuse protection 3×32 A

This fryer is the right option where a galley needs two independent frying positions in one body and has the electrical capacity to feed a 20 kW appliance on a 3×32 A circuit. It is the wrong choice for a pantry or small mess where a single light‑duty fryer or a lower‑power plug‑in unit would suffice and where the electrical infrastructure does not support a 380–415 V MaxPower connection.

Ordered under MKN product number 7EFRI025DMFS.
