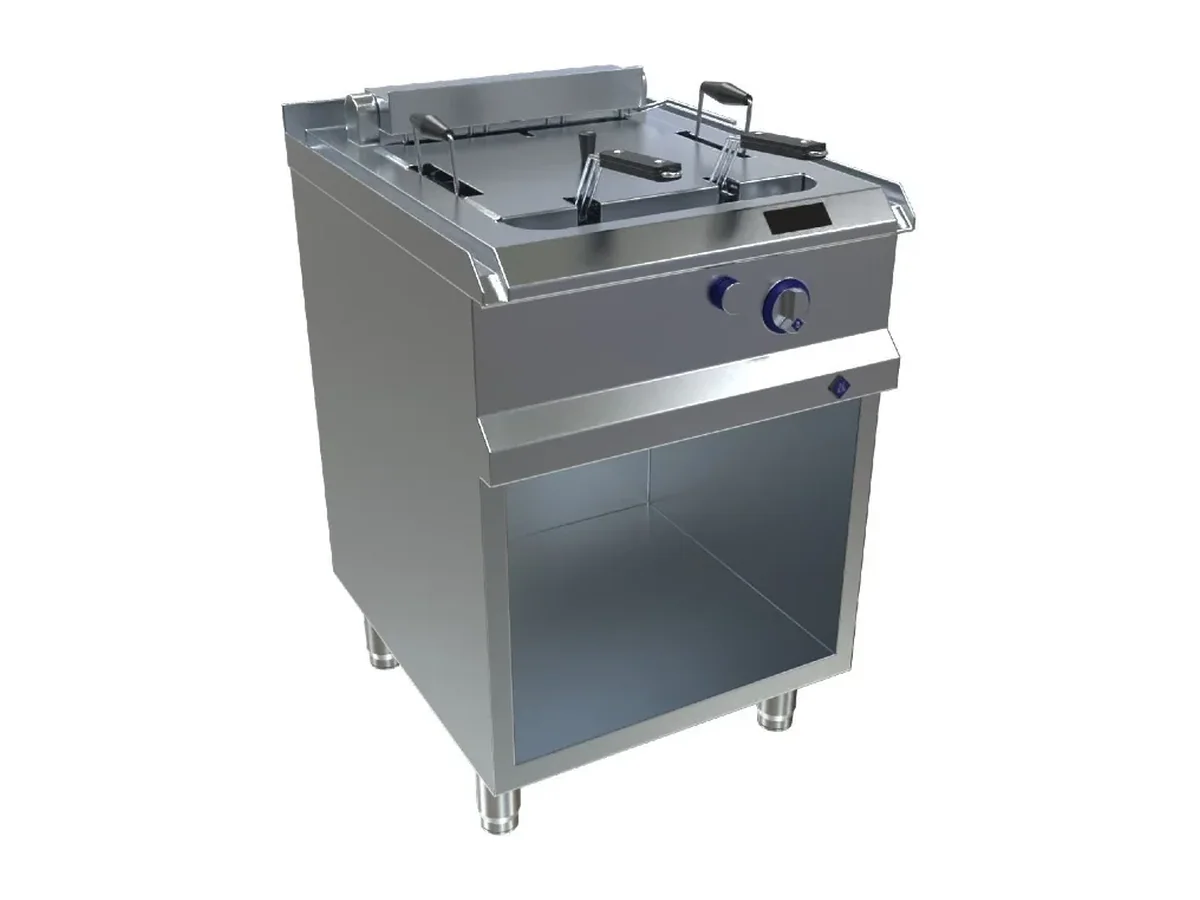

MKN Deep Fat Fryer 7EFRI030DFFS – Electric

30 litres in one work zone and 10 kW FlexPower heating give the MKN 7EFRI030DFFS a clear role as a focused deep fat fryer. That volume in a single well supports sustained frying on one oil type rather than splitting capacity across multiple small pans.

Aboard ship, the first question is how a fryer ties into the electrical distribution and cleaning regime. This unit is specified for a 380–415 V supply, so it can sit on the same three-phase board section as other heavy galley loads without needing a different voltage. The IPX6 protection rating is matched to cleaning with water jets, which is the norm in many marine galleys where equipment is cleaned in place instead of being wheeled to a wash area.

The 30 litre capacity in one work zone means the thermal mass of oil is concentrated. That is useful when the requirement is to hold a stable frying temperature for a constant product stream, using one basket profile and one set of cooking times. The 10 kW FlexPower figure is the installed load the switchboard and cabling must be designed for; it also sets realistic expectations for heat-up and recovery, because there is no second well drawing from the same supply. When planning installation, the quoted 53 kg net weight and 65 kg gross weight give the yard firm numbers for lifting, deck loading and transport, rather than leaving those calculations to guesswork during outfitting.

On a vessel where hose-down cleaning is part of the daily routine, IPX6 is more than a label. The fryer body is intended to withstand regular exposure to directed water jets, which allows it to be integrated into a cooking line that is washed as a whole. Fully welded seams reduce the number of joints where water and food residues can collect during service, which matters under the hygiene regimes applied to marine catering spaces.

Build and control

• Hinged lid
• Fully welded seams
• IP-rated water protection
• IPX6 ingress protection rating

This fryer is a strong fit where the galley design calls for one dedicated 30 litre well on a 380–415 V supply with a known 10 kW electrical draw, such as a single main frying line running one menu. It is the wrong choice where simultaneous production on several oil types or strict allergen segregation is required, because one work zone cannot separate products. It is also not suited to very small galleys that only need occasional, low-volume frying; in that case a smaller body with reduced capacity and power demand would be easier to justify in deck area and electrical terms.

Ordered under MKN product number 7EFRI030DFFS.
