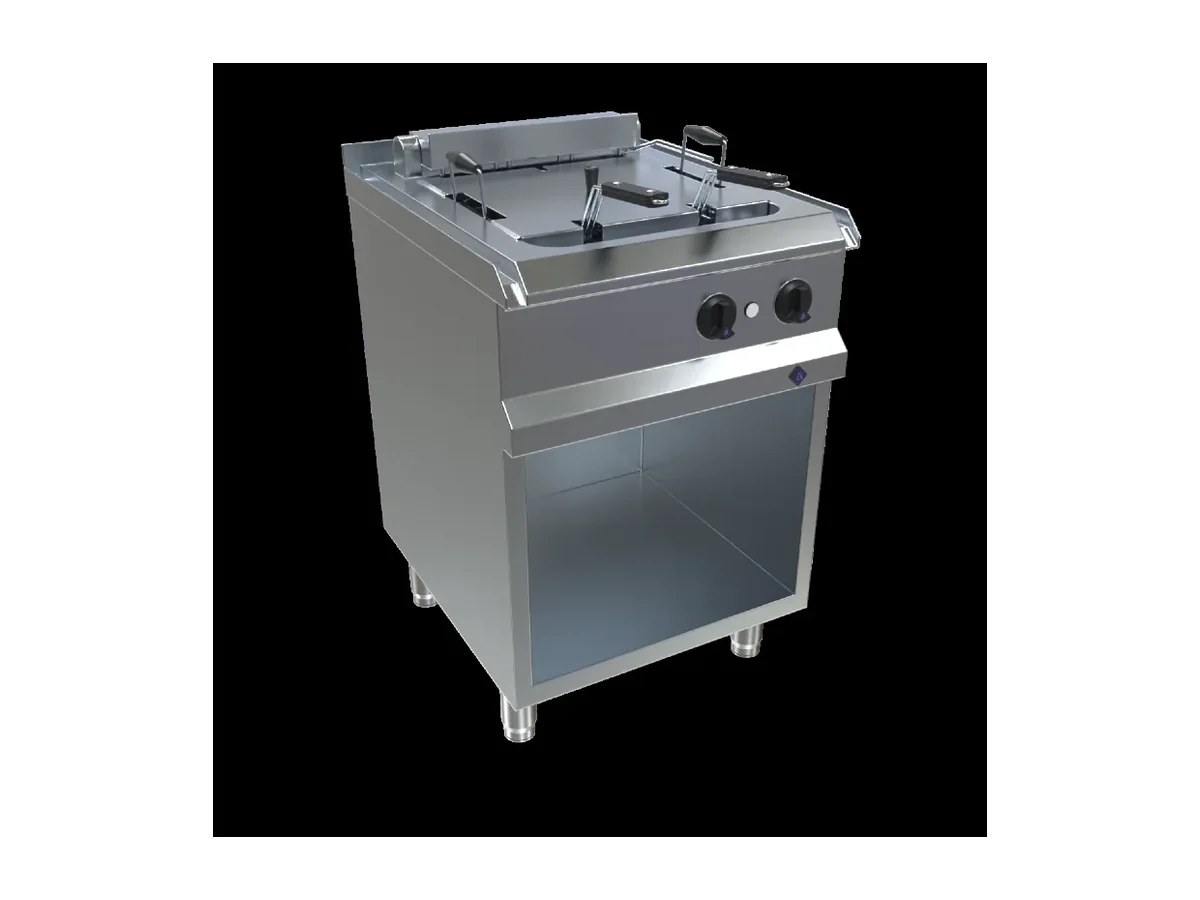

MKN Deep Fat Fryer 7EFRI030XM – Electric

Twenty kilowatts of connected load on a single work zone sets the 7EFRI030XM up as a main production fryer rather than a snack add-on. With a nominal oil volume of 30 litres, the balance between tank size and power output is tuned for frequent batch turnover on a compact footprint.

On a vessel, the published 380–415 V electrical supply range fits neatly into common three-phase marine switchboard configurations, so the fryer can usually be fed from the existing galley distribution without step-up or step-down transformers. Fuse protection at 3 x 32 A is a planning figure the electrical designer can work straight into the load calculation and breaker schedule. At a net weight of 53 kg, rising to 65 kg gross for transport, the unit is light enough to bring aboard and position without heavy lifting gear, but still needs to be fixed down to a plinth or flanged feet in line with marine stability and hygiene practice.

The single work zone layout means there is one oil bath to manage and one temperature regime to control, suiting galleys that run a focused fried offer or dedicate the fryer to a specific product stream. Thirty litres of nominal capacity gives enough volume for service peaks while keeping oil changes to a manageable volume for storage and disposal aboard. Electrical power at 20 kW puts the heat input into a range where recovery between batches is brisk, which matters when orders spike in a short window.

The fryer carries an IPX6 protection rating. That rating is matched to a galley where the cleaning regime uses spray guns rather than manual wiping, because it certifies resistance to strong water jets from any direction. The IP-rated water protection in the feature set underlines that this is designed to live in a wet, wash-down environment rather than a dry counter line. A hinged lid protects the oil surface from contamination during idle periods and reduces splashing and vapour when closed.

Build and control

• Hinged lid
• Fully welded seams
• IP-rated water protection
• IPX6 water ingress protection rating

Fully welded seams on the body simplify cleaning and remove the dirt traps associated with mechanical joints and sealant beads, which is relevant both for routine sanitation and for USPH-style inspection regimes. In a rolling or pitching sea state, the combination of a hinged lid and welded body construction also reduces the risk of hot oil leaving the tank compared with open, loosely joined designs.

This fryer is a strong candidate where the galley has the electrical capacity for a 20 kW appliance, needs IPX6 wash-down capability and wants a single 30-litre tank rather than split or multi-tank flexibility. It is the wrong choice where the electrical board cannot spare 3 x 32 A, or where separate oil types or allergen segregation demand multiple independent fryer wells.

Ordered under MKN product number 7EFRI030XM.
