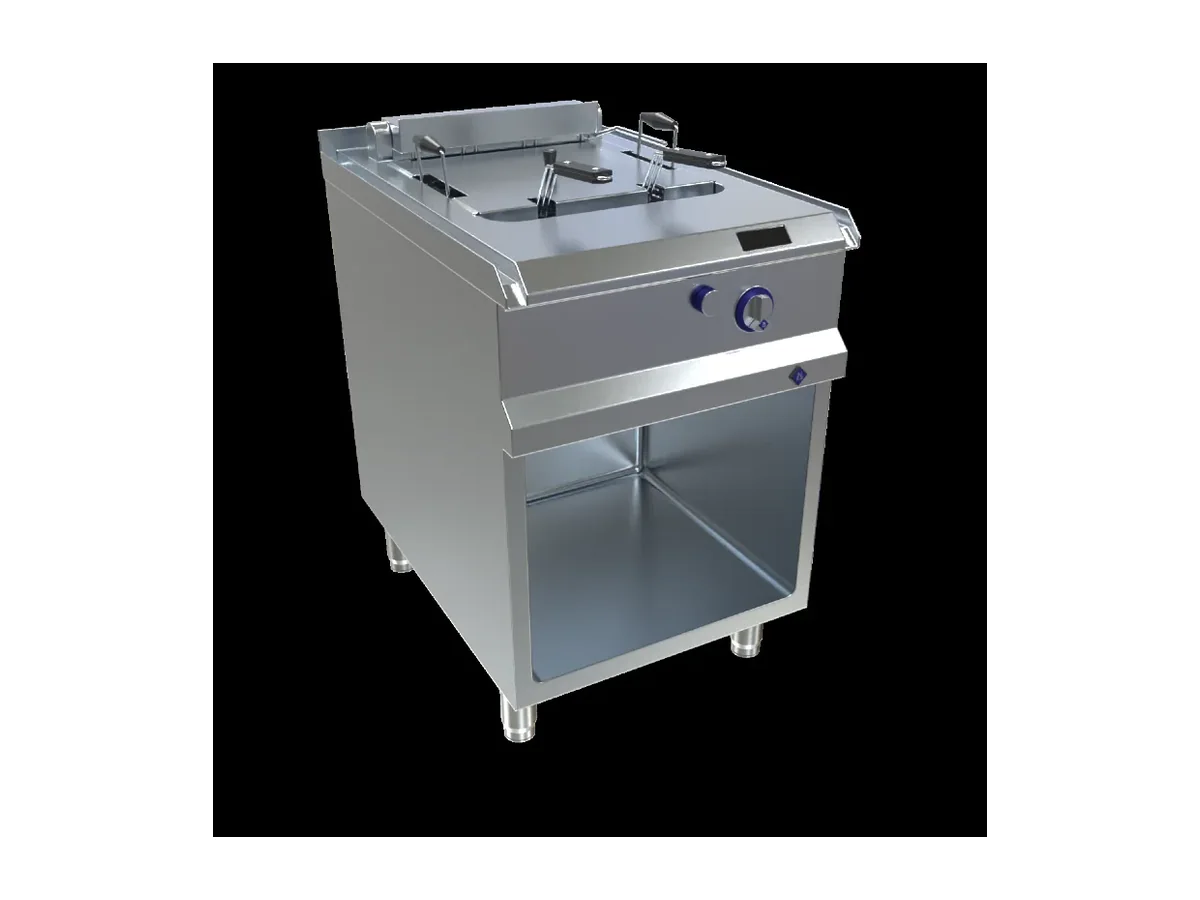

MKN Deep Fat Fryer 8EFRI030DFFS – Electric

30 litres of oil in a single work zone sets the 8EFRI030DFFS up for main galley frying rather than a snack station role. Coupled with a 10 kW FlexPower heating package, the tank volume gives enough reserve to handle consecutive batches without the temperature swing of smaller bodies.

The electrical data matters immediately in a marine context. This fryer is specified at 380–415 V, 3 N-PE AC/50 Hz with a 3×16 A fuse protection, so it is aligned with common three-phase galley distributions rather than a light commercial single-phase feed. On a vessel, that simplifies integration into an existing cooking line where similar loads sit on the same board. Deck area is already committed once a fryer is ordered; knowing it is a single work zone unit helps a designer decide whether to specify this model alone or as one of a pair.

Technically the heart of the machine is the 10 kW FlexPower system driving a 30 litre tank. That pairing determines heat-up time and how quickly the oil recovers between loads, which is the real throughput constraint in service. A single work zone design simplifies operation and suits menus where one oil quality and one temperature band are standard. For a galley that rotates products through the fryer, this can be an advantage: the whole 30 litres are always working to the same duty, and the crew do not have to track multiple zones.

The electrical rating of 380–415 V, 3 N-PE AC/50 Hz means this fryer will sit on the same supply as other heavy cooking appliances in a modular line. With 3×16 A fuse protection, the engineer knows in advance what space to reserve in the panel, which avoids surprises at commissioning. That figure is also a limit: galleys with only lighter connections available will need either a dedicated feed pulled or a smaller fryer.

Build and control

• IP-rated water protection
• IPX6 ingress protection level
• Single work zone configuration

IPX6 water protection is significant aboard, where galley cleaning commonly uses hose-down procedures rather than dry wiping. An IPX6 rating allows the machine to be cleaned with water jets, within the usual constraints of the standard, without compromising the enclosure. That is both a hygiene and maintenance point: a fryer that cannot tolerate that regime either forces a change in the cleaning pattern or suffers from water ingress over time.

This model is the right choice where a galley needs a 30 litre, single-zone fryer on a 380–415 V three-phase supply and wants IPX6 protection to align with wash-down routines. It is the wrong choice where separate oil qualities or temperatures are needed in parallel; those installations should look at multi-zone equipment instead of trying to stretch one work zone beyond its design.

Ordered under MKN product number 8EFRI030DFFS.
