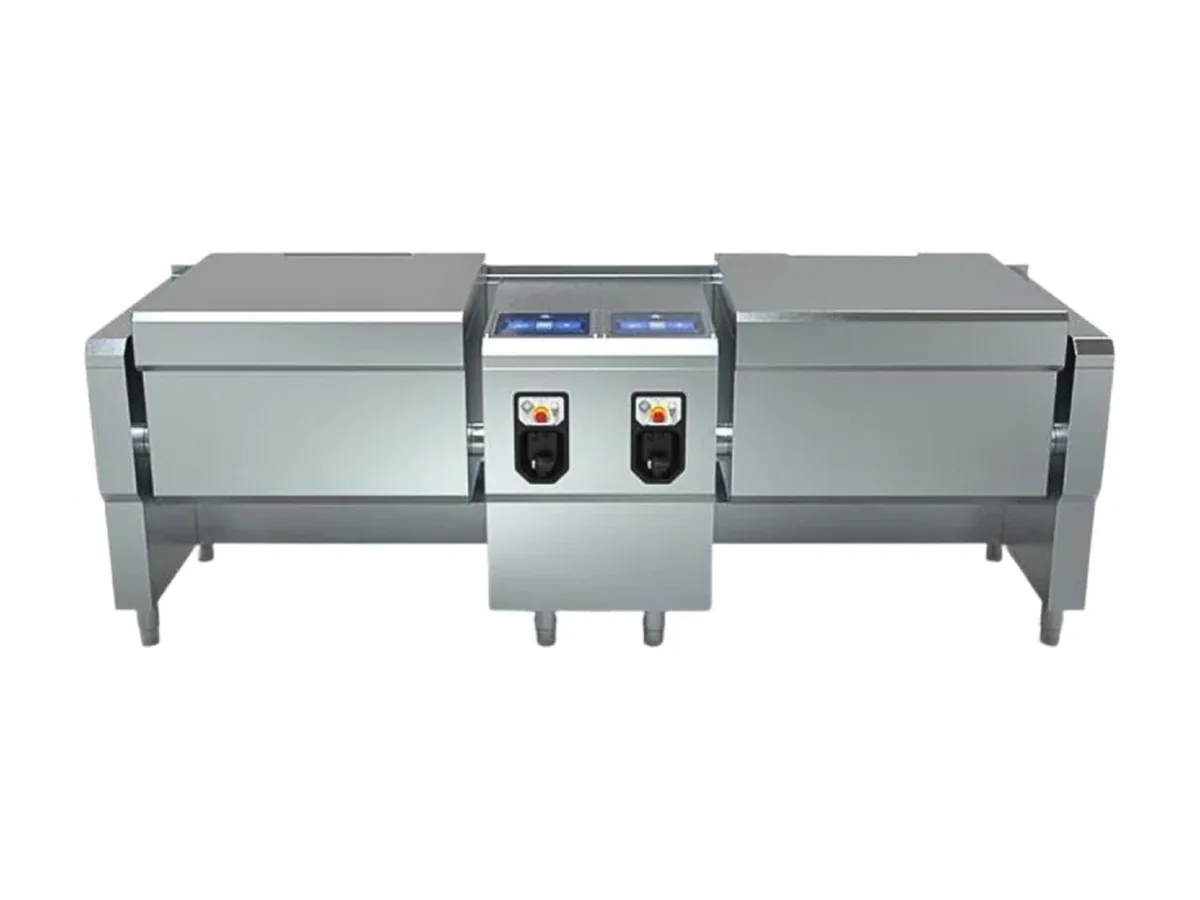

MKN FlexiChef Team Multifunctional Appliance FCEKMP21XX-1XX – FlexiChef

Two 50 litre pans and two 22,4 kW heating systems in one chassis define the FlexiChef Team FCEKMP21XX-1XX. The body measures 2200 x 850 x 750 mm, so this twin-pan unit delivers 50 + 50 litres of capacity without adding a second footprint in the galley.

Aboard ship, that 2200 x 850 x 750 mm envelope has to sit inside a fixed run of galley length and clear the traffic routes along the cooking line. Putting both 50 litre pans into one position on the deck leaves more continuous worktop and service corridor than scattering two separate bodies. The 580 kg net weight is equally important for a marine project: naval architects and outfitters use it directly when checking deck loading, handling gear and any structural insert plates under the cooking block.

Electrically, the appliance is specified at 400 V with 22,4 + 22,4 kW of connected load. Each of the two work zones carries its own 22,4 kW allocation, so both pans can be driven at full duty without one side borrowing from the other. For a vessel planned around a 400 V distribution, a single connection point with a clearly stated total draw is easier to schedule on the main switchboard than two separate appliances with separate feeds.

The working surfaces are 523 x 543 x 225 mm on each side. Those dimensions give enough depth to achieve the stated 50 + 50 litre capacity while keeping utensils and baskets within comfortable reach under the hinged lid. With two identical 523 x 543 x 225 mm pans, the galley can mirror processes from one service to the next, or run different processes side by side, without changing loading tools or working patterns between zones. The overall height of 750 mm keeps the rim down at a practical loading level from the deck, which matters when pans are filled to the full 50 litre mark.

Build and control

• Hinged lid
• Fully welded seams
• Drain valve
• Stainless steel 1.4404 (AISI 316L) wetted parts

The hinged lid works with the 50 + 50 litre capacity to keep handling manageable when the vessel is moving: opening and closing is controlled, without removing a loose cover over a full pan. The drain valve is the route for emptying hot product or cooking water from each 50 litre section without lifting; it turns the 580 kg static mass into a piece of equipment that can still be operated safely at full capacity. Fully welded seams close off joints and corners that are hard to clean in a marine galley, and they suit installation into welded worktop suites. All wetted parts are in stainless steel 1.4404 (AISI 316L), so the surfaces exposed to hot product and cleaning chemistry are based on a corrosion-resistant alloy rather than a lower grade.

This configuration is the right choice where two full-size pans are needed in parallel on a single 2200 x 850 mm footprint, or where the galley wants the redundancy of two independent work zones in one place. It is the wrong choice for a project that only ever needs one pan at a time, because carrying 50 + 50 litres of capacity and 22,4 + 22,4 kW of power then adds cost, electrical load and 580 kg of weight that will not be used.

Ordered under MKN product number FCEKMP21XX-1XX.
