Marine Multifunctional Pans

About marine multifunctional pans

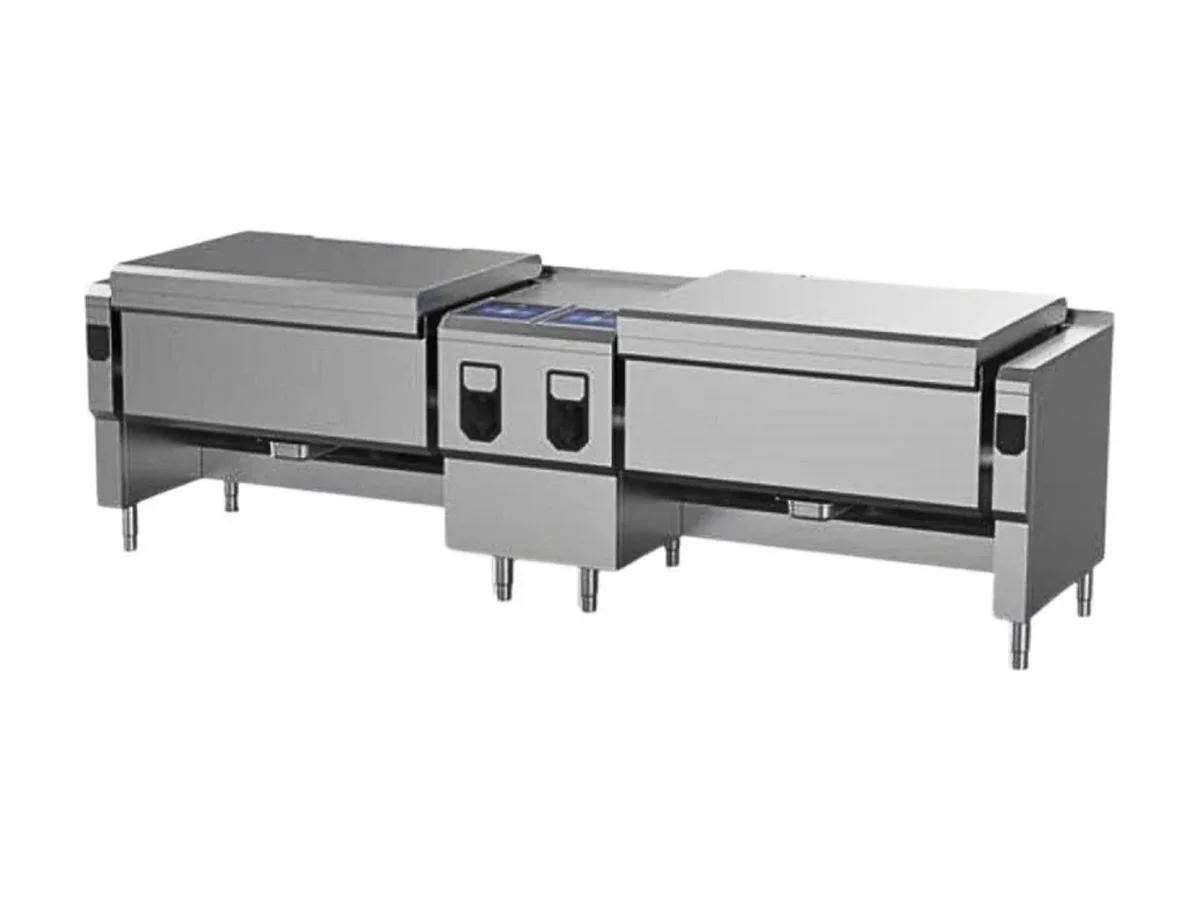

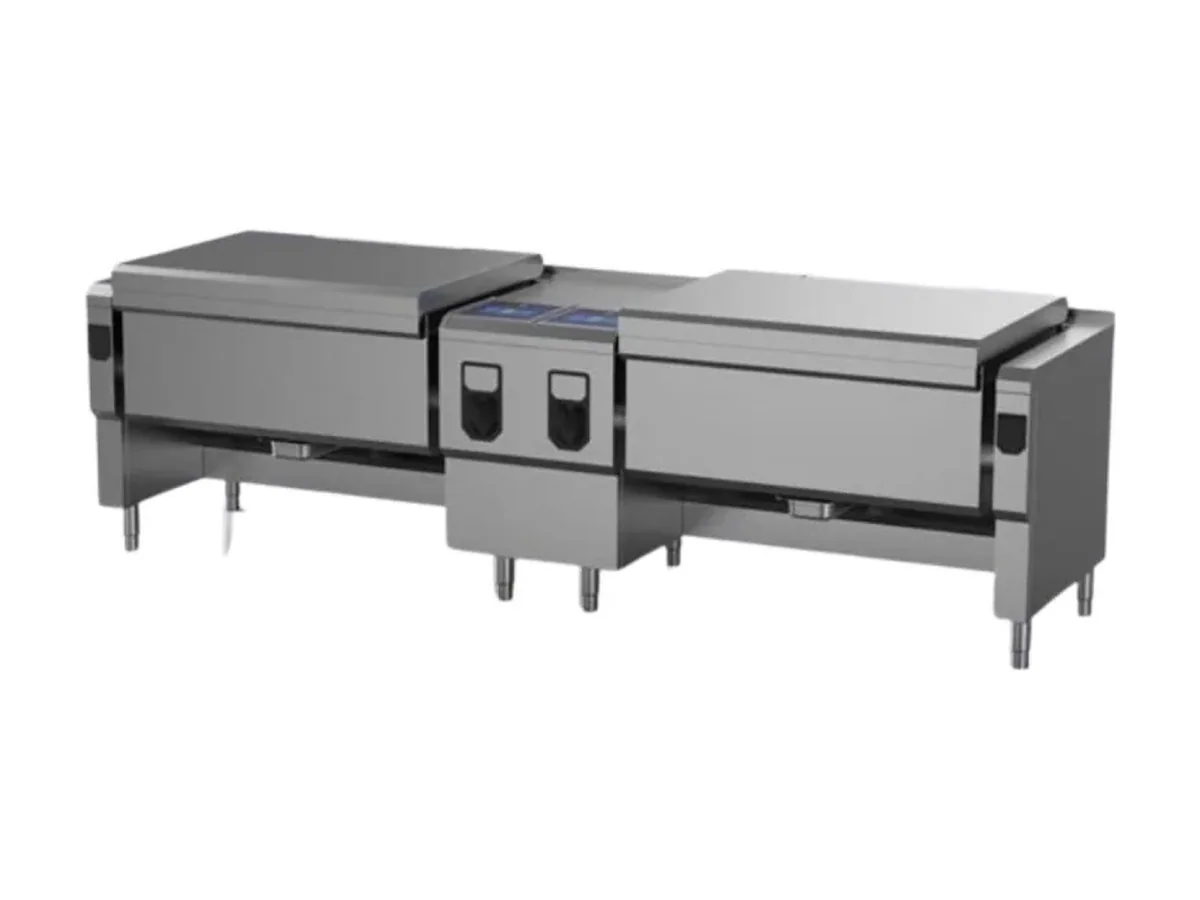

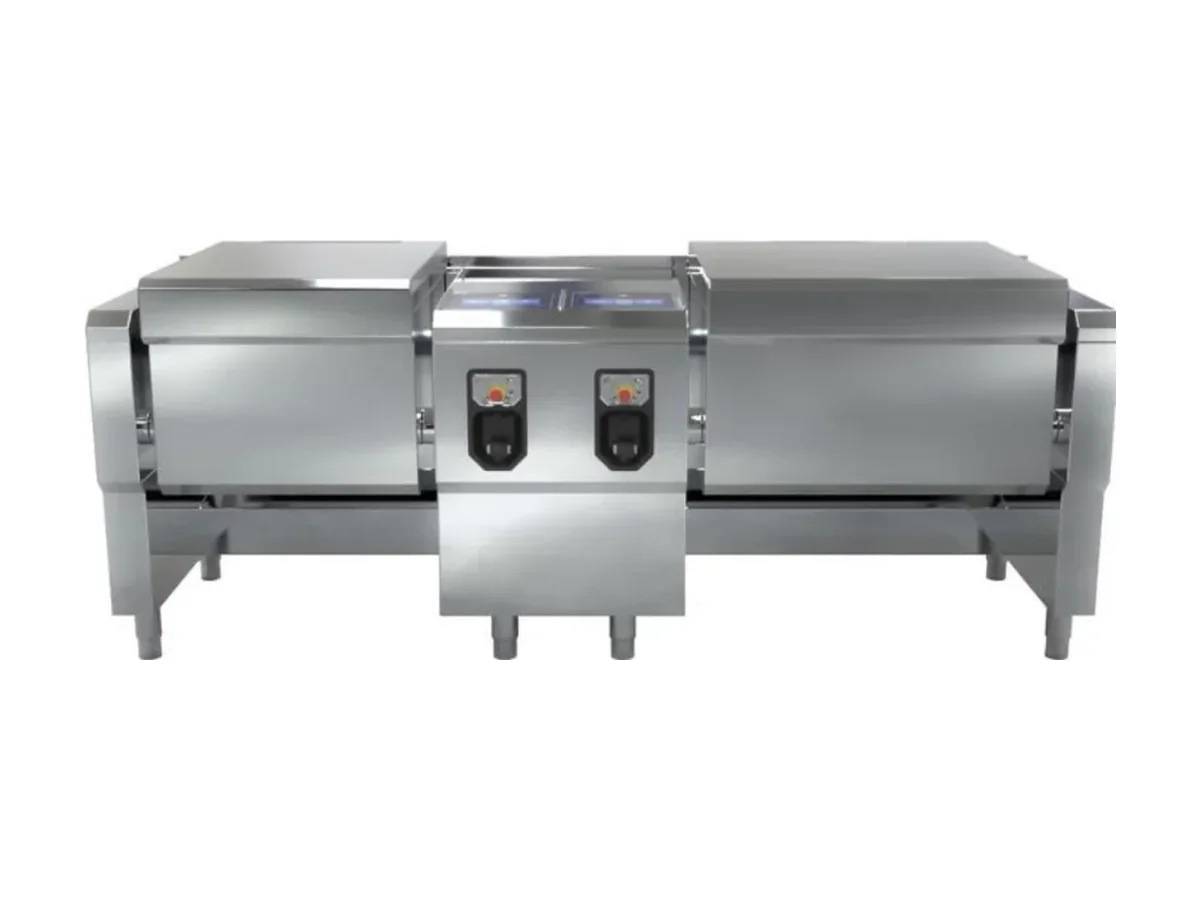

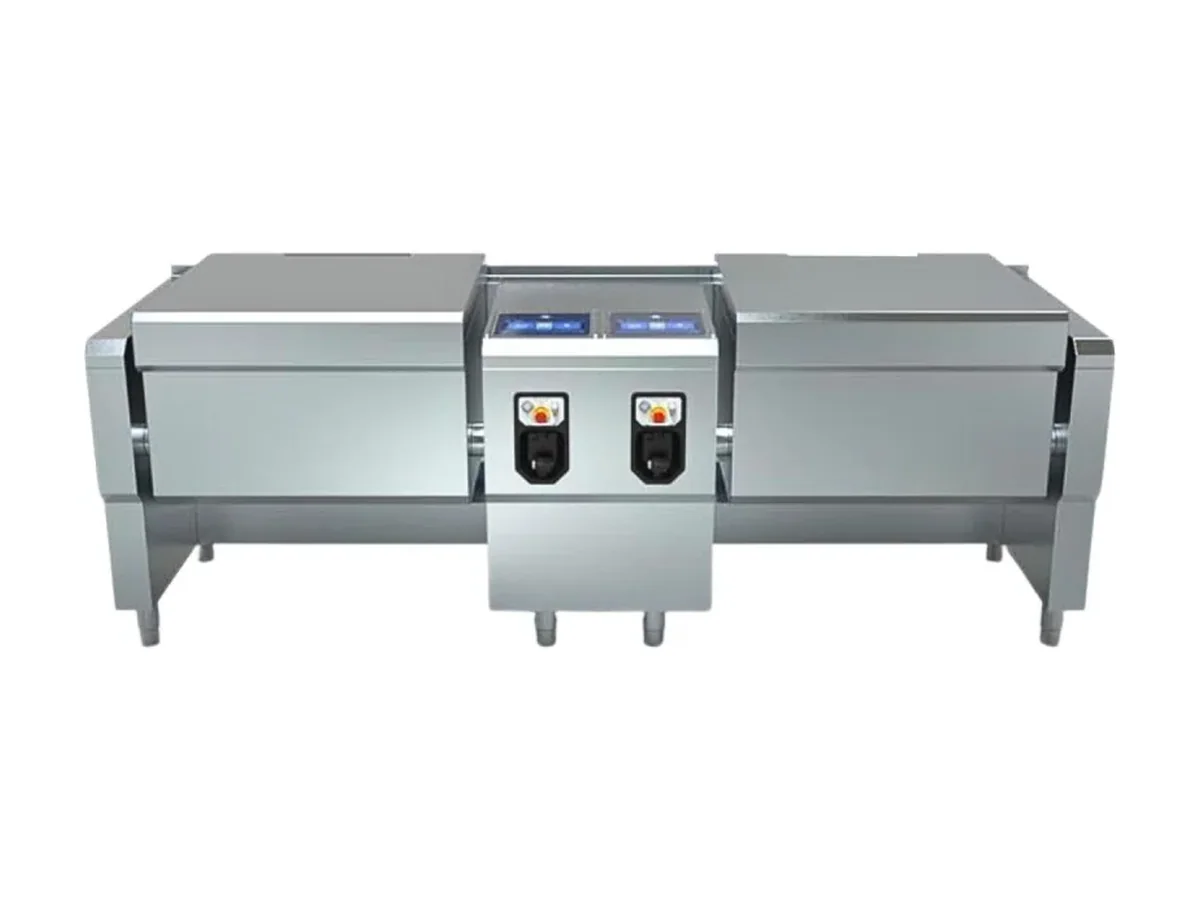

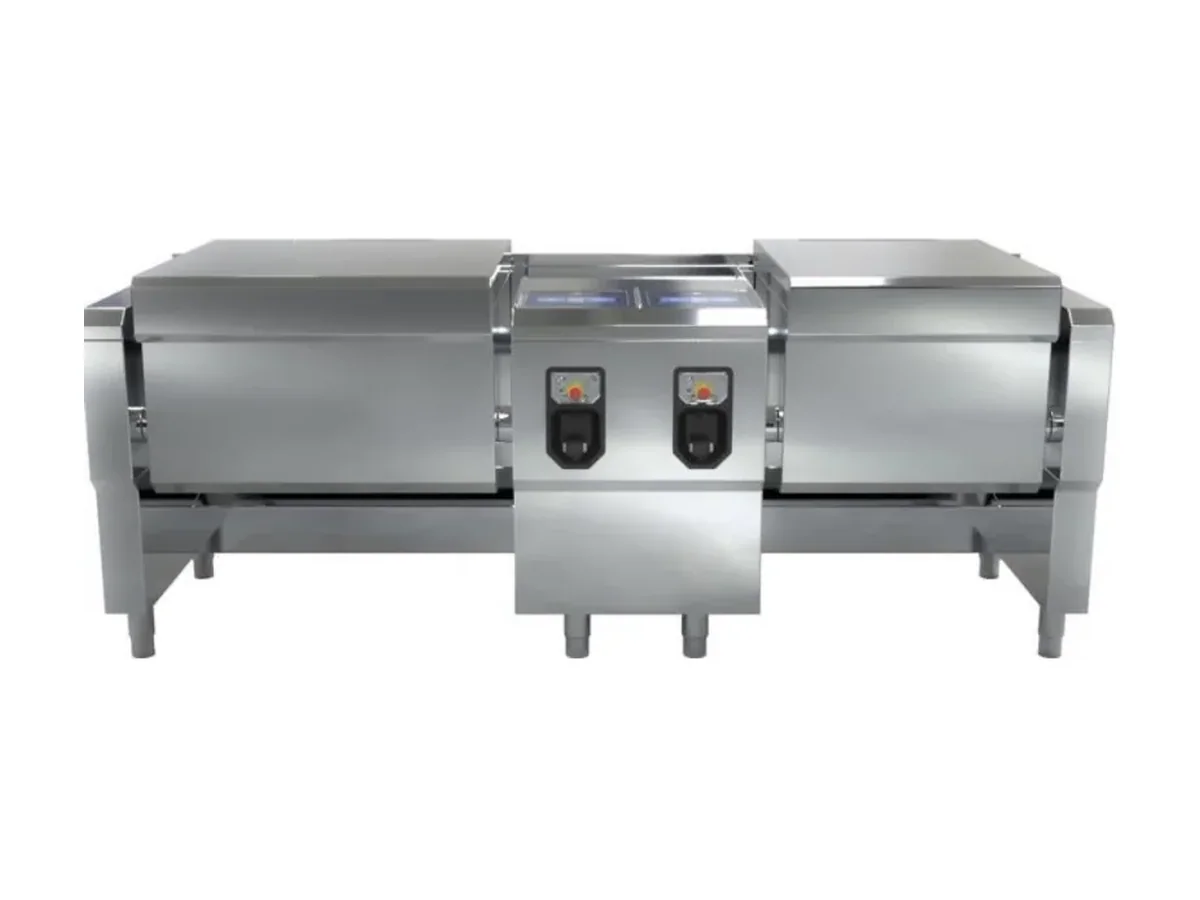

Multifunctional pans combine boiling, braising, shallow frying and deep frying in one appliance. MKN FlexiChef adds pressure cooking and sous vide, a FlexiChef Team holds two pans in one body, and the RATIONAL iVario heats its pans with ceramic heating elements connected to the pan base.

What this selection includes

This page lists 67 products from MKN (63) and RATIONAL (4). By series: FlexiChef (35), Optima 850 (16), Optima 700 (8), iVario Pro (3) and iVario (1). Across the list you will find rated power from 10.5 kW to 41 kW on the 42 models that publish it and capacities from 17 to 150 litres.

By capacity band, 30 to 60 litres (9), 60 to 100 litres (42) and 100 to 150 litres (16). Connected load splits into 10 to 20 kw (34), 20 to 40 kw (29) and over 40 kw (1).

Counted by vessel type: 67 for ships, 51 for yachts and 20 for offshore units.

A few of the models listed here: MKN Magnum Multifunctional Bratt Pan 10019176 (19.2 kW, 113 litres), MKN Magnum Multifunctional Bratt Pan 10019177 (19.2 kW, 143 litres), MKN Magnum Multifunctional Bratt Pan 10019139 (14.4 kW, 65 litres) and MKN Magnum Multifunctional Bratt Pan 10019141 (14.6 kW, 65 litres).

Specifying marine multifunctional pans

• Supply: 208 V, 220 V, 230 V, 240 V, 380 V, 400 V, 440 V or 480 V is what the manufacturers publish for these models, 4 of them with 60 Hz operation. The board voltage, phase and frequency decide which build is ordered.
• Power: 10.5 kW at the low end, 41 kW at the high end where published; the total galley load is what the switchboard sees.
• Space: the narrowest body here is 1,030 mm wide and the widest 1,365 mm, so the door, the passage and the final position all matter.
• Weight and connected load, which a large pan or multifunctional appliance concentrates in one position.

See the marine bratt pans category for the wider range and the guide to choosing galley equipment.
