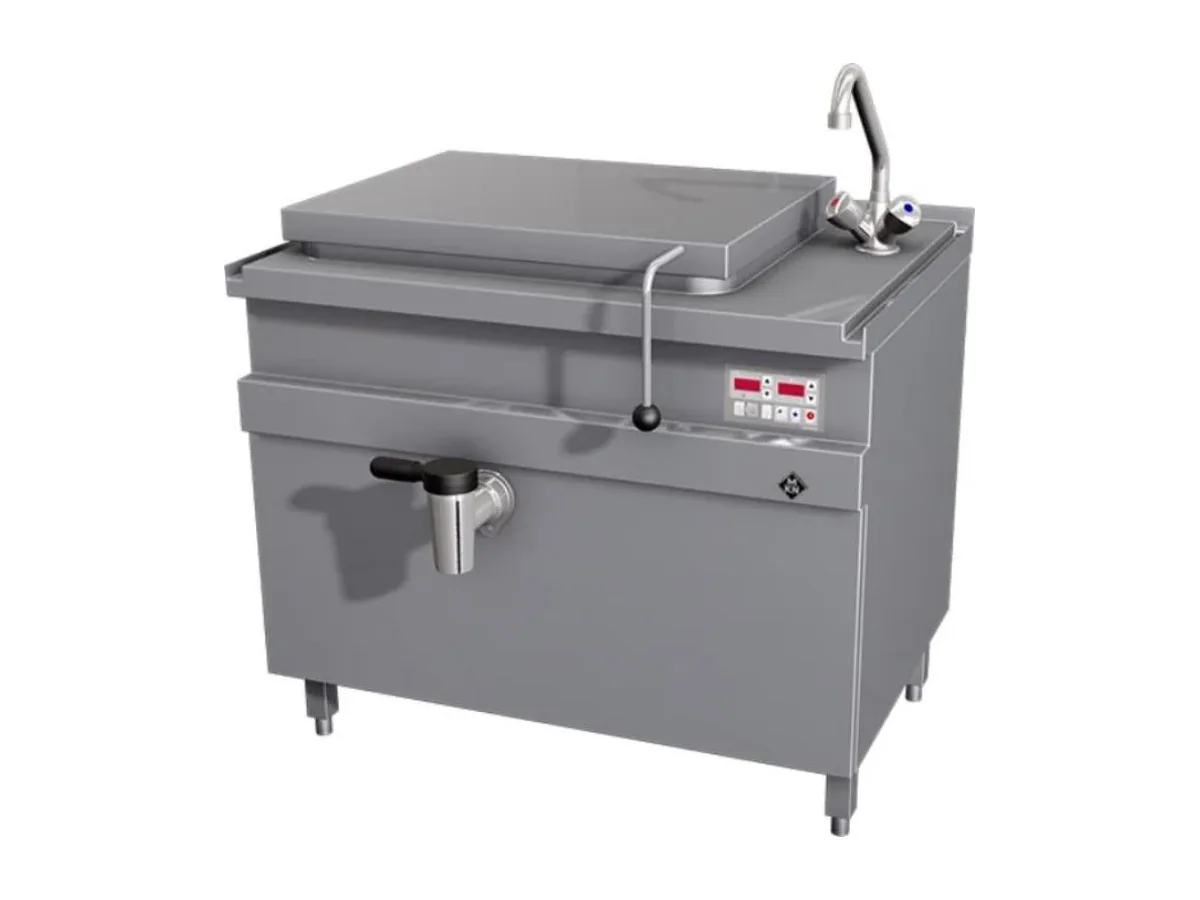

MKN Magnum Multifunctional Bratt Pan 10019174 – Optima 700

Seventy-seven litres of pan volume on a 700 x 540 mm working surface puts the Magnum 10019174 squarely in the medium production bracket of an Optima 700 line. At 14.4 kW connected load this single work zone is specified to cook, shallow-fry or braise full batches without oversizing the electrical feed.

The 1000 x 700 x 700 mm body fits the Optima 700 depth, which matters on a vessel where the cooking line often runs tight against bulkheads and walkways. A 700 mm corpus depth leaves more passage space and simplifies extraction canopy design, while still giving a 700 mm long pan area. Net weight is 150 kg, rising to 183 kg gross, so the foundation, flanged feet or plinth and any deck reinforcement need to be agreed between yard and galley supplier rather than assumed.

Electrically the unit is rated at 400 V and 14.4 kW. That figure feeds straight into the ship’s load calculations and determines which distribution board and breaker frame can accept the pan. Being prepared for connection to an energy optimisation system means the bratt pan can be integrated into a galley-wide peak‑shaving scheme, reducing the chance of nuisance trips when several high-load appliances are running in parallel. With one work zone, there is no internal load splitting; the full rating is available to the single pan surface.

The working surface itself, at 700 x 540 x 250 mm, gives sufficient depth for 77 litres of product without risking spillover under tilt or agitation. Stainless steel 1.4404 (AISI 316L) on all wetted parts keeps the product-contact area in a higher corrosion-resistance class than the 1.4301 (AISI 304) used throughout the general construction. That combination makes sense in a marine galley where salt, acids and cleaning chemicals see the most contact inside the pan and its drain path. The double-walled hinged lid with swivel joint and condensate drip strip supports covered cooking while controlling condensate backflow towards the pan rather than the rear or side of the unit.

Build and control

• Stainless steel 1.4301 (AISI 304) throughout
• Stainless steel 1.4404 (AISI 316L) on all wetted parts
• Self-supporting closed construction
• Fully welded seams
• Double-walled hinged lid with swivel joint and condensate drip strip
• Drain valve for emptying the 77-litre pan
• R3/4" tap with 250 mm reach
• Prepared for connection to an energy optimisation system

This Magnum multifunctional bratt pan suits a main galley that needs a single-zone 77-litre pan integrated into a 700 mm deep Optima line, with corrosion-resistant wetted parts and energy management connectivity. It is the wrong choice where segmented temperature zones or larger batch volumes are required; in those cases the designer should move to other bodies within the Magnum or kettle range. Ordered under MKN product number 10019174.
