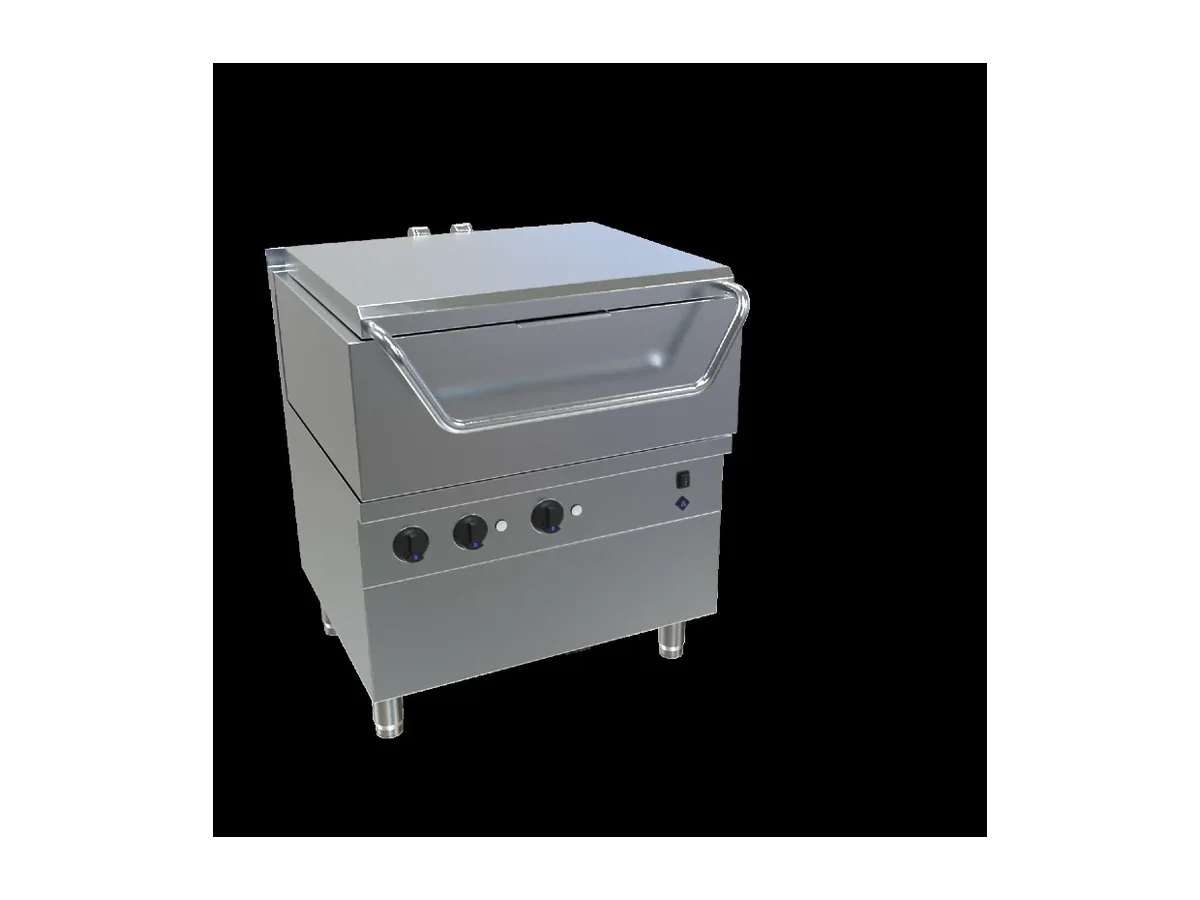

MKN Tilting Multifunctional Bratt Pan 7EPKU022XFM – on Stand, Electric

Ninety-two litres of pan volume at 10.5 kW defines the 7EPKU022XFM: a tilting multifunctional bratt pan sized for GN 2/1 work and steady production rather than peak-power searing. With a quoted cooking time of 195 min to the relevant DIN standard, it is a piece of equipment for long, controlled processes.

On a vessel, that balance between capacity and electrical load is often the deciding factor. A 10.5 kW appliance can usually be integrated into an existing 380–415 V distribution board without the same protection upgrades that higher-load cooking blocks demand, while still giving a 92-litre working volume for braises, sauces or bulk shallow-fry work. The unit’s heat emission data — 4,200 W latent and 6,000 W sensible — are equally important to the HVAC calculation; both figures end up in the air-conditioning and extraction load when the galley is enclosed and running for several hours.

Electrically the bratt pan is configured for 380–415 V on a three-phase supply, with total electrical power at 10.5 kW. That anchors it firmly in the shipboard segment where 50 or 60 Hz three-phase systems at this voltage are standard practice, and leaves room on the same panel for other cooking appliances. Net weight is 204 kg, with 209 kg gross, so the structural load on the deck and any plinth or stand needs to be taken into account at design stage rather than left to the installer.

The working side of the appliance is built around GN 2/1 compatibility, so existing container sets and serving logistics can move straight across. A hinged lid allows controlled cooking and helps contain vapour, which in turn interacts with the published 4,200 W latent heat emission — lid management becomes part of the way the galley controls humidity around the block. Water connection is via a 3/4″ IG (internal thread) at an inlet pressure of 2–6 bar, giving the yard clear limits when tying into the ship’s potable water ring main and specifying any local pressure reduction.

Wetted parts in stainless steel 1.4404 (AISI 316L) are a deliberate choice for a marine-exposed galley, where chloride load is higher and cleaning is frequent and aggressive. IP-rated water protection supports that cleaning regime: spray and splash during wash-down are expected, not an edge case. The quoted cooking time of 195 min gives a benchmark for menu planning and sequencing around the pan’s primary use.

Build and control

• Accepts GN 2/1 containers
• Hinged lid for covered cooking and vapour control
• Stainless steel 1.4404 (AISI 316L) wetted parts
• IP-rated water protection for wash-down environments

This is the right choice where a galley needs a medium-capacity multifunctional pan within a 10.5 kW electrical envelope, and where 380–415 V three-phase is readily available. It is less suited to a very small pantry operation that cannot justify a 92-litre body, or to a very high-output line looking for larger batch sizes in a single vessel.

Ordered under MKN product number 7EPKU022XFM.
