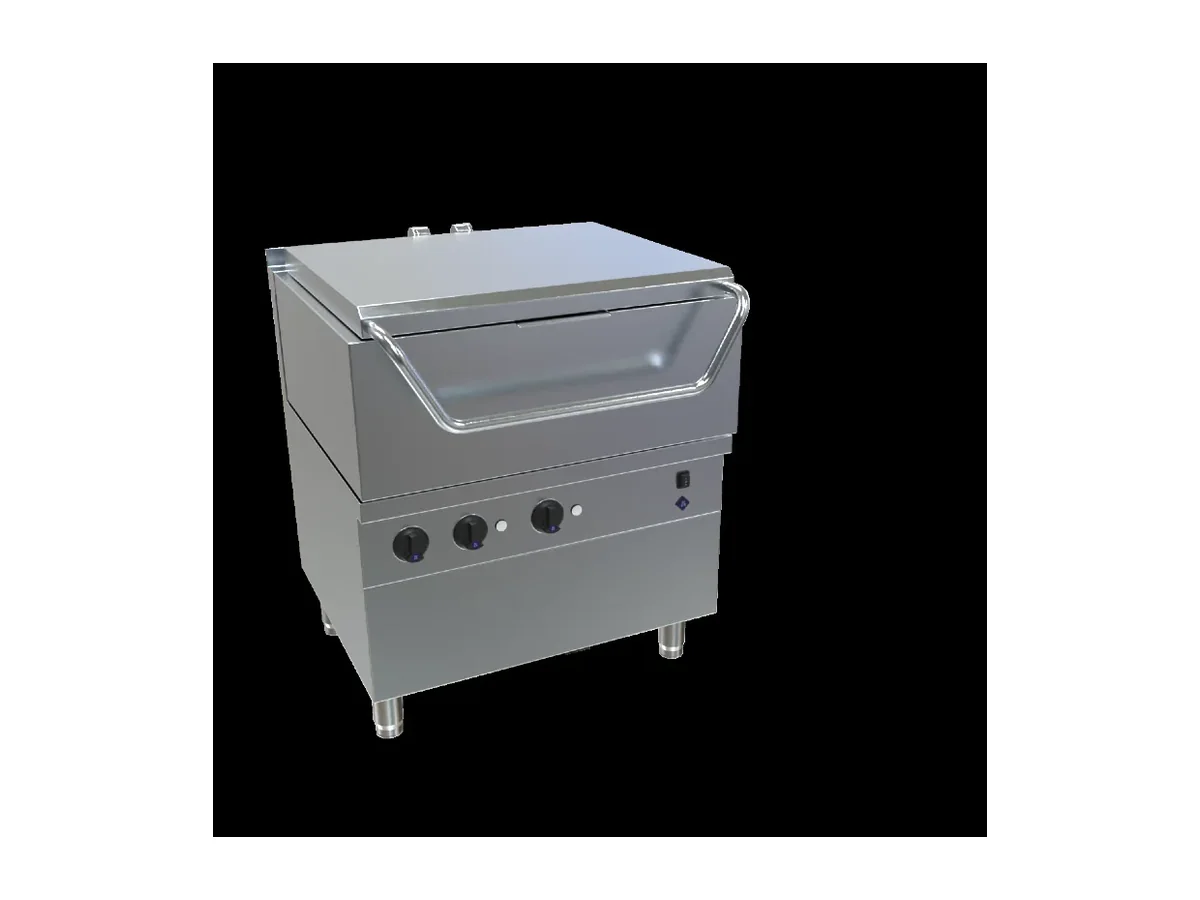

MKN Tilting Multifunctional Bratt Pan 7EPKU022XMM – on Stand, Electric

Ninety‑two litres of pan volume and 14 kW MaxPower set the MKN 7EPKU022XMM up as a main production appliance rather than a support piece. With GN 2/1 compatibility and a tilting body on a stand, it is sized to handle bulk cooking where service runs are long and portions are counted in the hundreds.

On a ship, that 92‑litre capacity has to be read against electrical and water constraints. The appliance is rated 380–415 V, which aligns with common three‑phase marine distributions, so it can usually be tied into the main galley panel without a dedicated transformer. Water pressure is specified at 2–6, so as long as the vessel’s potable water system is kept inside that band the filling and any water‑related functions will behave as designed. Net weight is 195 kg and gross 204 kg, which matters when the unit is bolted to a plinth or deck foundation and the load is passed into the ship’s structure.

The quoted 75 min cooking time under DIN test conditions is the other key figure. It gives a planning basis for how quickly 92 litres of product can be brought to temperature and processed in a repeatable way. In a galley that runs fixed menu cycles, that number feeds straight into the production schedule: how many batches fit into a service window, and what that implies for backup pans or holding equipment.

From a construction standpoint, the wetted parts are in stainless steel 1.4404 (AISI 316L). In a marine environment with chloride exposure from salt air and frequent washing, that choice of material improves resistance where it is needed most: in the pan and internal surfaces that are repeatedly heated, cooled and cleaned. The hinged lid forms the upper boundary of the cooking chamber, helping to control heat and vapour over the 75 min DIN cycle and during normal galley operation. Accepting GN 2/1 containers means the pan integrates with the standard container logistics on board — product can be cooked, held or transferred without changing format.

Build and control

• Accepts GN 2/1 containers
• Hinged lid
• IP-rated water protection
• Stainless steel 1.4404 (AISI 316L) wetted parts

The IP-rated water protection is directly relevant in a shipboard galley that is cleaned down with hoses and where spray and splashes are routine. The electrical section and controls are protected accordingly, so the 380–415 V supply and 14 kW load are not exposed to routine washdown. The tilting function, combined with the stand, simplifies emptying 92 litres safely into GN 2/1 containers or other vessels without manual lifting.

This unit is the right choice where the galley design calls for a single, relatively large multifunctional pan fed from a three‑phase 380–415 V supply and where 92 litres per batch aligns with the headcount. It is less suitable where only small batches are needed or where the electrical infrastructure cannot comfortably support a 14 kW appliance. Ordered under MKN product number 7EPKU022XMM.
