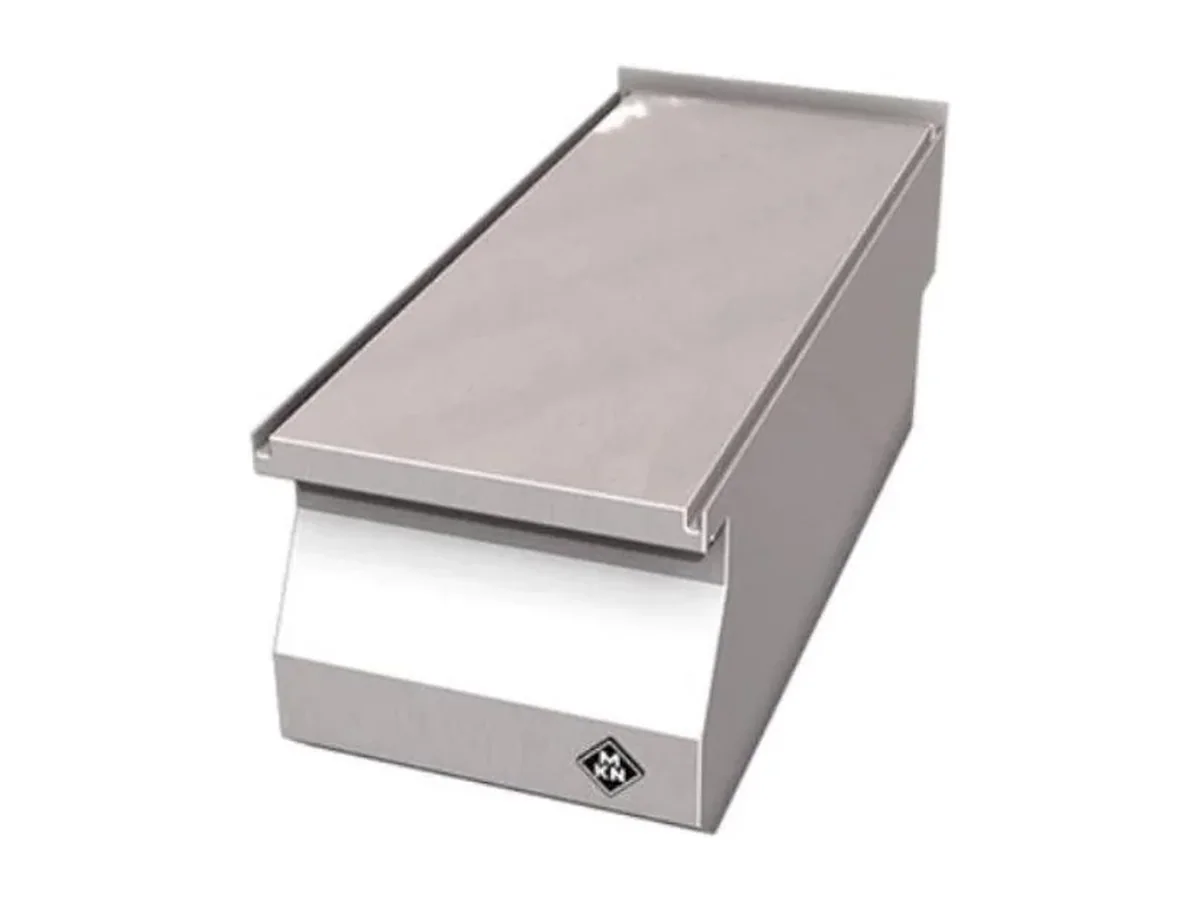

CounterSL stainless work table, 300 x 700 mm surface with 270 mm corpus height, 1.4301 (AISI 304) construction. Article 10013345.
| Manufacturer | MKN |
|---|---|
| Article number | 10013345 |
| Series | CounterSL |
| Dimensions (LxWxH) | 300 x 700 x 270 mm |
| Working surface (LxW) | 300 x 700 mm |
A 300 x 700 mm working surface at a 270 mm overall height sets this CounterSL table apart from standard galley benches. It is sized as a low counter element rather than a full-height preparation table, so it can sit in front-cooking lines or compact service counters without dominating the space.
On board, that 270 mm corpus height matters where counters, sneeze guards and serving lines are tightly stacked under a fixed deckhead. A low work table like this can be built into a buffet or snack line while keeping sightlines open and leaving clearance for extraction canopies or service shelves above. The 300 mm length makes it a narrow module for filling residual gaps in a CounterSL run, or providing a defined parking or plating area between powered appliances.
The overall dimensions are 300 x 700 x 270 mm, with the full footprint available as working surface at 300 x 700 mm. That means no loss of usable top to raised rims or housings; the entire top plate can be used for trays, small equipment or mise en place. In a confined galley or front-cooking station, those numbers translate directly into planning: 300 mm of line length is easy to accommodate where a wider base cabinet would block circulation.
Construction is stainless steel 1.4301 (AISI 304) throughout. Using a single material grade across the body simplifies maintenance on board, as cleaners and procedures can be standardised across the CounterSL line and other 1.4301 fittings. It also avoids the mixed-material joins that are harder to keep clean under USPH-style inspection regimes, particularly where counters meet appliances or bulkheads.
The unit is described as a self-supporting closed construction. In practice this means the work table forms a stable module within a CounterSL or similar low-profile counter run without relying on adjacent furniture for structural support. For a shipyard or refit contractor, that simplifies installation because the module can be positioned, aligned and fixed on its own before surrounding cladding or built-in casework is completed.
Build and control
• Stainless steel 1.4301 (AISI 304) throughout
• Self-supporting closed construction
This work table is the right choice where a designer needs a short 300 mm section of 700 mm-deep stainless surface at low height in a CounterSL line, for example as a neutral top between heated or cooled modules. It is less suited as a standalone main prep surface in a production galley, where a full-height table with greater depth and length will give more ergonomic working space. Ordered under MKN product number 10013345.
| Manufacturer | MKN |
|---|---|
| Article number | 10013345 |
| Series | CounterSL |
| Dimensions (LxWxH) | 300 x 700 x 270 mm |
| Working surface (LxW) | 300 x 700 mm |
The MKN CounterSL work table 10013345 has overall dimensions of 300 x 700 x 270 mm, with a working surface of 300 x 700 mm.
The work table is built in stainless steel 1.4301 (AISI 304) throughout, providing a consistent material specification across the entire unit.
Article number 10013345 belongs to the MKN CounterSL series, designed as a low-height counter line using 300 x 700 mm working surfaces like this module.
