Marine equipment type
18 marine solid top ranges from MKN and Electrolux Professional, with published technical data and supply voltages for shipboard installation.
21 kW Ecotop solid top on oven, 1000×900×700 mm with 820×720 mm usable plate, thermaline 90 marine, PNC 589884.

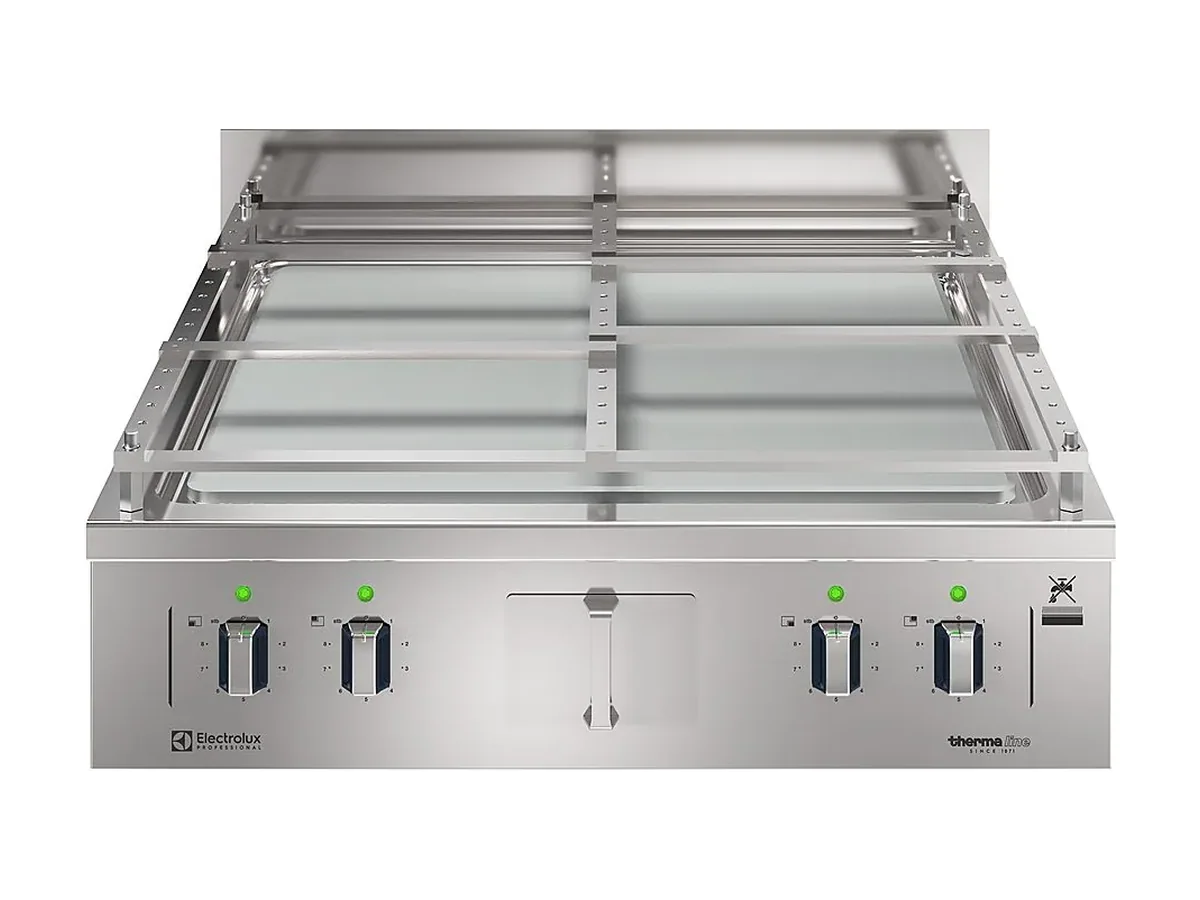

4-zone Ecotop solid top, 16 kW on 440 V/3 ph/60 Hz, 1000x900 mm thermaline 90 marine top, PNC 589932.
4-zone solid top range, 16 kW at 440 V/3 ph with 820×720 mm usable plate on 1000×900 mm thermaline 90 body, H=700, one-side operated.

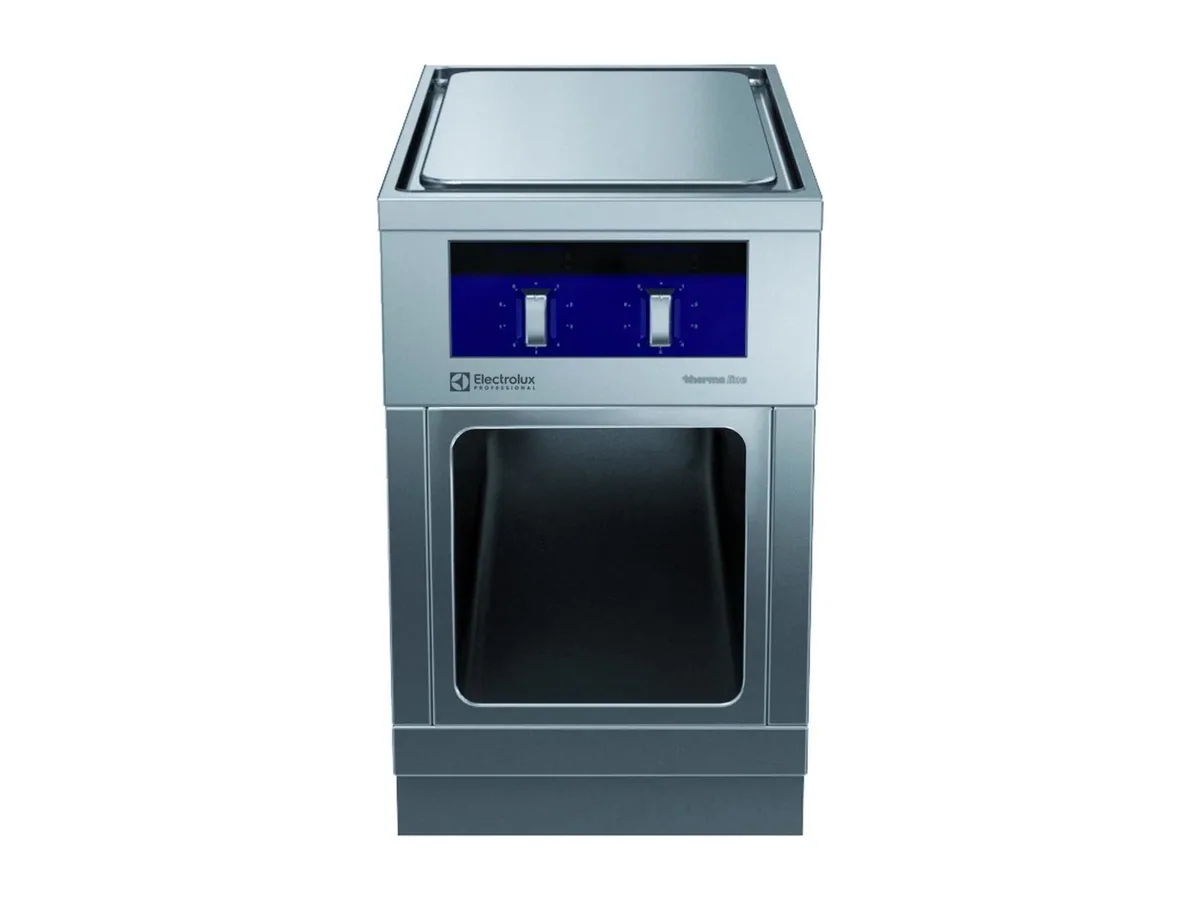

500 mm wide thermaline 90 Ecotop solid top, 2 zones, 6 kW at 440 V/3 ph with 360×730 mm usable surface, H3 hygienic base.

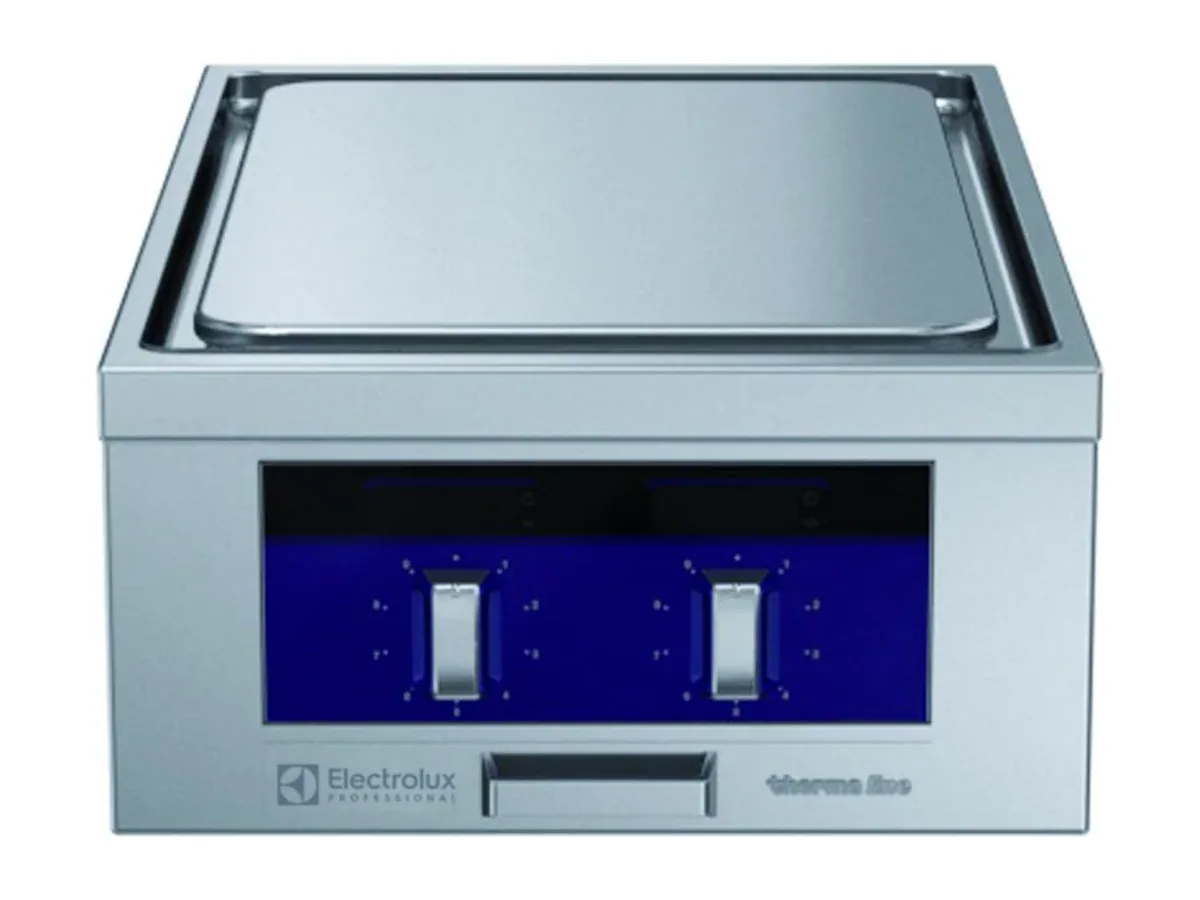

2-zone Ecotop solid top, 6 kW at 100–450 °C in a 500 x 900 mm thermaline 90 marine top, one-side operated.
4-zone Ecotop solid top, 16 kW at 440 V/3 ph/50/60 Hz, 1000 x 900 mm thermaline 90, one-side operated, PNC 589872.

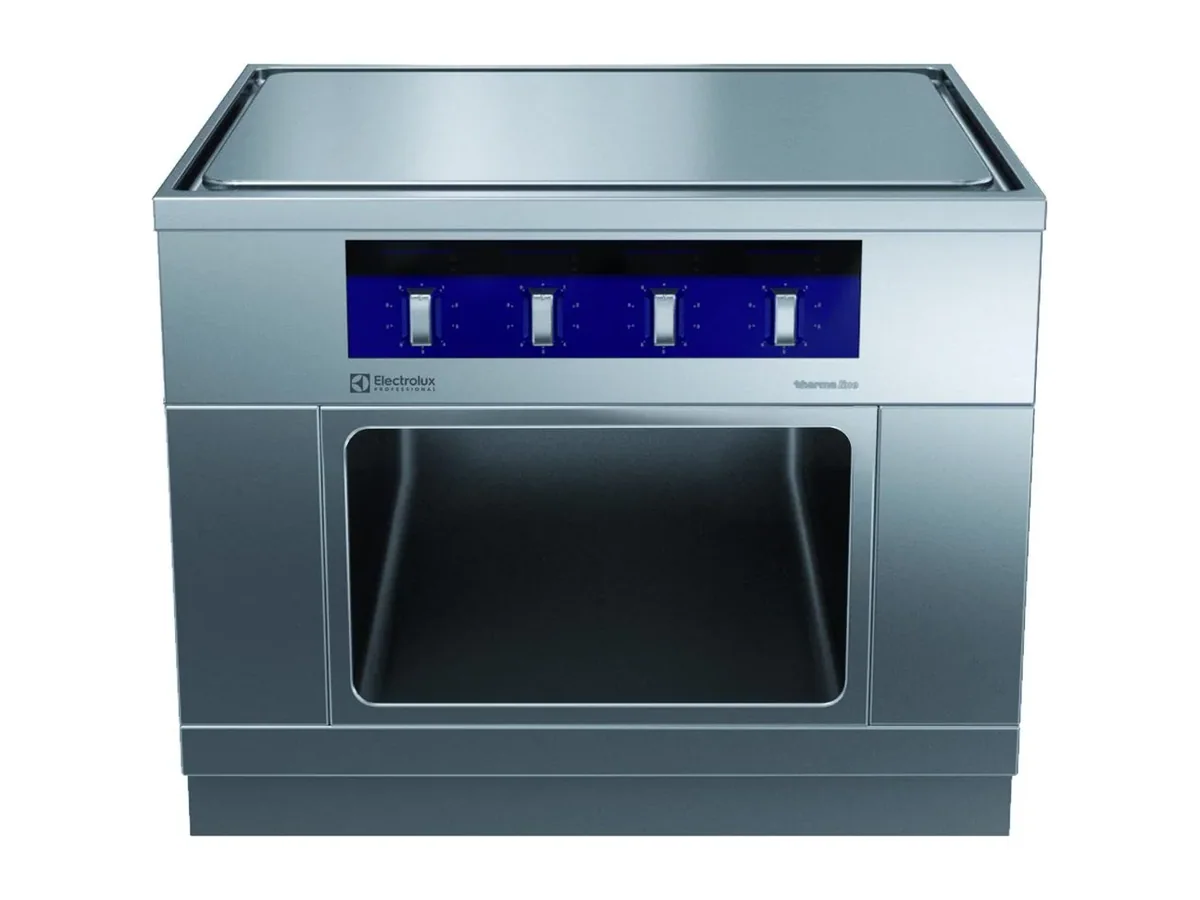

4-zone Ecotop solid top, 16 kW at 440 V/3 ph/50/60 Hz with 820×720 mm usable surface on H=700 thermaline 90 H3 base.
16 kW, 4-zone electric solid top, 820×720 mm usable surface on a 1000×900 mm thermaline 90 one-side top, 440 V/3 ph/50/60 Hz.

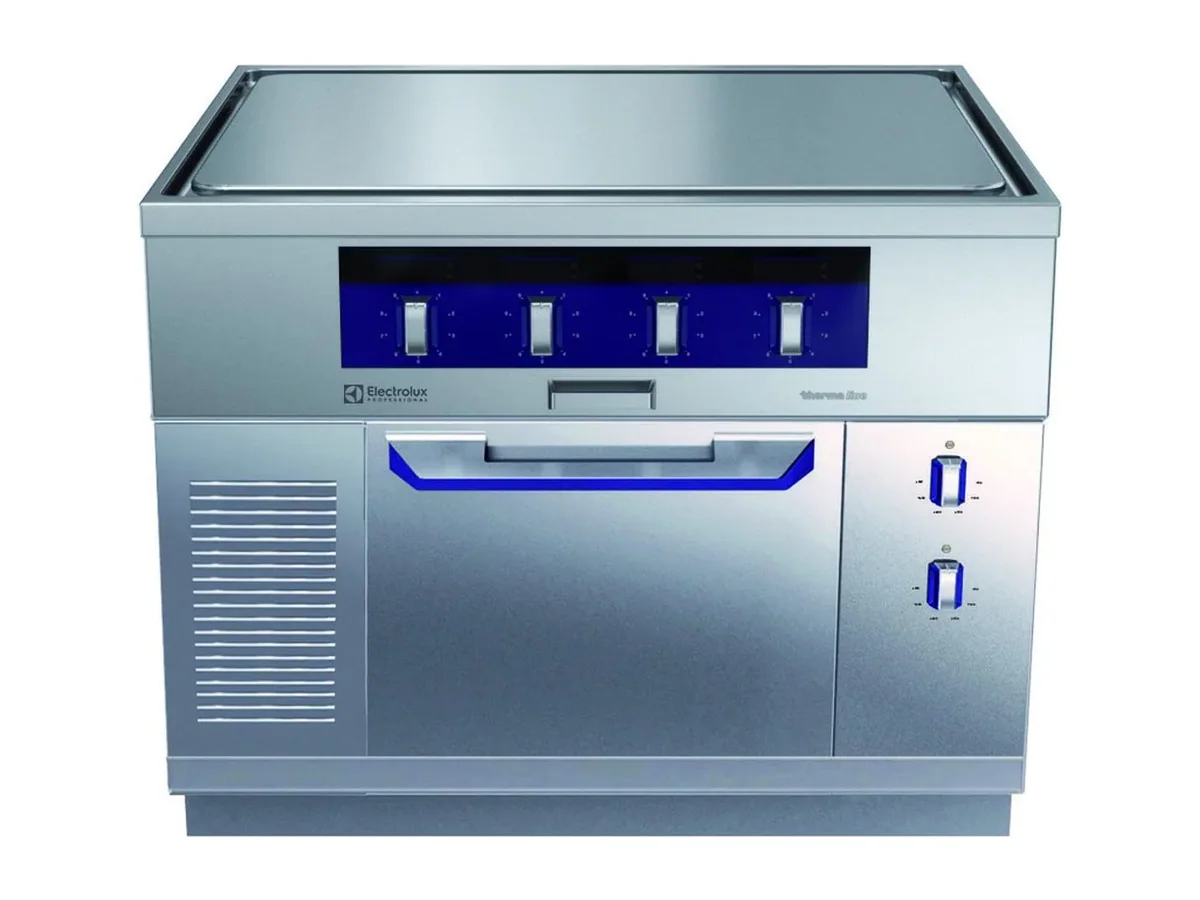

4-zone solid top on oven, 21 kW at 440 V/3 ph/50/60 Hz, 1000×900 mm with 820×720 mm usable surface, thermaline 90 marine.

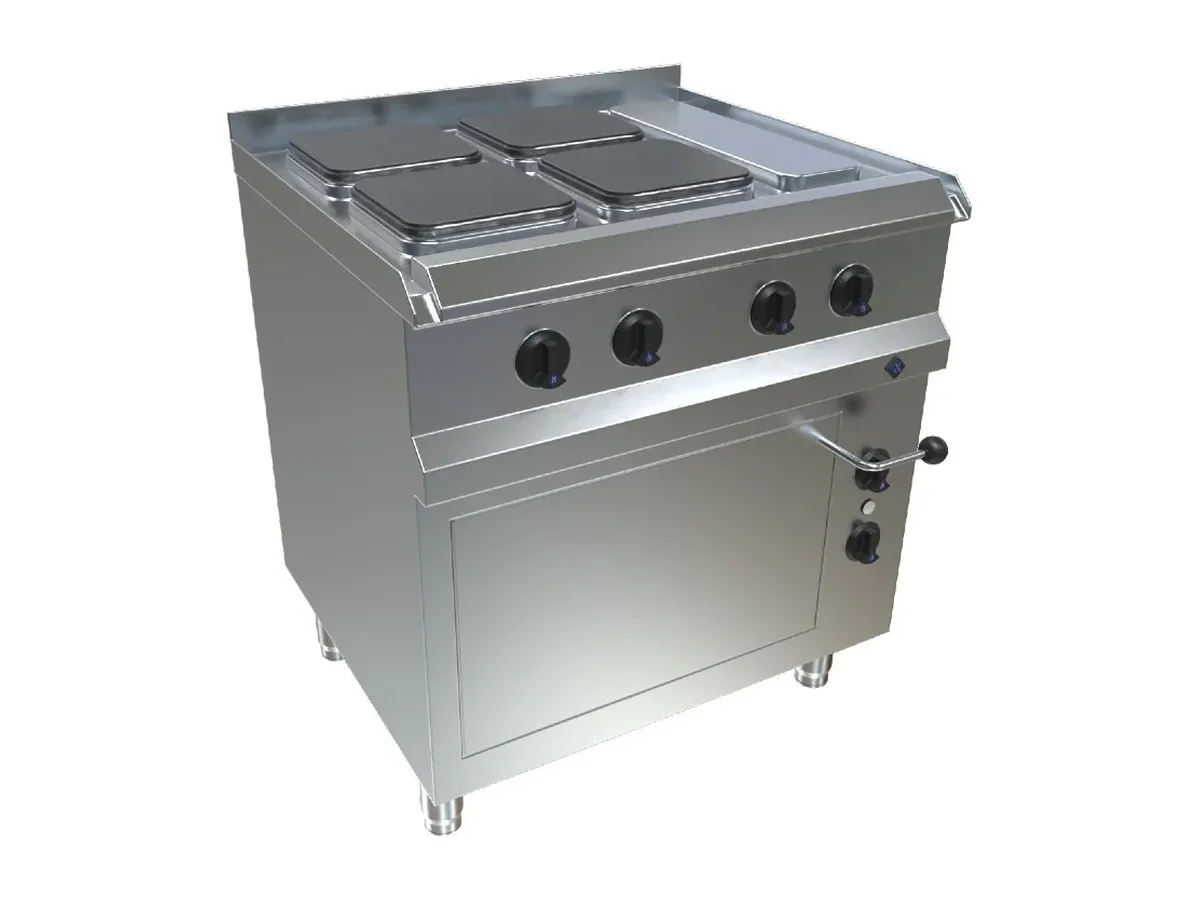

14.95 kW electric solid top cooking table with oven, hinged lid and IP-rated water protection. MKN 7EHEP084XXEB.

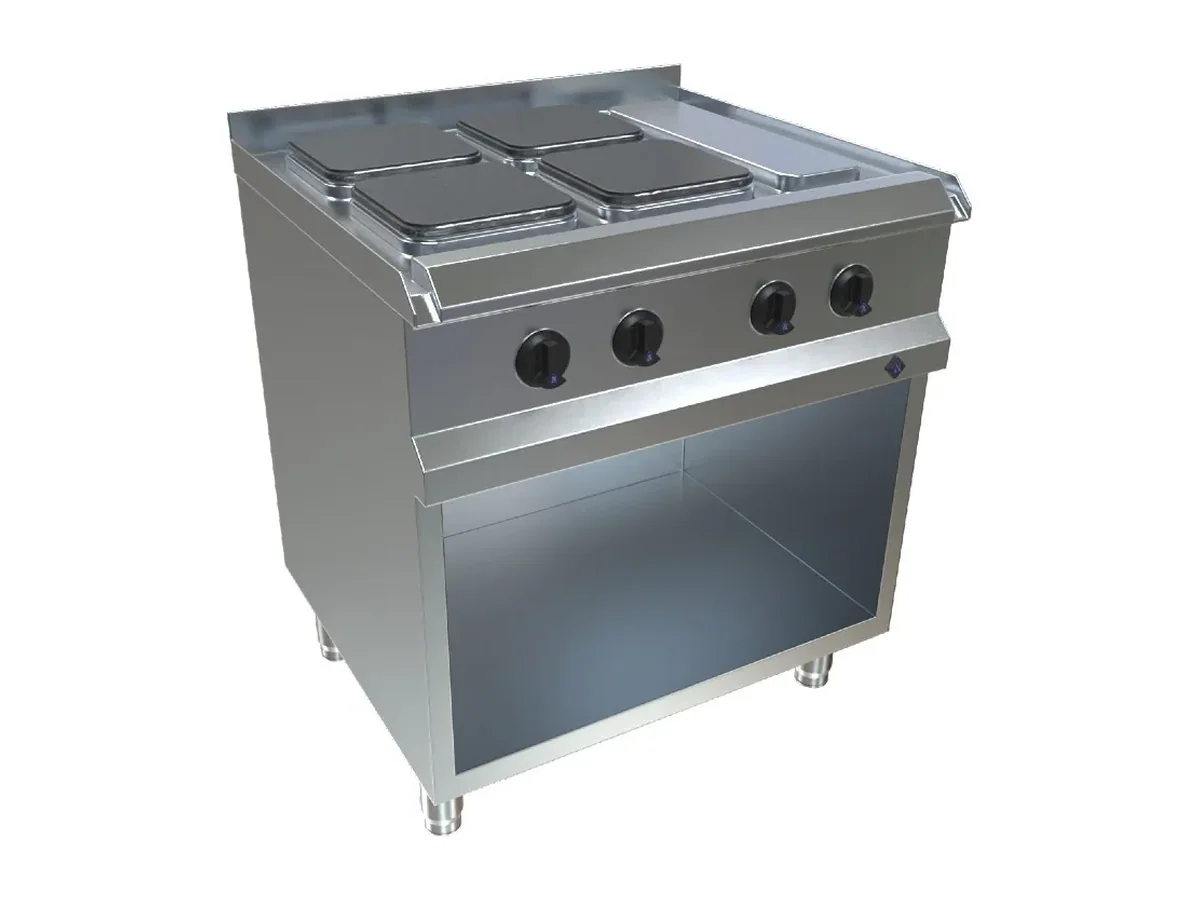

Electric solid top cooking table with fully welded seams, MKN article 7EHEP084XX for integrated galley layouts.

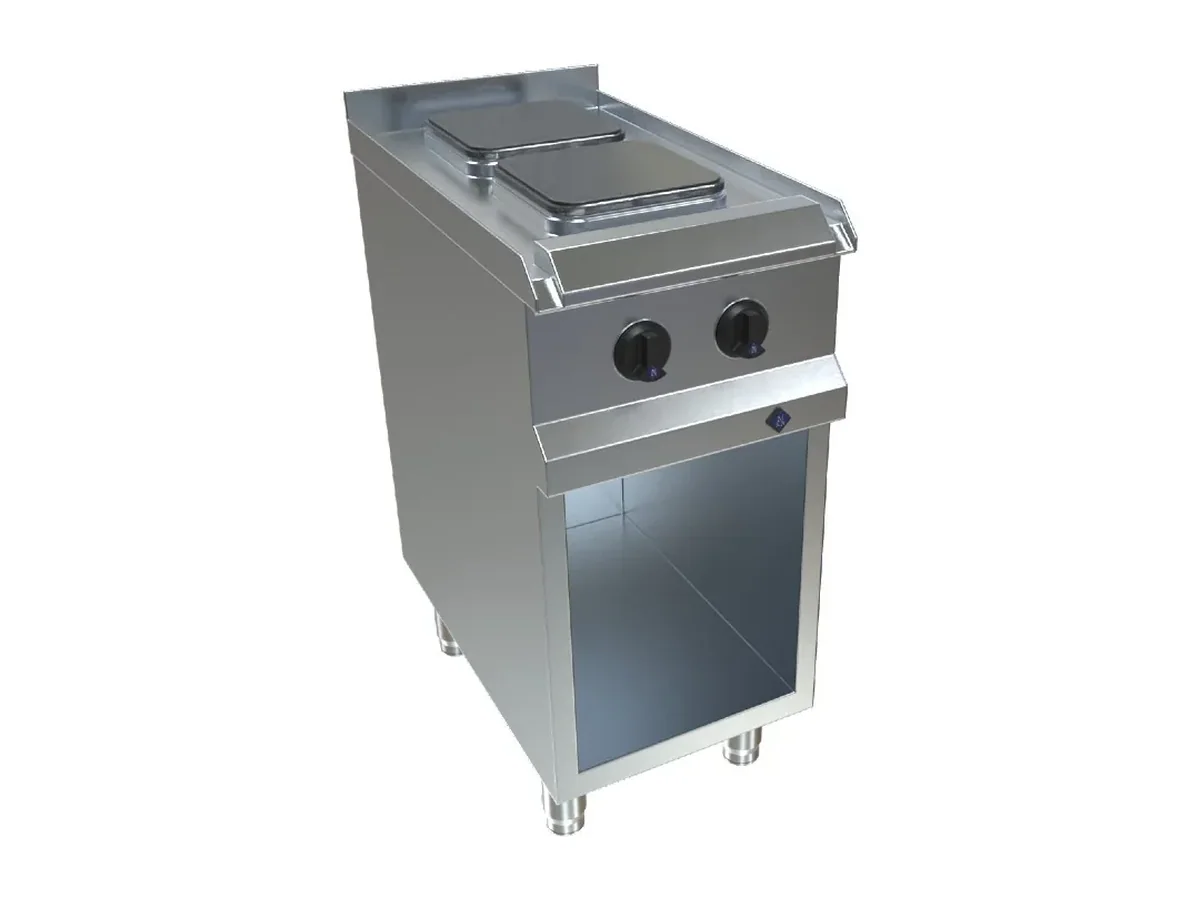

Electric solid top cooking table with fully welded seams and IP-rated water protection, MKN article 7EHEP042XX.

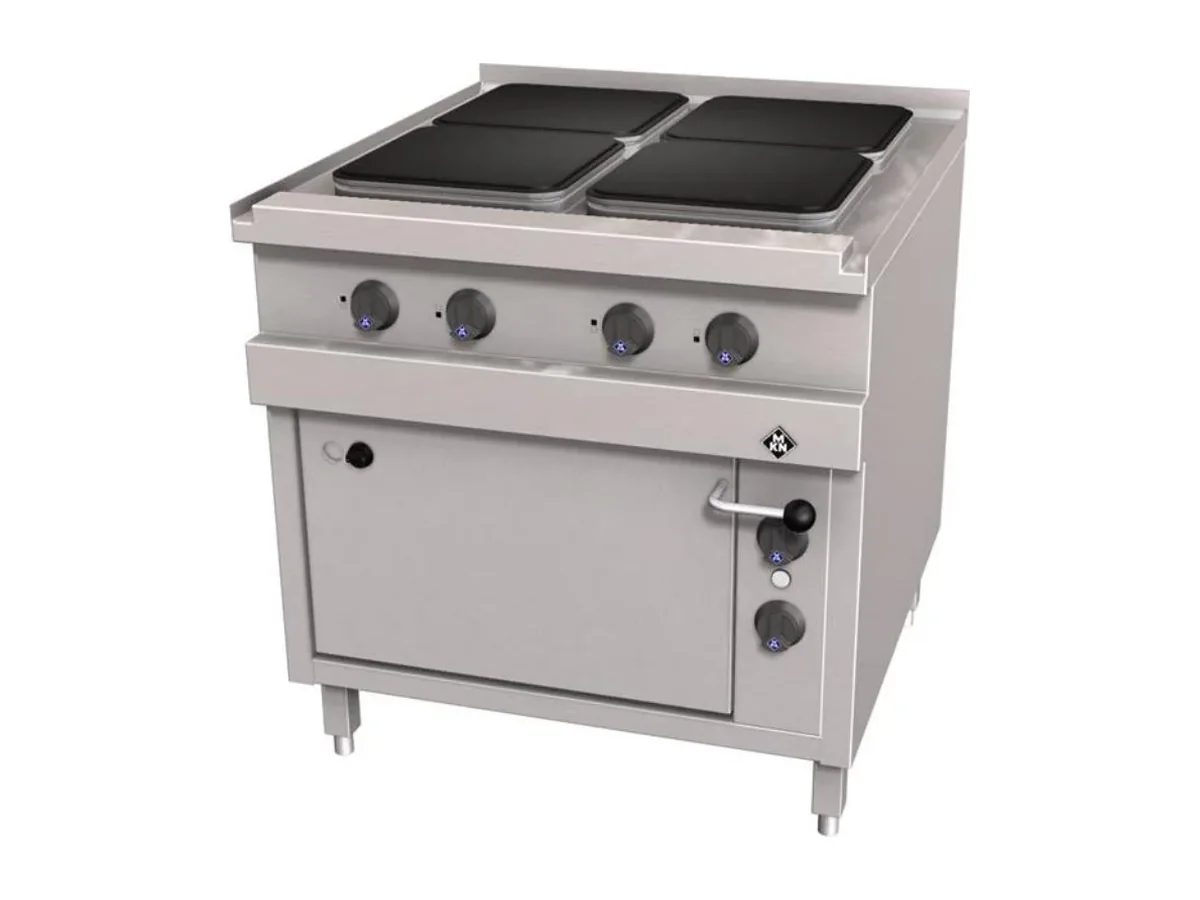

Optima 850 solid top 2023203 with four 5.4 kW zones on an 800 x 850 x 700 mm body, 18.4 kW total load.

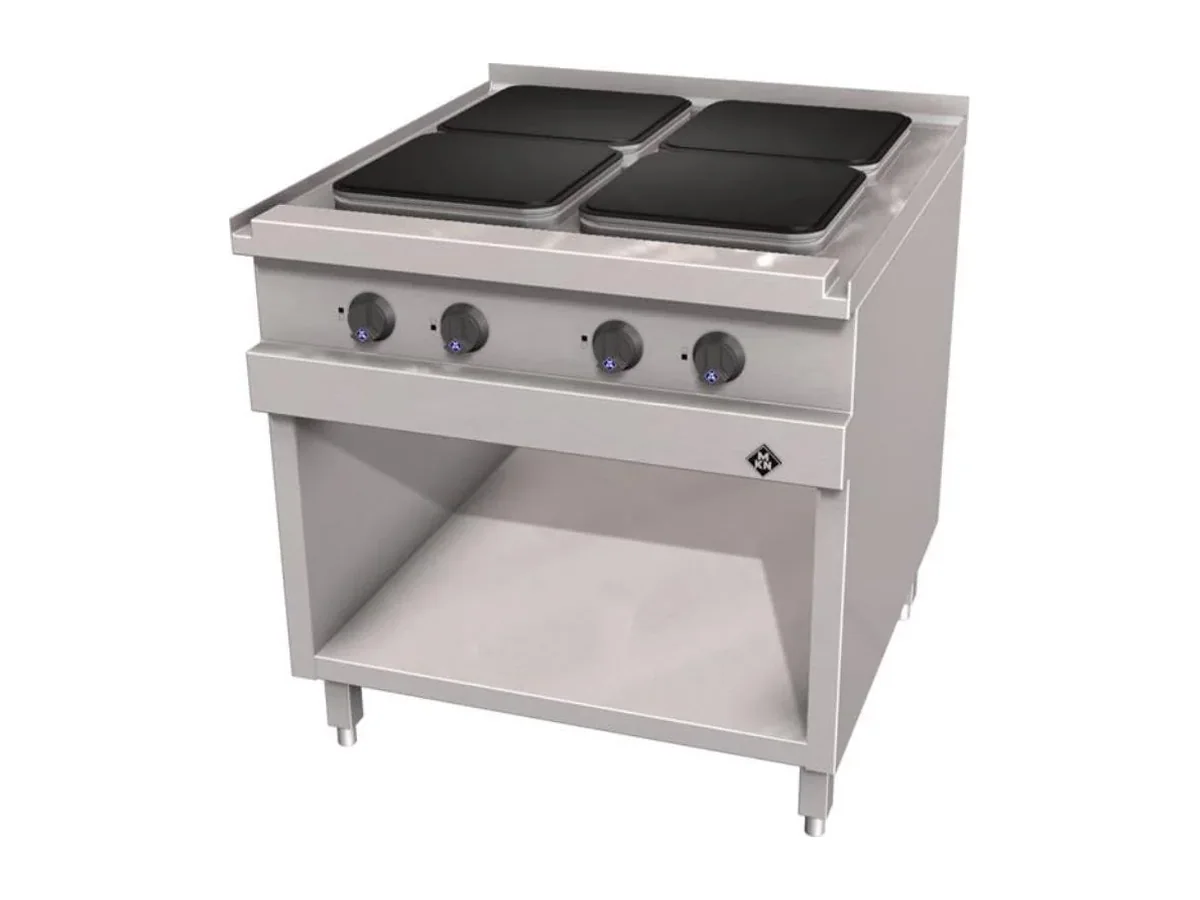

Electric Optima 850 solid top table 2023202 with 4 work zones on an 800 x 850 mm body, 13 kW total load and 1.4301 stainless steel construction.

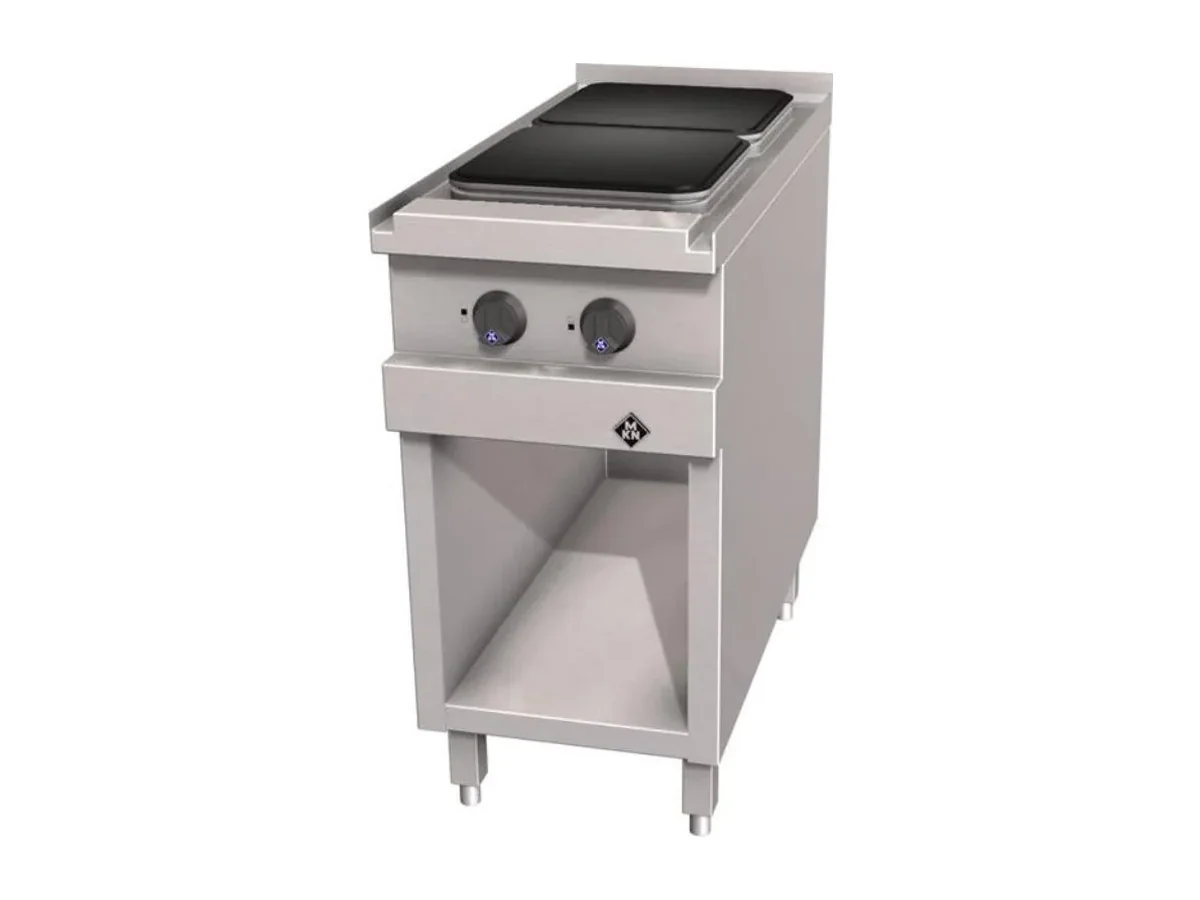

Two-zone Optima 850 electric solid top, 400 x 850 x 700 mm with 6.5 kW total load and stainless steel 1.4301 construction. Article 2023201.

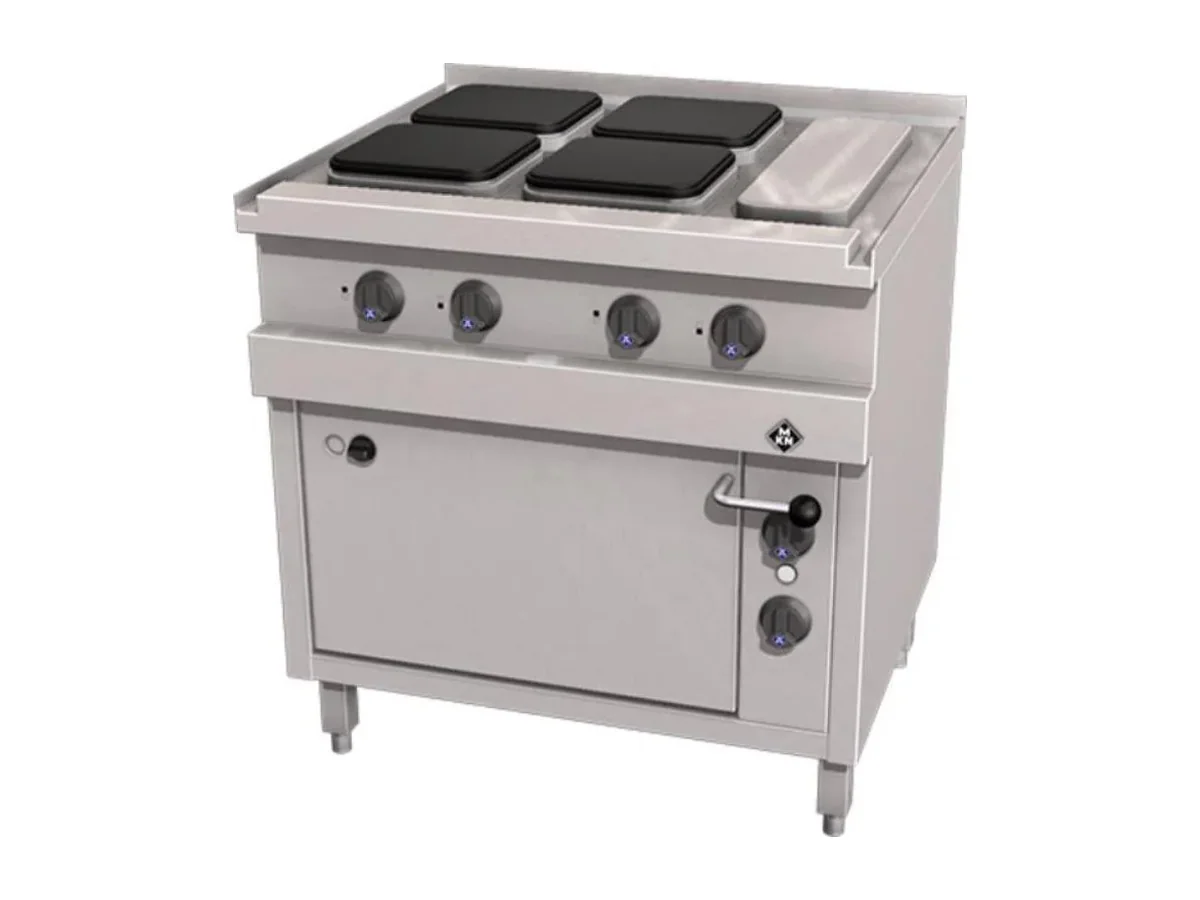

Optima 700 electric solid top with 4 work zones at 4.55 kW each on an 800 x 700 mm body. MKN 2123203.

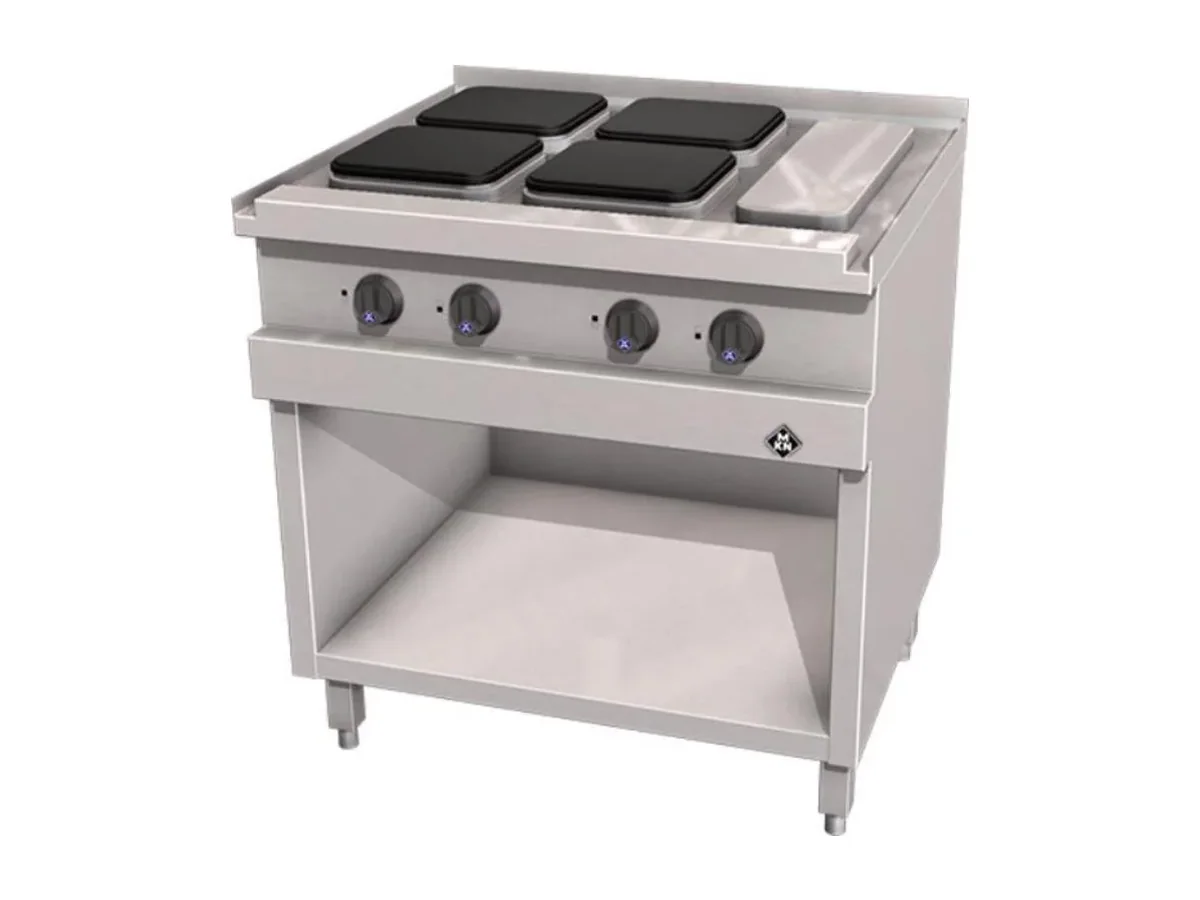

Optima 700 solid top cooking table, 800 x 700 x 700 mm with 4 x 2.6 kW zones on 400 V supply. MKN 2123202.

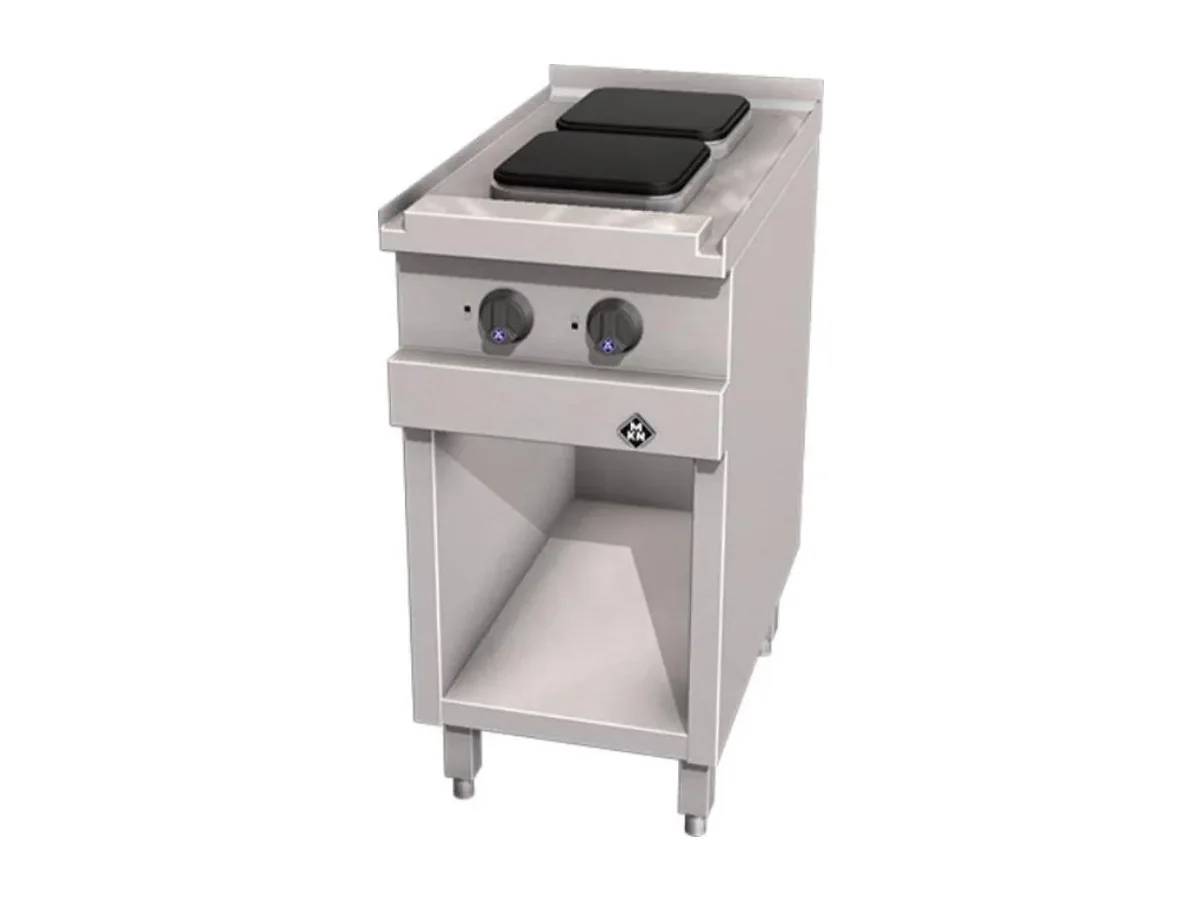

Two-zone Optima 700 solid top, 400 x 700 x 700 mm body with 220 x 220 mm working surface and 5.2 kW electric load. MKN 2123201.
A solid top heats one continuous plate with zones of different temperature, so pans are moved between zones rather than placed on individual rings. The marine Electrolux Professional thermaline 90 solid top on oven, for example, works from 100 to 450 °C with an oven to 300 °C.
This page lists 18 products from MKN (9) and Electrolux Professional (9). By series: thermaline 90 (9), Optima 700 (3) and Optima 850 (3). Across the list you will find rated power from 5.2 kW to 21 kW on the 16 models that publish it.
By connected load, 5 to 10 kw (4), 10 to 20 kw (10) and 20 to 40 kw (2). Installation splits into freestanding (3) and floor-standing (6).
Counted by vessel type: 18 for ships, 15 for yachts and 12 for offshore units.

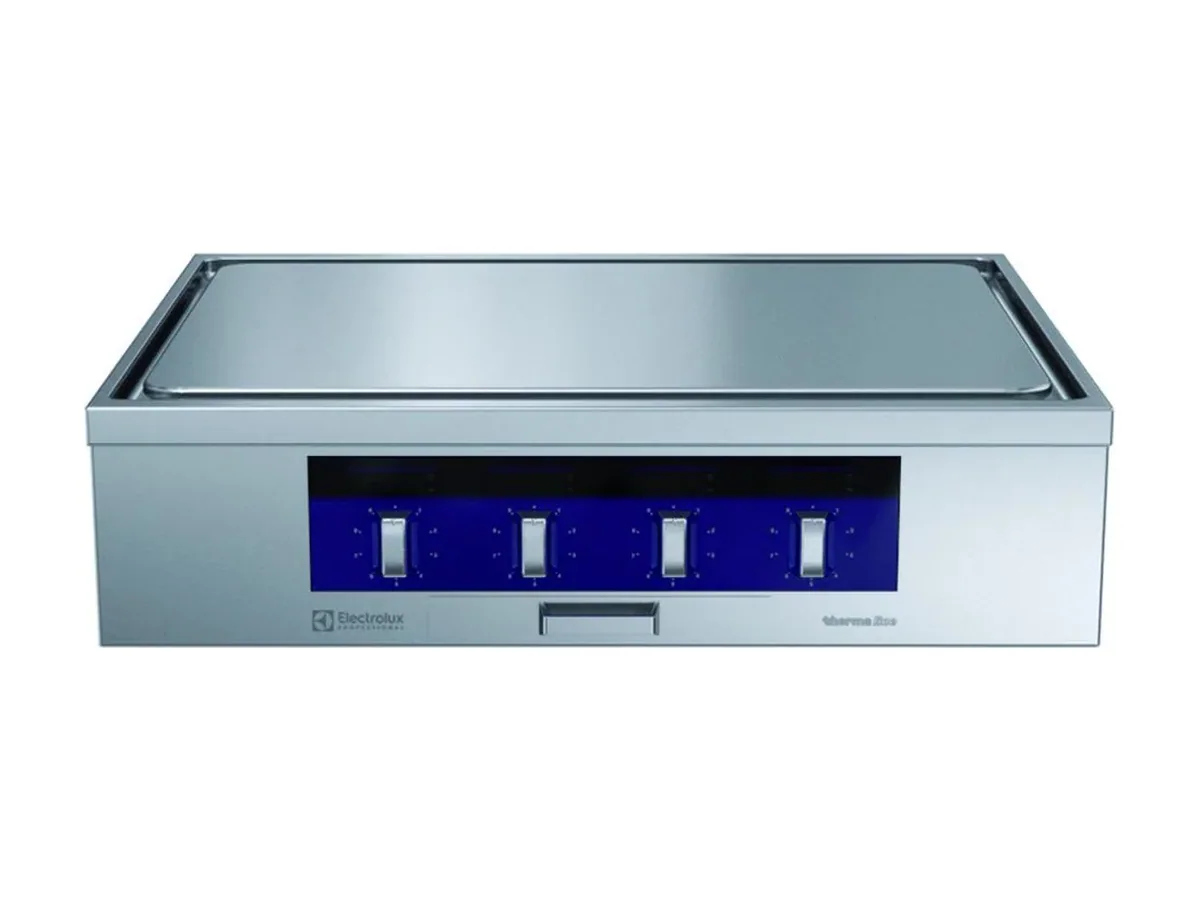

Examples from the list: MKN Solid Top Cooking Table 2023203 (18.4 kW), MKN Solid Top Cooking Table 7EHEP084XXEB (14.95 kW), Electrolux Professional Solid Top Range 589882 (21 kW, On Oven;One-Side Operated) and Electrolux Professional Solid Top Range 589870 (16 kW, One-Side Operated;Top).
See the marine cooking equipment category for the wider range and the guide to choosing galley equipment.
A solid top heats one continuous plate with zones of different temperature, so pans are moved between zones rather than placed on individual rings.
Across this selection the listed voltages are 400 V and 440 V, and 9 products list 60 Hz operation. Each unit is ordered in the vessel's own supply voltage and frequency.
Add the products to your quote list or send the vessel type, supply voltage and frequency and the quantities through the quote form. Prices are quoted to the vessel, not listed online.
Send the vessel type, supply voltage and frequency and the quantities, and our team will come back with a specification and quotation.
