Miele Dishwasher PFD 409 [WB Offshore] – 3 AC 440V 60HZ, Stainless steel

Twelve minutes for the shortest programme and a rated 190 plates per hour set the working rhythm of the PFD 409 [WB Offshore]. With 10 baskets per hour at that tempo, it suits an offshore pantry or mess that feeds crews in waves and needs ware back in service quickly rather than in one large batch.

Fresh water use is specified at 17.5 litres per wash cycle. The machine connects to one cold-water line with a required flow pressure between 1 and 10 bar, so the hydrophore and fresh-water budgets can treat that consumption as a fixed value rather than a guess. Maximum incoming water hardness is 10.7 mmol/l; above that, central treatment has to be addressed at ship level because the unit is not designed to compensate for harder water indefinitely. Heat dissipation into the room is quoted at 1.08 MJ/h, which allows HVAC sizing to be done from a data-sheet figure.

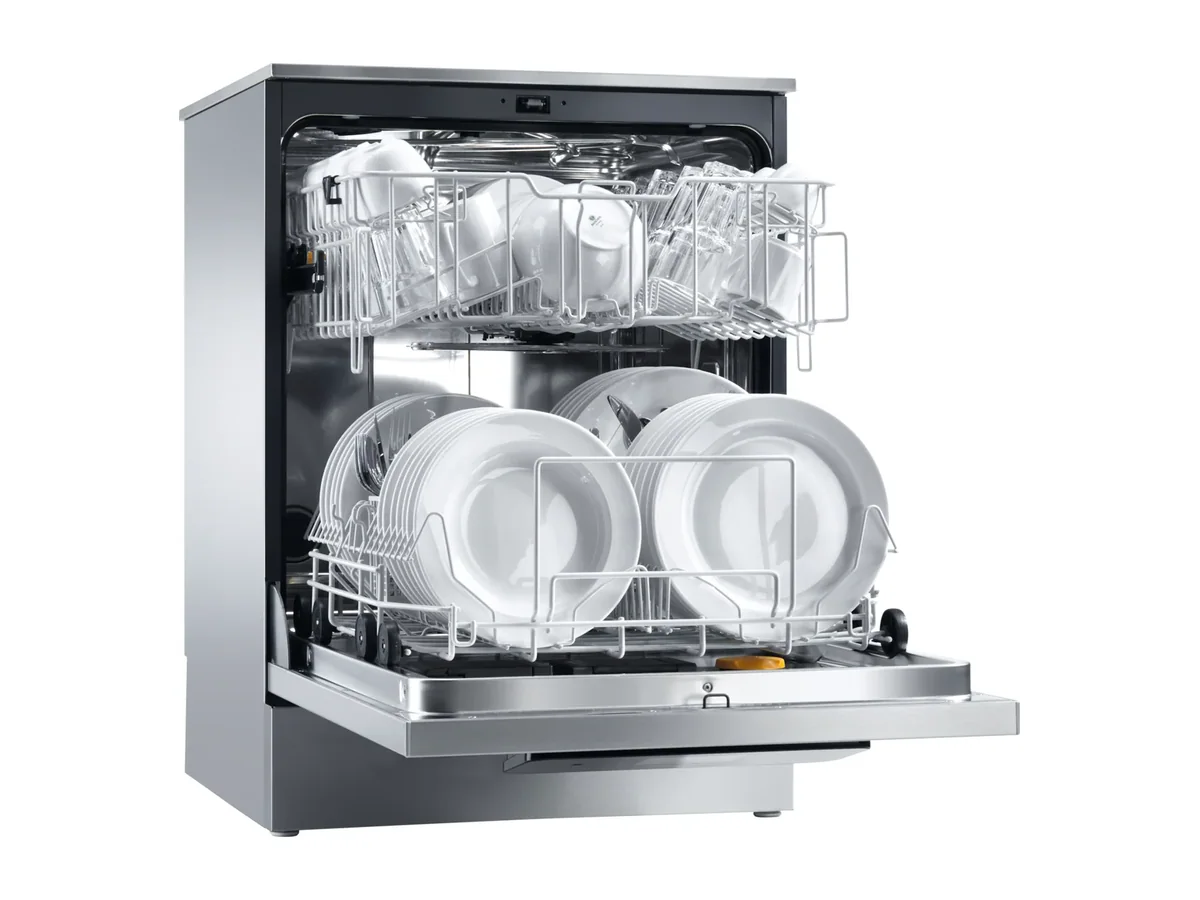

The cabinet is built for a 600 mm niche with a net width and depth of 598 mm. External height is 820 mm, or 835 mm with the stainless steel lid fitted. An in-feed height of 216 mm above the floor is relevant where the dishwasher stands on a plinth or raised deck and the working height must match adjacent counters. Inside, usable space in the wash cabinet is 520 mm high and 530 mm wide, with 474 mm usable depth on the upper basket and 505 mm on the lower. Those two levels are what support the published 190 plates and 10 baskets per hour when the machine is loaded correctly.

Construction uses a stainless steel front, lid and side panels, with a galvanised rear panel that will generally stand against furniture or a bulkhead. Net weight is 78 kg and gross weight 88 kg, so the unit can be handled through standard doors and stairs during installation without special lifting arrangements. Acoustic values are explicit: 45 dB(A) re 20 µPa sound pressure at the workplace and 57 dB(A) re 1 pW sound power. That low sound level matters where the machine sits in an open pantry or servery rather than in a separated scullery.

Electrically, the data sheet lists an AC 220V 60HZ connection, protected by a 4 A fuse. The heater rating is 9 kW, with a stated total connected load of 0.7 kW; switchboard, breakers and cabling can be sized on those figures. The mains connection cable is 1.7 m long, which has to be considered when positioning the unit relative to the local distribution box. On the waste side, a DN 22 drain pump with a maximum head height of 100 cm from floor level works with the 150 cm drain hose to reach a nearby gulley or sink line, while the fresh-water inlet hose is also 150 cm long.

Control is via the M Touch Flex system, with 7 dishwashing programmes and a maximum delay start of 24 hours where operation has to be scheduled around manning. Service life is specified at 28,000 wash cycles, a relevant figure for vessels planned on multi-year deployments. Independently tested virucidal efficacy and verified hygiene performance support documented sanitation regimes offshore, and WiFi connectivity, where available in the region, allows integration into monitoring or reporting tools.

Build and control

• Stainless steel front, lid and side panels with galvanised rear panel
• Two loading levels in the wash cabinet (upper and lower baskets)
• M Touch Flex control system with 7 dishwashing programmes
• Maximum delay start of 24 hours
• Independently tested virucidal efficacy
• Verified hygiene performance
• WiFi connectivity (availability by region)

This specification fits offshore units and shipboard pantries that can work with a 598 mm undercounter footprint, measured per-cycle consumption and low acoustic impact. It is the wrong choice where the vessel requires a dedicated high-throughput warewash line that serves several galleys continuously, because this compact undercounter machine is dimensioned for point-of-use or departmental washing rather than main galley production. Ordered under Miele article number 61040910SOM with material number 12441910.
