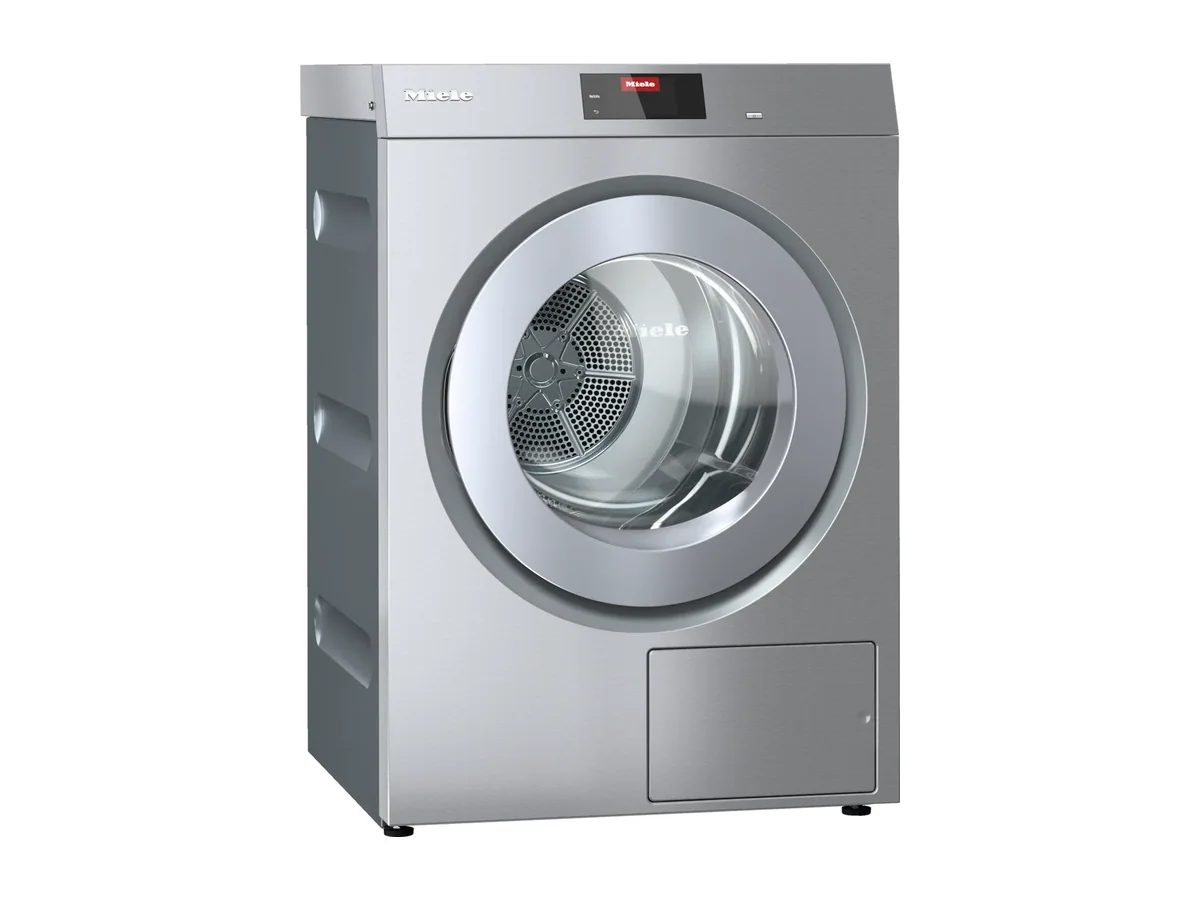

Miele Tumble Dryer PDR 910 [EL SOM] – 3N AC 400V 50/60HZ, Stainless steel

A 180 litre drum and a 10 kg load at a 1:18 ratio put the PDR 910 [EL SOM] into the mid-range of a ship’s laundry, sized for daily crew and workwear rather than bulk hotel linen. With a 36 minute programme duration and exhaust-air drying, it shifts moisture quickly enough for continuous turnaround when paired with a matching washer.

The electrical connection is 3N AC 400V 50/60HZ with a total connected load of 8.2 kW and an electric heater rating of 7.94 kW, which sits comfortably on a typical marine laundry distribution board. Fuse rating is 16 A, so the protection can be standardised with other Benchmark-class appliances. Heat dissipation into the room is quoted at 3.9 MJ/h, a number the HVAC designer needs to absorb into the laundry’s air-handling calculation.

External dimensions are 1020 mm high, 700 mm wide and 763 mm deep, with a net weight of 72 kg and a maximum floor load of 853 N. That footprint allows the dryer to sit in a run of equipment or in a compact laundry where every millimetre of deck is costed. The 440 mm door opening and 180 degree door opening angle give clear access for bulkier pieces such as over jackets and summer horse blankets.

Load configuration is not an abstraction on board, it is a packing list. At rated capacity the machine will handle 8 kg at a 1:22.5 ratio or 10 kg at 1:18. Example reference loads are 4 respirator masks, 1 overall, 2 over jackets, 1 synthetic duvet, 2 synthetic pillows, 1 down duvet, 2 down pillows or 182 cloths at 22 g. For cleaning work the drum can take 42 cotton mops at 40 cm, 36 cotton mops at 50 cm, 66 microfibre mops at 40 cm, 47 microfibre mops at 50 cm, 100 office mops at 100 g, 67 stairway mops at 150 g, or 2 summer horse blankets.

The drying system is exhaust air with a maximum evaporation capacity of 7.4 l/hour and a specific energy consumption of 0.51 kWh/kg. That means duct routing and overboard terminations have to be considered at design stage, but in return the 36 minute programme duration keeps cycle time short. Emission sound pressure level at the workplace is 50 dB(A) re 20 µPa, low enough that the laundry can share space with other technical functions without noise becoming a complaint driver.

Control is via the M Touch Pro system, with residual moisture controlled drying rather than fixed-time only. The machine is programmable, so ship operators can match programmes to standard textile sets such as workwear, duvets or mop heads. A recycling rate of 90% at end of life gives a useful number for operators tracking sustainability metrics through their fleet.

Build and control

• Specified for offshore installations
• Specified and approved for shipboard use
• Remaining cycle time display
• Communication slot for network modules
• Illuminated drum
• Prepared for a payment system (self-service laundries)
• Optical service interface for diagnostics
• Can be tied into a peak-load / energy management system
• WiFi networking
• Connector Box for external systems

The PDR 910 [EL SOM] is a good fit for vessels that need a 10 kg-class vented dryer with fast cycles and integration into an energy management or networked monitoring system. It is not the best choice where exhaust ducting is severely constrained or where heat rejection into the room must be kept to an absolute minimum; a heat-pump configuration would be examined in those cases. Ordered under Miele material number 11966850 and article number 52910001SOM.
