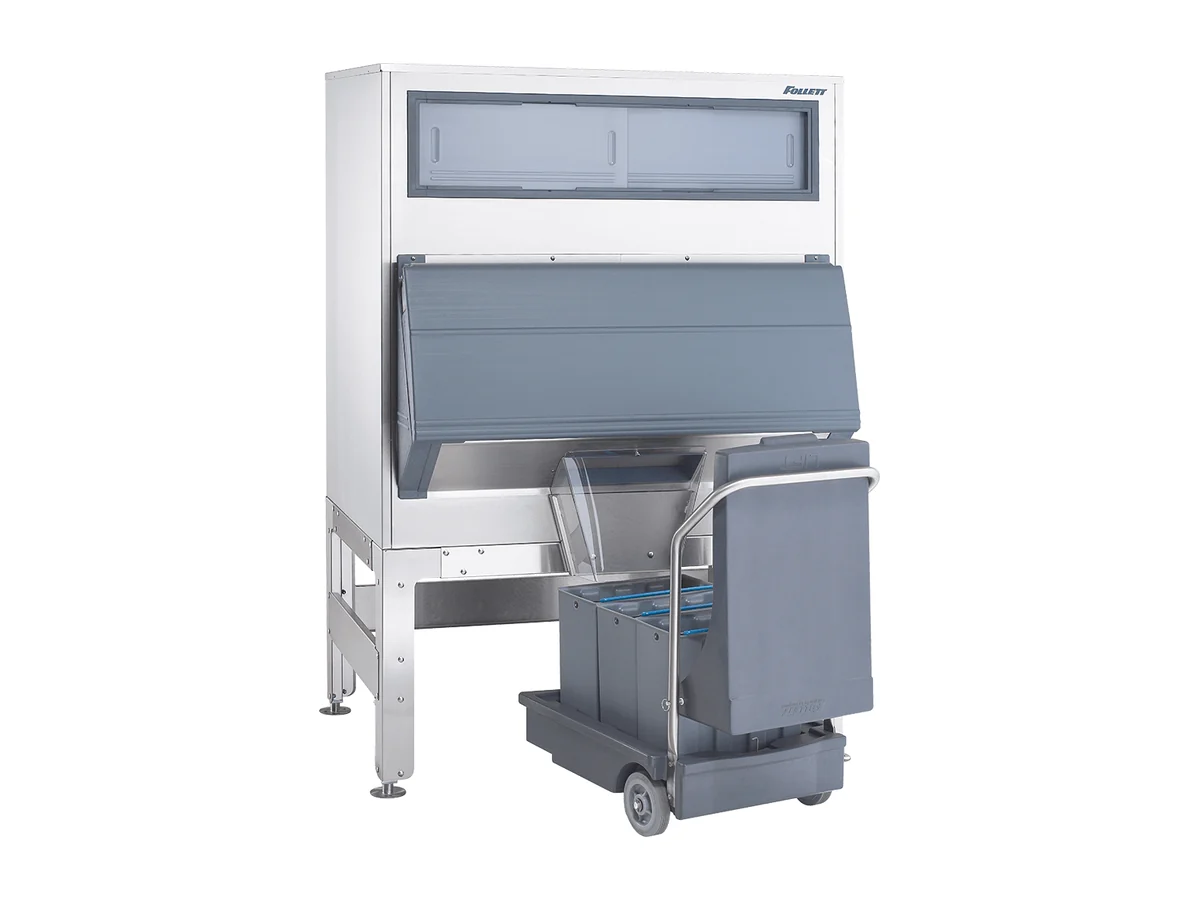

Follett Ice Storage and Dispensing Bin E-DEV500SG-30-75 – Ice DevIce, 209 kg, SmartCART 75
Follett E-DEV500SG-30-75 Ice DevIce: 209 kg single-door bin with gravity chute dispensing into a SmartCART 75 cart with three Totes. Supplied for ships and yachts.
| Manufacturer | Follett |
|---|---|
| Model | E-DEV500SG-30-75 |
| Product type | Ice Storage and Dispensing Bin |
| Series | Ice DevIce |
| Price list model / item | DEV500SG-30-75 / DEV500SG |
Follett Ice Storage and Dispensing Bin E-DEV500SG-30-75 Overview
The Follett E-DEV500SG-30-75 is an Ice DevIce: a single-door elevated bin holding 209 kg (460 lb) of cube or Chewblet ice that dispenses by gravity through a front chute into a SmartCART 75 cart with three Totes ice carriers. It is 76.2 cm wide, 78.7 cm deep and 160 cm high, and is listed on the Hoshizaki 2026 export price list as DEV500SG-30-75.
Build
Bin exterior and base are stainless steel, with a polyethylene liner, the SmartGATE ice shield that controls ice flow at the door and a stay-open PowerHinge door. Paddle and rake are supplied. Dispensing is up to 2.3 kg per second, and the front door assembly comes off with four screws so the bin passes a standard door opening. Flake ice is not recommended.
Choosing the size
The E-DEV500SG-30-75 holds 0.41 m³ and ships at about 164 kg; the E-DEV700SG-30-75 next to it holds 309 kg in a 199.4 cm tall body. The SmartCART 75 carries 34 kg of ice in its three Totes and has oversized rear wheels for narrow aisles.
On board
A cart that fits narrow aisles and a chute that fills it without scooping make the Ice DevIce practical for bars and pantries spread over several decks. Vista Marine supplies the E-DEV500SG-30-75 for ships, yachts and offshore units. The data on this page is what Follett publishes for the standard item, and we check the fit with the equipment it serves and the route on board before we quote.
Key features of the E-DEV500SG-30-75
- 209 kg ice storage
- Gravity front chute dispensing
- SmartCART 75 cart with 3 Totes
- SmartGATE ice shield
- Stainless exterior and base
E-DEV500SG-30-75 technical specifications
| Manufacturer | Follett |
|---|---|
| Model | E-DEV500SG-30-75 |
| Product type | Ice Storage and Dispensing Bin |
| Series | Ice DevIce |
| Price list model / item | DEV500SG-30-75 / DEV500SG |
| Maximum bin capacity | 209 kg (460 lb) |
| Cubic volume | 0.41 m³ |
| Width | 76.2 cm |
| Depth | 78.7 cm (+20.32 cm lower door assembly) |
| Height with legs | 160 cm |
| Required door access | 81.3 cm |
| Approx. shipping weight | 164 kg |
| Cart | SmartCART 75 with 3 Totes, 34 kg |
| Dispense rate | up to 2.3 kg per second |
| Ice compatibility | Cube and Chewblet ice (not flake) |
Questions about the E-DEV500SG-30-75
What is included with the Follett E-DEV500SG-30-75?
The bin and base with front chute, SmartGATE ice shield, PowerHinge door, paddle and rake, and a SmartCART 75 cart with three Totes ice carriers.
Where the E-DEV500SG-30-75 is used
Follett, manufacturer of the E-DEV500SG-30-75
Follett — US maker of ice storage bins, ice transport systems and ice carts, part of Middleby, with European production and stock in Poland. Configured to order — tell us the vessel and the supply voltage and frequency, and we will quote the correct build.
All Follett equipmentManuals and documents for the E-DEV500SG-30-75
Documents are published by the manufacturer for the standard model. We confirm the build, supply and installation details for your vessel with the quotation.
