Model E-1025-52
Follett
Follett

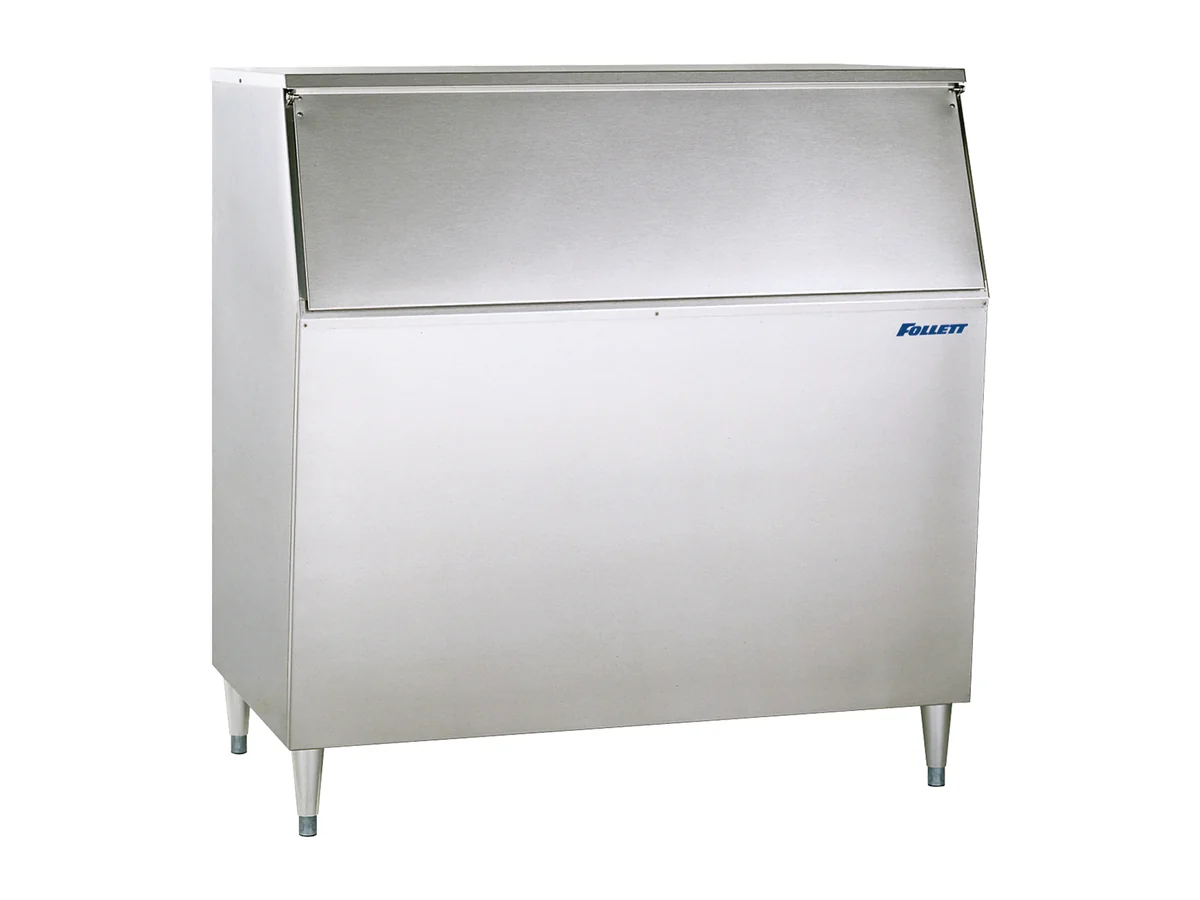

Follett Slope Front Ice Storage Bin E-1025-52 – 467 kg
Follett E-1025-52 slope front ice bin: 467 kg storage, 132.1 cm wide, stainless front and sides, top cut for your ice maker.
| Manufacturer | Follett |
|---|---|
| Model | E-1025-52 |
| Product type | Slope Front Ice Storage Bin |
| Series | Slope front bins |
| Price list model / item | F-1025-52S / F1025S |
Follett Slope Front Ice Storage Bin E-1025-52 Overview
Follett builds the E-1025-52 to store 467 kg of ice under an ice maker, in a cabinet 132.1 x 80 x 127 cm. That is about 3.5 kg of ice for every centimeter of width.
How it is built

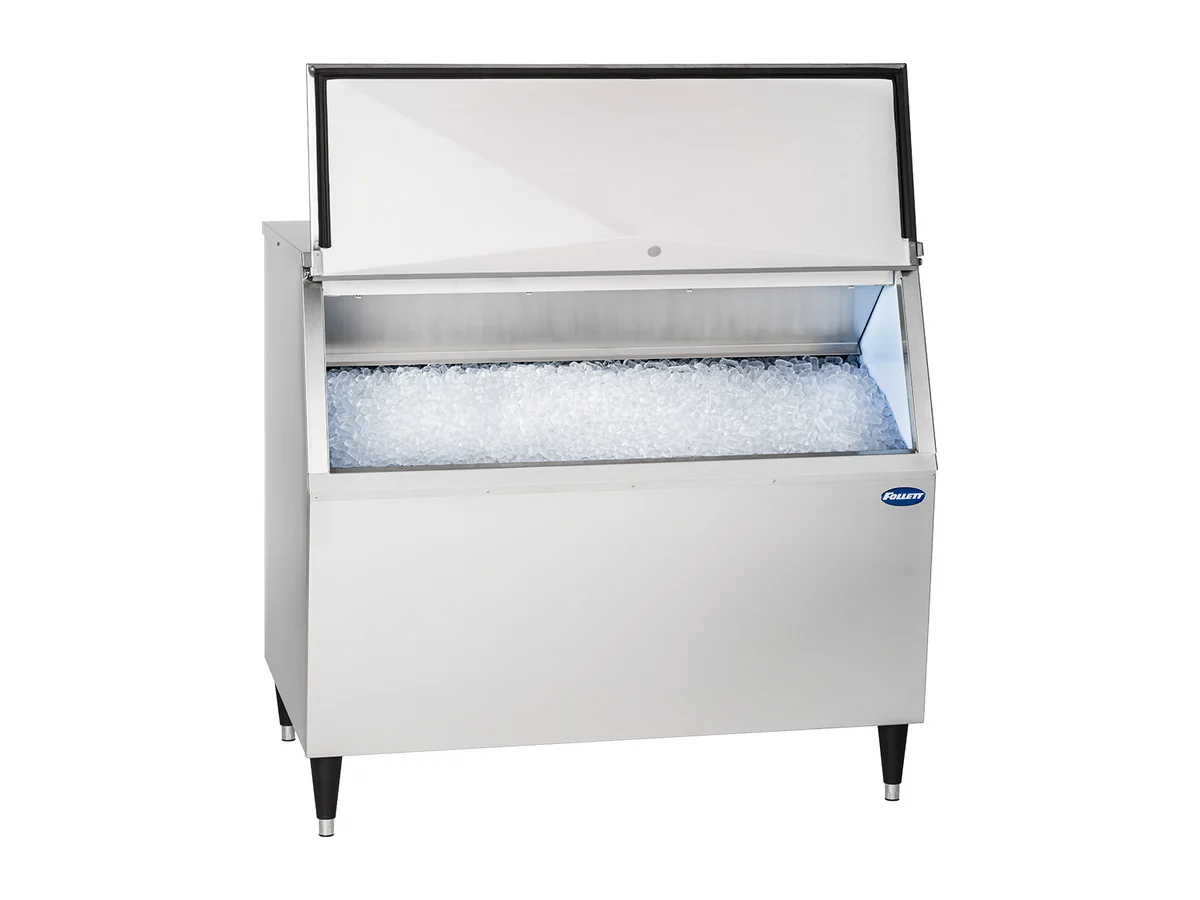

The E-1025-52 has a stainless front and sides with a polyethylene-lined interior and stainless floor; its top is cut to suit the specific ice maker, so that model goes on the order. Legs are 15.24 cm and adjustable; the drain is 1" FPT, barbed adapter included. A center partition is available for this width.
Other slope front bins
If 467 kg is not quite right, the E-950-48 holds 431 kg and the E-650-44 holds 299 kg.
Getting it aboard
The route matters more than the space: the E-1025-52 needs a 81.2 cm opening and weighs about 107 kg packed. The exterior is stainless steel front and sides.
Key features of the E-1025-52
- 467 kg (1030 lb) ice storage
- Stainless steel front and sides
- Polyethylene-lined walls, stainless bottom
- Stainless top custom cut for the ice machine
- Adjustable legs
- 1" FPT drain
E-1025-52 technical specifications
| Manufacturer | Follett |
|---|---|
| Model | E-1025-52 |
| Product type | Slope Front Ice Storage Bin |
| Series | Slope front bins |
| Price list model / item | F-1025-52S / F1025S |
| Maximum bin capacity | 467 kg (1030 lb) |
| Width | 132.1 cm |
| Depth | 80 cm |
| Height with legs | 127 cm |
| Required door access | 81.2 cm |
| Approx. shipping weight | 107 kg |
| Exterior | Stainless steel front and sides |
| Interior | Polyethylene-lined walls, stainless steel bottom |
| Legs | 15.24 cm (6") adjustable |
| Drain | 1" FPT, 1" MPT × 1" barbed adapter supplied |
Questions about the E-1025-52
How much ice fits in the Follett E-1025-52?
Up to 467 kg, based on the bin volume.
Is an ice maker included with the E-1025-52?
No. The top is cut for the ice machine named on the order, which is supplied separately.
Where the E-1025-52 is used
Follett, manufacturer of the E-1025-52
Follett: US maker of ice storage bins, ice transport systems and ice carts, part of Middleby, with European production and stock in Poland. Configured to order — tell us the vessel and the supply voltage and frequency, and we will quote the correct build.
All Follett equipmentManuals and documents for the E-1025-52
Documents are published by the manufacturer for the standard model. We confirm the build, supply and installation details for your vessel with the quotation.
