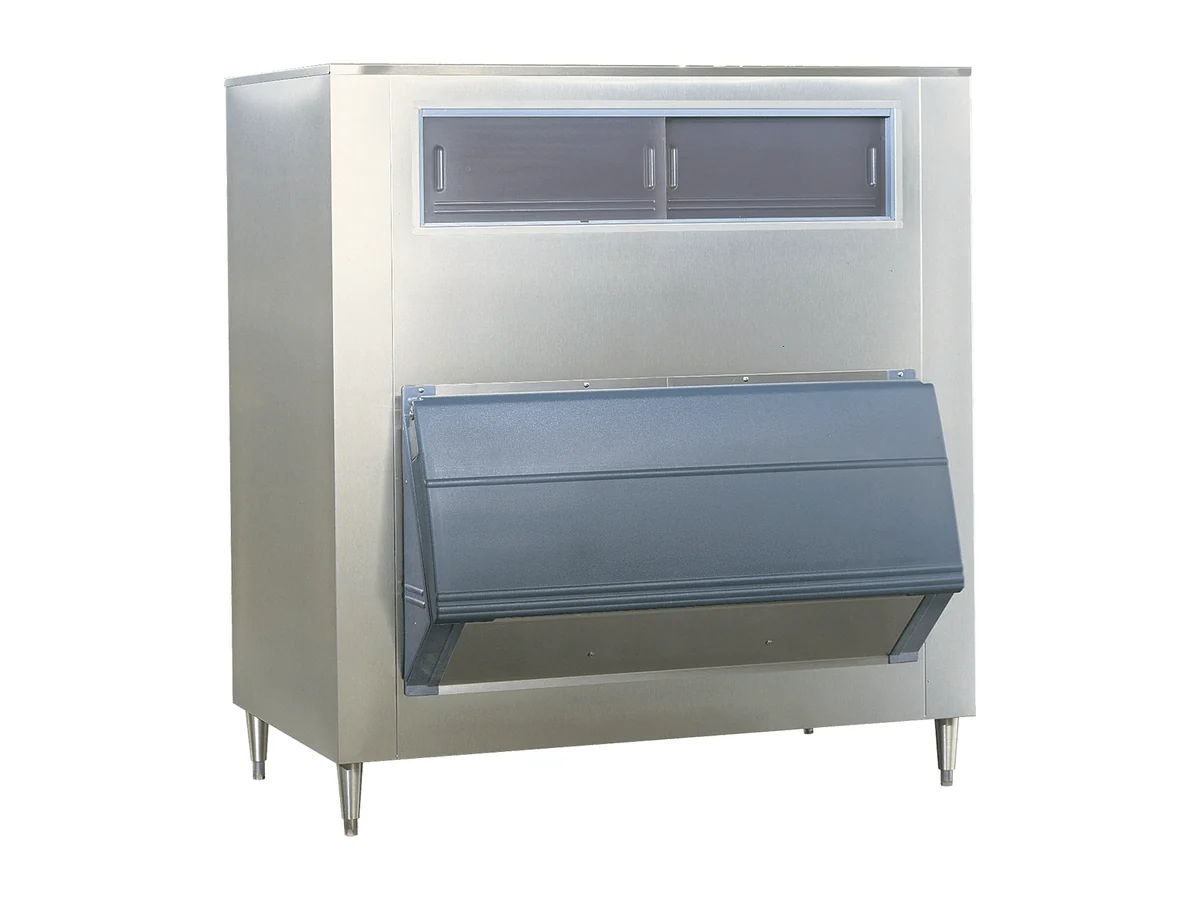

Follett Upright Ice Storage Bin E-SG700S-30 – SmartGATE, 308 kg
Follett E-SG700S-30 single-door upright ice storage bin with SmartGATE ice shield: 308 kg, 76.2 cm wide, stainless exterior. Supplied for ships and yachts.
| Manufacturer | Follett |
|---|---|
| Model | E-SG700S-30 |
| Product type | Upright Ice Storage Bin |
| Series | SG upright bins |
| Price list model / item | SG700-30 / SG700 |
Follett Upright Ice Storage Bin E-SG700S-30 Overview
The Follett E-SG700S-30 is a single-door upright ice storage bin with the SmartGATE ice shield, holding 308 kg (680 lb) of ice in a body 76.2 cm wide, 78.7 cm deep and 152.4 cm high. It appears on the Hoshizaki 2026 export price list as SG700-30.
Construction
The exterior is stainless steel including back and bottom, with a polyethylene liner, a stainless top custom cut for the ice machine and 15.24 cm adjustable stainless legs. SmartGATE locks in three positions and keeps ice from spilling out when the door opens, and the upright bin turns ice over first in, first out. It takes cube, flake and Chewblet ice.
Choosing the size
The E-SG700S-30 ships at about 102 kg and needs 78.7 cm of door access; the E-SG500S-30 holds 209 kg in a 113 cm tall body. Accessories include a paddle, rake, flanged legs and a bagger kit.
On board
Only 78.7 cm deep, the bin passes standard door openings once the front door assembly is removed. For a vessel the E-SG700S-30 is quoted together with the equipment it belongs to. The figures here are Follett's published data, and anything specific to the installation on board is agreed at quotation.
Key features of the E-SG700S-30
- 308 kg ice storage
- SmartGATE ice shield
- Stainless exterior incl. back and bottom
- Custom-cut top for the ice machine
- 78.7 cm deep
E-SG700S-30 technical specifications
| Manufacturer | Follett |
|---|---|
| Model | E-SG700S-30 |
| Product type | Upright Ice Storage Bin |
| Series | SG upright bins |
| Price list model / item | SG700-30 / SG700 |
| Maximum bin capacity | 308 kg (680 lb) |
| Width | 76.2 cm |
| Depth | 78.7 cm (+20.32 cm lower door assembly) |
| Height with legs | 152.4 cm |
| Required door access | 78.7 cm |
| Approx. shipping weight | 102 kg |
| Ice shield | SmartGATE |
| Legs | 15.24 cm stainless steel, adjustable |
| Ice compatibility | Cube, flake and Chewblet ice |
Questions about the E-SG700S-30
What does the SmartGATE on the Follett E-SG700S-30 do?
It is an inner ice shield at the door that controls the flow of ice to reduce spills and limit contact with ice; it locks in three positions.
Where the E-SG700S-30 is used
Follett, manufacturer of the E-SG700S-30
Follett — US maker of ice storage bins, ice transport systems and ice carts, part of Middleby, with European production and stock in Poland. Configured to order — tell us the vessel and the supply voltage and frequency, and we will quote the correct build.
All Follett equipmentManuals and documents for the E-SG700S-30
Documents are published by the manufacturer for the standard model. We confirm the build, supply and installation details for your vessel with the quotation.
