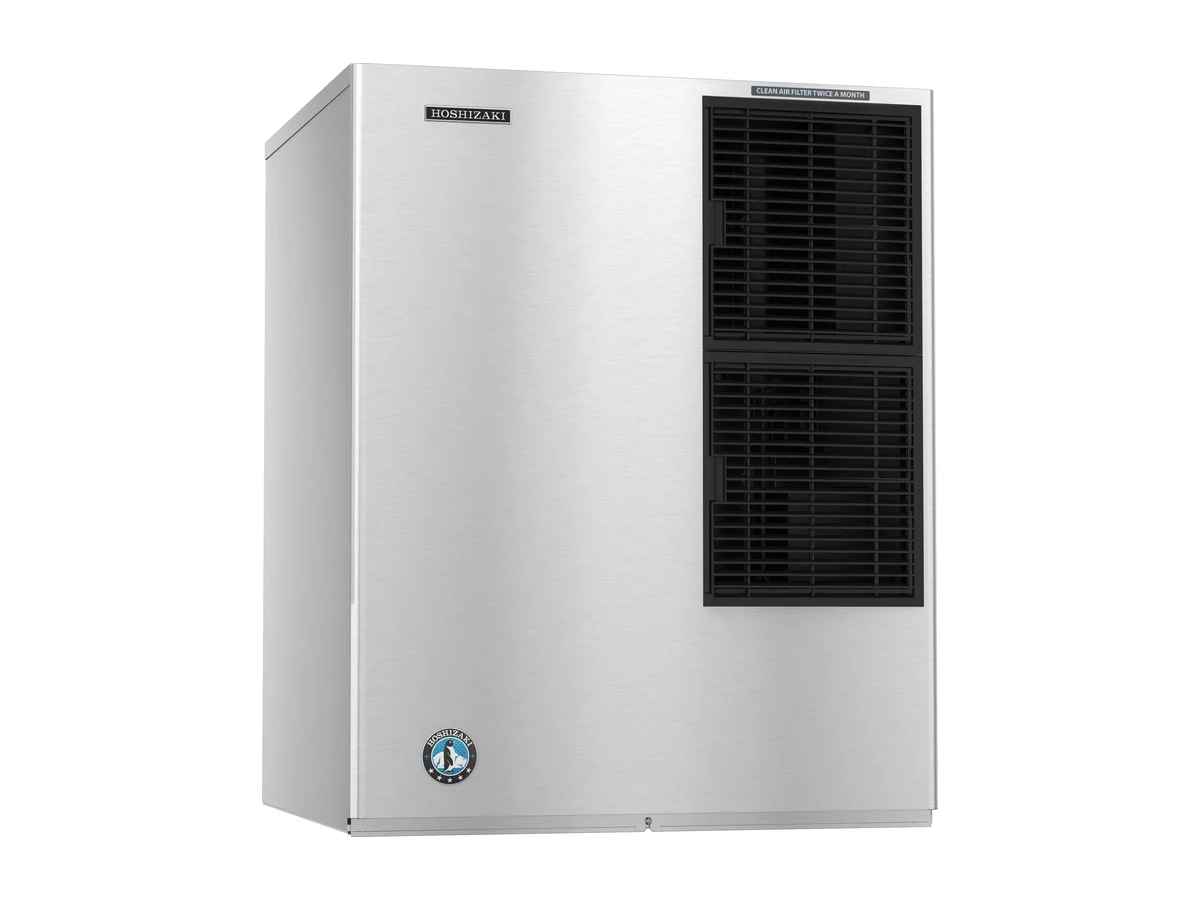

Hoshizaki Crescent Ice Maker KM-470AJE-R452 – Modular, Air-cooled, 495 kg/24h
The Hoshizaki KM-470AJE-R452 makes 495 kg of crescent ice a day (modular, air-cooled). Data, manuals and marine quotation.
| Manufacturer | Hoshizaki |
|---|---|
| Model | KM-470AJE-R452 |
| Product type | Crescent Ice Maker |
| Series | KM series |
| Configuration | Modular |
Hoshizaki Crescent Ice Maker KM-470AJE-R452 Overview
Up to 495 kg of crescent ice a day from a air-cooled head that sits on a separate bin: the KM-470AJE-R452 is built for ice rooms and busy bars rather than a counter. Hoshizaki pairs the KM-470AJE-R452 with the B-210SB, B-340SB. Spread over a day, it is about 20.6 kg per hour.
In numbers
It measures 762 x 695 x 825 mm (W x D x H) and weighs 122 kg empty. Power draw is 1.85 kW on single-phase 220-240 V 50 Hz, within 198-254V, on a 10 A breaker. Heat released into the room is 3.69 kW at 32 °C ambient. Water consumption comes to 1,870 liters per 24 hours, or roughly 3.8 liters for every kilo of ice. It is charged with 1,400 g of R452A.
Installation notes
The KM-470AJE-R452 is rated for rooms at 7 to 38 °C, with feed water between 7 and 32 °C at 0.7 to 7.8 bar. Being air-cooled, the KM-470AJE-R452 warms the space it stands in by about 3.69 kW; in a small pantry that is worth planning for. For water treatment, fit the 4HC-H twin filter ahead of the KM-470AJE-R452. Top kits Hoshizaki lists for the KM-470AJE-R452: TK-18D for B-340SB, TK-30 for B-210SB (optional, not required), TK-30 for B-340SB (optional, not required). Supply, water and fixing for the KM-470AJE-R452 are confirmed per vessel when we quote, since the figures above describe Hoshizaki's standard build.
Key features of the KM-470AJE-R452
- 495 kg of crescent ice per 24 hours
- Air-cooled condenser
- R452A refrigerant
- Exterior: Stainless steel AISI 441, Galvanized steel (Rear)
- Compatible bins: B-210SB, B-340SB
KM-470AJE-R452 technical specifications
| Manufacturer | Hoshizaki |
|---|---|
| Model | KM-470AJE-R452 |
| Product type | Crescent Ice Maker |
| Series | KM series |
| Configuration | Modular |
| Manufacturer item number | M097 |
| Country of origin | UK |
| Compatible water filters | 4HC-H Twin Water Filter, 4HC Replacement Cartridge |
| Width | 762 mm |
| Width (packed) | 794 mm |
| Depth | 695 mm |
| Depth (packed) | 867 mm |
| Height | 825 mm |
| Height (packed) | 1012 mm |
| Volume (packed) | 0.697 m³ |
| Electrical consumption | 1.85 kW |
| Ambient temperature (maximum) | 38 °C |
| Ambient temperature (minimum) | 7 °C |
| Voltage tolerance | 198-254V |
| Water supply pressure (maximum) | 0.78MPa (7.8 bar) |
| Water supply pressure (minimum) | 0.07MPa (0.7 bar) |
| Water supply temperature (maximum) | 32 °C |
| Water supply temperature (minimum) | 7 °C |
| Electrical circuit breaker protection | 10 A |
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear) |
| Gross weight | 133 kg |
| Net weight | 122 kg |
| Heat rejection (AT 32 °C, WT 21 °C) | 3.69 kW |
| Power supply | 1/220 - 240V/50Hz |
| Cooling system | Air Cooled |
| Ice type | Crescent Edge |
| Ice production (kg/24h) | 495 kg |
| Water consumption (m³/24h) | 1.87 m³ |
| Compatible storage bins | B-210SB, B-340SB |
| CO2 equivalent | 2996 kg |
| GWP | 2140 GWP |
| Refrigerant charge | 1,400 g |
| Refrigerant type | R452A |
| Top kits | TK-18D for B-340SB, TK-30 for B-210SB (optional, not required), TK-30 for B-340SB (optional, not required) |
Also listed under
Questions about the KM-470AJE-R452
How much ice does the KM-470AJE-R452 make per day?
Up to 495 kg of crescent ice in 24 hours, about 20.6 kg an hour. Real output drops as room and water temperatures rise.
How is the KM-470AJE-R452 cooled?
It is air-cooled.
What water supply does the KM-470AJE-R452 need?
Water at 7 to 32 °C and 0.7 to 7.8 bar, with the 4HC-H twin filter system.
Where the KM-470AJE-R452 is used
Hoshizaki, manufacturer of the KM-470AJE-R452
Hoshizaki: Japanese maker of commercial ice machines, supplied through Hoshizaki Europe with cube, crescent, flake, nugget, cylinder and ball ice makers, ice and water dispensers and sushi display cases. Configured to order — tell us the vessel and the supply voltage and frequency, and we will quote the correct build.
All Hoshizaki equipmentManuals and documents for the KM-470AJE-R452
Documents are published by the manufacturer for the standard model. We confirm the build, supply and installation details for your vessel with the quotation.
