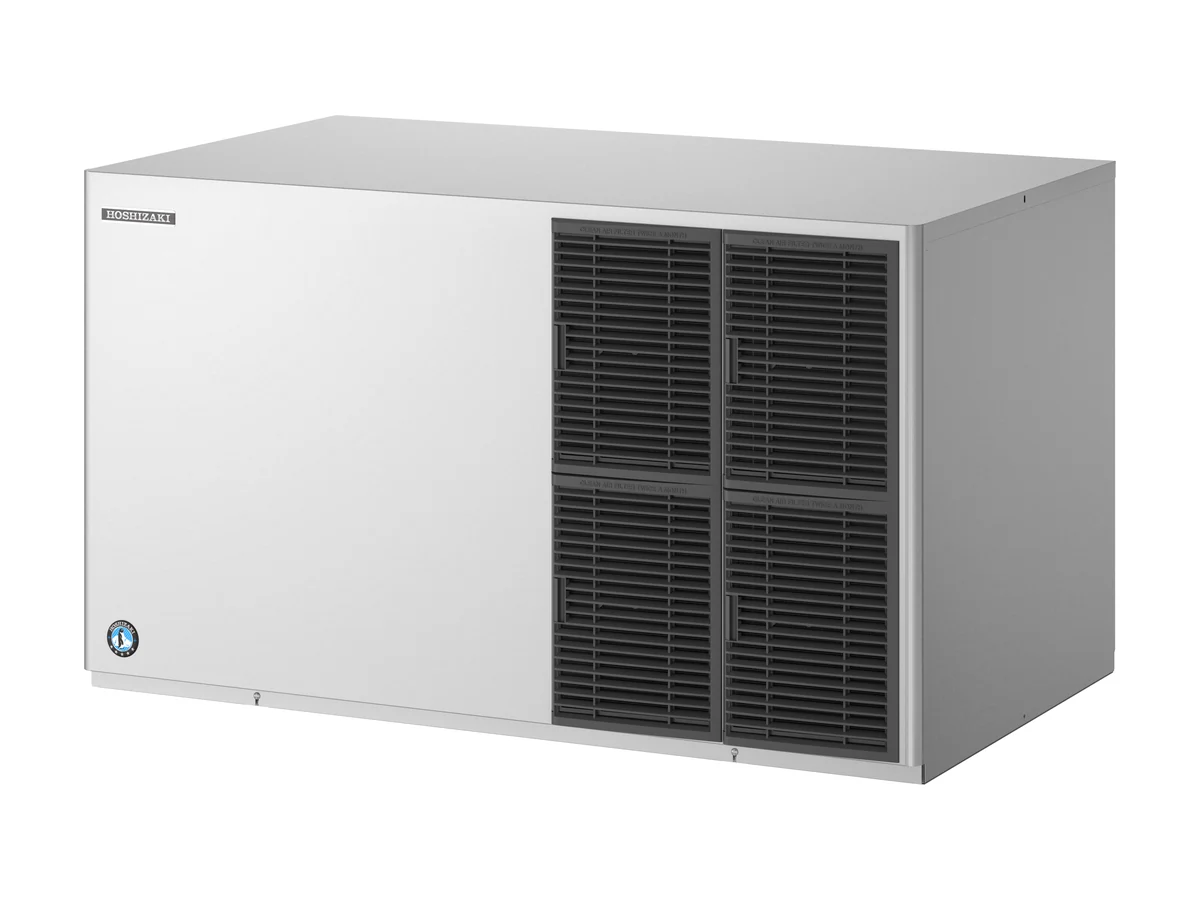

Hoshizaki Crescent Ice Maker KM-590DJE-R452 – Modular, Air-cooled, 630 kg/24h
Hoshizaki KM-590DJE-R452: modular air-cooled crescent ice maker, 630 kg a day. Specs, manuals and quotes for ships and yachts.
| Manufacturer | Hoshizaki |
|---|---|
| Model | KM-590DJE-R452 |
| Product type | Crescent Ice Maker |
| Series | KM series |
| Configuration | Modular |
Hoshizaki Crescent Ice Maker KM-590DJE-R452 Overview
Up to 630 kg of crescent ice a day from a air-cooled head that sits on a separate bin: the KM-590DJE-R452 is built for ice rooms and busy bars rather than a counter. Hoshizaki pairs the KM-590DJE-R452 with the B-340SB. Spread over a day, it is about 26.2 kg per hour.
In numbers
It measures 1,219 x 695 x 695 mm (W x D x H) and weighs 136 kg empty. It draws 2.08 kW from a single-phase 220-240 V 50 Hz supply, within 198-254V, on a 10 A breaker. At 32 °C room temperature it releases 4.72 kW of heat. Water consumption comes to 2,410 liters per 24 hours, or roughly 3.8 liters for every kilo of ice. It is charged with 1,900 g of R452A.
On board
The KM-590DJE-R452 is rated for rooms at 7 to 38 °C, with feed water between 7 and 32 °C at 0.7 to 7.8 bar. The condenser blows about 4.72 kW of warm air into the room, which a bar with poor ventilation will notice. The matching water filter for 630 kg a day is the 4HC-H twin system. For mounting the KM-590DJE-R452 on a bin, Hoshizaki lists TK-48 for B-340SB (optional, not required). Before quoting we check the board voltage and frequency, the water connection and the fixing on board, since the figures above are for the standard KM-590DJE-R452.
Key features of the KM-590DJE-R452
- 630 kg of crescent ice per 24 hours
- Air-cooled condenser
- R452A refrigerant
- Exterior: Stainless steel AISI 441, Galvanized steel (Rear)
- Compatible bins: B-340SB
KM-590DJE-R452 technical specifications
| Manufacturer | Hoshizaki |
|---|---|
| Model | KM-590DJE-R452 |
| Product type | Crescent Ice Maker |
| Series | KM series |
| Configuration | Modular |
| Manufacturer item number | M096 |
| Country of origin | UK |
| Compatible water filters | 4HC-H Twin Water Filter, 4HC Replacement Cartridge |
| Width | 1219 mm |
| Width (packed) | 1324 mm |
| Depth | 695 mm |
| Depth (packed) | 796 mm |
| Height | 695 mm |
| Height (packed) | 880 mm |
| Volume (packed) | 0.927 m³ |
| Electrical consumption | 2.08 kW |
| Ambient temperature (maximum) | 38 °C |
| Ambient temperature (minimum) | 7 °C |
| Voltage tolerance | 198-254V |
| Water supply pressure (maximum) | 0.78MPa (7.8 bar) |
| Water supply pressure (minimum) | 0.07MPa (0.7 bar) |
| Water supply temperature (maximum) | 32 °C |
| Water supply temperature (minimum) | 7 °C |
| Electrical circuit breaker protection | 10 A |
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear) |
| Gross weight | 151 kg |
| Net weight | 136 kg |
| Heat rejection (AT 32 °C, WT 21 °C) | 4.72 kW |
| Power supply | 1/220 - 240V/50Hz |
| Cooling system | Air Cooled |
| Ice type | Crescent Edge |
| Ice production (kg/24h) | 630 kg |
| Water consumption (m³/24h) | 2.41 m³ |
| Compatible storage bins | B-340SB |
| CO2 equivalent | 4066 kg |
| GWP | 2140 GWP |
| Refrigerant charge | 1,900 g |
| Refrigerant type | R452A |
| Top kits | TK-48 for B-340SB (optional, not required) |
Also listed under
Questions about the KM-590DJE-R452
What is the daily output of the Hoshizaki KM-590DJE-R452?
Up to 630 kg of crescent ice in 24 hours, about 26.2 kg an hour. Real output drops as room and water temperatures rise.
How is the KM-590DJE-R452 cooled?
It is air-cooled.
What water supply does the KM-590DJE-R452 need?
Water at 7 to 32 °C and 0.7 to 7.8 bar, with the 4HC-H twin filter system.
Where the KM-590DJE-R452 is used
Hoshizaki, manufacturer of the KM-590DJE-R452
Hoshizaki: Japanese maker of commercial ice machines, supplied through Hoshizaki Europe with cube, crescent, flake, nugget, cylinder and ball ice makers, ice and water dispensers and sushi display cases. Configured to order — tell us the vessel and the supply voltage and frequency, and we will quote the correct build.
All Hoshizaki equipmentManuals and documents for the KM-590DJE-R452
Documents are published by the manufacturer for the standard model. We confirm the build, supply and installation details for your vessel with the quotation.
