Hoshizaki Cube Ice Dispenser DIM-40DE-HC – 43 kg/24h, 15 kg
Hoshizaki DIM-40DE-HC cube ice dispenser: 43 kg of ice per 24 hours, 15 kg storage, Dispense mode: Push button. Supplied for ships, yachts and offshore galleys and bars, with specs and manuals.
| Manufacturer | Hoshizaki |
|---|---|
| Model | DIM-40DE-HC |
| Product type | Cube Ice Dispenser |
| Series | DIM |
| Manufacturer item number | L024 |
Hoshizaki Cube Ice Dispenser DIM-40DE-HC Overview

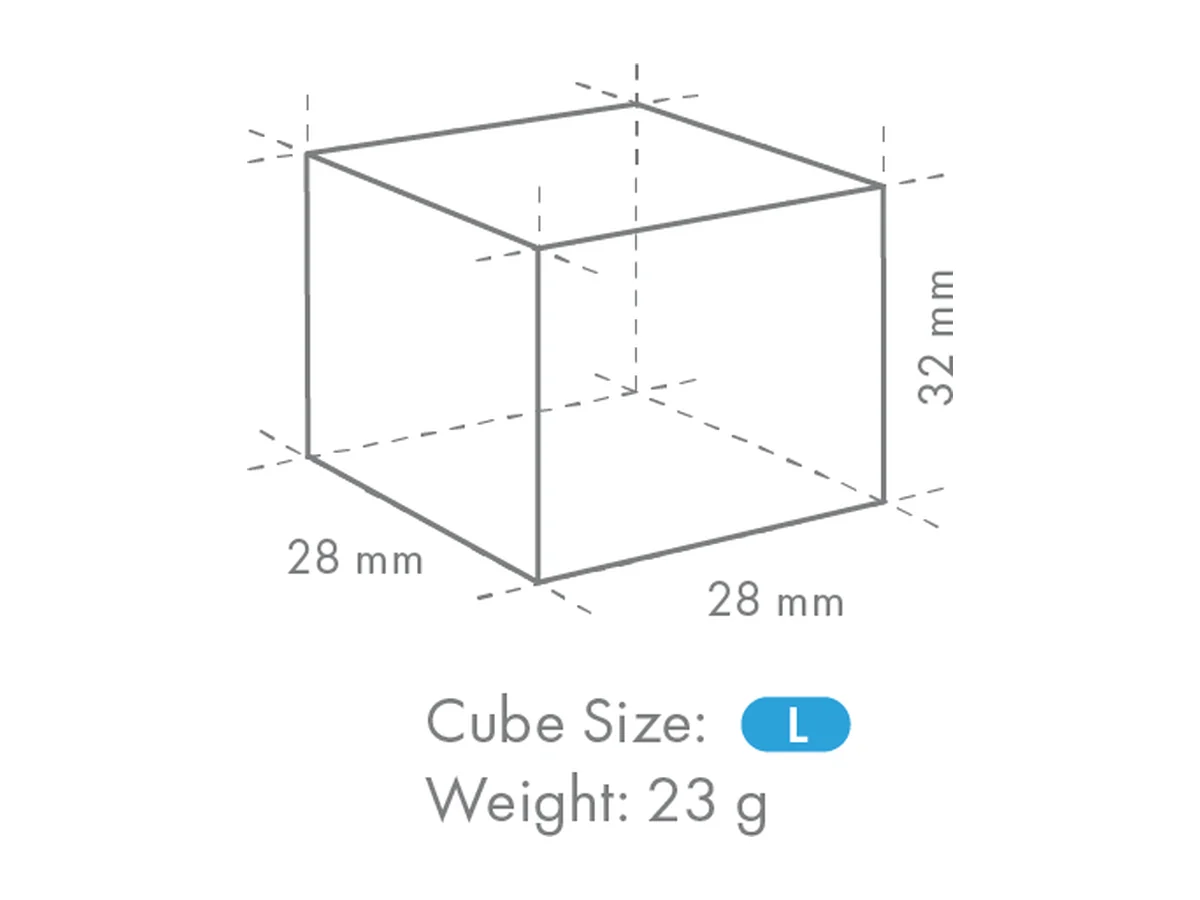

The Hoshizaki DIM-40DE-HC is a self-contained cube ice dispenser that makes large cubes, standard and dispenses it on demand: up to 43 kg a day, with 15 kg held in the unit, dispensed by push button.
Supply and installation
The published supply for the DIM-40DE-HC is single phase 220-240 V 50 Hz, with a voltage tolerance of ±6%/10% and a 5 A circuit breaker. Hoshizaki gives operating limits of ambient temperatures from 1 to 40 °C, water supply temperatures from 5 to 35 °C and water pressure from 0.7 to 8 bar, which is what the space and the vessel's fresh water system have to meet for the DIM-40DE-HC. The DIM-40DE-HC runs on 75 g of R290, GWP 3. R290 is a natural refrigerant classified A3, higher flammability, so the charge belongs in the installation specification. Heat rejection is 0.71 kW at 32 °C ambient. It measures 350 × 526 × 1,500 mm (W × D × H) and weighs 59 kg net.
On board
On a vessel the DIM-40DE-HC is specified like any galley appliance: supply voltage and frequency, water inlet and drain, ventilation and fixing. This page carries Hoshizaki's published data for the standard model, and we confirm the marine installation details with the quotation.
Key features of the DIM-40DE-HC
- 43 kg of ice per 24 hours
- 15 kg storage
- Dispense mode: Push button
- R290 refrigerant
- Exterior: Acrylic Baked Steel (Cabinet), ABS Molding (Front and Back Panel)
DIM-40DE-HC technical specifications
| Manufacturer | Hoshizaki |
|---|---|
| Model | DIM-40DE-HC |
| Product type | Cube Ice Dispenser |
| Series | DIM |
| Manufacturer item number | L024 |
| Country of origin | UK |
| Accessories included | Installation kit, Mounting Brace (Wall Mounting) |
| Compatible water filters | 4HC-H Single Water Filter, 4HC Replacement Cartridge |
| Width | 350 mm |
| Width (packed) | 450 mm |
| Depth | 526 mm |
| Depth (packed) | 730 mm |
| Height | 1500 mm |
| Height including legs (minimum) | 1590 mm |
| Height including legs (maximum) | 1635 mm |
| Height (packed) | 1666 mm |
| Volume (packed) | 0.5473 m³ |
| Legs | Including legs at 90-135 mm |
| Electrical consumption | 0.28 kW |
| Energy consumption | 0.28 kWh |
| Ambient temperature (maximum) | 40 °C |
| Ambient temperature (minimum) | 1 °C |
| Voltage tolerance | ±6%/10% |
| Water supply pressure (maximum) | 0.8MPa (8 bar) |
| Water supply pressure (minimum) | 0.07MPa (0.7 bar) |
| Water supply temperature (maximum) | 35 °C |
| Water supply temperature (minimum) | 5 °C |
| Electrical circuit breaker protection | 5 A |
| Exterior | Acrylic Baked Steel (Cabinet), ABS Molding (Front and Back Panel) |
| Gross weight | 70 kg |
| Net weight | 59 kg |
| Heat rejection (AT 32 °C, WT 21 °C) | 0.71 kW |
| Power supply | 1/220 - 240V/50Hz |
| Storage bin capacity | 15 kg |
| Dispense mode | Push button |
| Cooling system | Air Cooled |
| Ice type | Large cubes, Standard |
| Ice production (kg/24h) | 43 kg |
| Water consumption (m³/24h) | 0.22 m³ |
| CO2 equivalent | 0.225 kg |
| GWP | 3 GWP |
| Refrigerant charge | 75 g |
| Refrigerant type | R290 |
Also listed under
Questions about the DIM-40DE-HC
Can the Hoshizaki DIM-40DE-HC be supplied for a vessel?
Yes. We supply it for ships, yachts and offshore units and confirm the supply voltage and frequency and the installation against the vessel at quotation. The published data is for the standard model.
What electrical supply does the DIM-40DE-HC need?
Hoshizaki lists the DIM-40DE-HC for single phase 220-240 V 50 Hz, with a voltage tolerance of ±6%/10% and a 5 A circuit breaker.
Where the DIM-40DE-HC is used
Hoshizaki, manufacturer of the DIM-40DE-HC
Hoshizaki — Japanese maker of commercial ice machines, supplied through Hoshizaki Europe with cube, crescent, flake, nugget, cylinder and ball ice makers, ice and water dispensers and sushi display cases. Configured to order — tell us the vessel and the supply voltage and frequency, and we will quote the correct build.
All Hoshizaki equipmentManuals and documents for the DIM-40DE-HC
Documents are published by the manufacturer for the standard model. We confirm the build, supply and installation details for your vessel with the quotation.
