Technical specification
256 marine galley products listed with R290 refrigerant, across ice makers, refrigerators, freezers and dispensers & ice crushers.
Coldline Master 1200 A120/2N: two-door refrigerator, 0/+10 °C, 1,155 l gross, plug-in R290, energy class B. Offered in the Master Marine version for ships and offshore platforms.
Two-door ecostore refrigerator, 1430 liter gross and 1005 lt net at −2/+10 °C, 220-230 V/1 ph/60 Hz, in AISI 304. PNC 725236.
670 lt vertical marine freezer, 503 lt net, −22/−15 °C on R290 with hidden evaporator and digital control. Electrolux ecostore 725234.
ecostore vertical chiller, 670 liter gross / 503 lt net at −2/+10 °C on R290, AISI 304 in/out, 220-230 V/1 ph/60 Hz. PNC 725233.
Two-glass-door ecostore refrigerator, 1430 liter gross, 1025 lt net volume, GN 2/1, 2–10 °C on R290. PNC 725232.
670 liter ecostore vertical chiller with 513 lt net volume, 1 glass door and 3 GN 2/1 grids, 220-240 V/1 ph/50 Hz. PNC 725229.
Two-door ecostore refrigerator, 1430 liter gross and 1005 lt net volume, GN 2/1 layout with ventilated −2/+10 °C holding. PNC 725228.
Prostore 800 freezer, 720 liter gross / 501 lt net volume, 900x700x2040 mm, R290, −15/−22 °C, 220–240 V/1 ph/50 Hz. PNC 691393.
Prostore 800 chiller 691392: 720 lt gross, 510 lt net, 0/+10 °C, 900x700x2040 mm, R290, IPX5, Heavy Duty (5).
Marine thawing cabinet 725193, 670 l, 0–10 °C, 220–230 V/1 ph/60 Hz, AISI 304 in/out, R290, digital HACCP control.
Single-door 670 lt thawing cabinet, 710 x 835 x 2036 mm, 0–10 °C on R290, AISI 304 inside and out. Model TC671DH5M.
Two-door ecostore vertical freezer, 1430 liter gross, 1135 lt net, −22/−15 °C, AISI 304 with R290, digital control. PNC 725489.
ecostore vertical freezer, 670 liter gross and 503 lt net at −22/−15 °C, R290, AISI 304 inside and out. PNC 725458.
Prostore 500 marine freezer, 470 liter gross with 317 lt net volume, −22/−15 °C, 600 x 700 x 2040 mm, built-in R290 system. PNC 691388.
Prostore 500 marine refrigerator, 470 liter gross with 317 lt net volume and 600 x 700 mm footprint, R290, 0/+10 °C, PNC 691387.
Prostore 500 marine freezer, 470 liter gross / 317 lt net at −22/−15 °C, 600×700 mm footprint, R290, 220–230 V/1 ph/60 Hz. PNC 691389.
670 litre ecostore vertical chiller, 503 lt net at −2/+10 °C with GN 2/1 grids and R290, AISI 304 inside and out. PNC 725226.
Prostore 800 marine freezer, 720 l gross / 508 l net, 900x700 mm footprint, 220–230 V/1 ph/60 Hz, R290, digital control. PNC 691390.

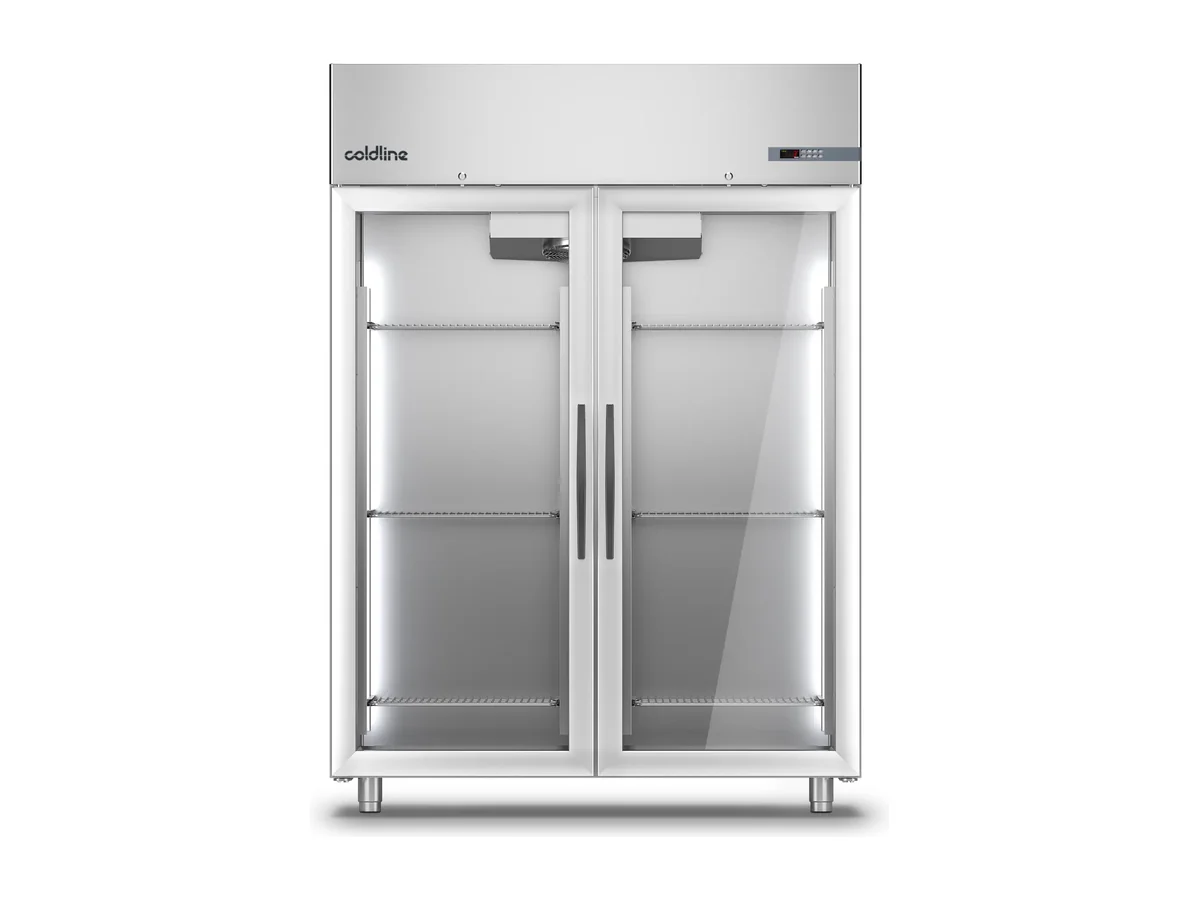

Coldline Master 1200 A120/2NV: two glass-door refrigerator, 0/+10 °C, 1,155 l gross, plug-in R290, energy class D. Offered in the Master Marine version for ships and offshore platforms.
Coldline Master 1200 A120/2M: two-door refrigerator, -2/+8 °C, 1,155 l gross, plug-in R290, energy class B. Offered in the Master Marine version for ships and offshore platforms.
Coldline Master 1200 A120/2MV: two glass-door refrigerator, -2/+8 °C, 1,155 l gross, plug-in R290, energy class D. Offered in the Master Marine version for ships and offshore platforms.
Coldline Master 1200 A120/2B: two-door freezer, -18/-22 °C, 1,155 l gross, plug-in R290, energy class C. Offered in the Master Marine version for ships and offshore platforms.
Coldline Master 1200 A120/2BV: two glass-door freezer, -18/-22 °C, 1,155 l gross, plug-in R290, energy class E. Offered in the Master Marine version for ships and offshore platforms.
Coldline Master Fish 1400 A140/2P: two-door fish refrigerator, -6/+4 °C, 1,356 l gross, plug-in R290, energy class B. Offered in the Master Marine version for ships and offshore platforms.
R290 is used in refrigerated cabinets and in most current ice makers on this site. It is a natural refrigerant with a very low global warming potential, but it is classified A3, higher flammability. Under EN IEC 60335-2-89:2022, self-contained commercial appliances with a built-in compressor may carry up to 500 g per circuit, which is why the refrigerant is part of the installation specification.
This page lists 256 products from Hoshizaki (174), Coldline (63), Electrolux Professional (17) and Foster (2). By category: Ice Makers (169), Refrigerators (58), Freezers (30) and Dispensers & Ice Crushers (5).
By capacity band, 201 to 400 litres (7), 401 to 800 litres (49) and over 800 litres (26). The same products sit in ice makers (169), refrigerators (58), freezers (30) and dispensers & ice crushers (5), so a model can appear under more than one heading.
Counted by vessel type: 256 for ships, 256 for yachts, 45 for boats and 256 for offshore units.
Examples from the list: Coldline Freezer Master 1200 A120/2BV (-18/-22 °C, 1,155 l, plug-in), Coldline Fish Refrigerator Master Fish 1400 A140/2P (-6/+4 °C, 1,356 l, plug-in), Coldline Multi-Temperature Cabinet Master Combi 1400 A140/2MM (-2/+8 °C / -2/+8 °C, 1,203 l, plug-in) and Coldline Multi-Temperature Cabinet Master Fish Combi 1400 A140/2MP (-2/+8 °C / -6/+4 °C, 1,203 l, plug-in).
For the background, see the marine galley equipment guide.
R290 is used in refrigerated cabinets and in most current ice makers on this site.
Across this selection the listed voltages are 220 V, and 10 products list 60 Hz operation. Each unit is ordered in the vessel's own supply voltage and frequency.
Add the products to your quote list or send the vessel type, supply voltage and frequency and the quantities through the quote form. Prices are quoted to the vessel, not listed online.
Send the vessel type, supply voltage and frequency and the quantities, and our team will come back with a specification and quotation.
