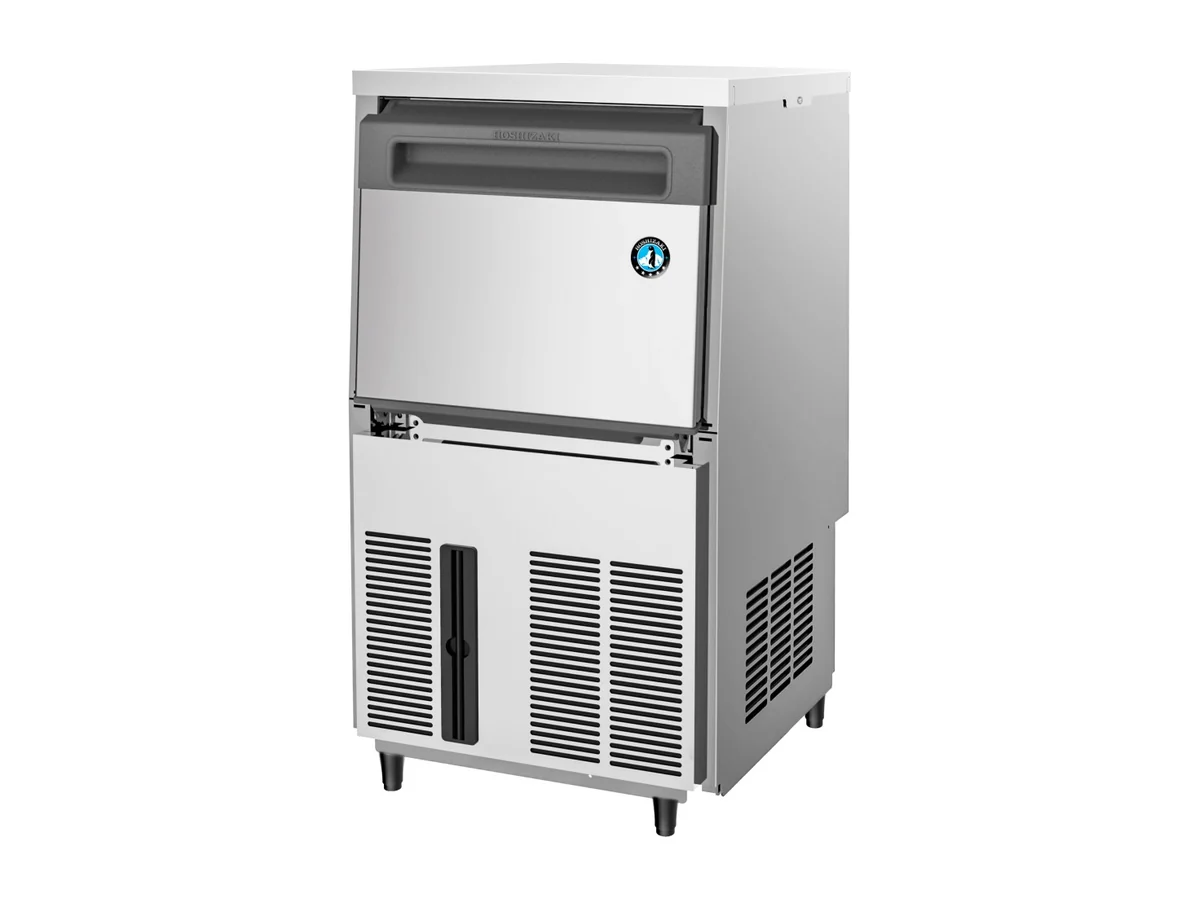

Hoshizaki Cube Ice Maker IM-30CA – I-FIT, Self-Contained, Air-cooled, 26 kg/24h
Hoshizaki IM-30CA I-FIT cube ice maker: about 26 kg a day at 21 °C, air-cooled, published for 50 Hz and 60 Hz supplies.
| Manufacturer | Hoshizaki |
|---|---|
| Model | IM-30CA |
| Product type | Cube Ice Maker |
| Series | I-FIT |
| Manufacturer item number | M035-C132 |
Hoshizaki Cube Ice Maker IM-30CA Overview
Output on the IM-30CA depends on where it stands. Hoshizaki publishes 26 kg a day at 21 °C ambient and 15 °C water, 27 kg in a cold room and 22 kg at 32 °C with 21 °C water. Ice is held in the machine, 12 kg (bin control setting about 6 kg). That middle figure is about 1.1 kg an hour.
How it works
A freezing cycle takes about 21 min and drops 0.4 kg in 18 cubes, each one filled with fresh water in a closed cell, then released with hot gas. Water use at the middle rating is about 70 liters a day, roughly 2.7 liters per kilo of ice.
Electrical and physical data
It runs on a single-phase 220-240 V supply, drawing 1.7 A with a starting current of 9 A, and the motor is rated 250 W at 61% power factor; Hoshizaki asks for at least 0.59 kVA (2.5 A) behind it. The cabinet measures 398 x 510 x 695 mm and weighs 39 kg net, 49 kg in its carton. Plan for 520 W of heat going into the space. It holds 130 g of R134a, metered by a capillary tube.
Installing it
A 60 Hz supply is covered by Hoshizaki's own data for the IM-30CA: about 27 kg a day. Keep the room within 1 to 40 °C, the water at 5 to 35 °C and the pressure at 0.07 to 0.78 MPa (0.7 to 8 bar); voltage tolerance is ±6%. Water comes in at G1/2 at the rear and the drain outlet is 22 mm ID at the rear. The 2026 price list marks the I-FIT series as non-CE, so we check what the flag state and class need before ordering.
Compared with its neighbor
If the IM-30CA is too small or too large, the IM-45CA makes around 44 kg a day on 310 W.
Send us the vessel type, the board voltage and frequency and where the IM-30CA will stand, and we will quote it with a bin and filter to match.
Key features of the IM-30CA
- About 26 kg of cubes a day at 21 °C ambient, 15 °C water
- Published for 50 Hz and 60 Hz supplies
- Air-cooled condenser
- Closed-cell cube forming with hot gas defrost
- Storage 12 kg (bin control setting about 6 kg)
- Refrigerant R134a / 130 g
- Non-CE (I-FIT series)
IM-30CA technical specifications
| Manufacturer | Hoshizaki |
|---|---|
| Model | IM-30CA |
| Product type | Cube Ice Maker |
| Series | I-FIT |
| Manufacturer item number | M035-C132 |
| Ice shape | Cube, approx. 28 x 28 x 32 mm |
| Power supply | 1 phase 220-240 V 50 Hz (I-FIT models are also listed for 60 Hz) |
| Supply capacity required | 0.59 kVA (2.5 A) |
| Running current | 1.7 A at 32 °C / 21 °C |
| Starting current | 9 A |
| Rated motor | 250 W (power factor 61%) |
| Ice production, 10 °C air, 10 °C water | approx. 27 kg (5 mm) / 30 kg (15 mm) per 24 h |
| Ice production, 21 °C air, 15 °C water | approx. 26 kg (5 mm) / 28 kg (15 mm) per 24 h |
| Ice production, 32 °C air, 21 °C water | approx. 22 kg (5 mm) / 25 kg (15 mm) per 24 h |
| Ice production at 60 Hz | approx. 27 kg per 24 h |
| Water consumption, 10 °C air, 10 °C water | approx. 0.16 m³ per 24 h |
| Water consumption, 21 °C air, 15 °C water | approx. 0.07 m³ per 24 h |
| Water consumption, 32 °C air, 21 °C water | approx. 0.06 m³ per 24 h |
| Freeze cycle time | 21 min |
| Ice per cycle | 0.4 kg (18 cubes) |
| Storage capacity | 12 kg (bin control setting about 6 kg) |
| Dimensions (W x D x H) | 398 x 510 x 695 mm |
| Net weight | 39 kg |
| Gross weight | 49 kg |
| Carton size | 490 x 610 x 870 mm |
| Condenser | Air-cooled |
| Heat rejection | 520 W |
| Refrigerant charge | R134a, 130 g |
| Refrigerant control | Capillary tube |
| Ice making system | Cell type, hot gas defrost, hermetic compressor |
| Evaporator | Tin-plated copper tube on sheet and cells |
| Exterior | Stainless steel, plastic door and louver, galvanized steel rear |
| Insulation | Polyurethane foam, cyclopentane blowing agent |
| Water connection | G1/2 at the rear |
| Drain connection | 22 mm ID at the rear |
| Ambient temperature | 1 to 40 °C |
| Water supply temperature | 5 to 35 °C |
| Water supply pressure | 0.07 to 0.78 MPa (0.7 to 8 bar) |
| Voltage tolerance | Rated voltage ±6% |
| Electrical protection | Class I appliance, 5 A fuse |
| Accessories | Scoop, legs, installation kit |
| CE marking | Non-CE (I-FIT series) |
| Data source | Hoshizaki service manual M028-857 and hoshizaki-sea.com |
Also listed under
Questions about the IM-30CA
Does the Hoshizaki IM-30CA work on a 60 Hz supply?
Yes. Hoshizaki South East Asia publishes 60 Hz figures for the I-FIT series, about 27 kg a day for this model, next to the 50 Hz data.
How much ice does the IM-30CA make in a hot galley?
About 22 kg a day at 32 °C ambient with 21 °C water, against 26 kg at 21 °C and 15 °C.
Is the IM-30CA CE marked?
No. The Hoshizaki 2026 export price list marks the I-FIT series as non-CE approved, so certification for the vessel is checked before ordering.
