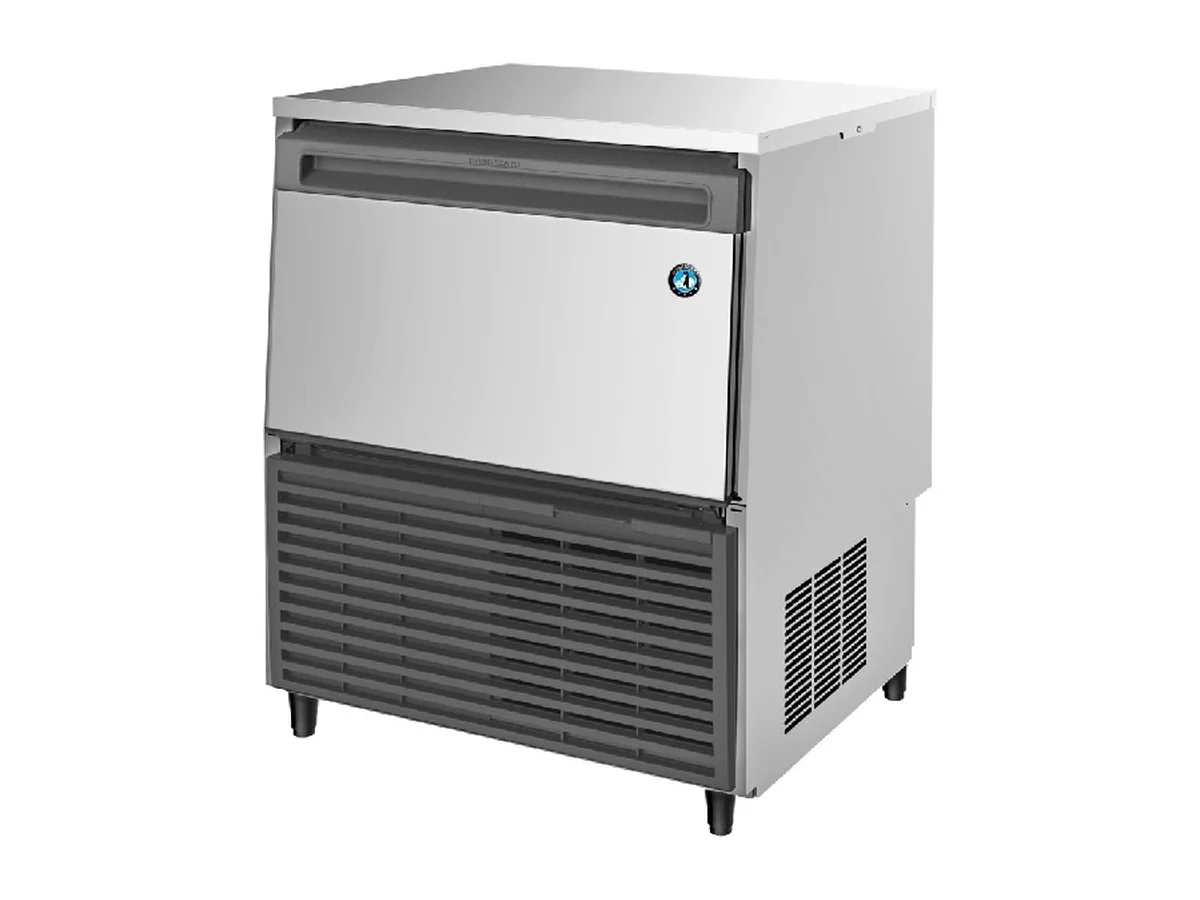

Hoshizaki Cube Ice Maker IM-45CA – I-FIT, Self-Contained, Air-cooled, 44 kg/24h
Hoshizaki IM-45CA I-FIT cube ice maker: about 44 kg a day at 21 °C, air-cooled, published for 50 Hz and 60 Hz supplies.
| Manufacturer | Hoshizaki |
|---|---|
| Model | IM-45CA |
| Product type | Cube Ice Maker |
| Series | I-FIT |
| Manufacturer item number | M034-C132 |
Hoshizaki Cube Ice Maker IM-45CA Overview
Hoshizaki rates the IM-45CA at 44 kg of cubes a day at 21 °C ambient and 15 °C water. In a cooler space that rises to 45 kg; in a hot galley at 32 °C it falls to 35 kg. Ice is held in the machine, 15 kg (bin control setting about 8 kg). That middle figure is about 1.8 kg an hour.
Cycle and water
A freezing cycle takes about 23 min and drops 0.67 kg in 30 cubes, each one filled with fresh water in a closed cell, then released with hot gas. Expect about 120 liters of water a day at 21 °C ambient, which works out near 2.7 liters for every kilo of ice.
Electrical and physical data
It runs on a single-phase 220-240 V supply, drawing 2.0 A with a starting current of 16 A, and the motor is rated 310 W at 63% power factor; Hoshizaki asks for at least 1.05 kVA (4.4 A) behind it. The cabinet measures 660 x 570 x 695 mm and weighs 52 kg net, 65 kg in its carton. Plan for 670 W of heat going into the space. It holds 160 g of R134a, metered by a capillary tube.
Installing it
A 60 Hz supply is covered by Hoshizaki's own data for the IM-45CA: about 45 kg a day. Keep the room within 1 to 40 °C, the water at 5 to 35 °C and the pressure at 0.07 to 0.78 MPa (0.7 to 8 bar); voltage tolerance is ±6%. Water comes in at G1/2 at the rear and the drain outlet is 22 mm ID at the rear. The 2026 price list marks the I-FIT series as non-CE, so we check what the flag state and class need before ordering.
Next size
The IM-65A sits next to it at about 56 kg a day, drawing 390 W.
Send us the vessel type, the board voltage and frequency and where the IM-45CA will stand, and we will quote it with a bin and filter to match.
Key features of the IM-45CA
- About 44 kg of cubes a day at 21 °C ambient, 15 °C water
- Published for 50 Hz and 60 Hz supplies
- Air-cooled condenser
- Closed-cell cube forming with hot gas defrost
- Storage 15 kg (bin control setting about 8 kg)
- Refrigerant R134a / 160 g
- Non-CE (I-FIT series)
IM-45CA technical specifications
| Manufacturer | Hoshizaki |
|---|---|
| Model | IM-45CA |
| Product type | Cube Ice Maker |
| Series | I-FIT |
| Manufacturer item number | M034-C132 |
| Ice shape | Cube, approx. 28 x 28 x 32 mm |
| Power supply | 1 phase 220-240 V 50 Hz (I-FIT models are also listed for 60 Hz) |
| Supply capacity required | 1.05 kVA (4.4 A) |
| Running current | 2.0 A at 32 °C / 21 °C |
| Starting current | 16 A |
| Rated motor | 310 W (power factor 63%) |
| Ice production, 10 °C air, 10 °C water | approx. 45 kg (5 mm) / 47 kg (15 mm) per 24 h |
| Ice production, 21 °C air, 15 °C water | approx. 44 kg (5 mm) / 44 kg (15 mm) per 24 h |
| Ice production, 32 °C air, 21 °C water | approx. 35 kg (5 mm) / 38 kg (15 mm) per 24 h |
| Ice production at 60 Hz | approx. 45 kg per 24 h |
| Water consumption, 10 °C air, 10 °C water | approx. 0.18 m³ per 24 h |
| Water consumption, 21 °C air, 15 °C water | approx. 0.12 m³ per 24 h |
| Water consumption, 32 °C air, 21 °C water | approx. 0.1 m³ per 24 h |
| Freeze cycle time | 23 min |
| Ice per cycle | 0.67 kg (30 cubes) |
| Storage capacity | 15 kg (bin control setting about 8 kg) |
| Dimensions (W x D x H) | 660 x 570 x 695 mm |
| Net weight | 52 kg |
| Gross weight | 65 kg |
| Condenser | Air-cooled |
| Heat rejection | 670 W |
| Refrigerant charge | R134a, 160 g |
| Refrigerant control | Capillary tube |
| Ice making system | Cell type, hot gas defrost, hermetic compressor |
| Evaporator | Tin-plated copper tube on sheet and cells |
| Exterior | Stainless steel, plastic door and louver, galvanized steel rear |
| Insulation | Polyurethane foam, cyclopentane blowing agent |
| Water connection | G1/2 at the rear |
| Drain connection | 22 mm ID at the rear |
| Ambient temperature | 1 to 40 °C |
| Water supply temperature | 5 to 35 °C |
| Water supply pressure | 0.07 to 0.78 MPa (0.7 to 8 bar) |
| Voltage tolerance | Rated voltage ±6% |
| Electrical protection | Class I appliance, 5 A fuse |
| Accessories | Scoop, legs, installation kit |
| CE marking | Non-CE (I-FIT series) |
| Data source | Hoshizaki service manual M028-857 and hoshizaki-sea.com |
Also listed under
Questions about the IM-45CA
Does the Hoshizaki IM-45CA work on a 60 Hz supply?
Yes. Hoshizaki South East Asia publishes 60 Hz figures for the I-FIT series, about 45 kg a day for this model, next to the 50 Hz data.
How much ice does the IM-45CA make in a hot galley?
About 35 kg a day at 32 °C ambient with 21 °C water, against 44 kg at 21 °C and 15 °C.
Is the IM-45CA CE marked?
No. The Hoshizaki 2026 export price list marks the I-FIT series as non-CE approved, so certification for the vessel is checked before ordering.
Where the IM-45CA is used
Hoshizaki, manufacturer of the IM-45CA
Hoshizaki: Japanese maker of commercial ice machines, supplied through Hoshizaki Europe with cube, crescent, flake, nugget, cylinder and ball ice makers, ice and water dispensers and sushi display cases. Configured to order — tell us the vessel and the supply voltage and frequency, and we will quote the correct build.
All Hoshizaki equipmentManuals and documents for the IM-45CA
Documents are published by the manufacturer for the standard model. We confirm the build, supply and installation details for your vessel with the quotation.
