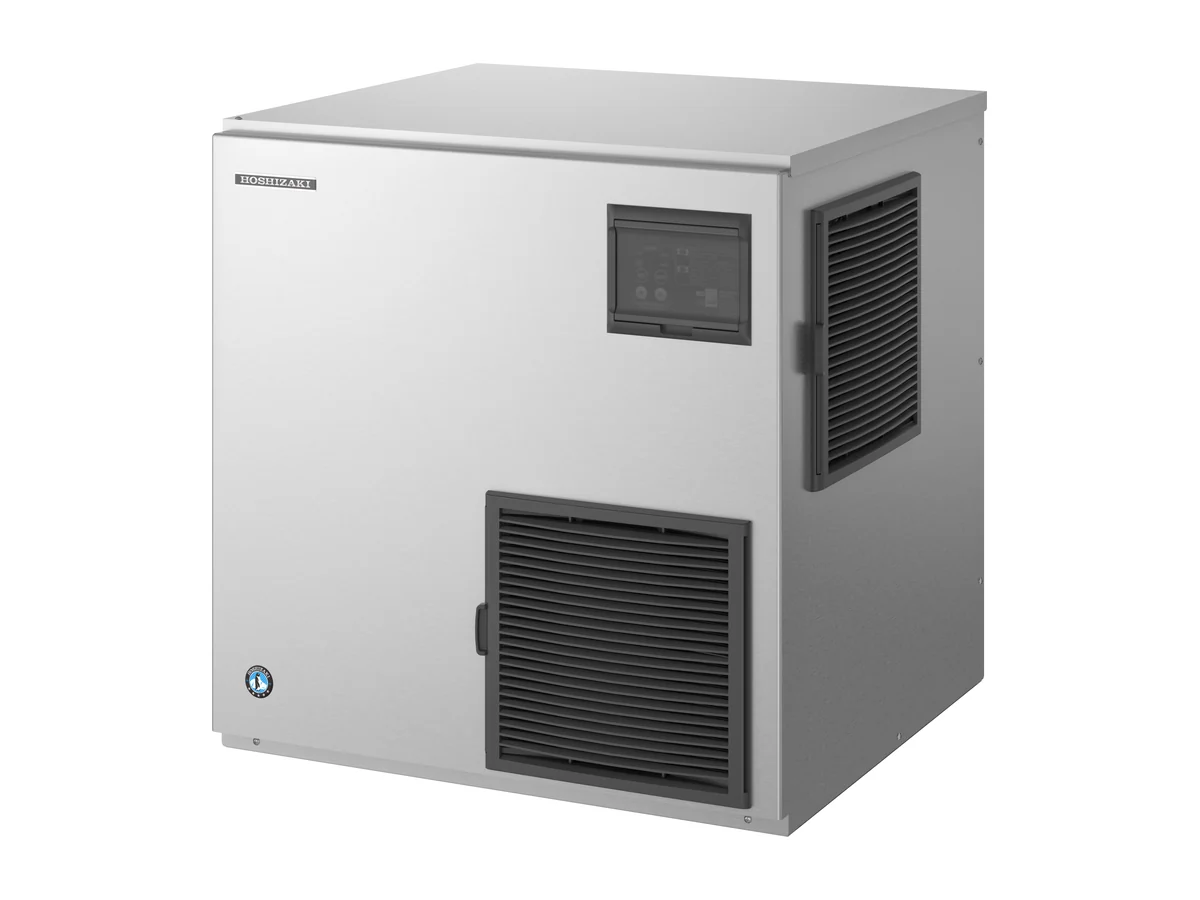

Hoshizaki Flake Ice Maker FM-1000AKE-R452-SB – Modular, Air-cooled, 1,030 kg/24h
Hoshizaki FM-1000AKE-R452-SB: modular air-cooled flake ice maker, 1,030 kg a day. Specs, manuals and quotes for ships and yachts.
| Manufacturer | Hoshizaki |
|---|---|
| Model | FM-1000AKE-R452-SB |
| Product type | Flake Ice Maker |
| Series | FM series |
| Configuration | Modular |
Hoshizaki Flake Ice Maker FM-1000AKE-R452-SB Overview
The FM-1000AKE-R452-SB is a modular flake head. It makes up to 1,030 kg of flake ice a day but has no bin of its own, so it is always ordered with a storage bin (Hoshizaki lists the B-210SB, B-340SB). That works out to roughly 42.9 kg an hour.
Technical details
It measures 762 x 700 x 780 mm (W x D x H) and weighs 146 kg empty. Electrically it needs single-phase 220-240 V 50 Hz, drawing 2.49 kW, within ±10%. At 32 °C room temperature it releases 4.47 kW of heat. It uses about 1,040 liters of water a day, or roughly 1 liters for every kilo of ice. It is charged with 1,350 g of R452A.
Installation notes
The FM-1000AKE-R452-SB is rated for rooms at 5 to 40 °C, with feed water between 5 and 35 °C at 0.5 to 8 bar. The condenser blows about 4.47 kW of warm air into the room, which a bar with poor ventilation will notice. Hoshizaki matches the FM-1000AKE-R452-SB with the 4HC-H triple filter system. Top kits Hoshizaki lists for the FM-1000AKE-R452-SB: TK-18D for B-340SB, TK-30 for B-210SB (optional, not required), TK-48 for B-340SB (optional, not required). We quote the FM-1000AKE-R452-SB against your vessel (supply voltage and frequency, water line, fixing), working from Hoshizaki's data for the standard model.
Key features of the FM-1000AKE-R452-SB
- 1,030 kg of flake ice per 24 hours
- Air-cooled condenser
- R452A refrigerant
- Exterior: Stainless steel AISI 441, Galvanized steel (Rear)
- Accessories included: Installation kit
- Compatible bins: B-210SB, B-340SB
FM-1000AKE-R452-SB technical specifications
| Manufacturer | Hoshizaki |
|---|---|
| Model | FM-1000AKE-R452-SB |
| Product type | Flake Ice Maker |
| Series | FM series |
| Configuration | Modular |
| Manufacturer item number | F055-C201 |
| Country of origin | UK |
| Accessories included | Installation kit |
| Compatible water filters | 4HC-H Triple Water Filter, 4HC Replacement Cartridge |
| Width | 762 mm |
| Width (packed) | 873 mm |
| Depth | 700 mm |
| Depth (packed) | 820 mm |
| Height | 780 mm |
| Height (packed) | 947 mm |
| Volume (packed) | 0.6779 m³ |
| Electrical consumption | 2.49 kW |
| Ambient temperature (maximum) | 40 °C |
| Ambient temperature (minimum) | 5 °C |
| Voltage tolerance | ± 10% |
| Water supply pressure (maximum) | 0.8MPa (8 bar) |
| Water supply pressure (minimum) | 0.05MPa (0.5 bar) |
| Water supply temperature (maximum) | 35 °C |
| Water supply temperature (minimum) | 5 °C |
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear) |
| Gross weight | 156 kg |
| Net weight | 146 kg |
| Heat rejection (AT 32 °C, WT 21 °C) | 4.47 kW |
| Power supply | 1/220 - 240V/50Hz |
| Cooling system | Air Cooled |
| Ice type | Flake |
| Ice production (kg/24h) | 1030 kg |
| Water consumption (m³/24h) | 1.04 m³ |
| Compatible storage bins | B-210SB, B-340SB |
| CO2 equivalent | 2889 kg |
| GWP | 2140 GWP |
| Refrigerant charge | 1,350 g |
| Refrigerant type | R452A |
| Top kits | TK-18D for B-340SB, TK-30 for B-210SB (optional, not required), TK-48 for B-340SB (optional, not required) |
| Note | This type of icemaker is on special order only. Please take longer lead times into consideration. |
Also listed under
Questions about the FM-1000AKE-R452-SB
How much ice does the FM-1000AKE-R452-SB make per day?
Up to 1,030 kg of flake ice in 24 hours, about 42.9 kg an hour. Real output drops as room and water temperatures rise.
How is the FM-1000AKE-R452-SB cooled?
It is air-cooled.
What water supply does the FM-1000AKE-R452-SB need?
Water at 5 to 35 °C and 0.5 to 8 bar, with the 4HC-H triple filter system.
Where the FM-1000AKE-R452-SB is used
Hoshizaki, manufacturer of the FM-1000AKE-R452-SB
Hoshizaki: Japanese maker of commercial ice machines, supplied through Hoshizaki Europe with cube, crescent, flake, nugget, cylinder and ball ice makers, ice and water dispensers and sushi display cases. Configured to order — tell us the vessel and the supply voltage and frequency, and we will quote the correct build.
All Hoshizaki equipmentManuals and documents for the FM-1000AKE-R452-SB
Documents are published by the manufacturer for the standard model. We confirm the build, supply and installation details for your vessel with the quotation.
