Model FM-1800ALKE-R452-SB
Hoshizaki
Hoshizaki

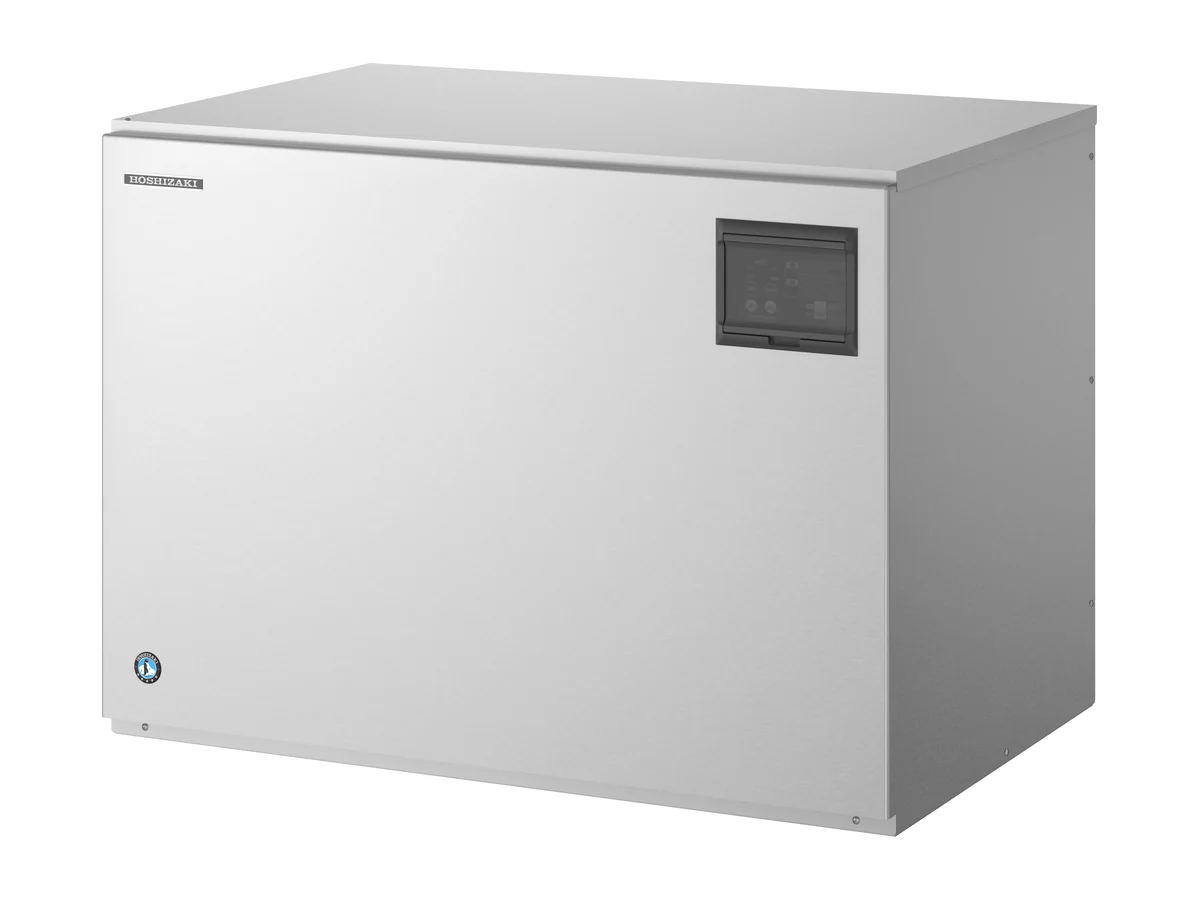

Hoshizaki Flake Ice Maker FM-1800ALKE-R452-SB – Modular, Remote condenser, 1,800 kg/24h
1,800 kg/24h flake ice from the Hoshizaki FM-1800ALKE-R452-SB, a modular remote condenser unit. Full specs and manuals.
| Manufacturer | Hoshizaki |
|---|---|
| Model | FM-1800ALKE-R452-SB |
| Product type | Flake Ice Maker |
| Series | FM series |
| Configuration | Modular |
Hoshizaki Flake Ice Maker FM-1800ALKE-R452-SB Overview
Up to 1,800 kg of flake ice a day from a remote condenser head that sits on a separate bin: the FM-1800ALKE-R452-SB is built for ice rooms and busy bars rather than a counter. Hoshizaki pairs the FM-1800ALKE-R452-SB with the B-340SB. Averaged out, the machine turns out about 75 kg an hour.
Specs worth checking
The cabinet is 1,080 mm wide, 700 mm deep and 780 mm tall, and weighs 140 kg. Power draw is 0.71 kW on single-phase 220-240 V 50 Hz, within ±10%. Water consumption comes to 1,810 liters per 24 hours, or roughly 1 liters for every kilo of ice.
Installation notes
Hoshizaki allows 5 to 40 °C in the room for the FM-1800ALKE-R452-SB, water at 5 to 35 °C and a supply pressure of 0.5 to 8 bar. On the FM-1800ALKE-R452-SB the condenser is remote, so its heat can go to a machinery space or outside instead of the ice room. For water treatment, fit the 4HC-H triple filter ahead of the FM-1800ALKE-R452-SB. For mounting the FM-1800ALKE-R452-SB on a bin, Hoshizaki lists TK-48 for B-340SB (optional, not required), TK-FM1800 for B-340SB. We quote the FM-1800ALKE-R452-SB against your vessel (supply voltage and frequency, water line, fixing), working from Hoshizaki's data for the standard model.
Key features of the FM-1800ALKE-R452-SB
- 1,800 kg of flake ice per 24 hours
- Remote condenser
- Exterior: Stainless steel AISI 441, Galvanized steel (Rear)
- Accessories included: Installation kit
- Compatible bins: B-340SB
FM-1800ALKE-R452-SB technical specifications
| Manufacturer | Hoshizaki |
|---|---|
| Model | FM-1800ALKE-R452-SB |
| Product type | Flake Ice Maker |
| Series | FM series |
| Configuration | Modular |
| Manufacturer item number | F074-C201 |
| Country of origin | UK |
| Accessories included | Installation kit |
| Compatible water filters | 4HC-H Triple Water Filter, 4HC Replacement Cartridge |
| Width | 1080 mm |
| Width (packed) | 1191 mm |
| Depth | 700 mm |
| Depth (packed) | 820 mm |
| Height | 780 mm |
| Height (packed) | 947 mm |
| Volume (packed) | 0.9249 m³ |
| Electrical consumption | 0.71 kW |
| Ambient temperature (maximum) | 40 °C |
| Ambient temperature (minimum) | 5 °C |
| Voltage tolerance | ± 10% |
| Water supply pressure (maximum) | 0.8MPa (8 bar) |
| Water supply pressure (minimum) | 0.05MPa (0.5 bar) |
| Water supply temperature (maximum) | 35 °C |
| Water supply temperature (minimum) | 5 °C |
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear) |
| Gross weight | 155 kg |
| Net weight | 140 kg |
| Power supply | 1/220 - 240V/50Hz |
| Cooling system | Remote Condenser |
| Ice type | Flake |
| Ice production (kg/24h) | 1800 kg |
| Water consumption (m³/24h) | 1.81 m³ |
| Compatible storage bins | B-340SB |
| Refrigerant compatibility | R452A |
| Top kits | TK-48 for B-340SB (optional, not required), TK-FM1800 for B-340SB |
| Note | This type of icemaker is on special order only. Please take longer lead times into consideration. |
Also listed under
Questions about the FM-1800ALKE-R452-SB
How much ice does the FM-1800ALKE-R452-SB make per day?
Up to 1,800 kg of flake ice in 24 hours, about 75 kg an hour. Real output drops as room and water temperatures rise.
Is the FM-1800ALKE-R452-SB air-cooled or water-cooled?
It is remote condenser.
What water supply does the FM-1800ALKE-R452-SB need?
Water at 5 to 35 °C and 0.5 to 8 bar, with the 4HC-H triple filter system.
Where the FM-1800ALKE-R452-SB is used
Hoshizaki, manufacturer of the FM-1800ALKE-R452-SB
Hoshizaki: Japanese maker of commercial ice machines, supplied through Hoshizaki Europe with cube, crescent, flake, nugget, cylinder and ball ice makers, ice and water dispensers and sushi display cases. Configured to order — tell us the vessel and the supply voltage and frequency, and we will quote the correct build.
All Hoshizaki equipmentManuals and documents for the FM-1800ALKE-R452-SB
Documents are published by the manufacturer for the standard model. We confirm the build, supply and installation details for your vessel with the quotation.
