Marine galley equipment by vessel
41 deep fat fryers for offshore units and platforms from MKN and Electrolux Professional, for accommodation that runs around the clock.
23 lt single-well marine deep fat fryer, 18 kW at 440 V/3 ph/50/60 Hz, 500×900 mm footprint, thermaline 90 series, PNC 589826.
Two-well 900XP electric fryer, 2×14 lt wells at 17.4 kW with 105–185 °C control and IPX4 rating for shipboard galleys.
Two-well 900XP marine electric fryer, 36 kW, 21–23 lt per well and 75 kg/hr output at 105–185 °C. PNC 391383.
900XP twin-well electric fryer, 21–23 lt per well and 75 kg/hr output on a 36 kW, 400 V/3 ph/50–60 Hz supply. PNC 391382.
900XP electric deep fat fryer with 21–23 lt one-piece well and 18 kW load, 105–185 °C control. PNC 391381, IPX5, marine 440 V/3 ph/50-60 Hz.
900XP electric deep fat fryer with a 23 lt single well and 18 kW load, 105–185 °C thermostat range. PNC 391380.
18–20 lt electric fryer well at 16.5 kW with 105–185 °C control in the 900XP line, single tank configured for two half baskets.
Single-well thermaline 90 marine fryer, 23 lt max oil, 18 kW at 440 V/3 ph/60 Hz with 500 x 900 mm footprint. PNC 589913.
Single-well 14 lt electric fryer, 8.7 kW on 380-400 V/3 ph/50/60 Hz, 400 x 730 mm 900XP freestanding module, PNC 371162.

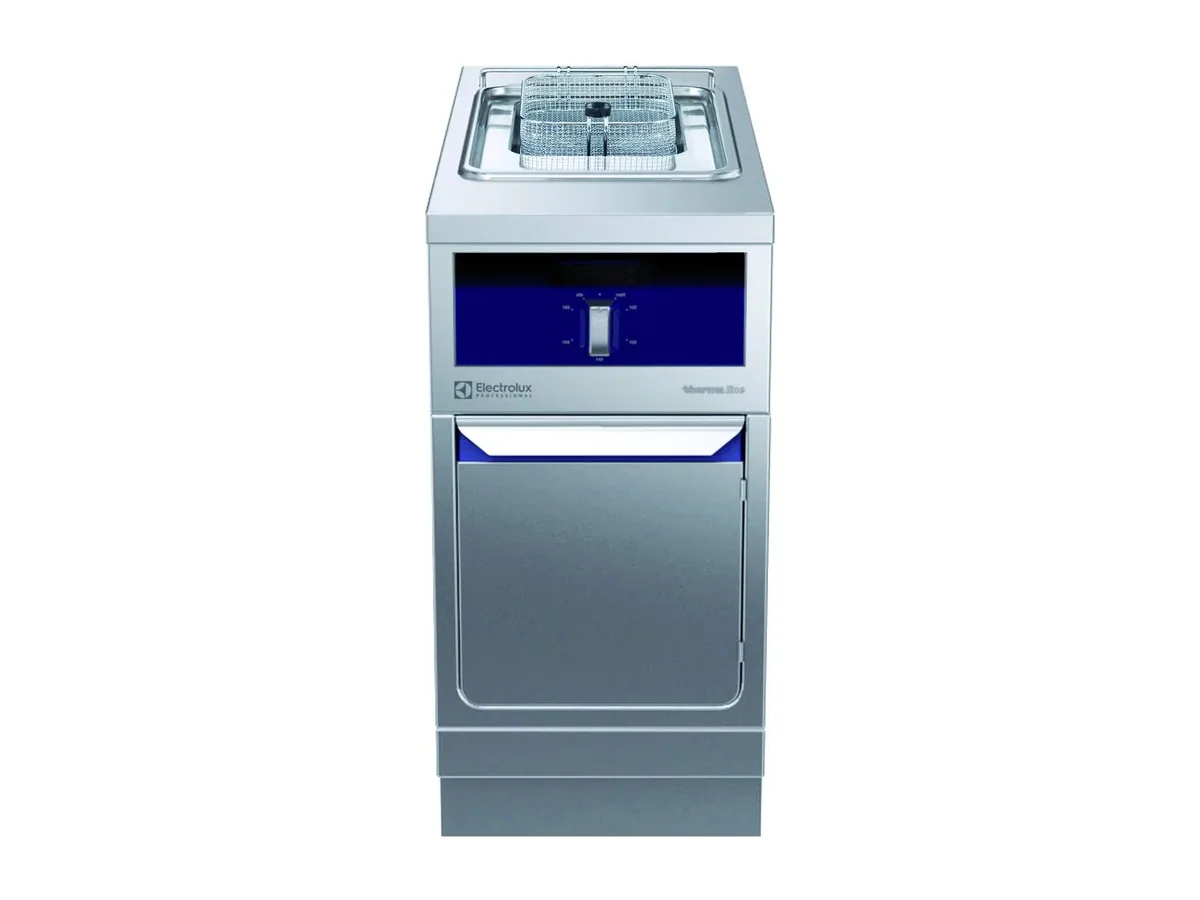

Single-well 14 lt electric deep fat fryer, 10 kW at 440 V/3 ph/60 Hz, 400 x 900 mm thermaline 90 freestanding module, H=700.
Single 14 lt electric fryer, 400 x 900 mm thermaline 90 module, 10 kW at 440 V/3 ph/50/60 Hz, H=700 on base.
7 lt single-well electric deep fat fryer, 5.4 kW at 440 V/3 ph/50/60 Hz, 400 x 900 mm thermaline 90 freestanding unit, H=700.

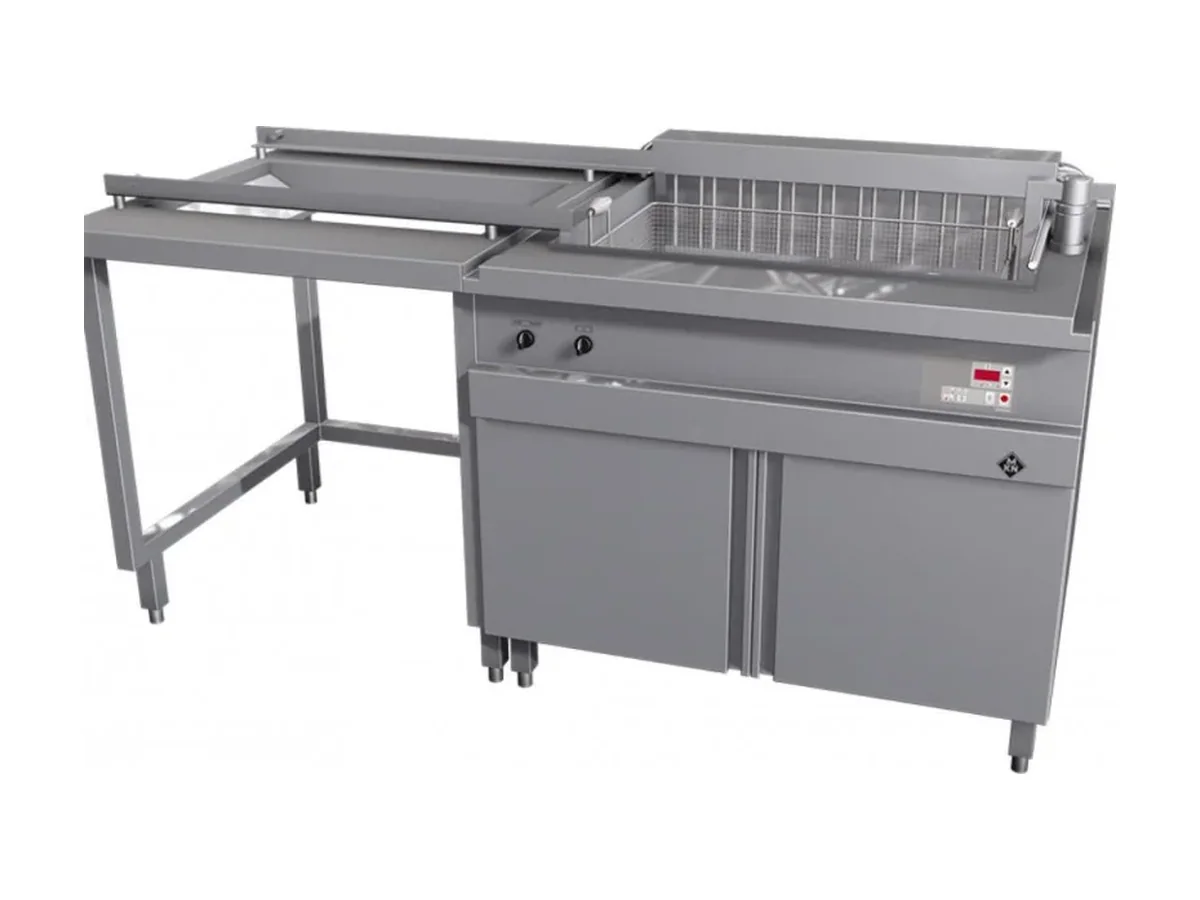

Electric Optima 850 deep fat fryer 10017794 with a 115-litre single work zone and 42 kW connected load on 400 V.

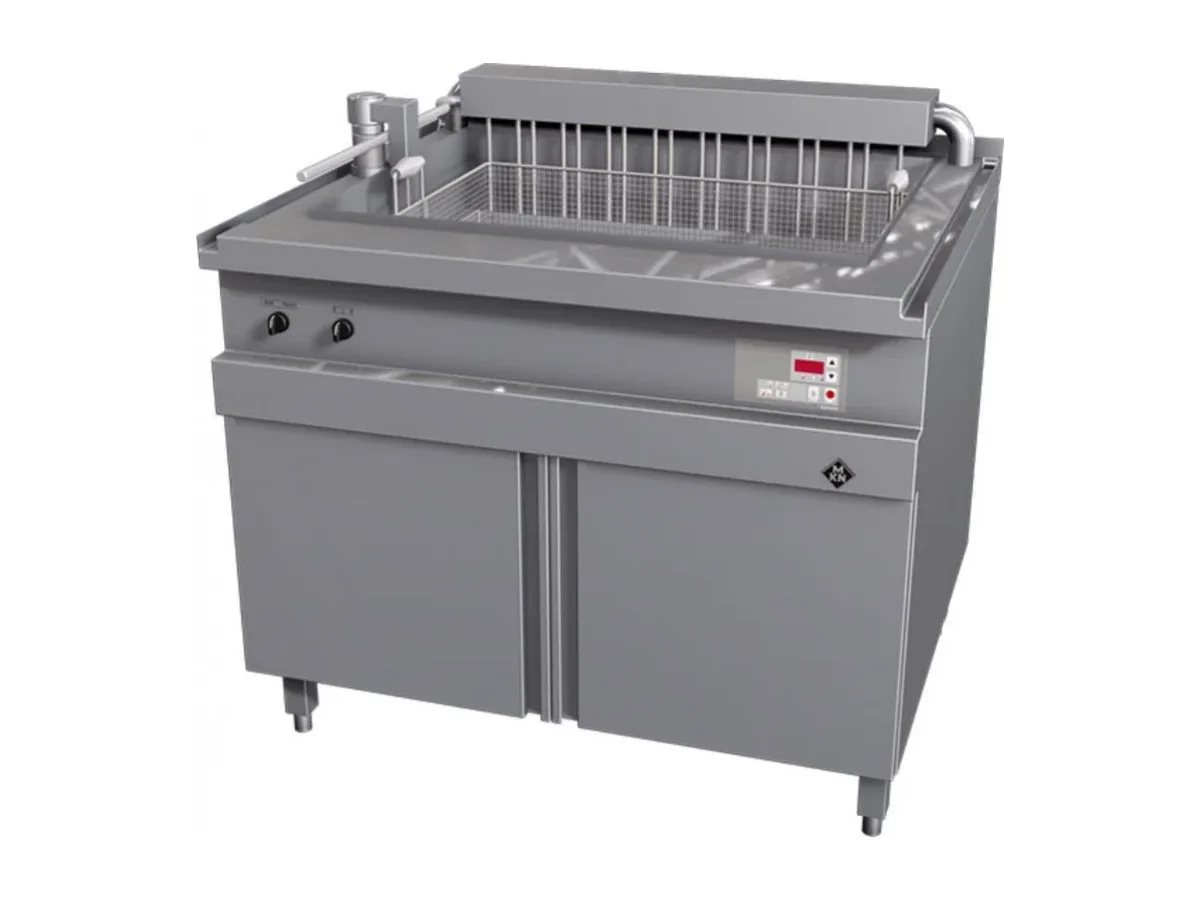

Electric Optima 850 deep fat fryer, 115 litre single work zone on an 800 x 600 mm surface, 42 kW at 400 V. MKN article 10017793.

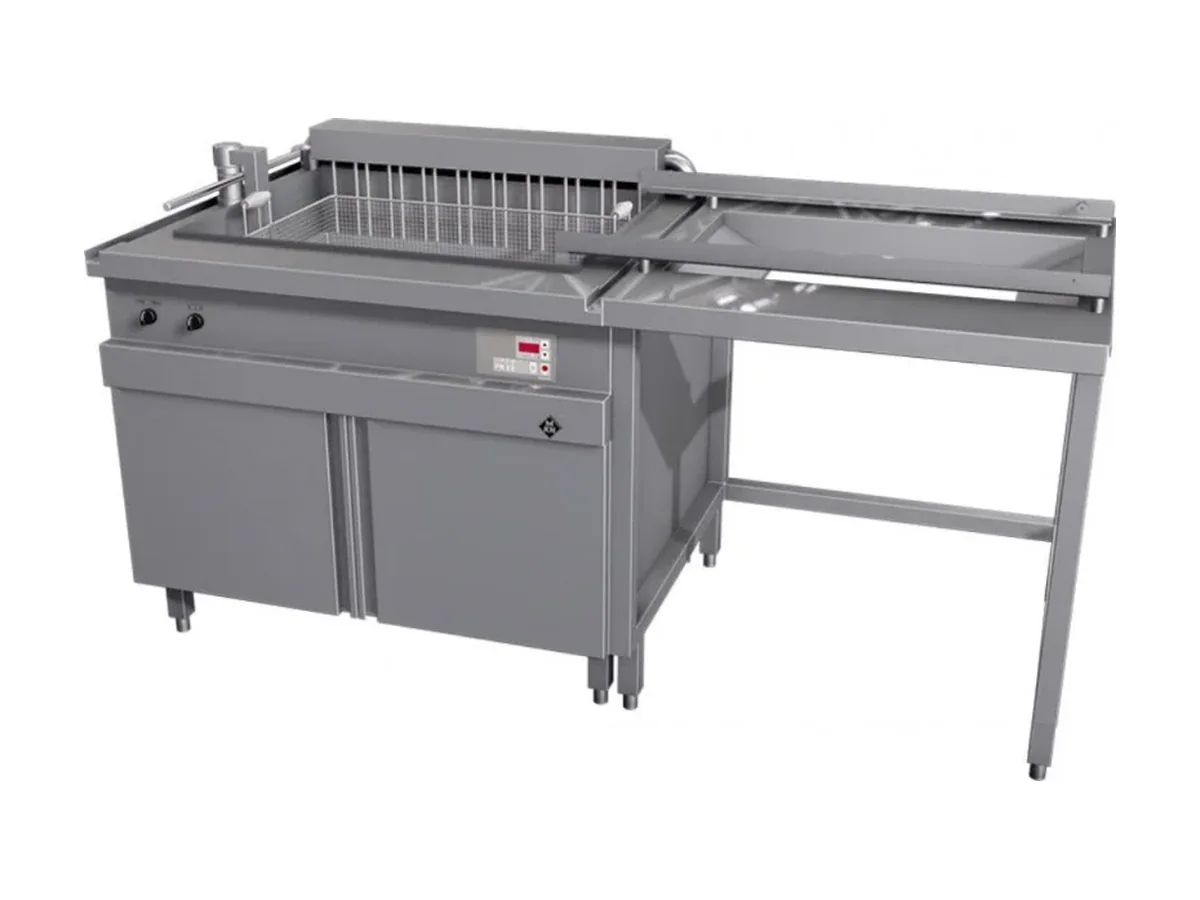

Optima 850 electric deep fat fryer 10012742 with 115 litre single tank on an 800 x 600 mm working surface, 42 kW connected load.

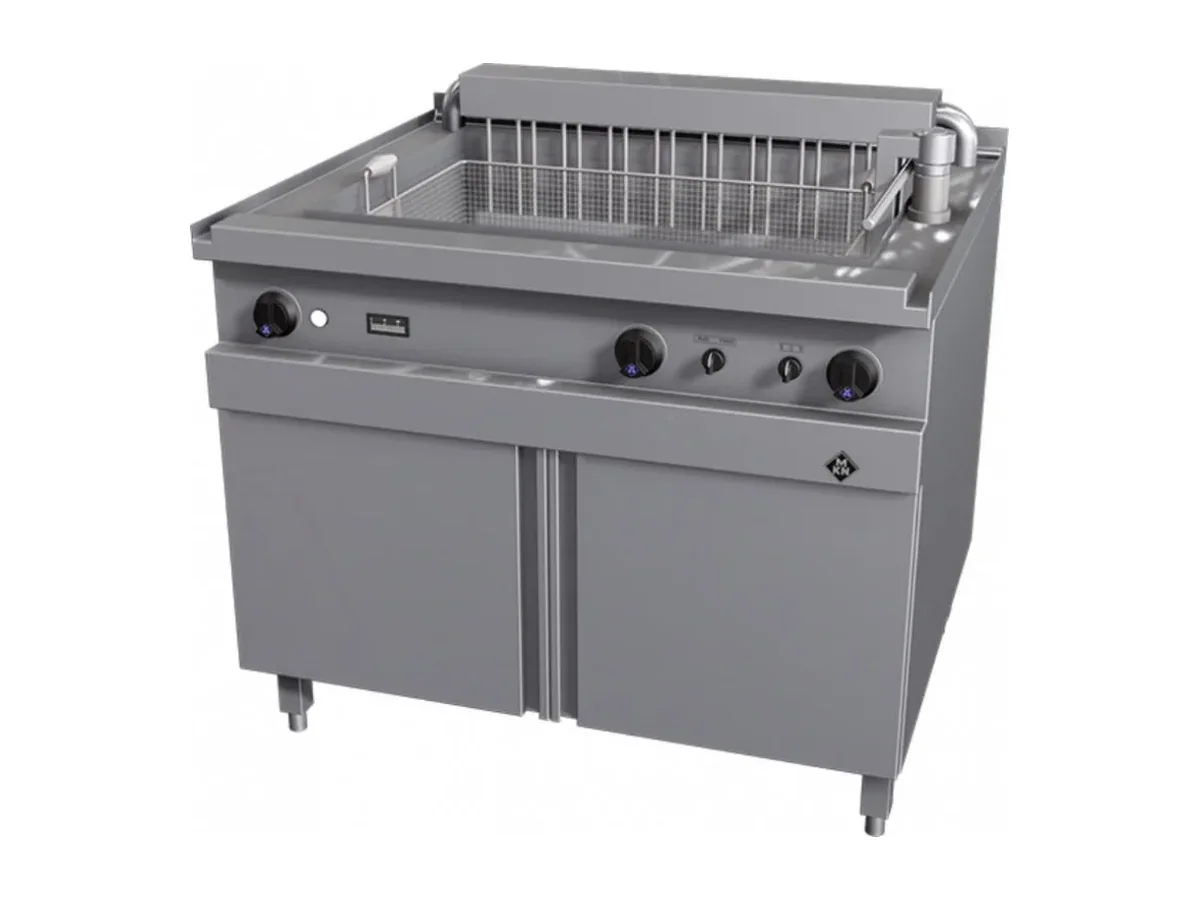

Optima 850 electric deep fat fryer, 115 litre single well, 42 kW at 400 V in a 1000 x 850 x 700 mm body. MKN article 10012739.

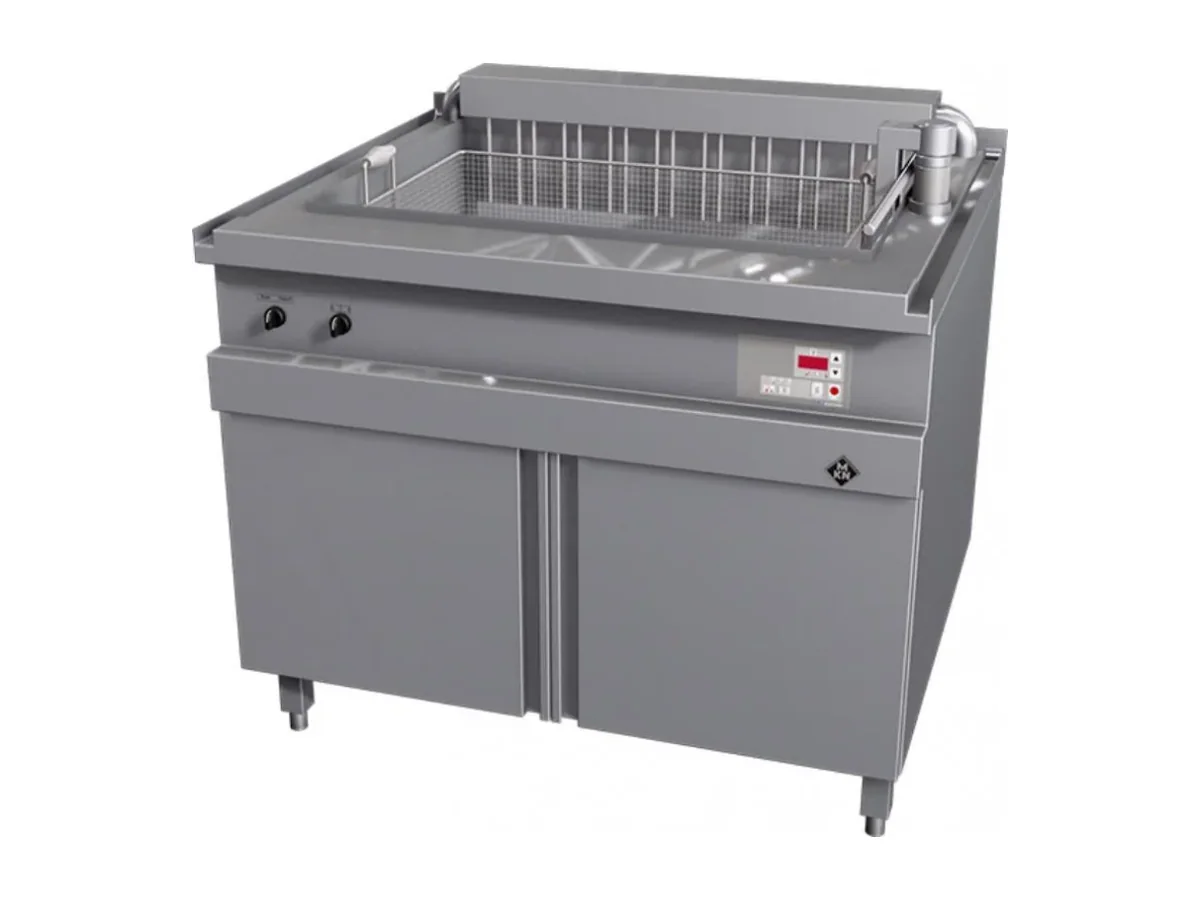

Electric Optima 850 deep fat fryer, 115 litre single tank, 42 kW on 400 V, 1000 x 850 mm body. MKN article 10011983.
Electric Optima 850 fryer, 115 l single work zone on an 800 x 600 mm pan, 42 kW at 400 V. MKN 10011982.

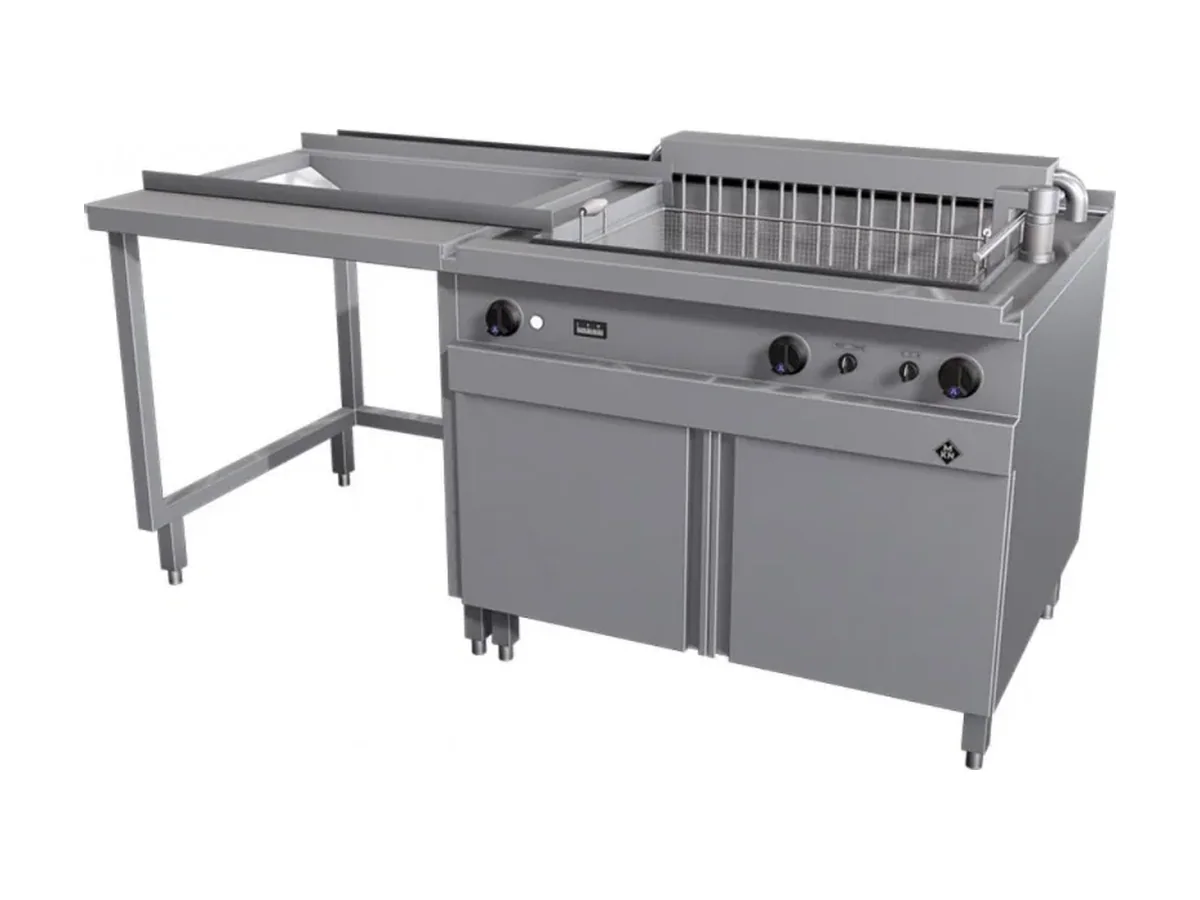

Single-well Optima 850 electric fryer, 115 l oil capacity on an 800 x 600 mm pan, 42 kW at 400 V. Article 10011678.

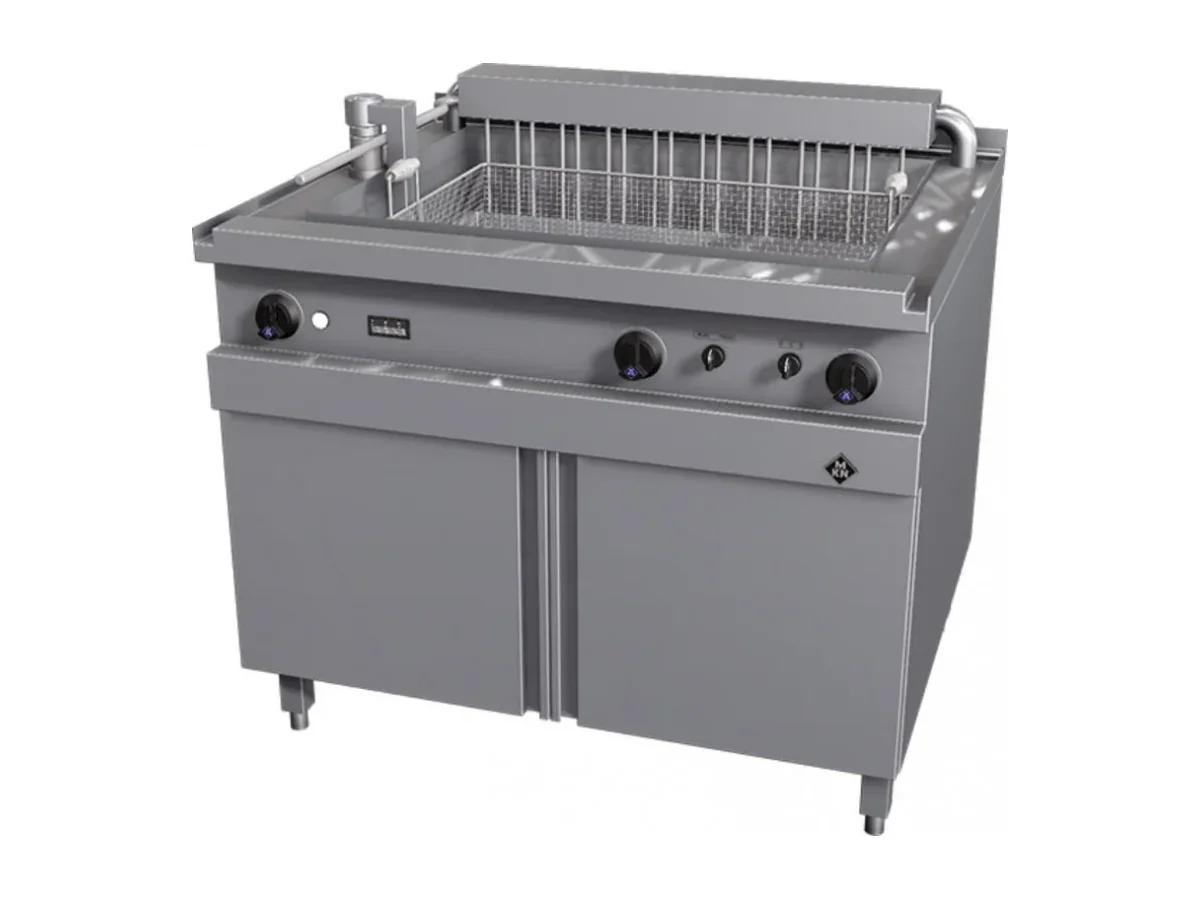

Optima 850 electric deep fat fryer, 115 l single work zone on 800 x 600 mm pan, 42 kW at 400 V. MKN article 10010520.

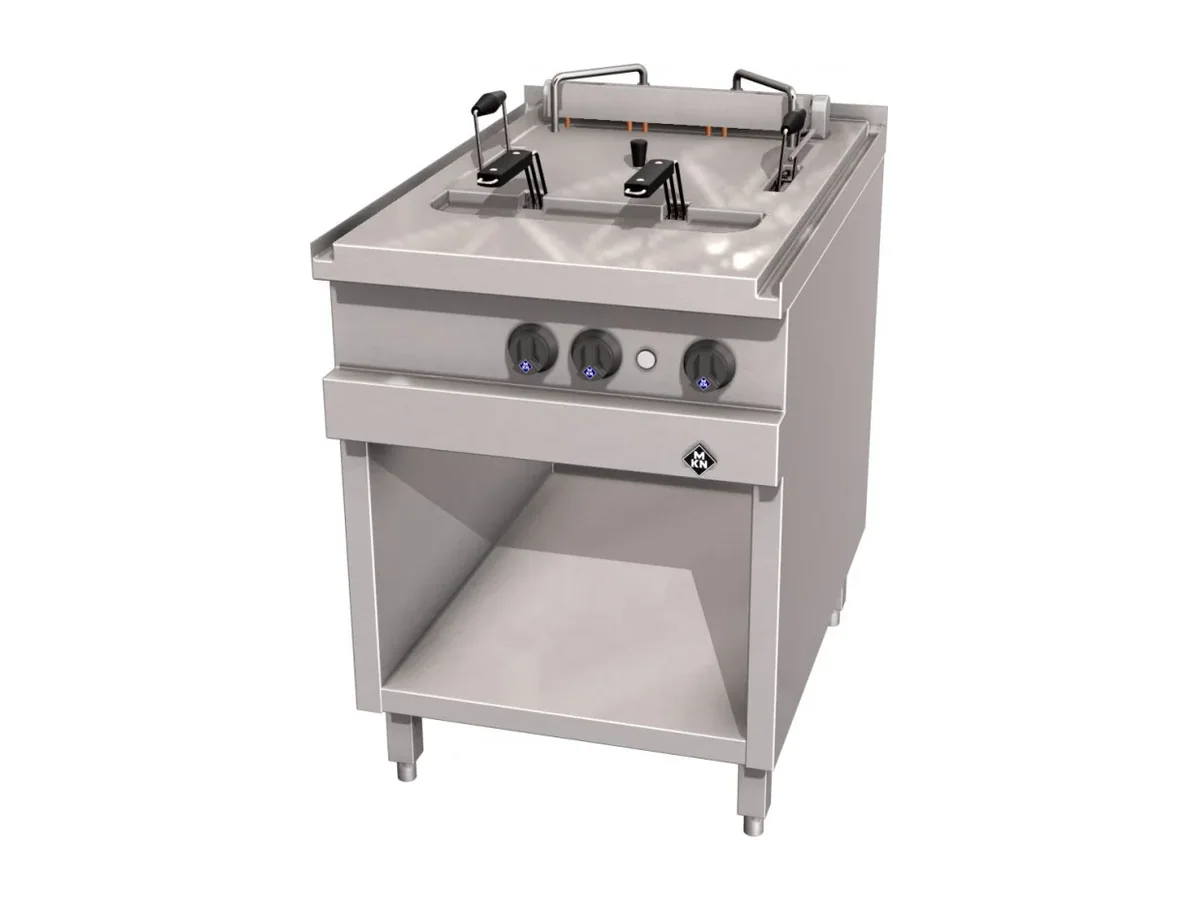

30-litre single-zone electric deep fat fryer, 20 kW at 400 V in a 600 x 850 mm Optima 850 body. MKN 2020330C.
Single-tank 30-litre electric deep fat fryer, 20 kW at 400 V, 600 x 850 mm Optima 850 body. MKN 2020330B.
Single-tank 30-litre electric deep fat fryer, 10 kW, 400 x 400 mm well, 600 x 850 mm Optima 850 module. MKN 2020330A.

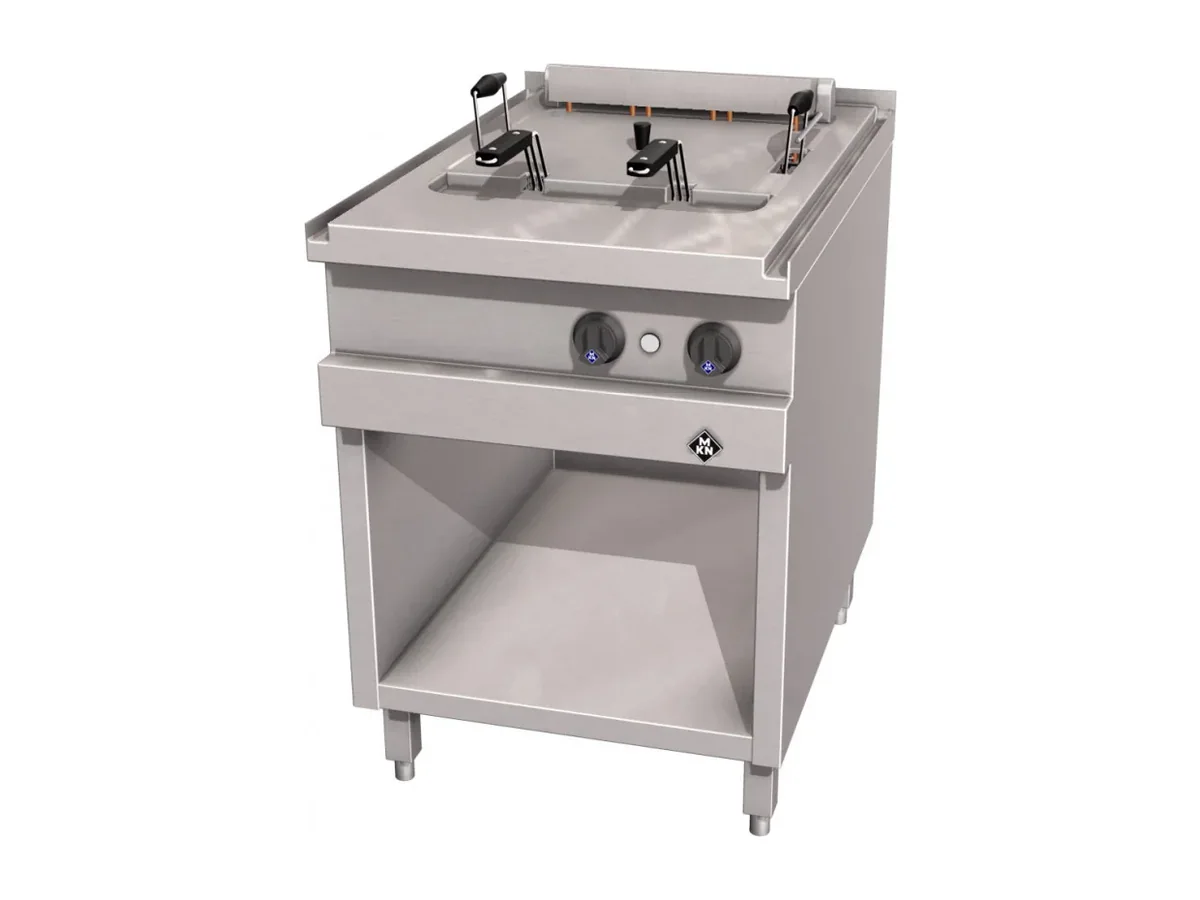

Single-tank 30 litre electric deep fat fryer, 400 x 400 mm well, 10 kW, 400 V, in the MKN Optima 850 line. Article 2020330.
An offshore galley runs around the clock for rotating shifts, so the equipment is chosen for continuous use and heavy-duty construction, and energy management matters where the galley and accommodation share generating capacity. Of the 116 marine deep fat fryers in the catalogue, 41 are listed here for offshore units. On ships, SOLAS regulation II-2/10.6.4 requires deep-fat cooking equipment to have an automatic or manual extinguishing system, primary and backup thermostats with an alarm, and automatic shut-off of electrical power when the system operates.
This page lists 41 products from MKN (29) and Electrolux Professional (12). By series: Optima 850 (23), 900XP (7), HotLine (6) and thermaline 90 (5). Across the list you will find rated power from 5.4 kW to 42 kW and capacities from 12 to 115 litres.
By capacity band, up to 30 litres (12), up to 50 litres (12) and 100 to 150 litres (8). By connected load, 5 to 10 kw (12), 10 to 20 kw (19), 20 to 40 kw (2) and over 40 kw (8).
Examples from the list: MKN Deep Fat Fryer 1320330 (10 kW, 30 litres), MKN Deep Fat Fryer 1320330B (20 kW, 30 litres), MKN Deep Fat Fryer 2020321 (6 kW, 12.5 litres) and MKN Deep Fat Fryer 2020321B (10 kW, 12.5 litres).
See all marine deep fat fryers in the catalogue, the offshore galley equipment page, and the marine galley equipment guide.
41 products from MKN and Electrolux Professional.
Across this selection the listed voltages are 380 V, 400 V and 440 V, and 12 products list 60 Hz operation. Each unit is ordered in the vessel's own supply voltage and frequency.
Add the products to your quote list or send the vessel type, supply voltage and frequency and the quantities through the quote form. Prices are quoted to the vessel, not listed online.
Send the vessel type, supply voltage and frequency and the quantities, and our team will come back with a specification and quotation.
