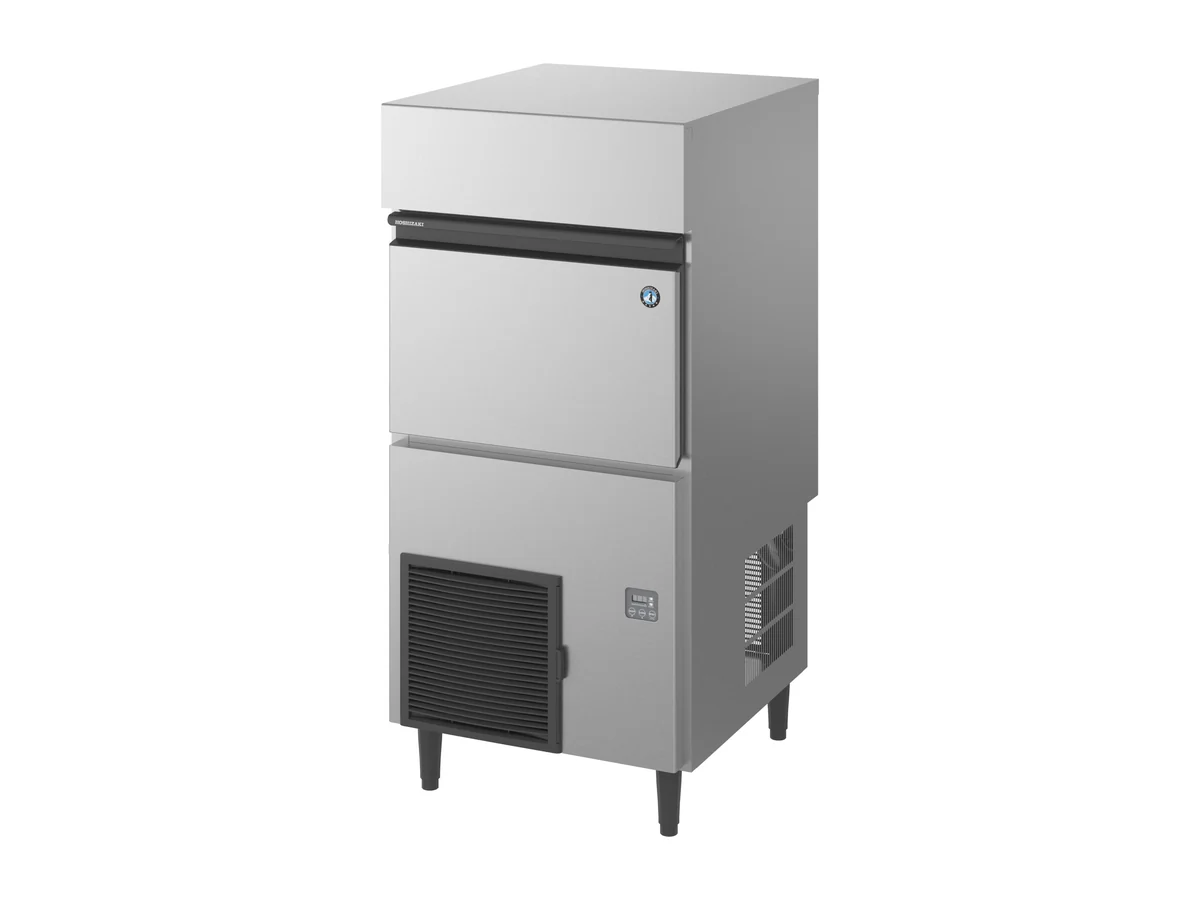

Hoshizaki Crescent Ice Maker KM-140C-HC-W – Self-Contained, Air-cooled, 138 kg/24h
138 kg/24h crescent ice from the Hoshizaki KM-140C-HC-W, a self-contained air-cooled unit with a 47 kg bin. Full specs and manuals.
| Manufacturer | Hoshizaki |
|---|---|
| Model | KM-140C-HC-W |
| Product type | Crescent Ice Maker |
| Series | KM series |
| Configuration | Self-Contained |
Hoshizaki Crescent Ice Maker KM-140C-HC-W Overview
Hoshizaki rates the KM-140C-HC-W at 138 kg of crescent ice per day. The ice drops into a 47 kg bin inside the same air-cooled cabinet. Averaged out, the machine turns out about 5.8 kg an hour. An empty 47 kg bin fills in roughly 8.2 hours at that rate.
In numbers
It measures 630 x 719 x 1,194 mm (W x D x H) before legs (add 139-162 mm) and weighs 71 kg empty. It draws 0.564 kW from a single-phase 220-240 V 50 Hz supply, within ±6%, on a 5 A breaker. Heat released into the room is 1.45 kW at 32 °C ambient. It uses about 450 liters of water a day, or roughly 3.3 liters for every kilo of ice. The KM-140C-HC-W runs on 110 g of R290, which is propane (safety class A3), so the charge belongs on the installation paperwork. Hoshizaki lists fully automated cleaning for the KM-140C-HC-W.
Installation notes
Hoshizaki allows 7 to 38 °C in the room for the KM-140C-HC-W, water at 7 to 32 °C and a supply pressure of 0.7 to 8 bar. Expect roughly 1.45 kW of extra heat in the room from this air-cooled unit. For water treatment, fit the 4HC-H single filter ahead of the KM-140C-HC-W. Send us the supply details and where the KM-140C-HC-W will stand and we will confirm the rest with Hoshizaki.
Key features of the KM-140C-HC-W
- 138 kg of crescent ice per 24 hours
- 47 kg built-in storage bin
- Air-cooled condenser
- R290 refrigerant
- Exterior: Stainless steel AISI 441, Galvanized steel (Rear), Plastic (Louver)
- Fully automated cleaning
- Accessories included: Legs, Scoop
KM-140C-HC-W technical specifications
| Manufacturer | Hoshizaki |
|---|---|
| Model | KM-140C-HC-W |
| Product type | Crescent Ice Maker |
| Series | KM series |
| Configuration | Self-Contained |
| Manufacturer item number | F178-C241 |
| Country of origin | China |
| Accessories included | Legs, Scoop |
| Compatible water filters | 4HC-H Single Water Filter, 4HC Replacement Cartridge |
| Width | 630 mm |
| Width (packed) | 725 mm |
| Depth | 719 mm |
| Depth (packed) | 825 mm |
| Height | 1194 mm |
| Height (packed) | 1357 mm |
| Volume (packed) | 0.812 m³ |
| Legs | for legs add 139-162 mm |
| Electrical consumption | 0.564 kW |
| Ambient temperature (maximum) | 38 °C |
| Ambient temperature (minimum) | 7 °C |
| Voltage tolerance | ±6% |
| Water supply pressure (maximum) | 0.8MPa (8 bar) |
| Water supply pressure (minimum) | 0.07MPa (0.7 bar) |
| Water supply temperature (maximum) | 32 °C |
| Water supply temperature (minimum) | 7 °C |
| Functions | Fully automated cleaning |
| Electrical circuit breaker protection | 5 A |
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear), Plastic (Louver) |
| Gross weight | 83 kg |
| Net weight | 71 kg |
| Heat rejection (AT 32 °C, WT 21 °C) | 1.45 kW |
| Power supply | 1/220 - 240V/50Hz |
| Storage bin capacity | 47 kg |
| Cooling system | Air Cooled |
| Ice type | Crescent Edge |
| Ice production (kg/24h) | 138 kg |
| Water consumption (m³/24h) | 0.45 m³ |
| CO2 equivalent | 0.33 kg |
| GWP | 3 GWP |
| Refrigerant charge | 110 g |
| Refrigerant type | R290 |
Also listed under
Questions about the KM-140C-HC-W
What is the daily output of the Hoshizaki KM-140C-HC-W?
Up to 138 kg of crescent ice in 24 hours, about 5.8 kg an hour. Real output drops as room and water temperatures rise.
Is the KM-140C-HC-W air-cooled or water-cooled?
It is air-cooled.
What water supply does the KM-140C-HC-W need?
Water at 7 to 32 °C and 0.7 to 8 bar, with the 4HC-H single filter system.
Where the KM-140C-HC-W is used
Hoshizaki, manufacturer of the KM-140C-HC-W
Hoshizaki: Japanese maker of commercial ice machines, supplied through Hoshizaki Europe with cube, crescent, flake, nugget, cylinder and ball ice makers, ice and water dispensers and sushi display cases. Configured to order — tell us the vessel and the supply voltage and frequency, and we will quote the correct build.
All Hoshizaki equipmentManuals and documents for the KM-140C-HC-W
Documents are published by the manufacturer for the standard model. We confirm the build, supply and installation details for your vessel with the quotation.
