Model KM-140C-HC
Hoshizaki
Hoshizaki

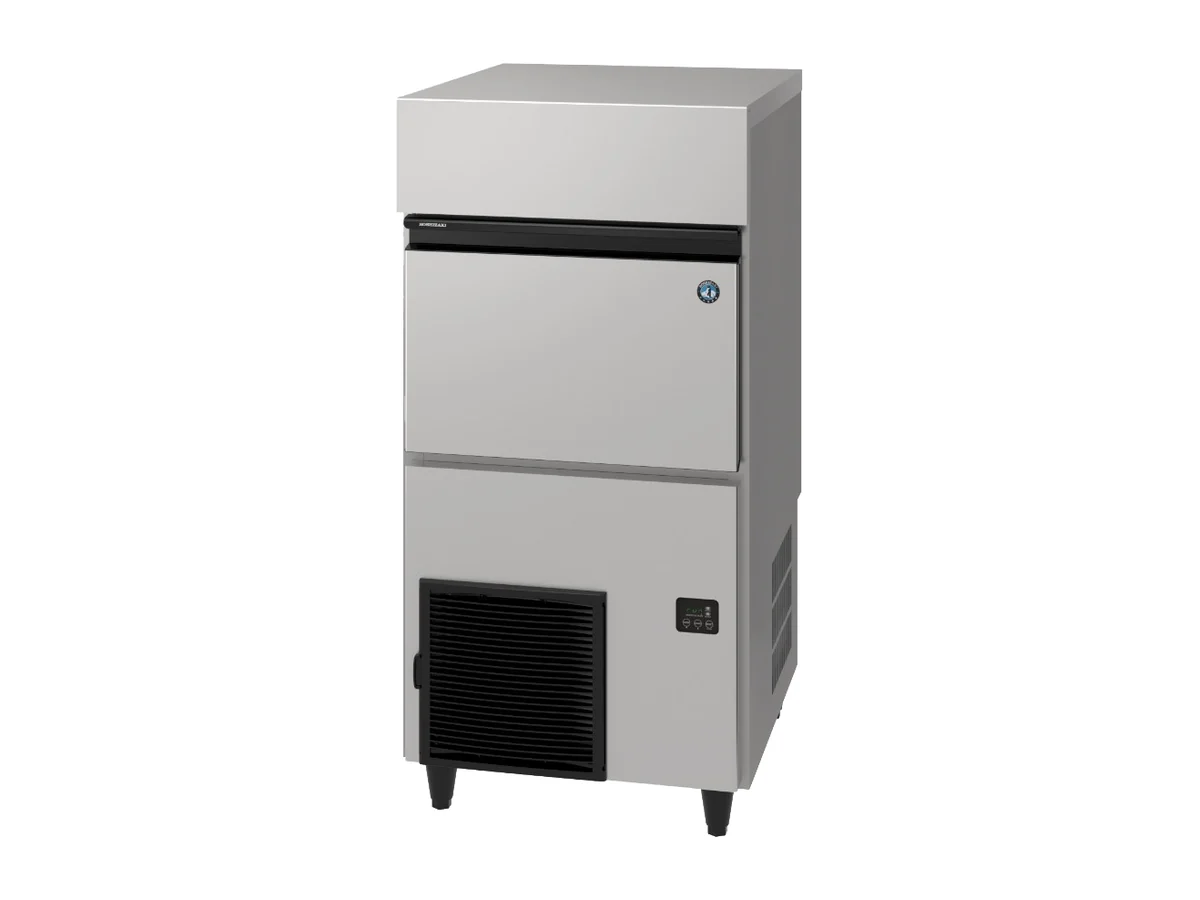

Hoshizaki Crescent Ice Maker KM-140C-HC – Self-Contained, Air-cooled, 138 kg/24h
Hoshizaki KM-140C-HC: self-contained air-cooled crescent ice maker, 138 kg a day with a 55 kg bin. Specs, manuals and quotes for ships and yachts.
| Manufacturer | Hoshizaki |
|---|---|
| Model | KM-140C-HC |
| Product type | Crescent Ice Maker |
| Series | KM series |
| Configuration | Self-Contained |
Hoshizaki Crescent Ice Maker KM-140C-HC Overview
The KM-140C-HC makes up to 138 kg of crescent ice a day and keeps 55 kg of it in its own bin, so it only needs power, water and a drain to start working. That works out to roughly 5.8 kg an hour. An empty 55 kg bin fills in roughly 9.6 hours at that rate.
In numbers
It measures 630 x 719 x 1,194 mm (W x D x H) before legs (add 139-162 mm) and weighs 69 kg empty. Electrically it needs single-phase 220-240 V 50 Hz, drawing 0.564 kW, within ±6%, on a 5 A breaker. Plan for 1.45 kW of heat into the space at 32 °C. Daily water use is 450 liters, or roughly 3.3 liters for every kilo of ice. Its refrigerant is R290 (propane, class A3), 110 g of it, which matters when you decide where the KM-140C-HC goes. On the control side the KM-140C-HC gives you automated cleaning.
On board
Hoshizaki allows 7 to 38 °C in the room for the KM-140C-HC, water at 7 to 32 °C and a supply pressure of 0.7 to 8 bar. The condenser blows about 1.45 kW of warm air into the room, which a bar with poor ventilation will notice. Hoshizaki matches the KM-140C-HC with the 4HC-H single filter system. Before quoting we check the board voltage and frequency, the water connection and the fixing on board, since the figures above are for the standard KM-140C-HC.
Key features of the KM-140C-HC
- 138 kg of crescent ice per 24 hours
- 55 kg built-in storage bin
- Air-cooled condenser
- R290 refrigerant
- Exterior: Stainless steel AISI 441, Galvanized steel (Rear), Plastic (Louver)
- Automated cleaning
- Accessories included: Legs, Scoop
KM-140C-HC technical specifications
| Manufacturer | Hoshizaki |
|---|---|
| Model | KM-140C-HC |
| Product type | Crescent Ice Maker |
| Series | KM series |
| Configuration | Self-Contained |
| Manufacturer item number | F178-C141 |
| Country of origin | China |
| Accessories included | Legs, Scoop |
| Compatible water filters | 4HC-H Single Water Filter, 4HC Replacement Cartridge |
| Width | 630 mm |
| Width (packed) | 725 mm |
| Depth | 719 mm |
| Depth (packed) | 825 mm |
| Height | 1194 mm |
| Height (packed) | 1357 mm |
| Volume (packed) | 0.812 m³ |
| Legs | for legs add 139-162 mm |
| Electrical consumption | 0.564 kW |
| Energy consumption | 0.564 kWh |
| Ambient temperature (maximum) | 38 °C |
| Ambient temperature (minimum) | 7 °C |
| Voltage tolerance | ±6% |
| Water supply pressure (maximum) | 0.8MPa (8 bar) |
| Water supply pressure (minimum) | 0.07MPa (0.7 bar) |
| Water supply temperature (maximum) | 32 °C |
| Water supply temperature (minimum) | 7 °C |
| Functions | Automated cleaning |
| Electrical circuit breaker protection | 5 A |
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear), Plastic (Louver) |
| Gross weight | 81 kg |
| Net weight | 69 kg |
| Heat rejection (AT 32 °C, WT 21 °C) | 1.45 kW |
| Power supply | 1/220 - 240V/50Hz |
| Storage bin capacity | 55 kg |
| Cooling system | Air Cooled |
| Ice type | Crescent Edge |
| Ice production (kg/24h) | 138 kg |
| Water consumption (m³/24h) | 0.45 m³ |
| CO2 equivalent | 0.33 kg |
| GWP | 3 GWP |
| Refrigerant charge | 110 g |
| Refrigerant type | R290 |
Also listed under
Questions about the KM-140C-HC
How much ice does the KM-140C-HC make per day?
Up to 138 kg of crescent ice in 24 hours, about 5.8 kg an hour. Real output drops as room and water temperatures rise.
How is the KM-140C-HC cooled?
It is air-cooled.
What water supply does the KM-140C-HC need?
Water at 7 to 32 °C and 0.7 to 8 bar, with the 4HC-H single filter system.
Where the KM-140C-HC is used
Hoshizaki, manufacturer of the KM-140C-HC
Hoshizaki: Japanese maker of commercial ice machines, supplied through Hoshizaki Europe with cube, crescent, flake, nugget, cylinder and ball ice makers, ice and water dispensers and sushi display cases. Configured to order — tell us the vessel and the supply voltage and frequency, and we will quote the correct build.
All Hoshizaki equipmentManuals and documents for the KM-140C-HC
Documents are published by the manufacturer for the standard model. We confirm the build, supply and installation details for your vessel with the quotation.
