Model KM-40C-HC
Hoshizaki
Hoshizaki

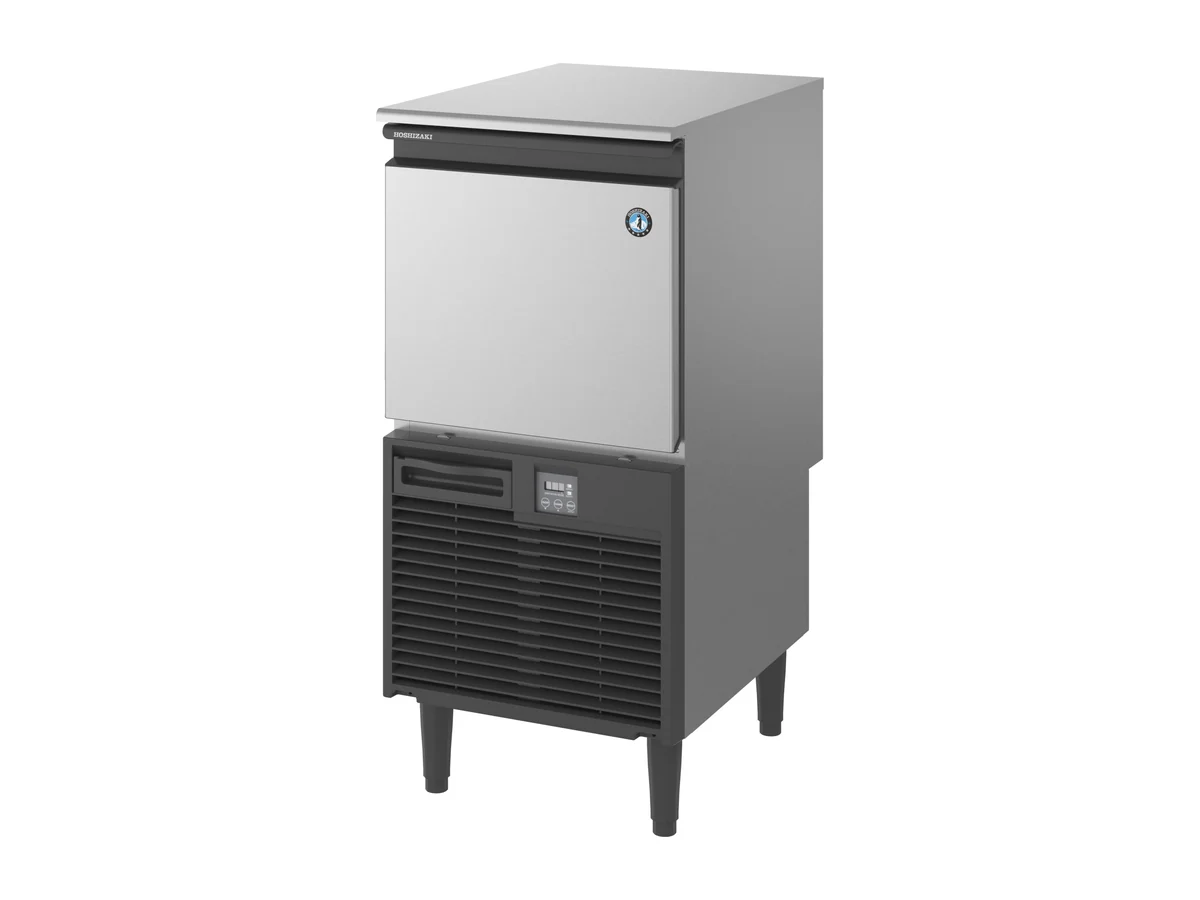

Hoshizaki Crescent Ice Maker KM-40C-HC – Self-Contained, Air-cooled, 43 kg/24h
43 kg/24h crescent ice from the Hoshizaki KM-40C-HC, a self-contained air-cooled unit with a 16 kg bin. Full specs and manuals.
| Manufacturer | Hoshizaki |
|---|---|
| Model | KM-40C-HC |
| Product type | Crescent Ice Maker |
| Series | KM series |
| Configuration | Self-Contained |
Hoshizaki Crescent Ice Maker KM-40C-HC Overview
Hoshizaki rates the KM-40C-HC at 43 kg of crescent ice per day. The ice drops into a 16 kg bin inside the same air-cooled cabinet. Spread over a day, it is about 1.8 kg per hour. An empty 16 kg bin fills in roughly 8.9 hours at that rate.
Specs worth checking
It measures 452 x 610 x 838 mm (W x D x H) before legs (add 144-167mm) and weighs 39 kg empty. Electrically it needs single-phase 220-240 V 50 Hz, drawing 0.22 kW, within ±6%, on a 5 A breaker. At 32 °C room temperature it releases 0.58 kW of heat. It uses about 250 liters of water a day, or roughly 5.8 liters for every kilo of ice. The KM-40C-HC runs on 68 g of R290, which is propane (safety class A3), so the charge belongs on the installation paperwork. Hoshizaki lists automated cleaning for the KM-40C-HC.
On board
Operating limits for the KM-40C-HC are 7 to 38 °C ambient, 7 to 32 °C water and 0.7 to 8 bar, so check the space and the fresh water line against those. Air-cooled, it puts its 0.58 kW of heat straight into the room, so a closed pantry needs some ventilation. Pair it with a 4HC-H single filter; at 43 kg a day that is the size Hoshizaki specifies. We quote the KM-40C-HC against your vessel (supply voltage and frequency, water line, fixing), working from Hoshizaki's data for the standard model.
Key features of the KM-40C-HC
- 43 kg of crescent ice per 24 hours
- 16 kg built-in storage bin
- Air-cooled condenser
- R290 refrigerant
- Exterior: Stainless steel AISI 441, Galvanized steel (Rear), Plastic (Louver)
- Automated cleaning
- Accessories included: Legs, Scoop
KM-40C-HC technical specifications
| Manufacturer | Hoshizaki |
|---|---|
| Model | KM-40C-HC |
| Product type | Crescent Ice Maker |
| Series | KM series |
| Configuration | Self-Contained |
| Manufacturer item number | F158-C141 |
| Country of origin | China |
| Accessories included | Legs, Scoop |
| Compatible water filters | 4HC-H Single Water Filter, 4HC Replacement Cartridge |
| Width | 452 mm |
| Width (packed) | 555 mm |
| Depth | 610 mm |
| Depth (packed) | 715 mm |
| Height | 838 mm |
| Height (packed) | 996 mm |
| Volume (packed) | 0.395 m³ |
| Legs | For legs add 144-167mm |
| Electrical consumption | 0.22 kW |
| Ambient temperature (maximum) | 38 °C |
| Ambient temperature (minimum) | 7 °C |
| Voltage tolerance | ±6% |
| Water supply pressure (maximum) | 0.8MPa (8 bar) |
| Water supply pressure (minimum) | 0.07MPa (0.7 bar) |
| Water supply temperature (maximum) | 32 °C |
| Water supply temperature (minimum) | 7 °C |
| Functions | Automated cleaning |
| Electrical circuit breaker protection | 5 A |
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear), Plastic (Louver) |
| Gross weight | 49 kg |
| Net weight | 39 kg |
| Heat rejection (AT 32 °C, WT 21 °C) | 0.58 kW |
| Power supply | 1/220 - 240V/50Hz |
| Storage bin capacity | 16 kg |
| Cooling system | Air Cooled |
| Ice type | Crescent Edge |
| Ice production (kg/24h) | 43 kg |
| Water consumption (m³/24h) | 0.25 m³ |
| CO2 equivalent | 0.204 kg |
| GWP | 3 GWP |
| Refrigerant charge | 68 g |
| Refrigerant type | R290 |
Also listed under
Questions about the KM-40C-HC
What is the daily output of the Hoshizaki KM-40C-HC?
Up to 43 kg of crescent ice in 24 hours, about 1.8 kg an hour. Real output drops as room and water temperatures rise.
Is the KM-40C-HC air-cooled or water-cooled?
It is air-cooled.
What water supply does the KM-40C-HC need?
Water at 7 to 32 °C and 0.7 to 8 bar, with the 4HC-H single filter system.
Where the KM-40C-HC is used
Hoshizaki, manufacturer of the KM-40C-HC
Hoshizaki: Japanese maker of commercial ice machines, supplied through Hoshizaki Europe with cube, crescent, flake, nugget, cylinder and ball ice makers, ice and water dispensers and sushi display cases. Configured to order — tell us the vessel and the supply voltage and frequency, and we will quote the correct build.
All Hoshizaki equipmentManuals and documents for the KM-40C-HC
- Spec sheet
- Instruction manual (1)
- Instruction manual (2)
- Installation manual
- Declaration of conformity
Documents are published by the manufacturer for the standard model. We confirm the build, supply and installation details for your vessel with the quotation.
