Model KM-60C-HC
Hoshizaki
Hoshizaki

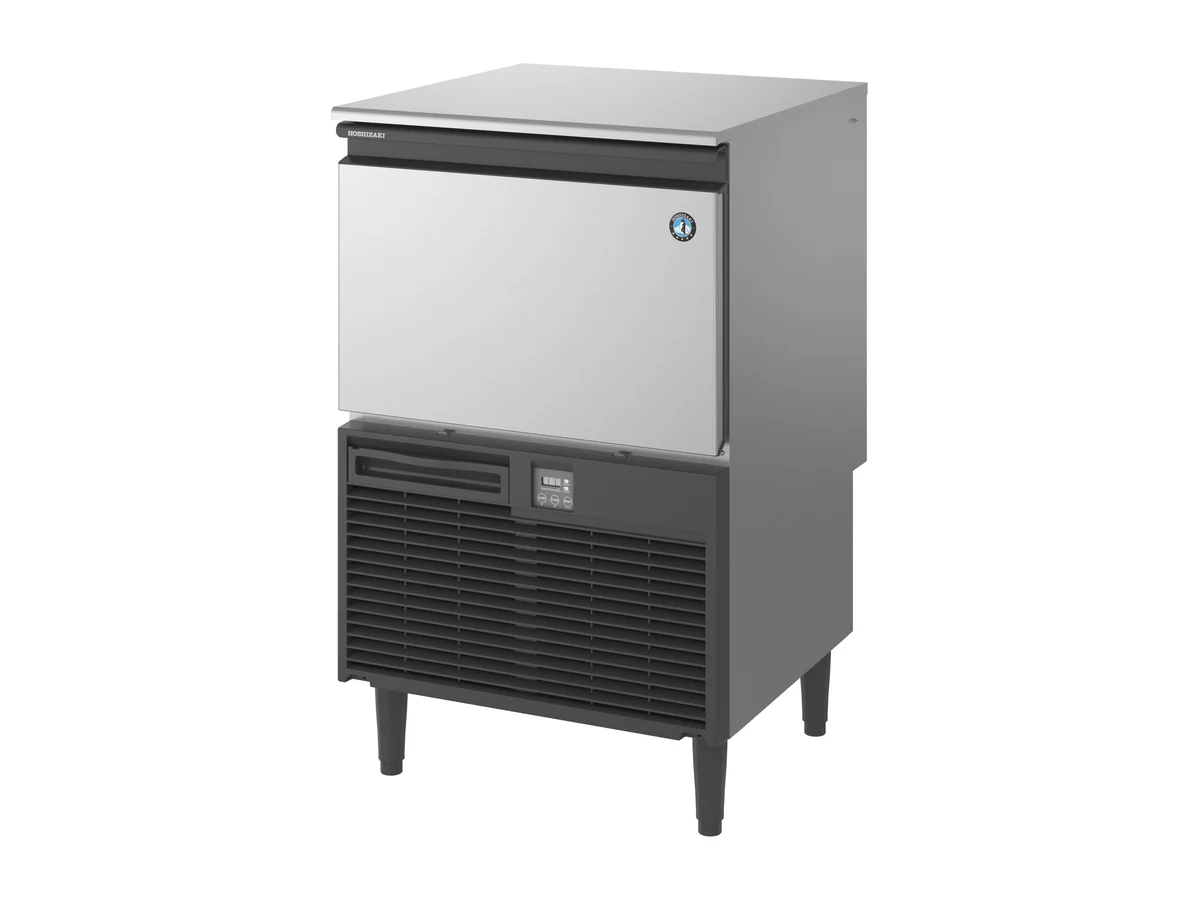

Hoshizaki Crescent Ice Maker KM-60C-HC – Self-Contained, Air-cooled, 60 kg/24h
The Hoshizaki KM-60C-HC makes 60 kg of crescent ice a day (self-contained, air-cooled, 23 kg bin). Data, manuals and marine quotation.
| Manufacturer | Hoshizaki |
|---|---|
| Model | KM-60C-HC |
| Product type | Crescent Ice Maker |
| Series | KM series |
| Configuration | Self-Contained |
Hoshizaki Crescent Ice Maker KM-60C-HC Overview
Up to 60 kg of crescent ice every 24 hours, with a 23 kg bin built into the cabinet: that is the short version of the Hoshizaki KM-60C-HC. Averaged out, the machine turns out about 2.5 kg an hour. From empty, its 23 kg bin takes about 9.2 hours to fill.
In numbers
It measures 605 x 610 x 838 mm (W x D x H) before legs (add 144-167mm) and weighs 45 kg empty. Power draw is 0.255 kW on single-phase 220-240 V 50 Hz, within ±6%, on a 5 A breaker. Heat released into the room is 0.72 kW at 32 °C ambient. Water consumption comes to 370 liters per 24 hours, or roughly 6.2 liters for every kilo of ice. Refrigerant is 90 g of flammable R290 (A3), a figure the yard or class surveyor will ask for. Functions on the KM-60C-HC include automated cleaning.
On board
Hoshizaki allows 7 to 38 °C in the room for the KM-60C-HC, water at 7 to 32 °C and a supply pressure of 0.7 to 8 bar. The condenser blows about 0.72 kW of warm air into the room, which a bar with poor ventilation will notice. Hoshizaki matches the KM-60C-HC with the 4HC-H single filter system. Send us the supply details and where the KM-60C-HC will stand and we will confirm the rest with Hoshizaki.
Key features of the KM-60C-HC
- 60 kg of crescent ice per 24 hours
- 23 kg built-in storage bin
- Air-cooled condenser
- R290 refrigerant
- Exterior: Stainless steel AISI 441, Galvanized steel (Rear), Plastic (Louver)
- Automated cleaning
- Accessories included: Legs, Scoop
KM-60C-HC technical specifications
| Manufacturer | Hoshizaki |
|---|---|
| Model | KM-60C-HC |
| Product type | Crescent Ice Maker |
| Series | KM series |
| Configuration | Self-Contained |
| Manufacturer item number | F159-C141 |
| Country of origin | China |
| Accessories included | Legs, Scoop |
| Compatible water filters | 4HC-H Single Water Filter, 4HC Replacement Cartridge |
| Width | 605 mm |
| Width (packed) | 710 mm |
| Depth | 610 mm |
| Depth (packed) | 715 mm |
| Height | 838 mm |
| Height (packed) | 996 mm |
| Volume (packed) | 0.506 m³ |
| Legs | For legs add 144-167mm |
| Electrical consumption | 0.255 kW |
| Ambient temperature (maximum) | 38 °C |
| Ambient temperature (minimum) | 7 °C |
| Voltage tolerance | ±6% |
| Water supply pressure (maximum) | 0.8MPa (8 bar) |
| Water supply pressure (minimum) | 0.07MPa (0.7 bar) |
| Water supply temperature (maximum) | 32 °C |
| Water supply temperature (minimum) | 7 °C |
| Functions | Automated cleaning |
| Electrical circuit breaker protection | 5 A |
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear), Plastic (Louver) |
| Gross weight | 57 kg |
| Net weight | 45 kg |
| Heat rejection (AT 32 °C, WT 21 °C) | 0.72 kW |
| Power supply | 1/220 - 240V/50Hz |
| Storage bin capacity | 23 kg |
| Cooling system | Air Cooled |
| Ice type | Crescent Edge |
| Ice production (kg/24h) | 60 kg |
| Water consumption (m³/24h) | 0.37 m³ |
| CO2 equivalent | 0.27 kg |
| GWP | 3 GWP |
| Refrigerant charge | 90 g |
| Refrigerant type | R290 |
Also listed under
Questions about the KM-60C-HC
What is the daily output of the Hoshizaki KM-60C-HC?
Up to 60 kg of crescent ice in 24 hours, about 2.5 kg an hour. Real output drops as room and water temperatures rise.
Is the KM-60C-HC air-cooled or water-cooled?
It is air-cooled.
What water supply does the KM-60C-HC need?
Water at 7 to 32 °C and 0.7 to 8 bar, with the 4HC-H single filter system.
Where the KM-60C-HC is used
Hoshizaki, manufacturer of the KM-60C-HC
Hoshizaki: Japanese maker of commercial ice machines, supplied through Hoshizaki Europe with cube, crescent, flake, nugget, cylinder and ball ice makers, ice and water dispensers and sushi display cases. Configured to order — tell us the vessel and the supply voltage and frequency, and we will quote the correct build.
All Hoshizaki equipmentManuals and documents for the KM-60C-HC
- Spec sheet
- Instruction manual (1)
- Instruction manual (2)
- Installation manual
- Declaration of conformity
Documents are published by the manufacturer for the standard model. We confirm the build, supply and installation details for your vessel with the quotation.
