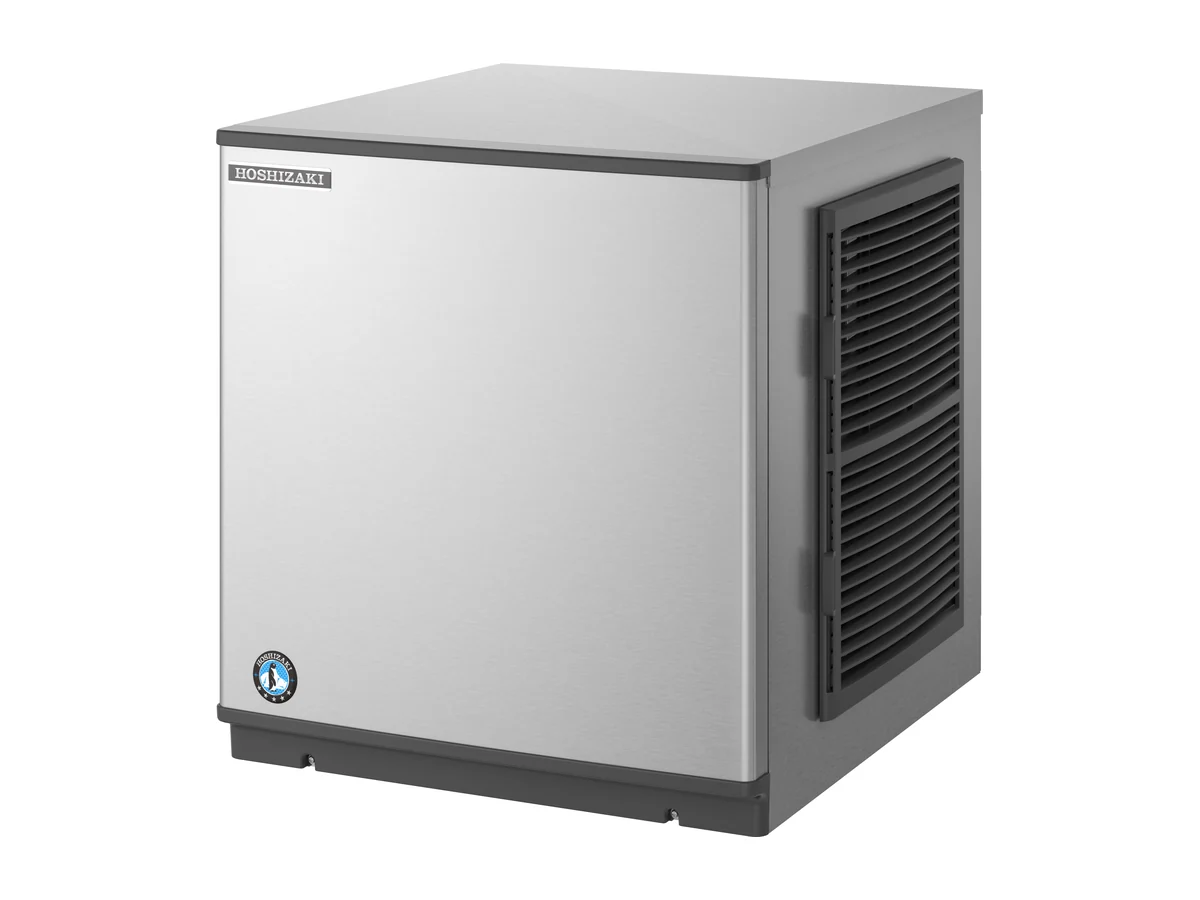

Hoshizaki Crescent Ice Maker KMD-210ABE-HC – Modular, Air-cooled, 210 kg/24h
210 kg/24h crescent ice from the Hoshizaki KMD-210ABE-HC, a modular air-cooled unit. Full specs and manuals.
| Manufacturer | Hoshizaki |
|---|---|
| Model | KMD-210ABE-HC |
| Product type | Crescent Ice Maker |
| Series | KMD series |
| Configuration | Modular |
Hoshizaki Crescent Ice Maker KMD-210ABE-HC Overview
The KMD-210ABE-HC is a modular crescent head. It makes up to 210 kg of crescent ice a day but has no bin of its own, so it is always ordered with a storage bin (Hoshizaki lists the B-140SB, B-210SB, B-340SB). That works out to roughly 8.8 kg an hour.
In numbers
It measures 560 x 625 x 610 mm (W x D x H) and weighs 57 kg empty. Power draw is 0.683 kW on single-phase 220-240 V 50 Hz, within 207-254V, on a 5 A breaker. Plan for 1.44 kW of heat into the space at 32 °C. Water consumption comes to 770 liters per 24 hours, or roughly 3.7 liters for every kilo of ice. Refrigerant is 147 g of flammable R290 (A3), a figure the yard or class surveyor will ask for.
On board
The KMD-210ABE-HC is rated for rooms at 7 to 40 °C, with feed water between 7 and 35 °C at 0.7 to 8 bar. Being air-cooled, the KMD-210ABE-HC warms the space it stands in by about 1.44 kW; in a small pantry that is worth planning for. Hoshizaki matches the KMD-210ABE-HC with the 4HC-H twin filter system. For mounting the KMD-210ABE-HC on a bin, Hoshizaki lists TK-8D for B-210SB, TK-8D + TK18D for B-340SB. Send us the supply details and where the KMD-210ABE-HC will stand and we will confirm the rest with Hoshizaki.
Key features of the KMD-210ABE-HC
- 210 kg of crescent ice per 24 hours
- Air-cooled condenser
- R290 refrigerant
- Exterior: Stainless steel AISI 441, Galvanized steel (Rear), Plastic (Louver)
- Compatible bins: B-140SB, B-210SB, B-340SB
KMD-210ABE-HC technical specifications
| Manufacturer | Hoshizaki |
|---|---|
| Model | KMD-210ABE-HC |
| Product type | Crescent Ice Maker |
| Series | KMD series |
| Configuration | Modular |
| Manufacturer item number | M099 |
| Country of origin | UK |
| Compatible water filters | 4HC-H Twin Water Filter, 4HC Replacement Cartridge |
| Width | 560 mm |
| Width (packed) | 749 mm |
| Depth | 625 mm |
| Depth (packed) | 867 mm |
| Height | 610 mm |
| Height (packed) | 796 mm |
| Volume (packed) | 0.517 m³ |
| Electrical consumption | 0.683 kW |
| Ambient temperature (maximum) | 40 °C |
| Ambient temperature (minimum) | 7 °C |
| Voltage tolerance | 207-254V |
| Water supply pressure (maximum) | 0.8MPa (8 bar) |
| Water supply pressure (minimum) | 0.07MPa (0.7 bar) |
| Water supply temperature (maximum) | 35 °C |
| Water supply temperature (minimum) | 7 °C |
| Electrical circuit breaker protection | 5 A |
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear), Plastic (Louver) |
| Gross weight | 66 kg |
| Net weight | 57 kg |
| Heat rejection (AT 32 °C, WT 21 °C) | 1.441 kW |
| Power supply | 1/220 - 240V/50Hz |
| Cooling system | Air Cooled |

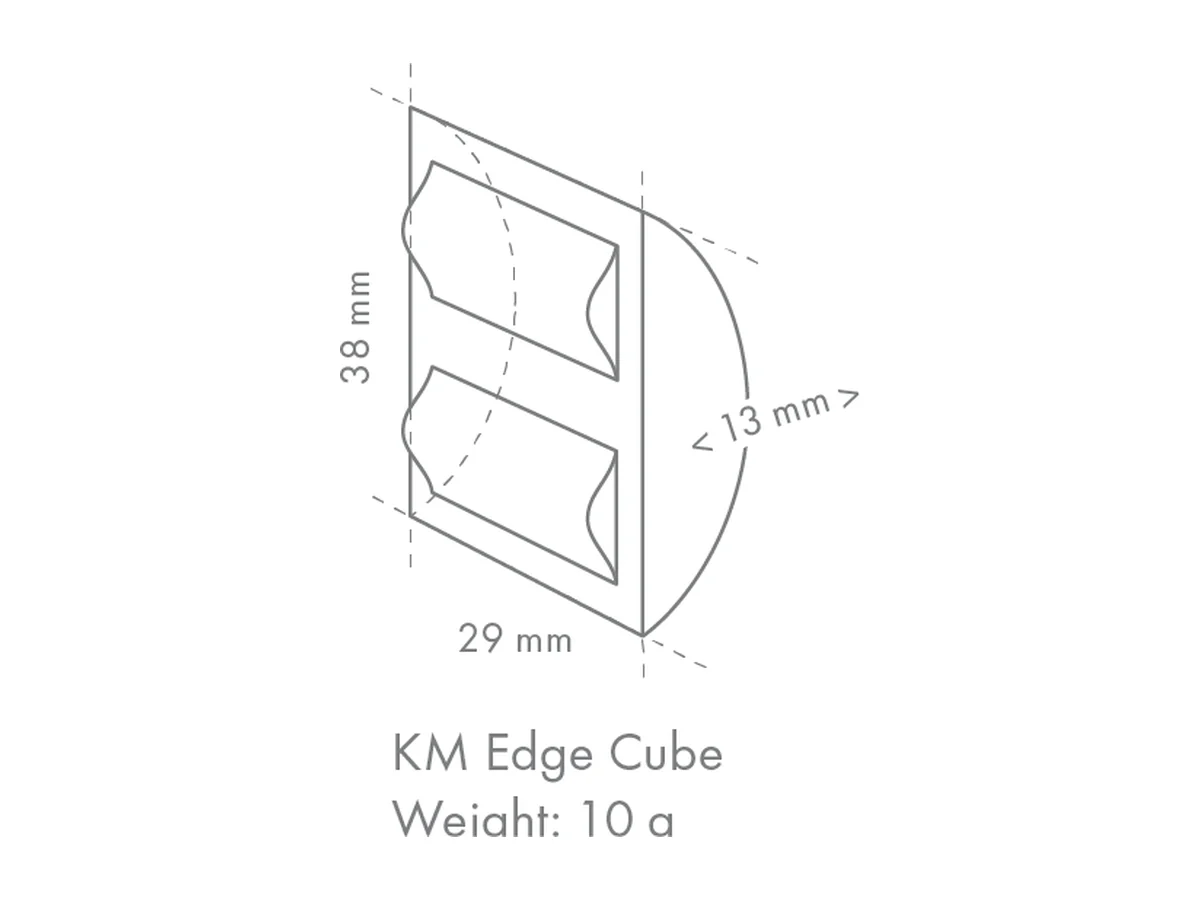

| Ice type | Crescent Edge |
| Ice production (kg/24h) | 210 kg |
| Water consumption (m³/24h) | 0.77 m³ |
| Compatible storage bins | B-140SB, B-210SB, B-340SB |
| CO2 equivalent | 0.441 kg |
| GWP | 3 GWP |
| Refrigerant charge | 147 g |
| Refrigerant type | R290 |
| Top kits | TK-8D for B-210SB, TK-8D + TK18D for B-340SB |
Also listed under
Questions about the KMD-210ABE-HC
How much ice does the KMD-210ABE-HC make per day?
Up to 210 kg of crescent ice in 24 hours, about 8.8 kg an hour. Real output drops as room and water temperatures rise.
How is the KMD-210ABE-HC cooled?
It is air-cooled.
What water supply does the KMD-210ABE-HC need?
Water at 7 to 35 °C and 0.7 to 8 bar, with the 4HC-H twin filter system.
Where the KMD-210ABE-HC is used
Hoshizaki, manufacturer of the KMD-210ABE-HC
Hoshizaki: Japanese maker of commercial ice machines, supplied through Hoshizaki Europe with cube, crescent, flake, nugget, cylinder and ball ice makers, ice and water dispensers and sushi display cases. Configured to order — tell us the vessel and the supply voltage and frequency, and we will quote the correct build.
All Hoshizaki equipmentManuals and documents for the KMD-210ABE-HC
Documents are published by the manufacturer for the standard model. We confirm the build, supply and installation details for your vessel with the quotation.
