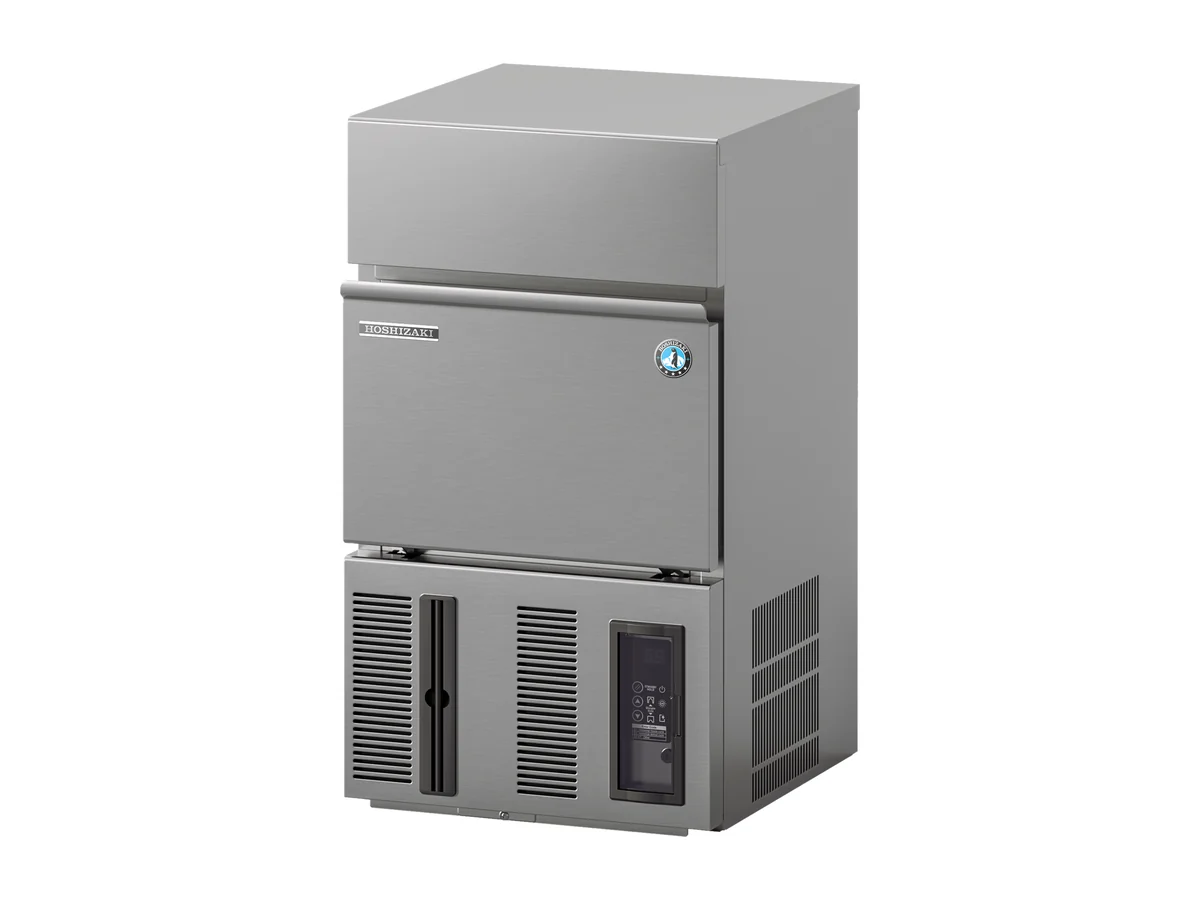

Hoshizaki Cube Ice Maker IM-21CPE – Self-Contained, Air-cooled, 30 kg/24h, L Cube
30 kg/24h cube ice from the Hoshizaki IM-21CPE, a self-contained air-cooled unit with a 11.5 kg bin. Full specs and manuals.
| Manufacturer | Hoshizaki |
|---|---|
| Model | IM-21CPE |
| Product type | Cube Ice Maker |
| Series | IM Cube |
| Configuration | Self-Contained |
Hoshizaki Cube Ice Maker IM-21CPE Overview
The IM-21CPE makes up to 30 kg of cubes a day and keeps 11.5 kg of it in its own bin, so it only needs power, water and a drain to start working. Averaged out, the machine turns out about 1.2 kg an hour. At that rate the 11.5 kg bin takes around 9.2 hours to rebuild after a busy service.
Related models
This 30 kg/day machine is the Basic Cube build, so it has no drain pump and no UV-C unit. Each cube from the IM-21CPE is 28 x 28 x 32 mm (size L), the standard size with no suffix.
Technical details
Footprint is 398 x 461 mm with a height of 695 mm before legs (add 92-127mm); net weight is 33 kg. Electrically it needs single-phase 220-240 V 50 Hz, drawing 0.21 kW, within ±6%, on a 5 A breaker. Plan for 0.56 kW of heat into the space at 32 °C. Daily water use is 110 liters, or roughly 3.7 liters for every kilo of ice. Refrigerant is 55 g of flammable R290 (A3), a figure the yard or class surveyor will ask for. On the control side the IM-21CPE gives you automated cleaning.
Installation notes
The IM-21CPE is rated for rooms at 1 to 40 °C, with feed water between 5 and 35 °C at 0.7 to 8 bar. Expect roughly 0.56 kW of extra heat in the room from this air-cooled unit. Hoshizaki matches the IM-21CPE with the 4HC-H single filter system. Before quoting we check the board voltage and frequency, the water connection and the fixing on board, since the figures above are for the standard IM-21CPE.
Key features of the IM-21CPE
- 30 kg of cubes per 24 hours
- 11.5 kg built-in storage bin
- Air-cooled condenser
- R290 refrigerant
- Exterior: Stainless steel AISI 441, Galvanized steel (Rear)
- Automated cleaning
- Accessories included: Installation kit, Scoop
IM-21CPE technical specifications
| Manufacturer | Hoshizaki |
|---|---|
| Model | IM-21CPE |
| Product type | Cube Ice Maker |
| Series | IM Cube |
| Configuration | Self-Contained |
| Manufacturer item number | M109 |
| Country of origin | UK |
| Accessories included | Installation kit, Scoop |
| Compatible water filters | 4HC-H Single Water Filter, 4HC Replacement Cartridge |
| Width | 398 mm |
| Width (packed) | 505 mm |
| Depth | 461 mm |
| Depth (packed) | 575 mm |
| Height | 695 mm |
| Height (packed) | 862 mm |
| Volume (packed) | 0.2503 m³ |
| Legs | For legs add 92-127mm |
| Electrical consumption | 0.21 kW |
| Ambient temperature (maximum) | 40 °C |
| Ambient temperature (minimum) | 1 °C |
| Voltage tolerance | ±6% |
| Water supply pressure (maximum) | 0.8MPa (8 bar) |
| Water supply pressure (minimum) | 0.07MPa (0.7 bar) |
| Water supply temperature (maximum) | 35 °C |
| Water supply temperature (minimum) | 5 °C |
| Functions | Automated cleaning |
| Electrical circuit breaker protection | 5 A |
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear) |
| Gross weight | 38 kg |
| Net weight | 33 kg |
| Heat rejection (AT 32 °C, WT 21 °C) | 0.56 kW |
| Power supply | 1/220 - 240V/50Hz |
| Sound level | 51.1 dB |
| Storage bin capacity | 11.5 kg |
| Cooling system | Air Cooled |
| Ice type | Large cubes, Standard |
| Ice production (kg/24h) | 30 kg |
| Water consumption (m³/24h) | 0.11 m³ |
| CO2 equivalent | 0.165 kg |
| GWP | 3 GWP |
| Refrigerant charge | 55 g |
| Refrigerant type | R290 |
Also listed under
Questions about the IM-21CPE
How much ice does the IM-21CPE make per day?
Up to 30 kg of cubes in 24 hours, about 1.2 kg an hour. Real output drops as room and water temperatures rise.
Is the IM-21CPE air-cooled or water-cooled?
It is air-cooled.
What water supply does the IM-21CPE need?
Water at 5 to 35 °C and 0.7 to 8 bar, with the 4HC-H single filter system.
Where the IM-21CPE is used
Hoshizaki, manufacturer of the IM-21CPE
Hoshizaki: Japanese maker of commercial ice machines, supplied through Hoshizaki Europe with cube, crescent, flake, nugget, cylinder and ball ice makers, ice and water dispensers and sushi display cases. Configured to order — tell us the vessel and the supply voltage and frequency, and we will quote the correct build.
All Hoshizaki equipmentManuals and documents for the IM-21CPE
Documents are published by the manufacturer for the standard model. We confirm the build, supply and installation details for your vessel with the quotation.
