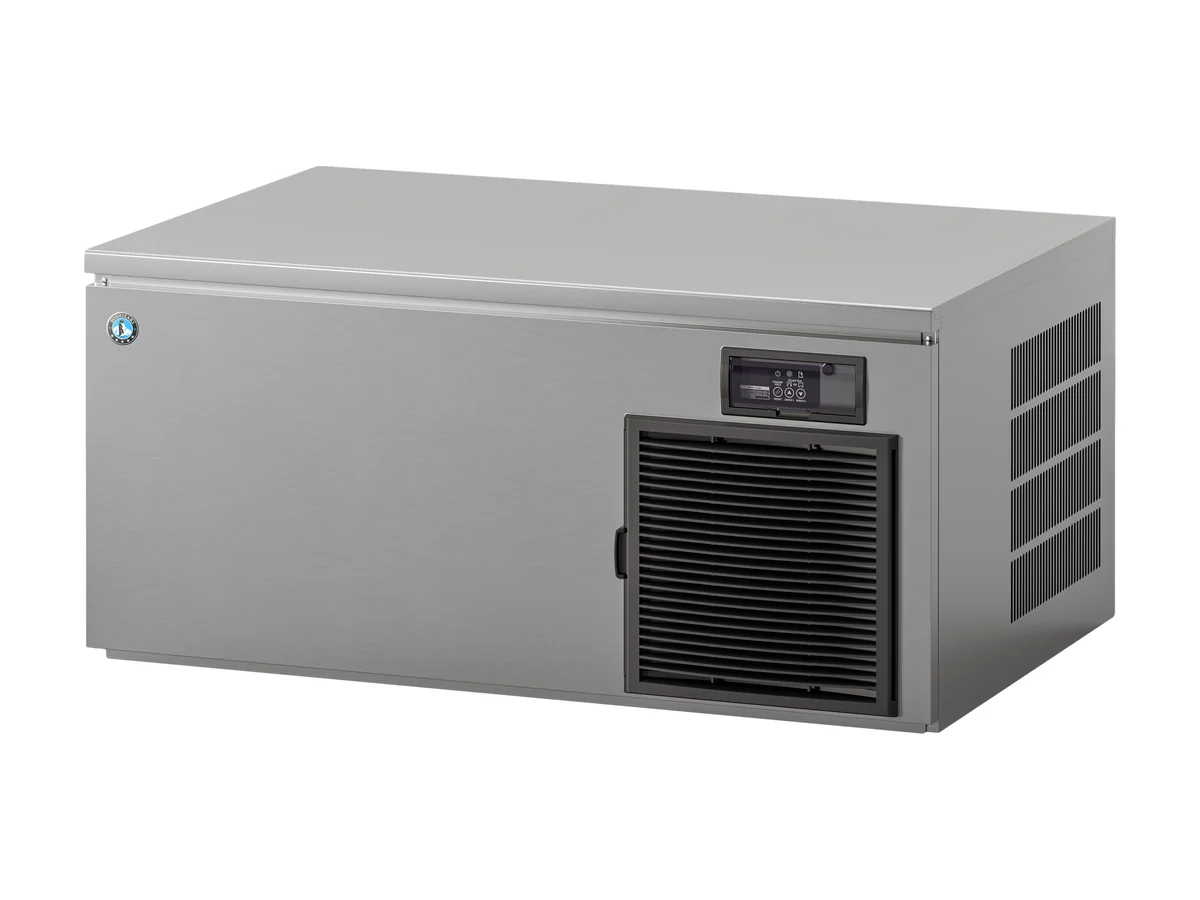

Hoshizaki Cube Ice Maker IM-240DPE-U-32 – Modular & Stackable, Air-cooled, 190 kg/24h, XL Cube
The Hoshizaki IM-240DPE-U-32 makes 190 kg of cubes a day (modular & stackable, air-cooled). Data, manuals and marine quotation.
| Manufacturer | Hoshizaki |
|---|---|
| Model | IM-240DPE-U-32 |
| Product type | Cube Ice Maker |
| Series | IM UltraCUBE |
| Configuration | Modular & Stackable |
Hoshizaki Cube Ice Maker IM-240DPE-U-32 Overview

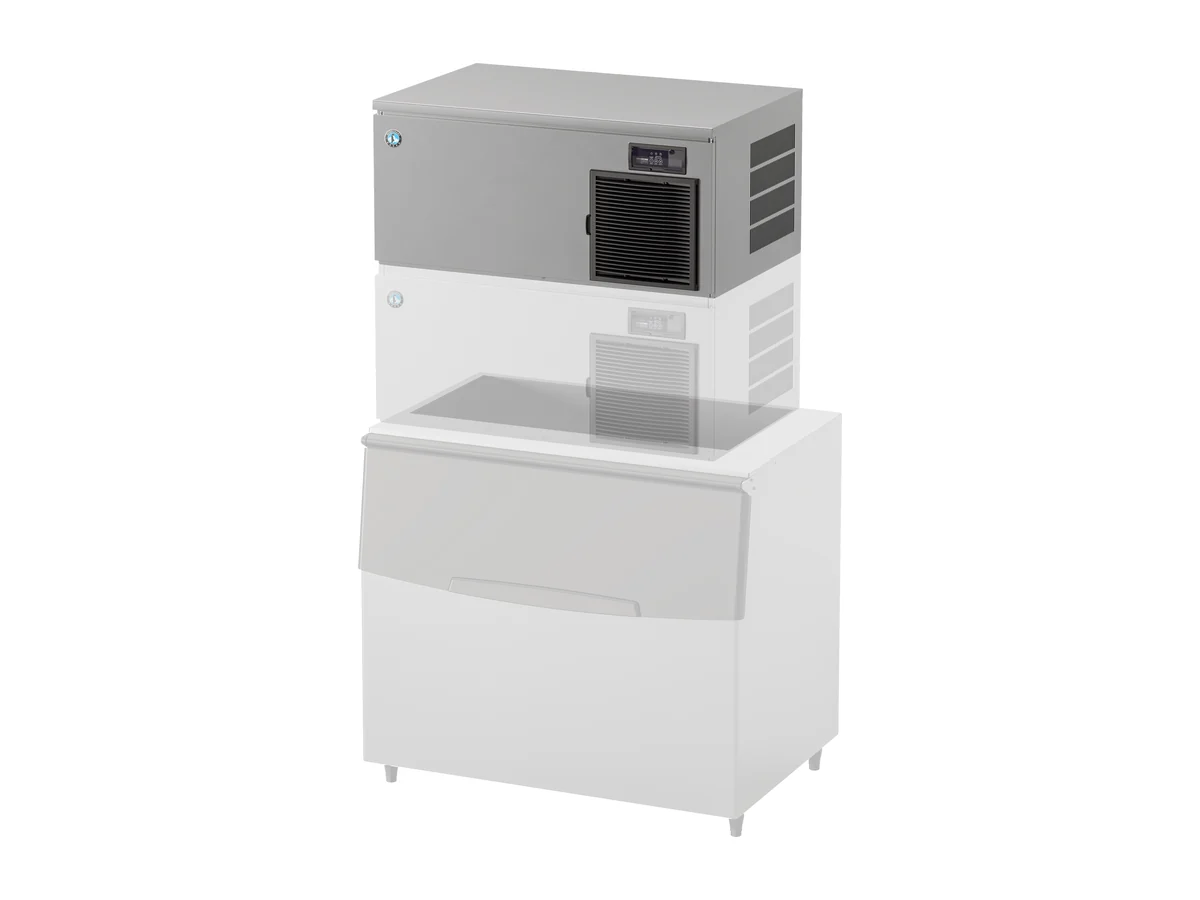

The IM-240DPE-U-32 is a modular cube head. It makes up to 190 kg of cubes a day but has no bin of its own, so it is always ordered with a storage bin (Hoshizaki lists the B-340SB). Averaged out, the machine turns out about 7.9 kg an hour.
Choosing the version
Hoshizaki sells the IM-240DPE in four versions, and this one, the UltraCUBE, has UV-C sanitization of the water tank. Between scheduled cleanings, UV-C light treats the tank water inside the IM-240DPE-U-32. Cubes from the IM-240DPE-U-32 come out 32 x 32 x 32 mm, which Hoshizaki calls size XL, marked by the -32 in the code. The same machine also comes as IM-240DPE-32 (Basic Cube). Need a different cube? Look at the IM-240DPE-U-23 (M cube, 180 kg a day) and IM-240DPE-U (L cube, 210 kg a day). Compare it with the water-cooled IM-240DWPE-U-32, which makes 190 kg a day, using 890 liters of water a day against 530 liters here and putting 1.47 kW of heat into the room instead of 2.25 kW.
Technical details
It measures 1,084 x 700 x 500 mm (W x D x H) and weighs 75 kg empty. It draws 0.865 kW from a single-phase 220-240 V 50 Hz supply, within ±6%, on a 5 A breaker. At 32 °C room temperature it releases 2.25 kW of heat. It uses about 530 liters of water a day, or roughly 2.8 liters for every kilo of ice. The IM-240DPE-U-32 runs on 147 g of R290, which is propane (safety class A3), so the charge belongs on the installation paperwork. Functions on the IM-240DPE-U-32 include automated cleaning and UV-C sanitization.
Where the IM-240DPE-U-32 fits
Operating limits for the IM-240DPE-U-32 are 1 to 40 °C ambient, 5 to 35 °C water and 0.7 to 8 bar, so check the space and the fresh water line against those. Expect roughly 2.25 kW of extra heat in the room from this air-cooled unit. Pair it with a 4HC-H twin filter; at 190 kg a day that is the size Hoshizaki specifies. Top kits Hoshizaki lists for the IM-240DPE-U-32: TK-48 for B-340SB (optional, not required), TK-IMD2 for B-340SB. Before quoting we check the board voltage and frequency, the water connection and the fixing on board, since the figures above are for the standard IM-240DPE-U-32.
Key features of the IM-240DPE-U-32
- UltraCUBE version with UV-C sanitization
- 190 kg of cubes per 24 hours
- Air-cooled condenser
- R290 refrigerant
- Exterior: Stainless steel AISI 441, Galvanized steel (Rear)
- Automated cleaning, UV-C sanitization
- Accessories included: brace, Installation kit, Scoop
- Compatible bins: B-340SB
IM-240DPE-U-32 technical specifications
| Manufacturer | Hoshizaki |
|---|---|
| Model | IM-240DPE-U-32 |
| Product type | Cube Ice Maker |
| Series | IM UltraCUBE |
| Configuration | Modular & Stackable |
| Manufacturer item number | M120-D203 |
| Country of origin | UK |
| Accessories included | brace, Installation kit, Scoop |
| Compatible water filters | 4HC-H Twin Water Filter, 4HC Replacement Cartridge |
| Width | 1084 mm |
| Width (packed) | 1196 mm |
| Depth | 700 mm |
| Depth (packed) | 825 mm |
| Height | 500 mm |
| Height (packed) | 640 mm |
| Volume (packed) | 0.6315 m³ |
| Electrical consumption | 0.865 kW |
| Ambient temperature (maximum) | 40 °C |
| Ambient temperature (minimum) | 1 °C |
| Voltage tolerance | ±6% |
| Water supply pressure (maximum) | 0.8MPa (8 bar) |
| Water supply pressure (minimum) | 0.07MPa (0.7 bar) |
| Water supply temperature (maximum) | 35 °C |
| Water supply temperature (minimum) | 5 °C |
| Functions | Automated cleaning, UV-C sanitization |
| Electrical circuit breaker protection | 5 A |
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear) |
| Gross weight | 88 kg |
| Net weight | 75 kg |
| Heat rejection (AT 32 °C, WT 21 °C) | 2.25 kW |
| Power supply | 1/220 - 240V/50Hz |
| Cooling system | Air Cooled |
| Ice type | Extra large cubes - 32 |
| Ice production (kg/24h) | 190 kg |
| Water consumption (m³/24h) | 0.53 m³ |
| Compatible storage bins | B-340SB |
| CO2 equivalent | 0.441 kg |
| GWP | 3 GWP |
| Refrigerant charge | 147 g |
| Refrigerant type | R290 |
| Top kits | TK-48 for B-340SB (optional, not required), TK-IMD2 for B-340SB |
Also listed under
Questions about the IM-240DPE-U-32
How much ice does the IM-240DPE-U-32 make per day?
Up to 190 kg of cubes in 24 hours, about 7.9 kg an hour. Real output drops as room and water temperatures rise.
Is the IM-240DPE-U-32 air-cooled or water-cooled?
It is air-cooled. The water-cooled version is the IM-240DWPE-U-32.
What water supply does the IM-240DPE-U-32 need?
Water at 5 to 35 °C and 0.7 to 8 bar, with the 4HC-H twin filter system.
Where the IM-240DPE-U-32 is used
Hoshizaki, manufacturer of the IM-240DPE-U-32
Hoshizaki: Japanese maker of commercial ice machines, supplied through Hoshizaki Europe with cube, crescent, flake, nugget, cylinder and ball ice makers, ice and water dispensers and sushi display cases. Configured to order — tell us the vessel and the supply voltage and frequency, and we will quote the correct build.
All Hoshizaki equipmentManuals and documents for the IM-240DPE-U-32
Documents are published by the manufacturer for the standard model. We confirm the build, supply and installation details for your vessel with the quotation.
