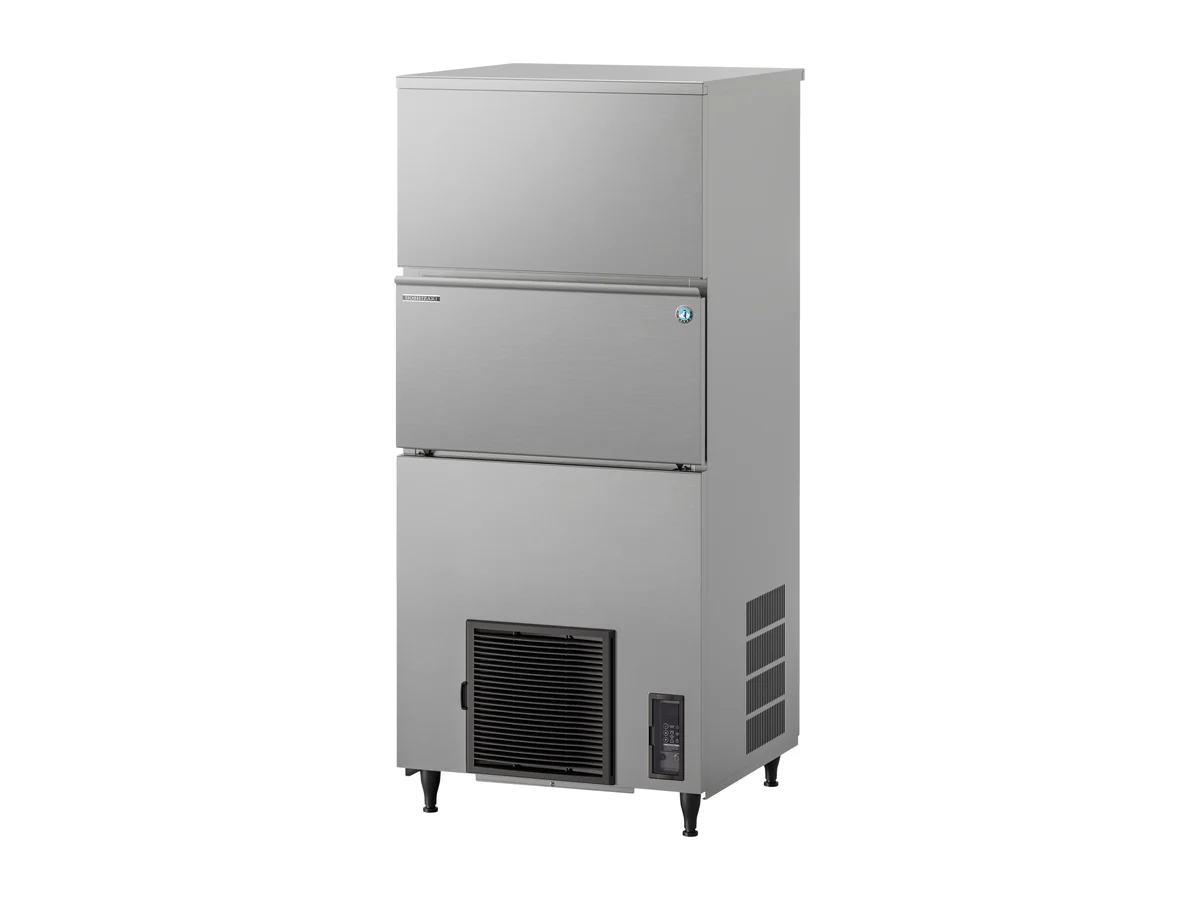

Hoshizaki Cube Ice Maker IM-240PE-E-23 – Self-Contained, Air-cooled, 180 kg/24h, M Cube
Hoshizaki IM-240PE-E-23: self-contained air-cooled cube ice maker, 180 kg a day with a 110 kg bin. Specs, manuals and quotes for ships and yachts.
| Manufacturer | Hoshizaki |
|---|---|
| Model | IM-240PE-E-23 |
| Product type | Cube Ice Maker |
| Series | IM EliteCUBE |
| Configuration | Self-Contained |
Hoshizaki Cube Ice Maker IM-240PE-E-23 Overview
Up to 180 kg of cubes every 24 hours, with a 110 kg bin built into the cabinet: that is the short version of the Hoshizaki IM-240PE-E-23. Spread over a day, it is about 7.5 kg per hour. From empty, its 110 kg bin takes about 15 hours to fill.
Which IM-240PE to pick
As the EliteCUBE version of the IM-240PE, this machine comes with both the drain pump and UV-C sanitization. Its drain pump lifts water 1.5 m and moves it up to 10 m, so a 704 mm wide unit like this does not have to sit over a floor drain. UV-C flashes treat the IM-240PE-E-23's water tank between cleanings. Cube size on the IM-240PE-E-23 is M (28 x 28 x 23 mm), marked by the -23 in the code. Other versions of this model: IM-240PE-23 (Basic Cube), IM-240PE-U-23 (UltraCUBE) and IM-240PE-F-23 (FlexiCUBE). With a different cube it is the IM-240PE-E (L cube, 210 kg a day). There is also a water-cooled version, the IM-240WPE-E-23, rated at 190 kg a day, using 900 liters of water a day against 680 liters here and putting 1.54 kW of heat into the room instead of 2.58 kW.
Technical details
It measures 704 x 665 x 1,510 mm (W x D x H) before legs (add 70-110mm) and weighs 102 kg empty. Electrically it needs single-phase 220-240 V 50 Hz, drawing 0.87 kW, within ±6%, on a 5 A breaker. At 32 °C room temperature it releases 2.58 kW of heat. Daily water use is 680 liters, or roughly 3.8 liters for every kilo of ice. The IM-240PE-E-23 runs on 147 g of R290, which is propane (safety class A3), so the charge belongs on the installation paperwork. Hoshizaki lists automated cleaning, UV-C sanitization and internal drain pump for the IM-240PE-E-23.
Installation notes
Keep the room around the IM-240PE-E-23 between 1 and 40 °C and the incoming water between 5 and 35 °C at 0.7 to 8 bar. Expect roughly 2.58 kW of extra heat in the room from this air-cooled unit. The matching water filter for 180 kg a day is the 4HC-H twin system. Send us the supply details and where the IM-240PE-E-23 will stand and we will confirm the rest with Hoshizaki.
Key features of the IM-240PE-E-23
- EliteCUBE version with drain pump and UV-C sanitization
- 180 kg of cubes per 24 hours
- 110 kg built-in storage bin
- Air-cooled condenser
- R290 refrigerant
- Exterior: Stainless steel AISI 441, Galvanized steel (Rear)
- Automated cleaning, UV-C sanitization + Internal drain pump
- Accessories included: Installation kit, Legs, Scoop
IM-240PE-E-23 technical specifications
| Manufacturer | Hoshizaki |
|---|---|
| Model | IM-240PE-E-23 |
| Product type | Cube Ice Maker |
| Series | IM EliteCUBE |
| Configuration | Self-Contained |
| Manufacturer item number | M118-D301 |
| Country of origin | UK |
| Accessories included | Installation kit, Legs, Scoop |
| Compatible water filters | 4HC-H Twin Water Filter, 4HC Replacement Cartridge |
| Width | 704 mm |
| Width (packed) | 805 mm |
| Depth | 665 mm |
| Depth (packed) | 760 mm |
| Height | 1510 mm |
| Height (packed) | 1684 mm |
| Volume (packed) | 1.0303 m³ |
| Legs | for legs add 70-110mm |
| Electrical consumption | 0.87 kW |
| Ambient temperature (maximum) | 40 °C |
| Ambient temperature (minimum) | 1 °C |
| Voltage tolerance | ±6% |
| Water supply pressure (maximum) | 0.8MPa (8 bar) |
| Water supply pressure (minimum) | 0.07MPa (0.7 bar) |
| Water supply temperature (maximum) | 35 °C |
| Water supply temperature (minimum) | 5 °C |
| Functions | Automated cleaning, UV-C sanitization + Internal drain pump |
| Electrical circuit breaker protection | 5 A |
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear) |
| Gross weight | 115 kg |
| Net weight | 102 kg |
| Heat rejection (AT 32 °C, WT 21 °C) | 2.58 kW |
| Power supply | 1/220 - 240V/50Hz |
| Storage bin capacity | 110 kg |
| Cooling system | Air Cooled |
| Ice type | Medium cubes - 23 |
| Ice production (kg/24h) | 180 kg |
| Water consumption (m³/24h) | 0.68 m³ |
| CO2 equivalent | 0.441 kg |
| GWP | 3 GWP |
| Refrigerant charge | 147 g |
| Refrigerant type | R290 |
Also listed under
Questions about the IM-240PE-E-23
How much ice does the IM-240PE-E-23 make per day?
Up to 180 kg of cubes in 24 hours, about 7.5 kg an hour. Real output drops as room and water temperatures rise.
Is the IM-240PE-E-23 air-cooled or water-cooled?
It is air-cooled. The water-cooled version is the IM-240WPE-E-23.
What water supply does the IM-240PE-E-23 need?
Water at 5 to 35 °C and 0.7 to 8 bar, with the 4HC-H twin filter system.
Where the IM-240PE-E-23 is used
Hoshizaki, manufacturer of the IM-240PE-E-23
Hoshizaki: Japanese maker of commercial ice machines, supplied through Hoshizaki Europe with cube, crescent, flake, nugget, cylinder and ball ice makers, ice and water dispensers and sushi display cases. Configured to order — tell us the vessel and the supply voltage and frequency, and we will quote the correct build.
All Hoshizaki equipmentManuals and documents for the IM-240PE-E-23
Documents are published by the manufacturer for the standard model. We confirm the build, supply and installation details for your vessel with the quotation.
