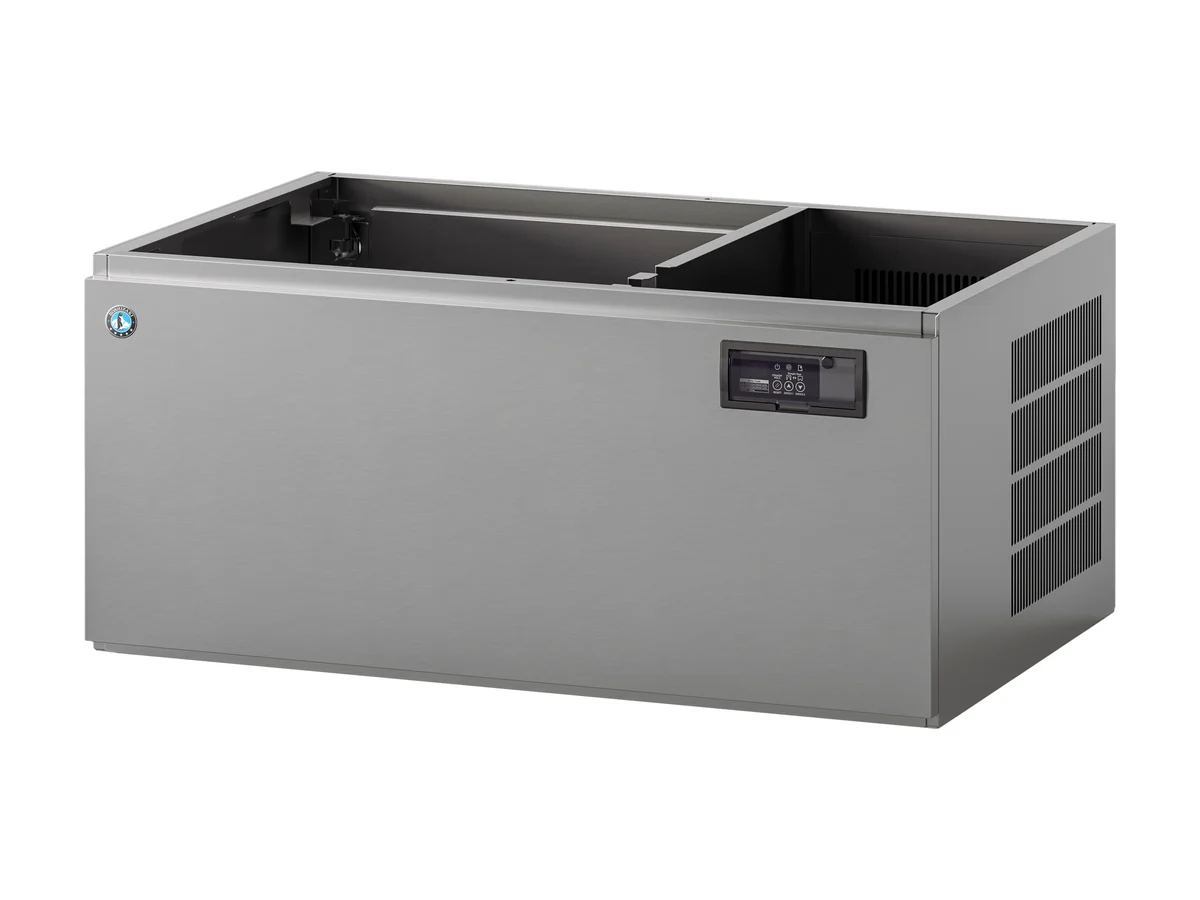

Hoshizaki Cube Ice Maker IM-240XWPE-U – Modular & Stackable Extension, Water-cooled, 209 kg/24h, L Cube

The Hoshizaki IM-240XWPE-U is a modular, stackable water-cooled cube ice maker extension unit producing up to 209 kg of cubes in 24 hours. In the IM CUBE range it is the UltraCUBE with UV-C sanitization and it makes the L cube (28 × 28 × 32 mm), the standard size with no suffix. As a modular head it has no bin of its own and sits on a separate storage bin: Hoshizaki pairs the IM-240XWPE-U with the B-340SB; top kits: TK-48 for B-340SB (optional, not required), TK-IMD2 for B-340SB. As the extension unit it is stacked on a base unit of the same series to add production over one bin.

Versions and sizes

The same machine is listed as IM-240XWPE (Cube). Other cube sizes of the IM-240XWPE: IM-240XWPE-U-23, M cube, 190 kg a day and IM-240XWPE-U-32, XL cube, 190 kg a day. The air cooled version is the IM-240XPE-U, at 210 kg a day and 0.67 m³ of water a day against 0.99 m³ for the IM-240XWPE-U, rejecting 2.25 kW of heat against 1.47 kW.

Performance and connections

The IM-240XWPE-U measures 1,084 × 700 × 500 mm (W × D × H) and weighs 78 kg net. Electrical consumption is 0.76 kW and heat rejection 1.47 kW at 32 °C ambient and 21 °C water, with 0.99 m³ of water used per 24 hours. The IM-240XWPE-U runs on 147 g of R290, GWP 3. R290 is a natural refrigerant classified A3, higher flammability, so the charge belongs in the installation specification. Electrically the IM-240XWPE-U is rated for single phase 220-240 V 50 Hz, with a voltage tolerance of ±6% and a 5 A circuit breaker. Functions listed by Hoshizaki: automated cleaning, UV-C sanitization.

On board

Hoshizaki gives operating limits of ambient temperatures from 1 to 40 °C, water supply temperatures from 5 to 35 °C and water pressure from 0.7 to 8 bar, which is what the space and the vessel's fresh water system have to meet for the IM-240XWPE-U. Being water-cooled, it takes cooling water as well as feed water, and releases far less heat into a small bar or pantry than an air-cooled machine. For water treatment Hoshizaki pairs it with the 4HC-H twin water filter system and its 4HC replacement cartridges. For shipboard use the IM-240XWPE-U is quoted against the vessel's own supply, water pressure and space. The figures here are Hoshizaki's published data for the standard unit, and anything that differs on board is agreed at quotation.

Send us the vessel type, the supply voltage and frequency and where the IM-240XWPE-U will stand, and we will quote it with the matching water filter and storage bin.
