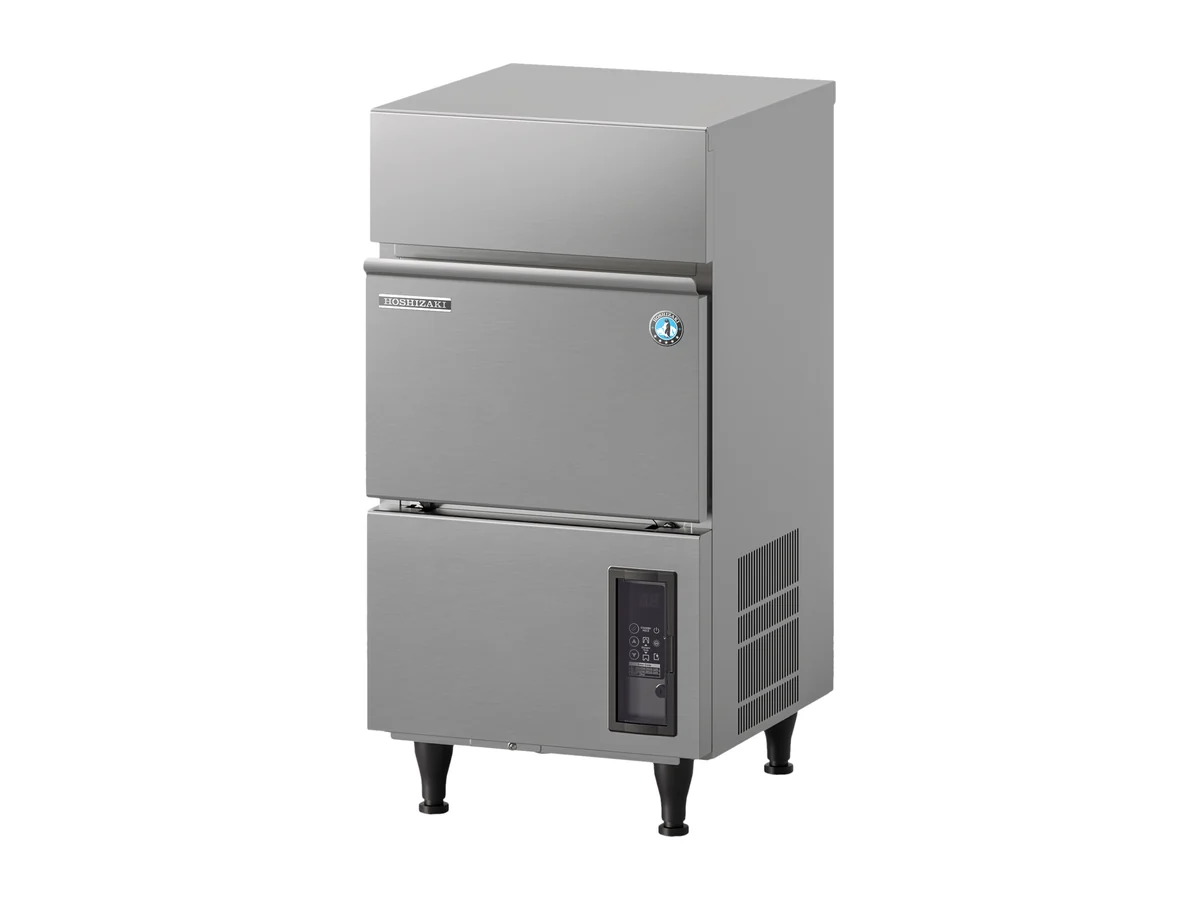

Hoshizaki Cube Ice Maker IM-30CWPE-U – Self-Contained, Water-cooled, 32 kg/24h, L Cube

The IM-30CWPE-U makes up to 32 kg of cubes a day and keeps 11.5 kg of it in its own bin, so it only needs power, water and a drain to start working. Averaged out, the machine turns out about 1.3 kg an hour. From empty, its 11.5 kg bin takes about 8.6 hours to fill.

Related models

This 32 kg/day machine is the UltraCUBE build, so it has UV-C sanitization of the water tank. UV-C flashes treat the IM-30CWPE-U's water tank between cleanings. The IM-30CWPE-U makes the L cube, 28 x 28 x 32 mm, the standard size with no suffix. The same machine also comes as IM-30CWPE (Basic Cube). With a different cube it is the IM-30CWPE-U-25 (S cube, 30 kg a day). The air-cooled twin is the IM-30CPE-U: 34 kg a day, using 150 liters of water a day against 160 liters here and putting 0.57 kW of heat into the room instead of 0.31 kW.

In numbers

The cabinet is 398 mm wide, 461 mm deep and 695 mm tall before legs (add 92-127mm), and weighs 37 kg. Power draw is 0.17 kW on single-phase 220-240 V 50 Hz, within ±6%, on a 5 A breaker. Heat released into the room is 0.31 kW at 32 °C ambient. Daily water use is 160 liters, or roughly 5 liters for every kilo of ice. Its refrigerant is R290 (propane, class A3), 70 g of it, which matters when you decide where the IM-30CWPE-U goes. Hoshizaki lists automated cleaning and UV-C sanitization for the IM-30CWPE-U.

Fitting it on a vessel

Operating limits for the IM-30CWPE-U are 1 to 40 °C ambient, 5 to 35 °C water and 0.7 to 8 bar, so check the space and the fresh water line against those. The water-cooled condenser suits tight, badly ventilated spaces, but the IM-30CWPE-U needs a steady supply of cooling water, around 160 liters a day in total. Hoshizaki matches the IM-30CWPE-U with the 4HC-H single filter system. Supply, water and fixing for the IM-30CWPE-U are confirmed per vessel when we quote, since the figures above describe Hoshizaki's standard build.
