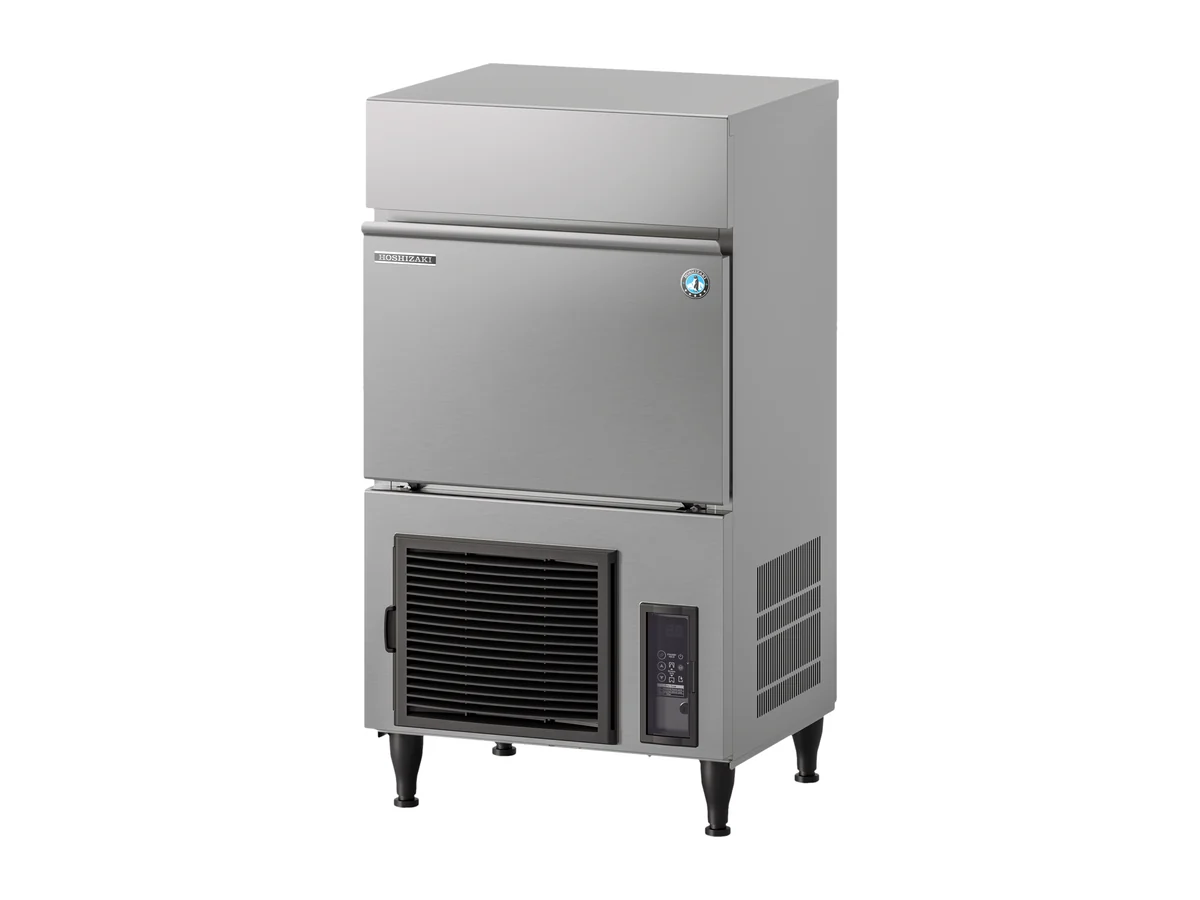

Hoshizaki Cube Ice Maker IM-45PE-E-25 – Self-Contained, Air-cooled, 43 kg/24h, S Cube
The Hoshizaki IM-45PE-E-25 makes 43 kg of cubes a day (self-contained, air-cooled, 18 kg bin). Data, manuals and marine quotation.
| Manufacturer | Hoshizaki |
|---|---|
| Model | IM-45PE-E-25 |
| Product type | Cube Ice Maker |
| Series | IM EliteCUBE |
| Configuration | Self-Contained |
Hoshizaki Cube Ice Maker IM-45PE-E-25 Overview
The IM-45PE-E-25 makes up to 43 kg of cubes a day and keeps 18 kg of it in its own bin, so it only needs power, water and a drain to start working. That works out to roughly 1.8 kg an hour. From empty, its 18 kg bin takes about 10 hours to fill.
Which IM-45PE to pick
In the IM CUBE family the IM-45PE-E-25 is the EliteCUBE, which means both the drain pump and UV-C sanitization. Drain position stops being a problem: the IM-45PE-E-25 pumps its waste water up to 1.5 m high and 10 m away. UV-C flashes treat the IM-45PE-E-25's water tank between cleanings. The IM-45PE-E-25 makes the S cube, 25 x 25 x 23 mm, marked by the -25 in the code. Other versions of this model: IM-45PE-25 (Basic Cube), IM-45PE-U-25 (UltraCUBE) and IM-45PE-F-25 (FlexiCUBE). With a different cube it is the IM-45PE-E (L cube, 47 kg a day). There is also a water-cooled version, the IM-45WPE-E-25, rated at 47 kg a day, using 260 liters of water a day against 220 liters here and putting 0.44 kW of heat into the room instead of 0.71 kW.
Specs worth checking
It measures 503 x 456 x 840 mm (W x D x H) before legs (add 90-125 mm) and weighs 45 kg empty. Power draw is 0.255 kW on single-phase 220-240 V 50 Hz, within ±6%, on a 5 A breaker. Plan for 0.71 kW of heat into the space at 32 °C. Water consumption comes to 220 liters per 24 hours, or roughly 5.1 liters for every kilo of ice. Inside the IM-45PE-E-25 is a 70 g R290 charge, and R290 is propane rated A3 for flammability. Hoshizaki lists automated cleaning, UV-C sanitization and internal drain pump for the IM-45PE-E-25.
Fitting it on a vessel
Operating limits for the IM-45PE-E-25 are 1 to 40 °C ambient, 5 to 35 °C water and 0.7 to 8 bar, so check the space and the fresh water line against those. Expect roughly 0.71 kW of extra heat in the room from this air-cooled unit. For water treatment, fit the 4HC-H single filter ahead of the IM-45PE-E-25. Supply, water and fixing for the IM-45PE-E-25 are confirmed per vessel when we quote, since the figures above describe Hoshizaki's standard build.
Key features of the IM-45PE-E-25
- EliteCUBE version with drain pump and UV-C sanitization
- 43 kg of cubes per 24 hours
- 18 kg built-in storage bin
- Air-cooled condenser
- R290 refrigerant
- Exterior: Stainless steel AISI 441, Galvanized steel (Rear)
- Automated cleaning, UV-C sanitization + Internal drain pump
- Accessories included: Installation kit, Legs, Scoop
IM-45PE-E-25 technical specifications
| Manufacturer | Hoshizaki |
|---|---|
| Model | IM-45PE-E-25 |
| Product type | Cube Ice Maker |
| Series | IM EliteCUBE |
| Configuration | Self-Contained |
| Manufacturer item number | M111-D301 |
| Country of origin | UK |
| Accessories included | Installation kit, Legs, Scoop |
| Compatible water filters | 4HC-H Single Water Filter, 4HC Replacement Cartridge |
| Width | 503 mm |
| Width (packed) | 635 mm |
| Depth | 456 mm |
| Depth (packed) | 520 mm |
| Height | 840 mm |
| Height (packed) | 1007 mm |
| Volume (packed) | 0.3325 m³ |
| Legs | for legs add 90-125 mm |
| Electrical consumption | 0.255 kW |
| Ambient temperature (maximum) | 40 °C |
| Ambient temperature (minimum) | 1 °C |
| Voltage tolerance | ±6% |
| Water supply pressure (maximum) | 0.8MPa (8 bar) |
| Water supply pressure (minimum) | 0.07MPa (0.7 bar) |
| Water supply temperature (maximum) | 35 °C |
| Water supply temperature (minimum) | 5 °C |
| Functions | Automated cleaning, UV-C sanitization + Internal drain pump |
| Electrical circuit breaker protection | 5 A |
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear) |
| Gross weight | 51 kg |
| Net weight | 45 kg |
| Heat rejection (AT 32 °C, WT 21 °C) | 0.71 kW |
| Power supply | 1/220 - 240V/50Hz |
| Storage bin capacity | 18 kg |
| Cooling system | Air Cooled |
| Ice type | Small cubes - 25 |
| Ice production (kg/24h) | 43 kg |
| Water consumption (m³/24h) | 0.22 m³ |
| CO2 equivalent | 0.21 kg |
| GWP | 3 GWP |
| Refrigerant charge | 70 g |
| Refrigerant type | R290 |
Also listed under
Questions about the IM-45PE-E-25
How much ice does the IM-45PE-E-25 make per day?
Up to 43 kg of cubes in 24 hours, about 1.8 kg an hour. Real output drops as room and water temperatures rise.
How is the IM-45PE-E-25 cooled?
It is air-cooled. The water-cooled version is the IM-45WPE-E-25.
What water supply does the IM-45PE-E-25 need?
Water at 5 to 35 °C and 0.7 to 8 bar, with the 4HC-H single filter system.
Where the IM-45PE-E-25 is used
Hoshizaki, manufacturer of the IM-45PE-E-25
Hoshizaki: Japanese maker of commercial ice machines, supplied through Hoshizaki Europe with cube, crescent, flake, nugget, cylinder and ball ice makers, ice and water dispensers and sushi display cases. Configured to order — tell us the vessel and the supply voltage and frequency, and we will quote the correct build.
All Hoshizaki equipmentManuals and documents for the IM-45PE-E-25
Documents are published by the manufacturer for the standard model. We confirm the build, supply and installation details for your vessel with the quotation.
