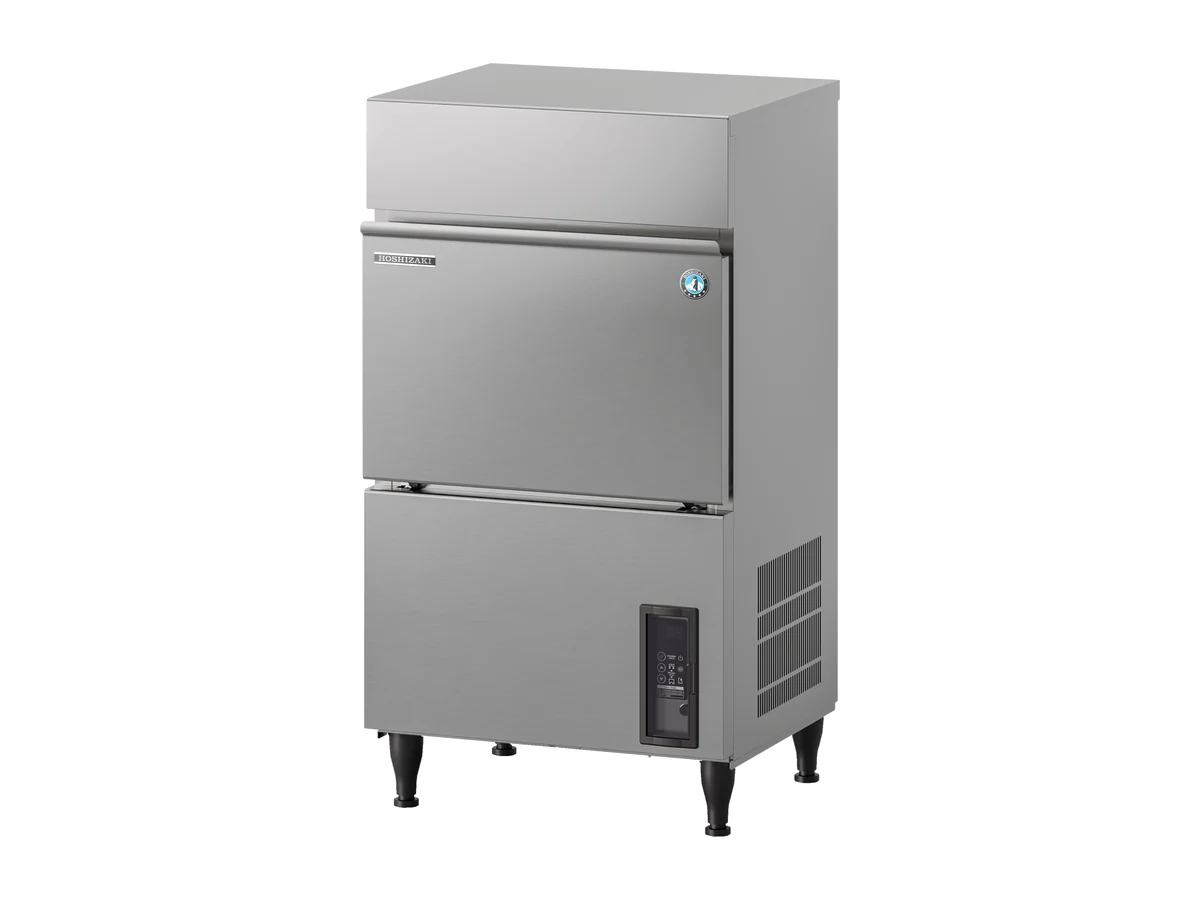

Hoshizaki Cube Ice Maker IM-45WPE-E – Self-Contained, Water-cooled, 50 kg/24h, L Cube
The Hoshizaki IM-45WPE-E makes 50 kg of cubes a day (self-contained, water-cooled, 18 kg bin). Data, manuals and marine quotation.
| Manufacturer | Hoshizaki |
|---|---|
| Model | IM-45WPE-E |
| Product type | Cube Ice Maker |
| Series | IM EliteCUBE |
| Configuration | Self-Contained |
Hoshizaki Cube Ice Maker IM-45WPE-E Overview
Up to 50 kg of cubes every 24 hours, with a 18 kg bin built into the cabinet: that is the short version of the Hoshizaki IM-45WPE-E. That works out to roughly 2.1 kg an hour. At that rate the 18 kg bin takes around 8.6 hours to rebuild after a busy service.
Versions and cube size
As the EliteCUBE version of the IM-45WPE, this machine comes with both the drain pump and UV-C sanitization. Drain position stops being a problem: the IM-45WPE-E pumps its waste water up to 1.5 m high and 10 m away. The UV-C lamp keeps the standing water in the tank treated between cleanings of this 50 kg/day machine. Each cube from the IM-45WPE-E is 28 x 28 x 32 mm (size L), the standard size with no suffix. Other versions of this model: IM-45WPE (Basic Cube), IM-45WPE-U (UltraCUBE) and IM-45WPE-F (FlexiCUBE). Need a different cube? Look at the IM-45WPE-E-25 (S cube, 47 kg a day). There is also a air-cooled version, the IM-45PE-E, rated at 47 kg a day, using 110 liters of water a day against 250 liters here and putting 0.71 kW of heat into the room instead of 0.44 kW.
Technical details
Footprint is 503 x 456 mm with a height of 840 mm before legs (add 90-125 mm); net weight is 46 kg. Electrically it needs single-phase 220-240 V 50 Hz, drawing 0.225 kW, within ±6%, on a 5 A breaker. Plan for 0.44 kW of heat into the space at 32 °C. It uses about 250 liters of water a day, or roughly 5 liters for every kilo of ice. Refrigerant is 90 g of flammable R290 (A3), a figure the yard or class surveyor will ask for. Hoshizaki lists automated cleaning, UV-C sanitization and internal drain pump for the IM-45WPE-E.
Fitting it on a vessel
The IM-45WPE-E is rated for rooms at 1 to 40 °C, with feed water between 5 and 35 °C at 0.7 to 8 bar. Water cooling keeps most of the heat out of the room, at the cost of about 250 liters a day from the tanks or watermaker. Hoshizaki matches the IM-45WPE-E with the 4HC-H single filter system. Send us the supply details and where the IM-45WPE-E will stand and we will confirm the rest with Hoshizaki.
Key features of the IM-45WPE-E
- EliteCUBE version with drain pump and UV-C sanitization
- 50 kg of cubes per 24 hours
- 18 kg built-in storage bin
- Water-cooled condenser
- R290 refrigerant
- Exterior: Stainless steel AISI 441, Galvanized steel (Rear)
- Automated cleaning, UV-C sanitization + Internal drain pump
- Accessories included: Installation kit, Legs, Scoop
IM-45WPE-E technical specifications
| Manufacturer | Hoshizaki |
|---|---|
| Model | IM-45WPE-E |
| Product type | Cube Ice Maker |
| Series | IM EliteCUBE |
| Configuration | Self-Contained |
| Manufacturer item number | M111-D302 |
| Country of origin | UK |
| Accessories included | Installation kit, Legs, Scoop |
| Compatible water filters | 4HC-H Single Water Filter, 4HC Replacement Cartridge |
| Width | 503 mm |
| Width (packed) | 635 mm |
| Depth | 456 mm |
| Depth (packed) | 520 mm |
| Height | 840 mm |
| Height (packed) | 1007 mm |
| Volume (packed) | 0.3325 m³ |
| Legs | for legs add 90-125 mm |
| Electrical consumption | 0.225 kW |
| Ambient temperature (maximum) | 40 °C |
| Ambient temperature (minimum) | 1 °C |
| Voltage tolerance | ±6% |
| Water supply pressure (maximum) | 0.8MPa (8 bar) |
| Water supply pressure (minimum) | 0.07MPa (0.7 bar) |
| Water supply temperature (maximum) | 35 °C |
| Water supply temperature (minimum) | 5 °C |
| Functions | Automated cleaning, UV-C sanitization + Internal drain pump |
| Electrical circuit breaker protection | 5 A |
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear) |
| Gross weight | 54 kg |
| Net weight | 46 kg |
| Heat rejection (AT 32 °C, WT 21 °C) | 0.44 kW |
| Power supply | 1/220 - 240V/50Hz |
| Storage bin capacity | 18 kg |
| Cooling system | Water Cooled |
| Ice type | Large cubes, Standard |
| Ice production (kg/24h) | 50 kg |
| Water consumption incl. condenser (m³/24h) | 0.25 m³ |
| CO2 equivalent | 0.27 kg |
| GWP | 3 GWP |
| Refrigerant charge | 90 g |
| Refrigerant type | R290 |
Also listed under
Questions about the IM-45WPE-E
How much ice does the IM-45WPE-E make per day?
Up to 50 kg of cubes in 24 hours, about 2.1 kg an hour. Real output drops as room and water temperatures rise.
Is the IM-45WPE-E air-cooled or water-cooled?
It is water-cooled. The air-cooled version is the IM-45PE-E.
What water supply does the IM-45WPE-E need?
Water at 5 to 35 °C and 0.7 to 8 bar, with the 4HC-H single filter system.
Where the IM-45WPE-E is used
Hoshizaki, manufacturer of the IM-45WPE-E
Hoshizaki: Japanese maker of commercial ice machines, supplied through Hoshizaki Europe with cube, crescent, flake, nugget, cylinder and ball ice makers, ice and water dispensers and sushi display cases. Configured to order — tell us the vessel and the supply voltage and frequency, and we will quote the correct build.
All Hoshizaki equipmentManuals and documents for the IM-45WPE-E
Documents are published by the manufacturer for the standard model. We confirm the build, supply and installation details for your vessel with the quotation.
