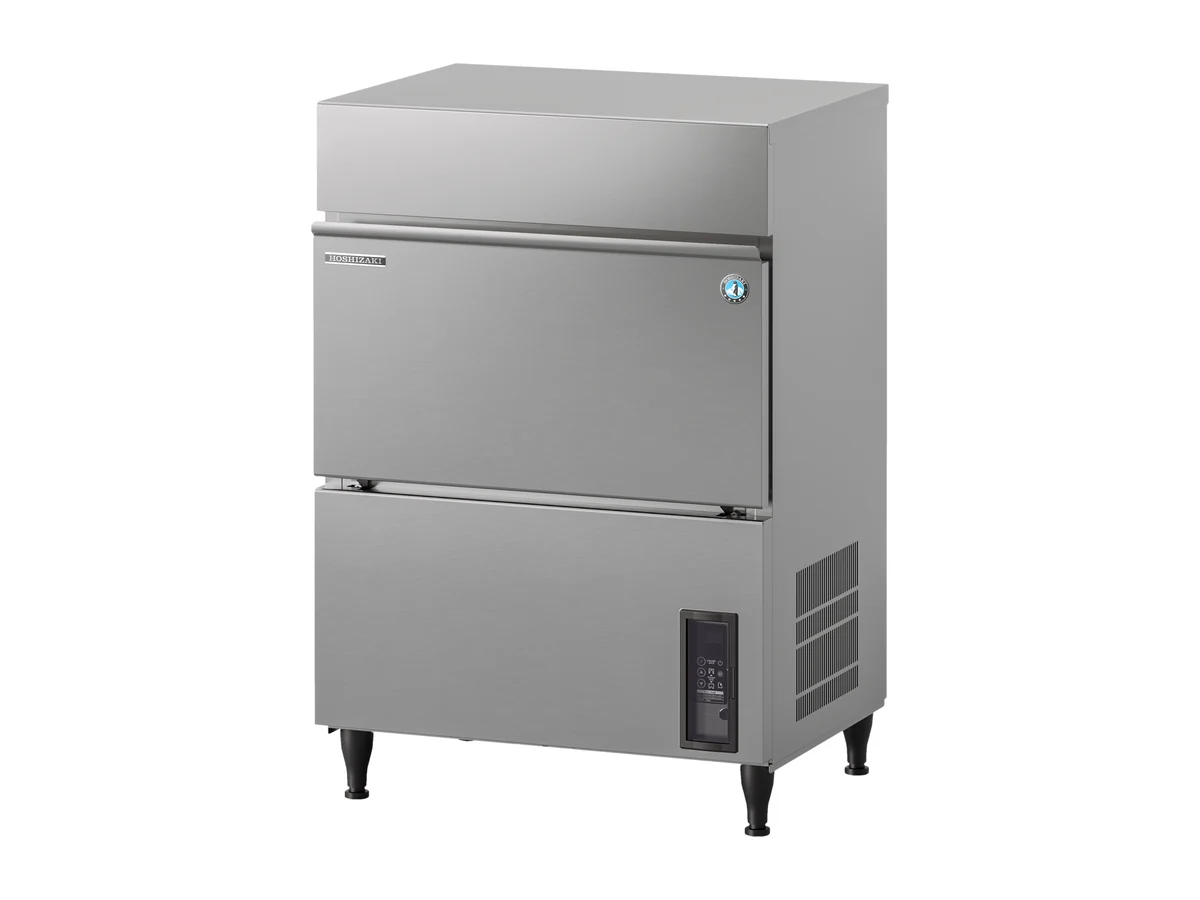

Hoshizaki Cube Ice Maker IM-65WPE-E – Self-Contained, Water-cooled, 62 kg/24h, L Cube
62 kg/24h cube ice from the Hoshizaki IM-65WPE-E, a self-contained water-cooled unit with a 26 kg bin. Full specs and manuals.
| Manufacturer | Hoshizaki |
|---|---|
| Model | IM-65WPE-E |
| Product type | Cube Ice Maker |
| Series | IM EliteCUBE |
| Configuration | Self-Contained |
Hoshizaki Cube Ice Maker IM-65WPE-E Overview
Hoshizaki rates the IM-65WPE-E at 62 kg of cubes per day. The ice drops into a 26 kg bin inside the same water-cooled cabinet. Spread over a day, it is about 2.6 kg per hour. At that rate the 26 kg bin takes around 10 hours to rebuild after a busy service.
Which IM-65WPE to pick
Hoshizaki sells the IM-65WPE in four versions, and this one, the EliteCUBE, has both the drain pump and UV-C sanitization. Drain position stops being a problem: the IM-65WPE-E pumps its waste water up to 1.5 m high and 10 m away. The UV-C lamp keeps the standing water in the tank treated between cleanings of this 62 kg/day machine. Cube size on the IM-65WPE-E is L (28 x 28 x 32 mm), the standard size with no suffix. The same machine also comes as IM-65WPE (Basic Cube), IM-65WPE-U (UltraCUBE) and IM-65WPE-F (FlexiCUBE). With a different cube it is the IM-65WPE-E-25 (S cube, 54 kg a day). Compare it with the air-cooled IM-65PE-E, which makes 58 kg a day, using 430 liters of water a day against 310 liters here and putting 0.83 kW of heat into the room instead of 0.43 kW.
In numbers
Footprint is 633 x 506 mm with a height of 840 mm before legs (add 90-125 mm); net weight is 48 kg. Electrically it needs single-phase 220-240 V 50 Hz, drawing 0.28 kW, within ±6%, on a 5 A breaker. At 32 °C room temperature it releases 0.43 kW of heat. It uses about 310 liters of water a day, or roughly 5 liters for every kilo of ice. Refrigerant is 110 g of flammable R290 (A3), a figure the yard or class surveyor will ask for. Hoshizaki lists automated cleaning, UV-C sanitization and internal drain pump for the IM-65WPE-E.
Fitting it on a vessel
Hoshizaki allows 1 to 40 °C in the room for the IM-65WPE-E, water at 5 to 35 °C and a supply pressure of 0.7 to 8 bar. The water-cooled condenser suits tight, badly ventilated spaces, but the IM-65WPE-E needs a steady supply of cooling water, around 310 liters a day in total. The matching water filter for 62 kg a day is the 4HC-H single system. Supply, water and fixing for the IM-65WPE-E are confirmed per vessel when we quote, since the figures above describe Hoshizaki's standard build.
Key features of the IM-65WPE-E
- EliteCUBE version with drain pump and UV-C sanitization
- 62 kg of cubes per 24 hours
- 26 kg built-in storage bin
- Water-cooled condenser
- R290 refrigerant
- Exterior: Stainless steel AISI 441, Galvanized steel (Rear)
- Automated cleaning, UV-C sanitization + Internal drain pump
- Accessories included: Ice chute, Installation kit, Scoop
IM-65WPE-E technical specifications
| Manufacturer | Hoshizaki |
|---|---|
| Model | IM-65WPE-E |
| Product type | Cube Ice Maker |
| Series | IM EliteCUBE |
| Configuration | Self-Contained |
| Manufacturer item number | M113-D313 |
| Country of origin | UK |
| Accessories included | Ice chute, Installation kit, Scoop |
| Compatible water filters | 4HC-H Single Water Filter, 4HC Replacement Cartridge |
| Width | 633 mm |
| Width (packed) | 735 mm |
| Depth | 506 mm |
| Depth (packed) | 570 mm |
| Height | 840 mm |
| Height (packed) | 1012 mm |
| Volume (packed) | 0.424 m³ |
| Legs | for legs add 90-125 mm |
| Electrical consumption | 0.28 kW |
| Ambient temperature (maximum) | 40 °C |
| Ambient temperature (minimum) | 1 °C |
| Voltage tolerance | ±6% |
| Water supply pressure (maximum) | 0.8MPa (8 bar) |
| Water supply pressure (minimum) | 0.07MPa (0.7 bar) |
| Water supply temperature (maximum) | 35 °C |
| Water supply temperature (minimum) | 5 °C |
| Functions | Automated cleaning, UV-C sanitization + Internal drain pump |
| Electrical circuit breaker protection | 5 A |
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear) |
| Gross weight | 58 kg |
| Net weight | 48 kg |
| Heat rejection (AT 32 °C, WT 21 °C) | 0.43 kW |
| Power supply | 1/220 - 240V/50Hz |
| Storage bin capacity | 26 kg |
| Cooling system | Water Cooled |
| Ice type | Large cubes, Standard |
| Ice production (kg/24h) | 62 kg |
| Water consumption incl. condenser (m³/24h) | 0.31 m³ |
| CO2 equivalent | 0.33 kg |
| GWP | 3 GWP |
| Refrigerant charge | 110 g |
| Refrigerant type | R290 |
Also listed under
Questions about the IM-65WPE-E
What is the daily output of the Hoshizaki IM-65WPE-E?
Up to 62 kg of cubes in 24 hours, about 2.6 kg an hour. Real output drops as room and water temperatures rise.
How is the IM-65WPE-E cooled?
It is water-cooled. The air-cooled version is the IM-65PE-E.
What water supply does the IM-65WPE-E need?
Water at 5 to 35 °C and 0.7 to 8 bar, with the 4HC-H single filter system.
Where the IM-65WPE-E is used
Hoshizaki, manufacturer of the IM-65WPE-E
Hoshizaki: Japanese maker of commercial ice machines, supplied through Hoshizaki Europe with cube, crescent, flake, nugget, cylinder and ball ice makers, ice and water dispensers and sushi display cases. Configured to order — tell us the vessel and the supply voltage and frequency, and we will quote the correct build.
All Hoshizaki equipmentManuals and documents for the IM-65WPE-E
Documents are published by the manufacturer for the standard model. We confirm the build, supply and installation details for your vessel with the quotation.
